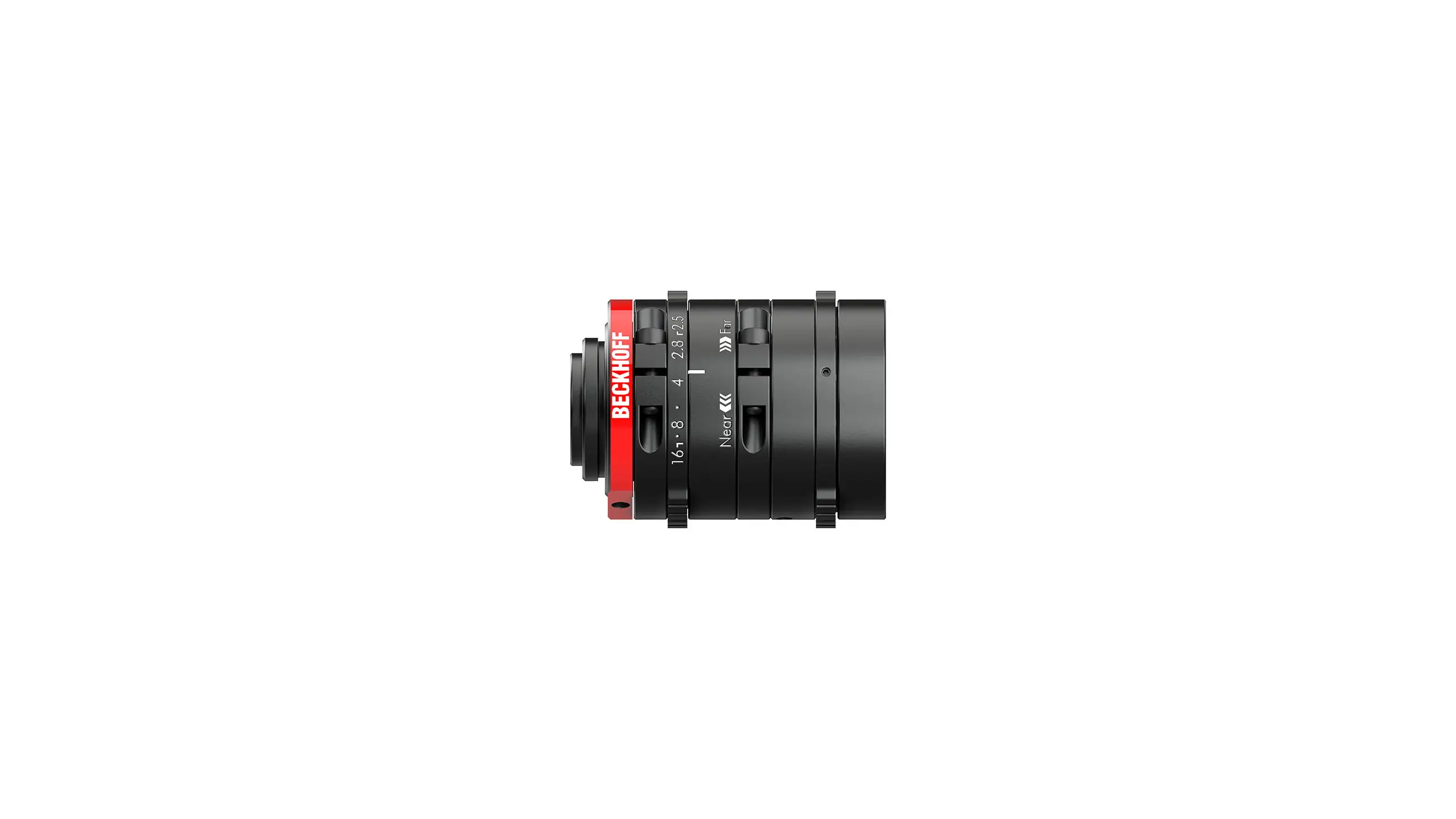

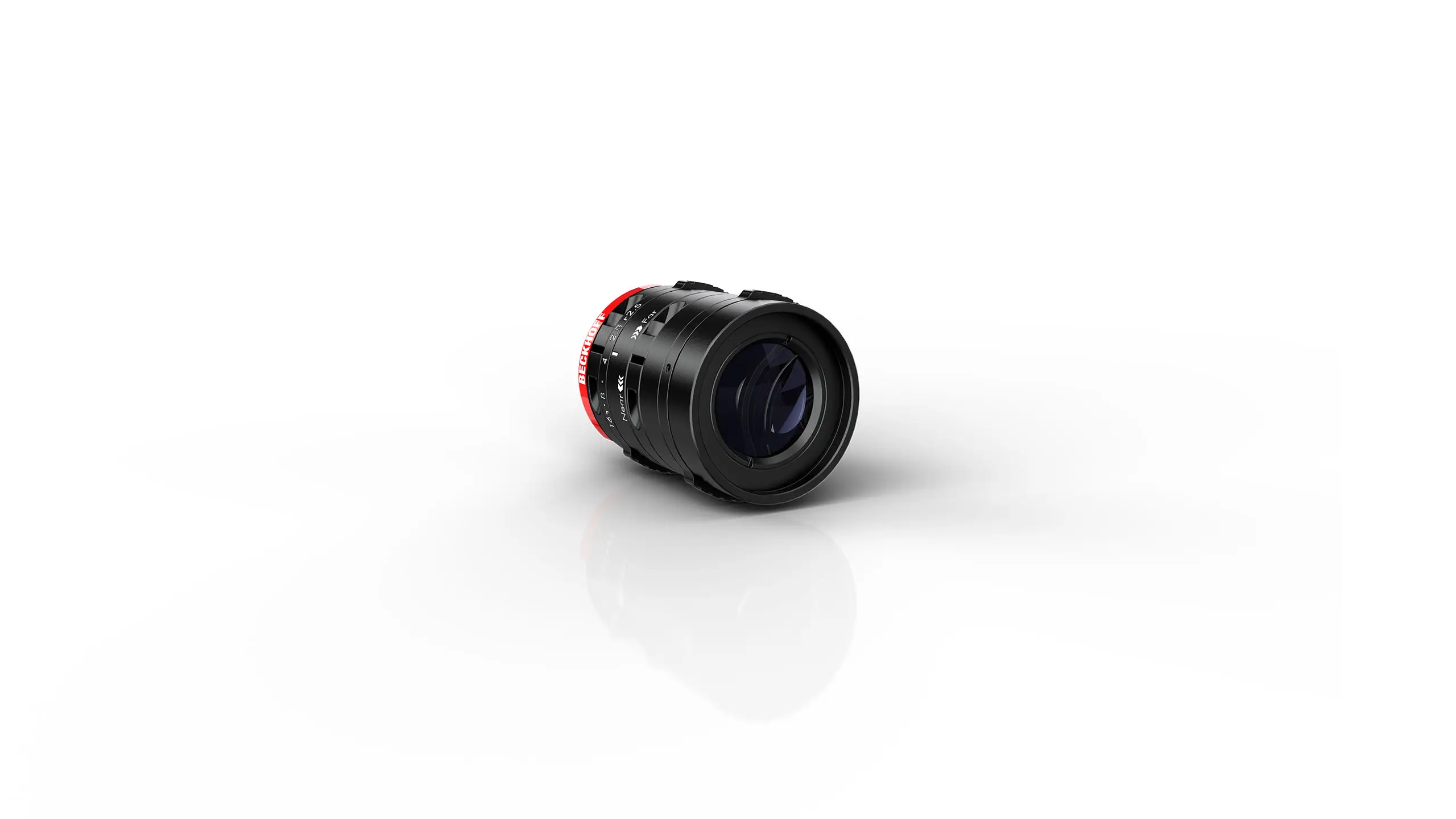

Благодаря прочной и простой в монтаже конструкции объектив VOS2000 C-mount идеально подходит для применения в тяжелых условиях промышленной автоматизации. Помимо простой регулировки, фокус и фиксированную диафрагму можно легко и точно зафиксировать компактными винтами. Широкополосное просветляющее покрытие работает в...
| Pixel size | 2.0 µm |
|---|---|
| Focal length | 6 mm |
| Aperture | f/2.5…f/16 |
| Aperture setting | manual |
| Sensor format | 2/3" (11 mm) |
| Max. angle of view | 74.8° x 58.4° |
| Разрешение | 250 lp/mm |
| Working distance lower range | 100 mm |
| Working distance upper range | infinity |
| Spectral range | 420…1050 nm |
| Lens mount | C mount |
| Filter thread | M35.5 x 0.5 |
| Dimensions (Ø x D) | 42 x 49.7 mm |
| Степень защиты | IP67, with lens protection tube |
| Рабочая температура | 0…60°C |
| Температура хранения | -10…+60°C |
| Устойчивость к вибрации/ударам | IEC60068-2-6 |
| Информация для заказа / VOS2000-0625CAS No. | 7439-92-1 |
| REACH SVHC | Lead |
| REACH Annex XVII | compliant |
| REACH Annex XIV | compliant |
| SCIP No. | f55e3539-709b-4df2-aaf9-4040f5a9dcd2 |
| POP | compliant |
| RoHS | compliant with exemption |
| Исключение RoHS | 6c: Copper alloy with a mass fraction of up to 4% lead |
| CA Prop65 | www.beckhoff.com/prop65 |
| Отказ от ответственности | This statement and the information contained above are, to the best of our knowledge and belief, accurate, based on the information we have received from our suppliers. This information is in line with the current standard of technology and our suppliers’ technical documentation. The absence of the substances is not verified by Beckhoff Automation by means of analytical tests. When addressed to our customers any information contained in this document is subject to the terms and conditions expressed in the governing customer agreement. Our general terms and conditions apply. |
