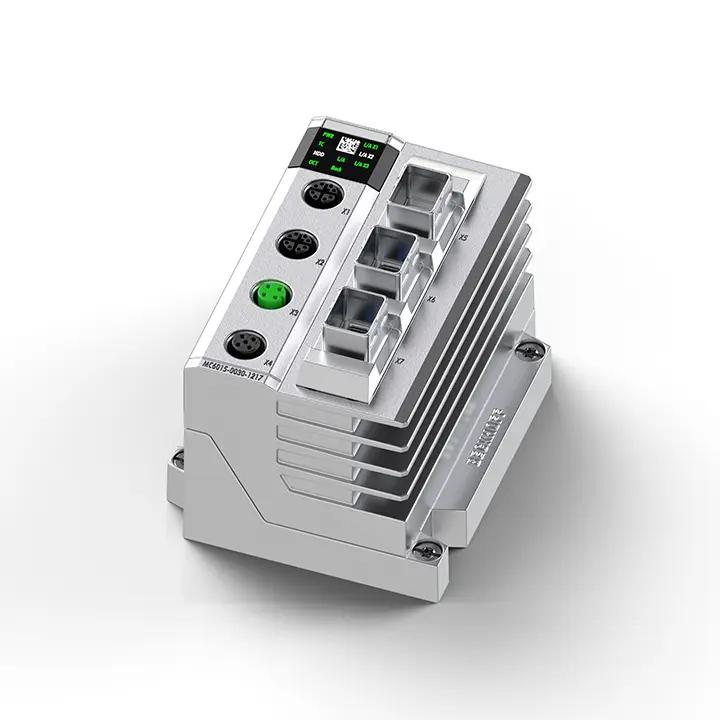

Модуль MC6015-0030-1217 IPC позволяет интегрировать промышленный ПК в MX-System. Основой для этого являются полная интеграция и совместимость TwinCAT и EtherCAT. Модуль может использоваться в первом слоте опорной плиты любого размера. Для соответствующих применений можно выбрать различные варианты процессора,...
| Category/version | Intel Atom ® |
|---|---|
| Процессор | select from the processor option list at an additional cost | up to Intel Atom ® x6416RE, 1.7 GHz, 4 cores (TC3: 50) |
| Slots for hard disk/flash | 1 slot for M.2 SSD |
| Операционная система | selection from the option list at an additional cost |
| Memory | select from the CPU/DRAM option list at an additional cost | up to 8 GB DDR4 RAM ex factory |
| Hard disks/flash | select from the SSD option list at an additional cost | up to 320 GB M.2 SSD |
| Интерфейсы | 2 x Ethernet 100/1000/2500 Mbit/s (M12), 1 x EtherCAT OUT (M12), 1 x power I/O (M12), 1 x mini DisplayPort (push-pull), 2 x USB 3.1 Gen. 2 (push-pull) |
| Number of data slots | 1 |
| Рабочая температура | 0…50°C |
| Температура хранения | -25…+60°C |
| Степень защиты | IP65/67 |
| Допуски/маркировки | CE, UL (in preparation) |
| Информация для заказа / MC6015-0030-1217C9900-H592 | 40 GB M.2 SSD, 3D flash, extended temperature range, for C601x and MC601x |
| C9900-H593 | 80 GB M.2 SSD, 3D flash, extended temperature range, for C601x and MC601x |
| C9900-H652 | 160 GB M.2 SSD, 3D flash, extended temperature range, for C601x and MC601x |
| C9900-H674 | 320 GB M.2 SSD, 3D flash, extended temperature range, for C601x and MC601x |
| Информация для заказа / MC6015-0030-1217C9900-C655 | processor Intel Atom ® x6214RE, 1.4 GHz, 2 cores (TC3: 40) and 4 GB DDR4-RAM |
| C9900-C656 | processor Intel Atom ® x6416RE, 1.7 GHz, 4 cores (TC3: 50) and 8 GB DDR4-RAM |
| Информация для заказа / MC6015-0030-1217C9900-S510 | Windows 10 IoT Enterprise 2021 LTSC, 64 bit, German, for Industrial PCs with Intel Atom ® |
| C9900-S511 | Windows 10 IoT Enterprise 2021 LTSC, 64 bit, English, for Industrial PCs with Intel Atom ® |
| C9900-S537 | Windows 11 IoT Enterprise 2024 LTSC, 64 bit, German, for Industrial PCs with Intel Atom ® from x6 |
| C9900-S538 | Windows 11 IoT Enterprise 2024 LTSC, 64 bit, English, for Industrial PCs with Intel Atom ® from x6 |
