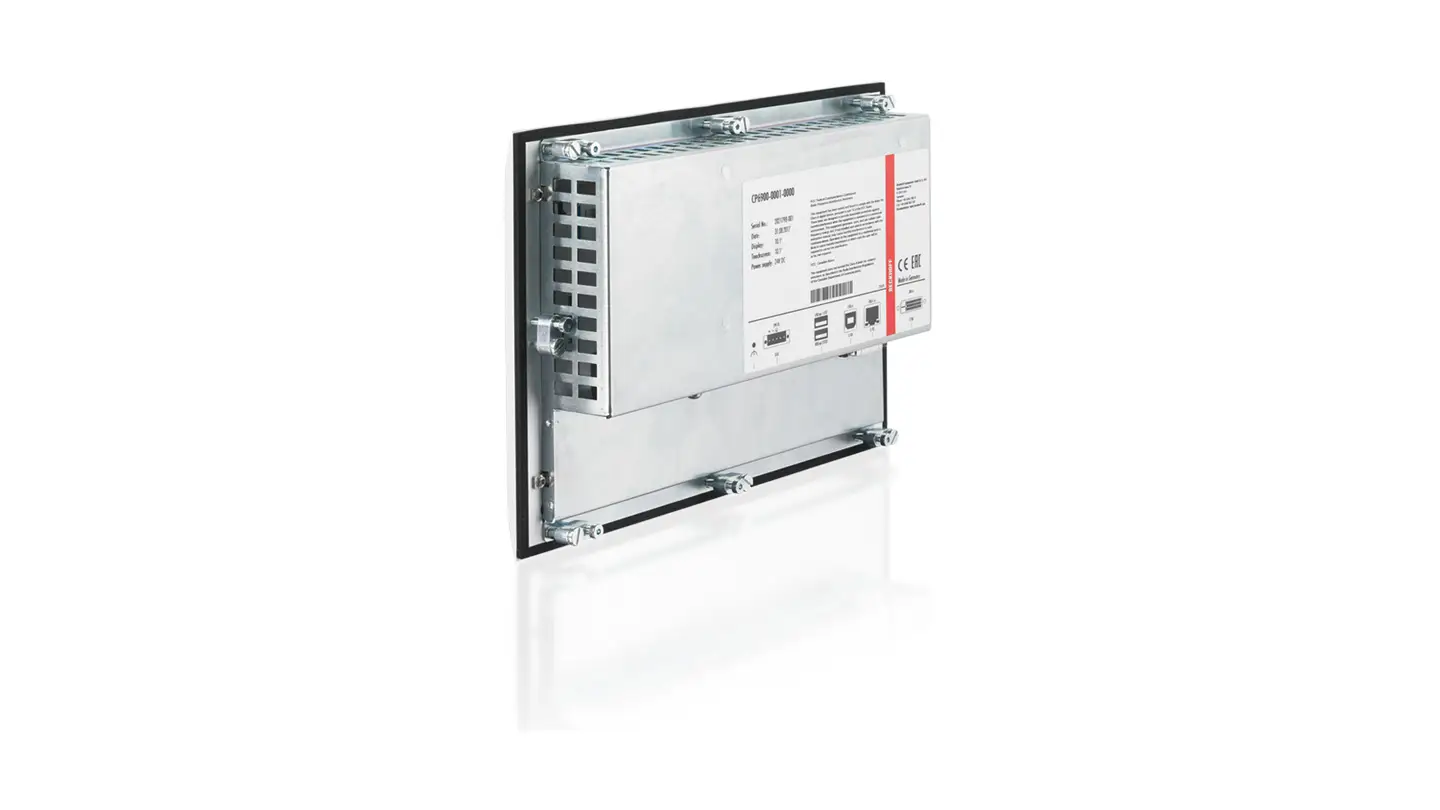

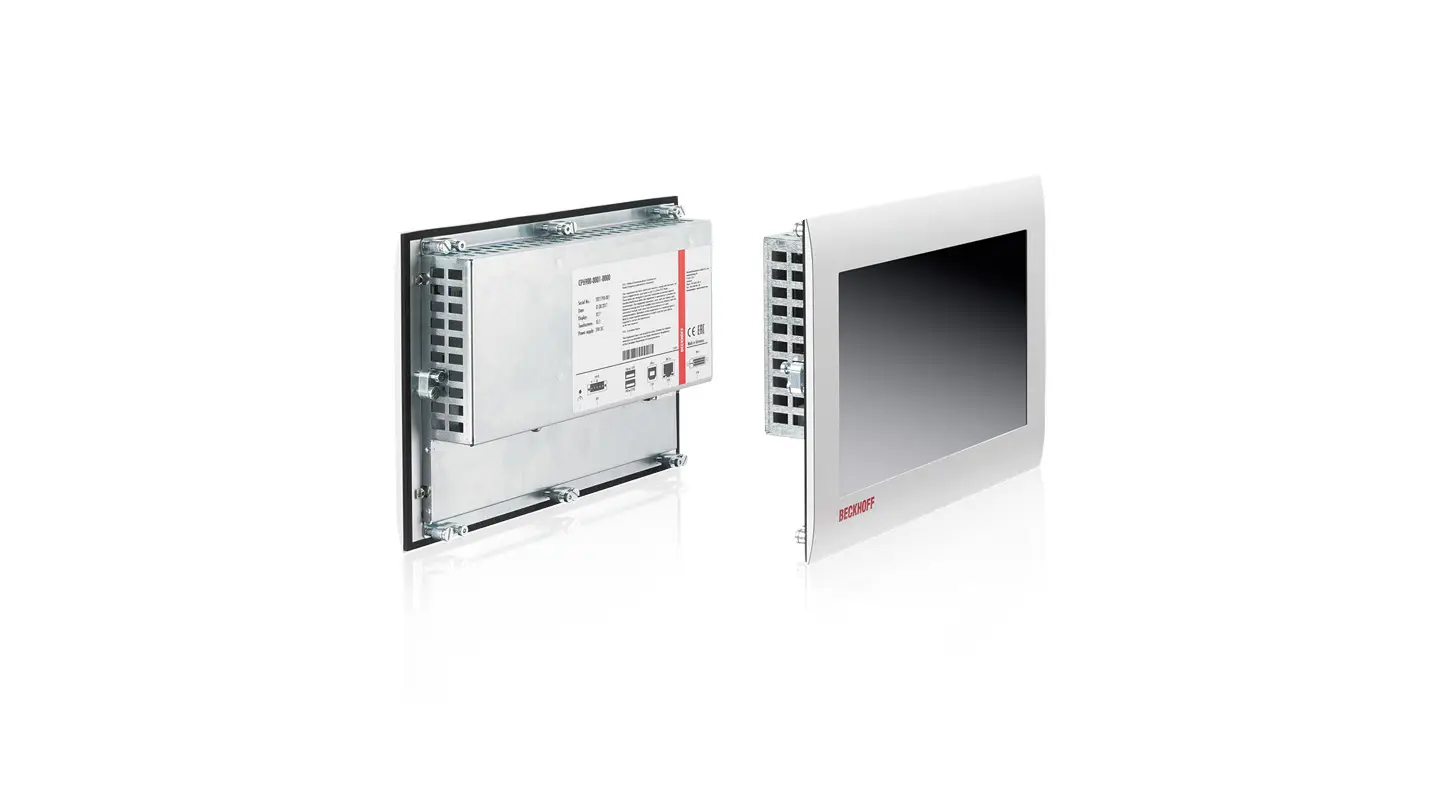

CP6900 Economy Control Panel расширяет начальный класс IPC встроенной панелью управления с расширенным интерфейсом DVI/USB. Панель предназначена для установки на передней стороне шкафа управления и оснащена 10,1-дюймовым сенсорным дисплеем. В идеальном сочетании с компактными Embedded PCs серии CX или Industrial PCs...
| Корпус | aluminum front with sheet-steel rear cover |
|---|---|
| Размер/разрешение дисплея | 10.1" 1024 x 600 |
| Сенсорный экран | single-finger touch screen |
| Степень защиты | front side IP54, rear side IP20 |
| Технология подключения | DVI-E and USB-E 2.0 enables to connect the Control Panel at a distance of up to 50 m to the PC. The DVI-E input is compatible to the standard DVI output of a PC. USB-E 2.0 transmits USB 2.0 with 480 Mbit/s. |
| Интерфейсы | RJ45 for USB-E 2.0, USB 2.0 input for the direct connection to the standard USB output of a PCs at a distance up to 5 m, DVI input, 2 x USB 2.0 |
| Рабочая температура | 0…55°C |
| Монтаж | pull-out clamping levers for fast installation without loose parts |
| Питание | 24 V DC |
| Информация для заказа / CP6900-0001-0010C9900-T902 | touch screen pen with wall holder for CP6xxx |
| C9900-K560 | Connecting kit for CP69xx including C9900-K549 DVI cable, C9900-K554 USB 2.0 cable (1.00 m) – 1.00 m |
| C9900-K513 | Connecting kit for CP69xx including C9900-K550 DVI cable, C9900-K552 USB 2.0 cable (3.00 m) – 3.00 m |
| C9900-K515 | Connecting kit for CP69xx including C9900-K527 DVI cable, C9900-K553 USB 2.0 cable (5.00 m) – 5.00 m |
| C9900-K625 | Connecting kit for CP29xx-0000, CPX29xx-0000 and CP69xx-xxxx-0010 including C9900-K528 DVI cable, C9900-K538 USB Extended cable, CU8801-0000 USB extension, C9900-K554 USB 2.0 cable (1.00 m) – 10.00 m |
| C9900-K626 | Connecting kit for CP29xx-0000, CPX29xx-0000 and CP69xx-xxxx-0010 including C9900-K534 DVI cable, C9900-K539 USB Extended cable, CU8801-0000 USB extension, C9900-K554 USB 2.0 cable (1.00 m) – 20.00 m |
| C9900-K627 | Connecting kit for CP29xx-0000, CPX29xx-0000 and CP69xx-xxxx-0010 including C9900-K535 DVI cable, C9900-K540 USB Extended cable, CU8801-0000 USB extension, C9900-K554 USB 2.0 cable (1.00 m) – 30.00 m |
| C9900-K628 | Connecting kit for CP29xx-0000, CPX29xx-0000 and CP69xx-xxxx-0010 including C9900-K536 DVI cable, C9900-K541 USB Extended cable, CU8801-0000 USB extension, C9900-K554 USB 2.0 cable (1.00 m) – 40.00 m |
| C9900-K629 | Connecting kit for CP29xx-0000, CPX29xx-0000 and CP69xx-xxxx-0010 including C9900-K537 DVI cable, C9900-K542 USB Extended cable, CU8801-0000 USB extension, C9900-K554 USB 2.0 cable (1.00 m) – 50.00 m |
| C9900-K777 | Connecting kit for CP69xx including C9900-K780 DisplayPort cable, C9900-K554 USB 2.0 cable (1.00 m) – 1.00 m |
| C9900-K778 | Connecting kit for CP69xx including C9900-K781 DisplayPort cable, C9900-K552 USB 2.0 cable (3.00 m) – 3.00 m |
| C9900-K779 | Connecting kit for CP69xx including C9900-K782 DisplayPort cable, C9900-K553 USB 2.0 cable (5.00 m) – 5.00 m |
| C9900-G072 | Push-button extension for CP6x00 with landscape 10.1-inch display – push-button extension on the bottom side – 3 push-buttons with signal lamp, type RAFI RAFIX 22FS+, round, 30 mm – 1 emergency stop, type RAFI RAFIX 22FS+ – Labels for push-button caps for individual marking of each push-button can be ordered as an option. – The emergency stop is wired with two normally-closed contacts, the red push-button with one normally-closed contact and the remaining push-buttons each with one normally-open contact to a terminal row. – Additionally, all push-buttons are transmitted with a normally-open contact via USB. – The LEDs of the push-buttons are controlled via USB only. |
| C9900-G073 | Push-button extension for CP6x00 with landscape 10.1-inch display – push-button extension on the bottom side – 3 push-buttons with signal lamp, type RAFI RAFIX 22FS+, round, 30 mm – 1 emergency stop, type RAFI RAFIX 22FS+ – Labels for push-button caps for individual marking of each push-button can be ordered as an option. – The emergency stop and the red push-button are wired each with two normally-closed contacts to a terminal row. The remaining push-buttons are wired each with two normally-open contacts to a terminal row. – The LEDs of the push-buttons are wired to a terminal row. |
