Multi-touch может использоваться непосредственно в полевых условиях с серией панельных ПК CP37xx-1600 Panel PC. Устройства в прочном алюминиевом корпусе имеют полную степень защиты IP65 и предназначены для установки на монтажный кронштейн. Оснащенные процессорами Intel Atom ® с числом ядер до четырех, панельные ПК...
| Корпус | aluminum housing for mounting arm installation |
|---|---|

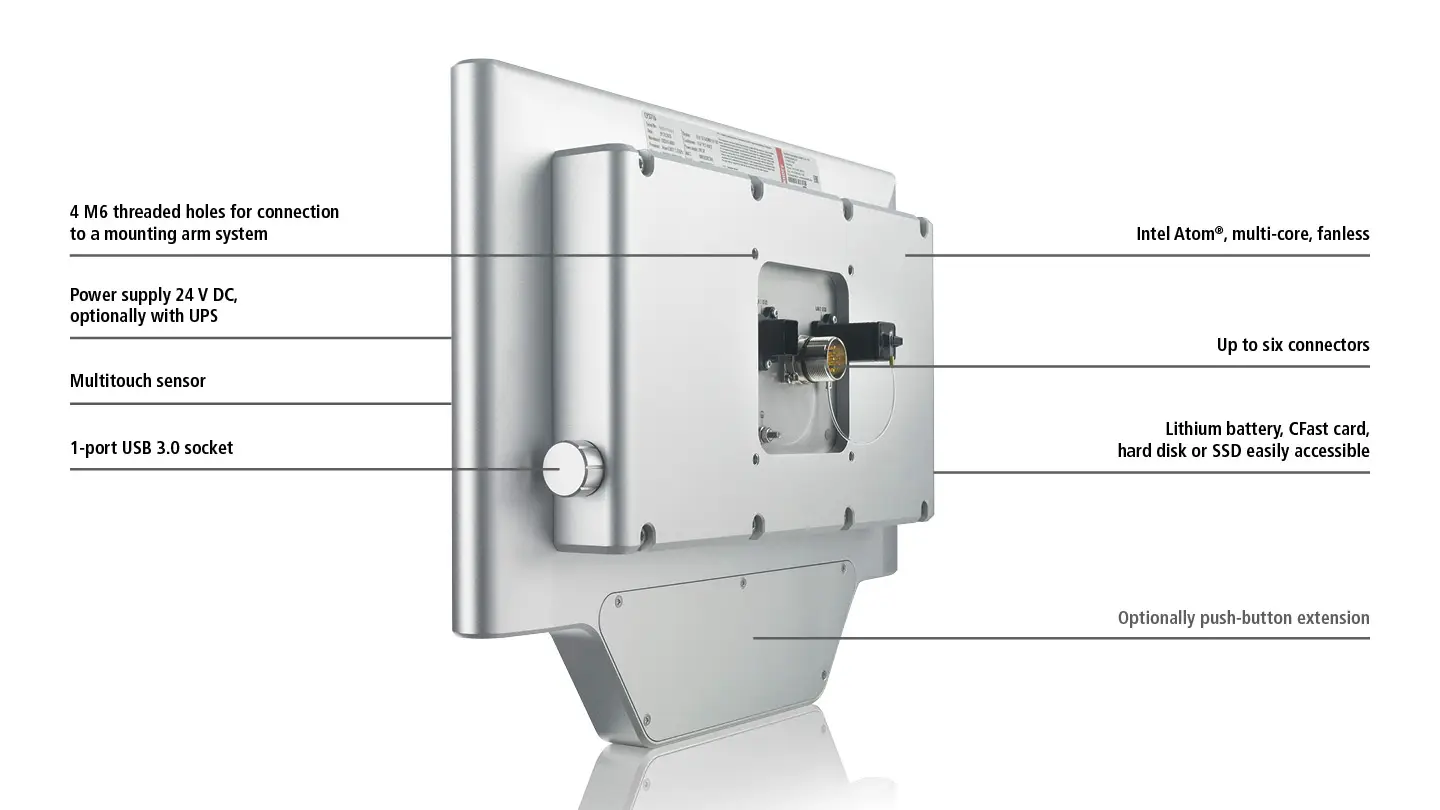

| Адаптер монтажного рычага | 4 M6 threaded holes with a distance of 100 x 100 mm for connection to a mounting arm system | rotatable and tiltable mounting arm adapter for mounting arm systems with 48 mm tube from top or from bottom |
| Wiring area | for up to 6 IP65 connectors, 4 of these are free |
| Slots for hard disk/flash | 1 slot for CFast | 1 slot for 2½-inch hard disk/SSD |
| Охлаждение | passive |
| Free space for air circulation | 20 cm (7.9") around the PC required |
| Extensions | 3 M5 threaded holes on the underside of the Control Panel for mounting mechanical extensions | toolboard or handle |
| Степень защиты | IP65 |
| Рабочая температура | 0…45°C |
| Размер/разрешение дисплея | 15" 1024 x 768, 15.6" 1366 x 768, 18.5" 1366 x 768, 19" 1280 x 1024, 21.5" 1920 x 1080 or 24" 1920 x 1080 |
| Сенсорный экран | multi-finger touch screen |
| Процессор | Intel Atom ® x5-E3930, 1.3 GHz, 2 cores (TC3: 40) | Intel Atom ® x5-E3940, 1.6 GHz, 4 cores (TC3: 50) |
| Motherboard | 3½-inch motherboard for Intel Atom ® x5-E39xx |
| Memory | 4 GB DDR4 RAM | up to 8 GB DDR4 RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board | 1 additional 100/1000BASE-T |
| Hard disks/flash | 40 GB CFast card | up to 320 GB CFast card, hard disk, SSD |
| Интерфейсы | 1 x USB 3.0 with screw-on cap IP65 in the bottom 1 x M23 socket for power supply 1 x Ethernet 100/1000BASE-T push-pull |
| Питание | 24 V DC | UPS |
| Операционная система | – | Windows 10 IoT Enterprise |
