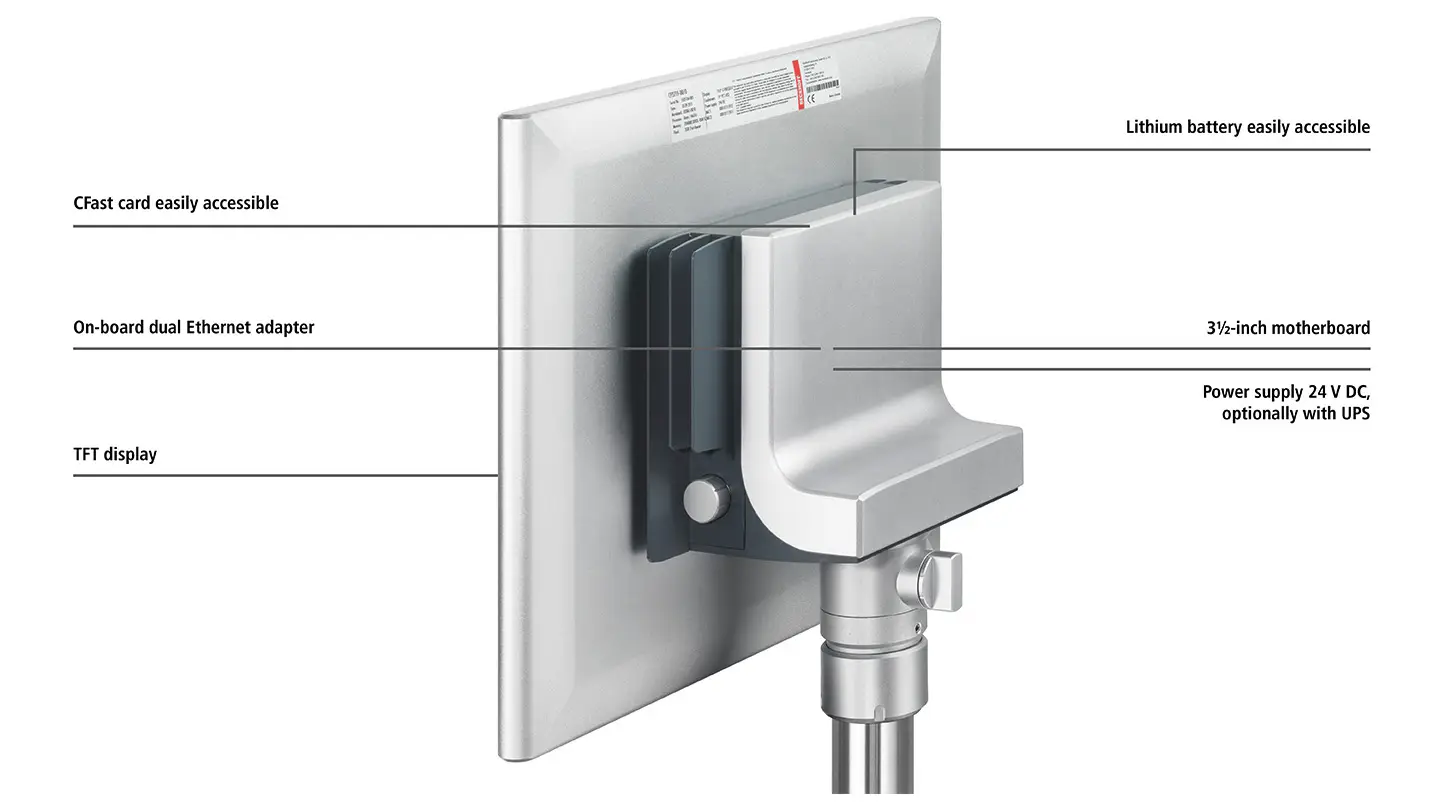

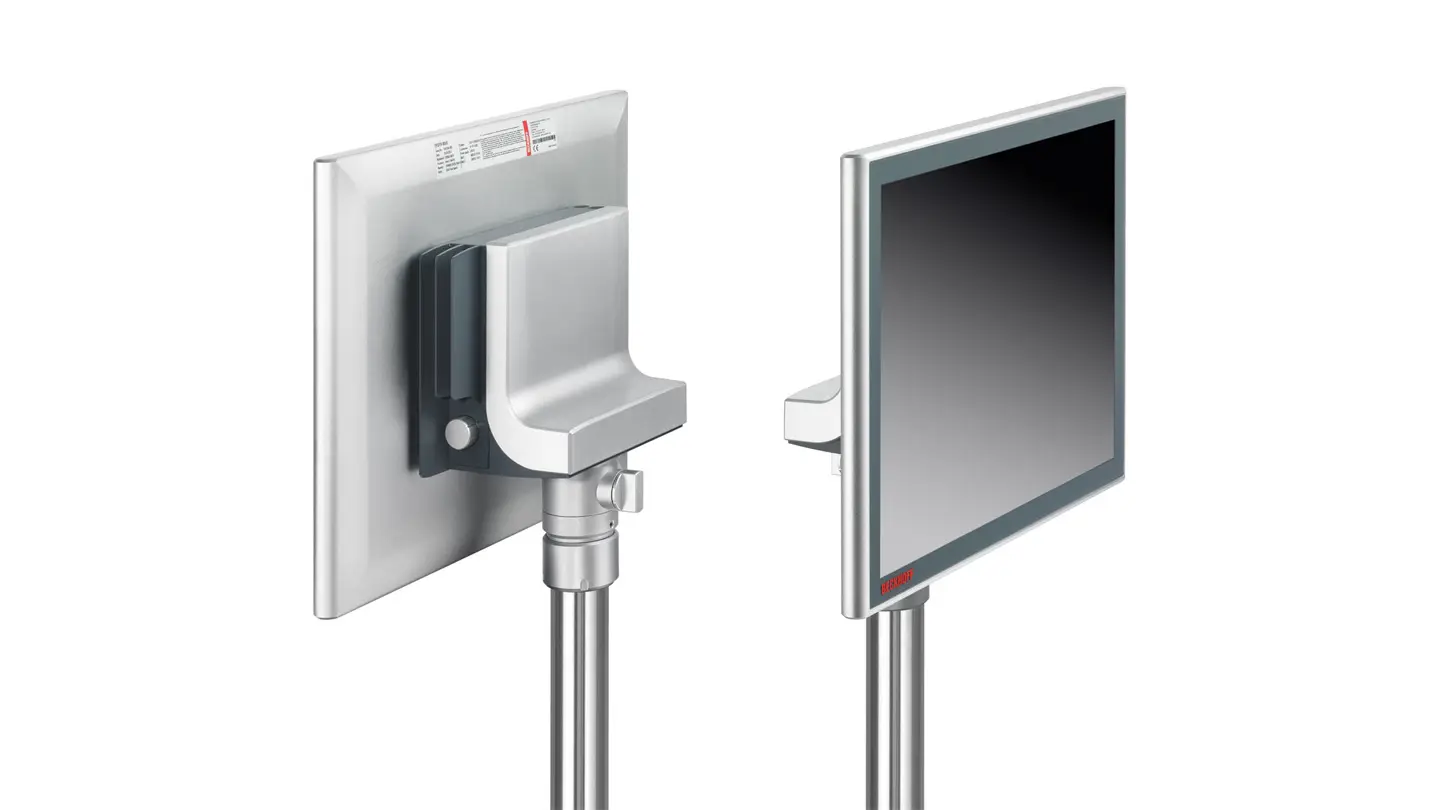

Серия CP37xx позволяет использовать панельный ПК с multi-touch непосредственно в полевых условиях. Устройства в прочном алюминиевом корпусе имеют полную степень защиты IP65 и предназначены для установки на монтажный кронштейн. Панельные ПК обеспечивают высокую вычислительную мощность благодаря процессорам Intel Atom ®...
| Корпус | aluminum housing for mounting arm installation |
|---|---|
| Адаптер монтажного рычага | rotatable and tiltable mounting arm adapter for Rittal and Rolec mounting arm systems with 48 mm tube from top | from bottom |
| Wiring area | for up to 4 IP65 connectors, 2 of these are free |
| Slots for hard disk/flash | 2 slots for CFast |
| Охлаждение | passive through heat sink structure, internal fan for equal heat distribution to all housing walls |
| Free space for air circulation | 20 cm (7.9") around the PC required |
| Степень защиты | IP65 |
| Рабочая температура | 0…45°C |
| Размер/разрешение дисплея | 12" 800 x 600, 12.1" 1280 x 800, 15" 1024 x 768, 15.6" 1366 x 768, 18.5" 1366 x 768, 19" 1280 x 1024, 21.5" 1920 x 1080 or 24" 1920 x 1080 |
| Сенсорный экран | multi-finger touch screen |
| Процессор | Intel Atom ® x5-E3930, 1.3 GHz, 2 cores (TC3: 40) | Intel Atom ® x5-E3940, 1.6 GHz, 4 cores (TC3: 50) |
| Motherboard | 3½-inch motherboard for Intel Atom ® x5-E39xx |
| PCIe ® slots | – | 1 PCIe ® module slot |
| Memory | 4 GB DDR4 RAM | up to 8 GB DDR4 RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board, one of these is led out | 1 additional 100/1000BASE-T |
| Hard disks/flash | 40 GB CFast card | up to 320 GB CFast card |
| Интерфейсы | 1 x Ethernet 100/1000BASE-T push-pull |
| Питание | 24 V DC | UPS |
| Операционная система | – | Windows 10 IoT Enterprise |
