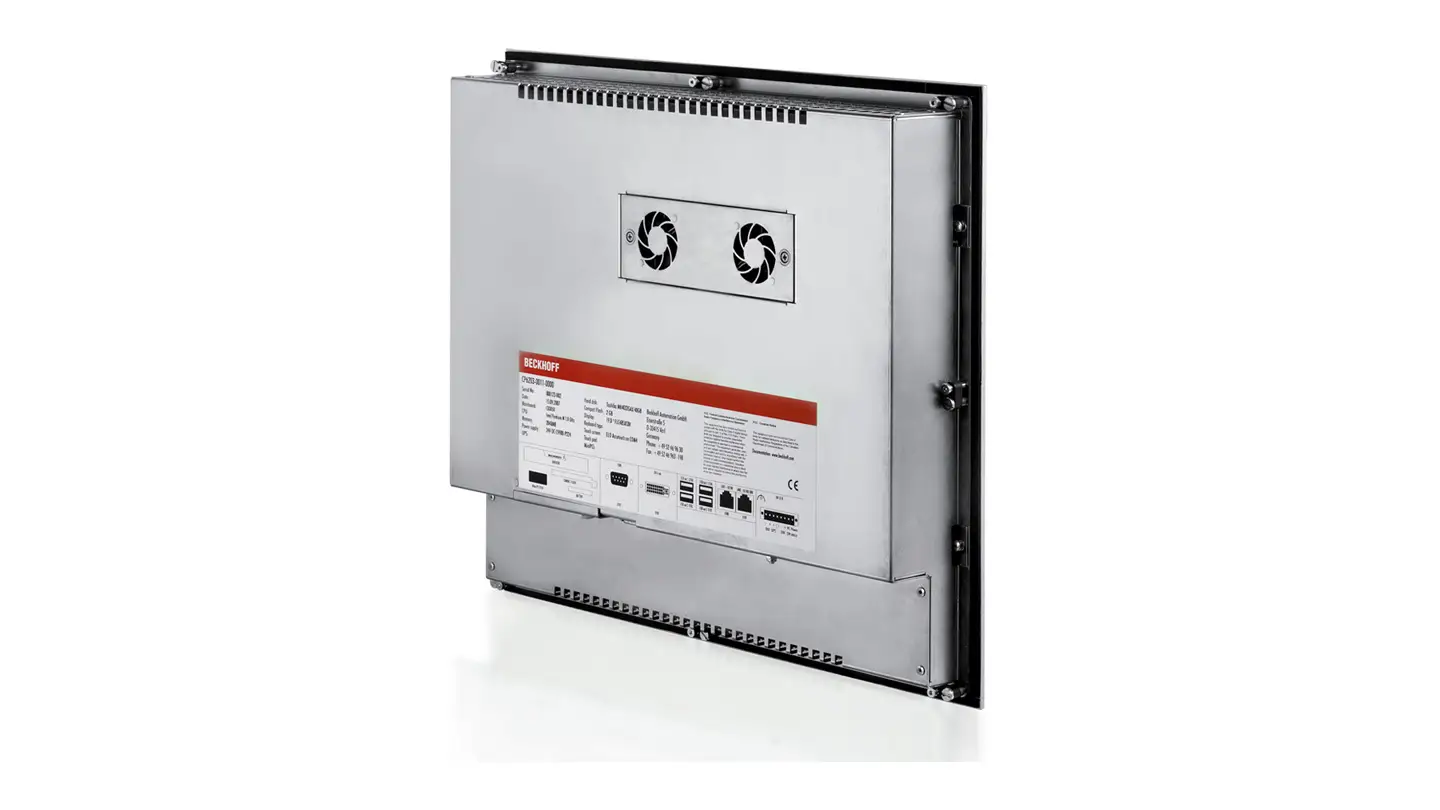

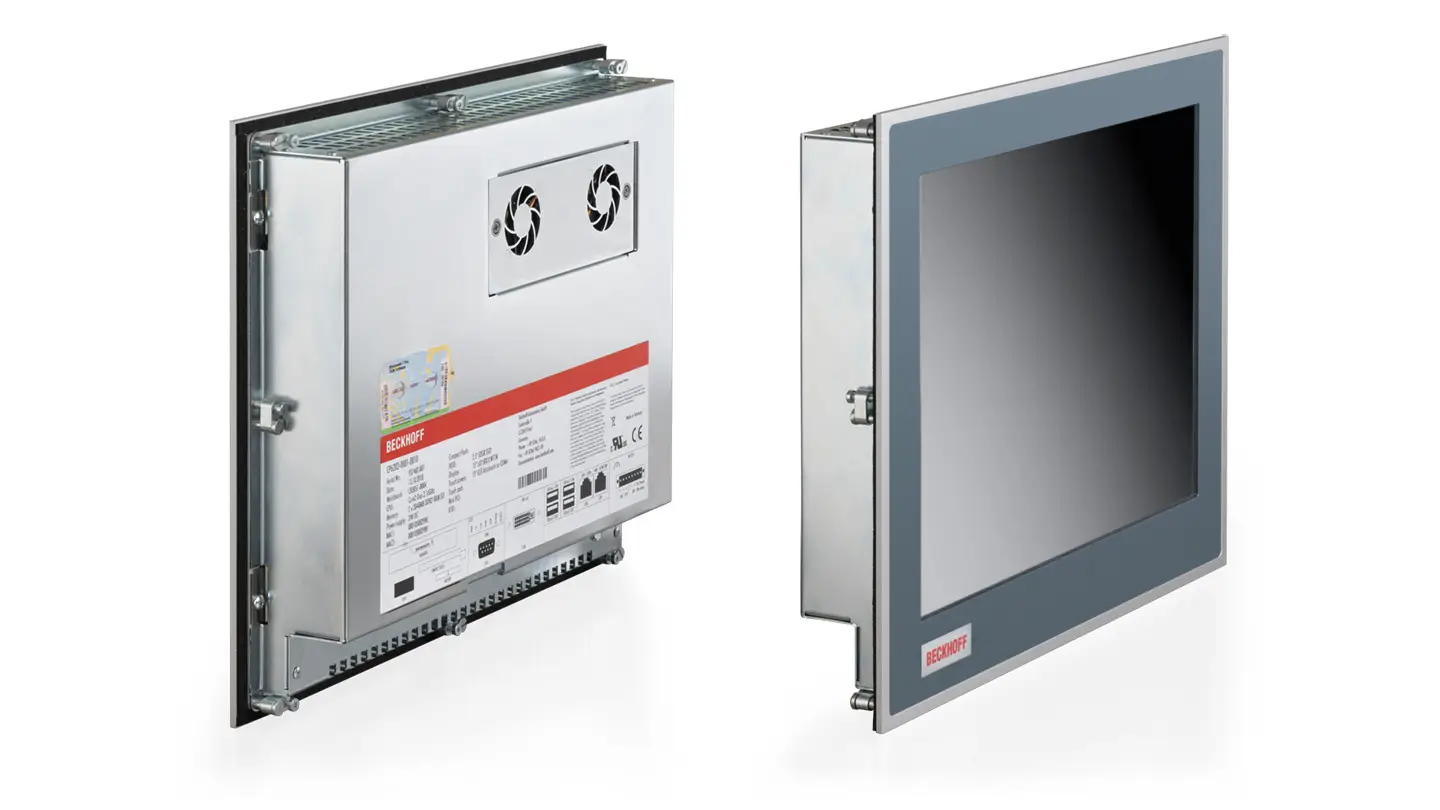

Серия встраиваемых панельных ПК CP62xx предназначена для установки на передней панели шкафа управления. Серия CP62xx сочетает дизайн панелей управления Beckhoff с современной технологией промышленных ПК. Для каждого применения доступны подходящий размер дисплея и клавиатура. Благодаря высокоинтегрированным 3½-inch...
| Корпус | aluminum front with sheet-steel rear cover | stainless steel housing with flush mounted touch screen at 12", 15" and 19" display without front keyboard |
|---|---|
| Slots for hard disk/flash | 1 slot for 2½-inch hard disk/SSD, 1 slot for CFast | 1 slot for CFast |
| Монтаж | pull-out clamping levers for fast installation without loose parts |
| Степень защиты | front side IP65, rear side IP20 |
| Рабочая температура | 0…55°C |
| Размер/разрешение дисплея | 12" 800 x 600, 15" 1024 x 768 or 19" 1280 x 1024 |
| Сенсорный экран | single-finger touch screen or touch pad |
| Фронтальная клавиатура | alphanumerical or numerical PC keyboard in US layout or only function keys, each variant with 10 PLC special keys and LEDs or front laminate without keys, only display |
| Процессор | Intel ® Celeron ® G3900TE 2.3 GHz, 2 cores (TC2, TC3: 50) | up to Intel ® Core™ i7 7700(T) 2.9 GHz, 4 cores (TC3: 80) |

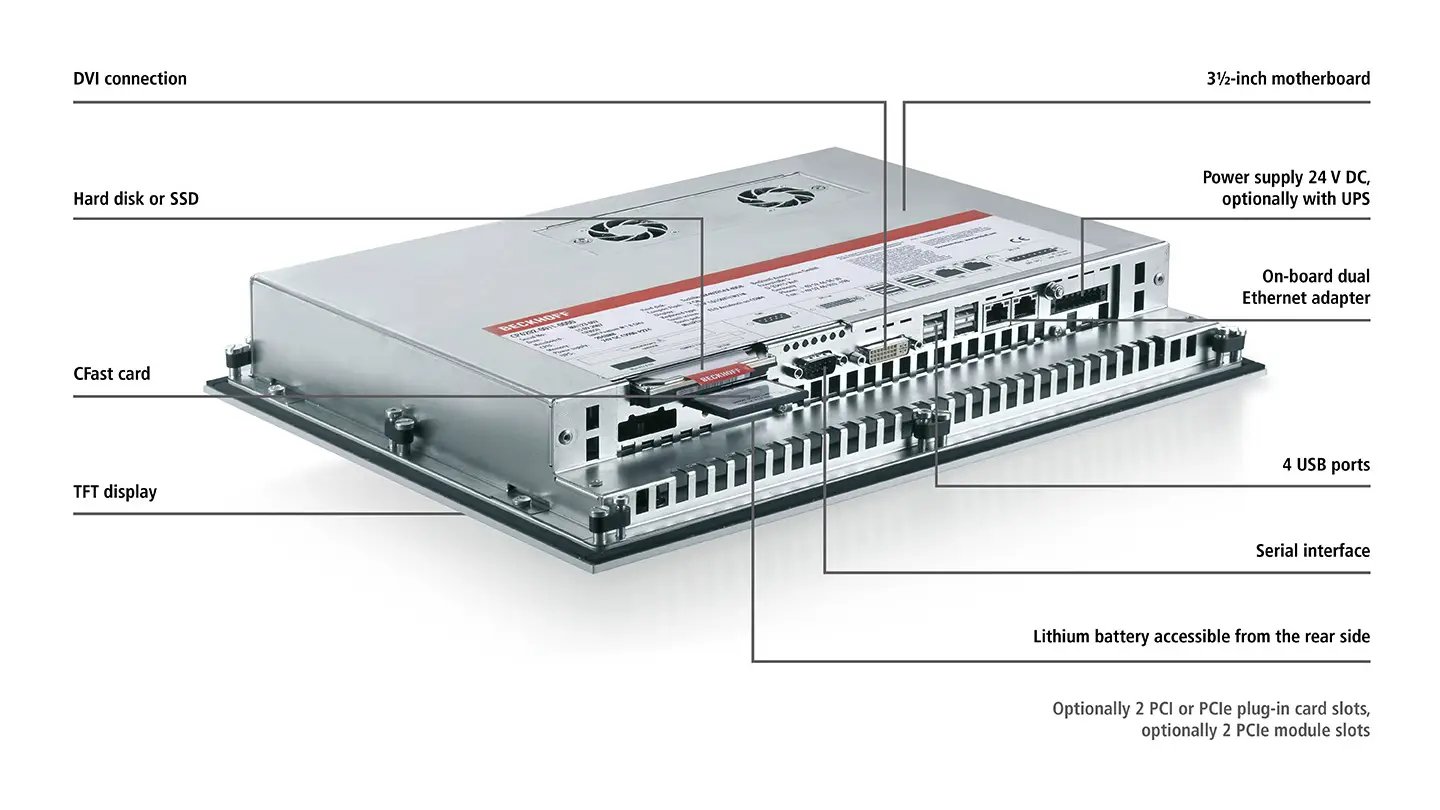

| Motherboard | 3½-inch motherboard for 6 th /7 th generation Intel ® Celeron ® , Pentium ® , Core™ i3/i5/i7 |
| PCIe ® slots | – | 2 PCIe ® module slots or 2 plug-in card slots PCI™ or PCIe ® |
| Memory | 4 GB DDR4 RAM | up to 32 GB DDR4 RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | hard disk, 2½-inch, 1 TB | SSD, CFast |
| Интерфейсы | 4 x USB 3.0, 1 x RS232, 1 x DVI |
| Питание | 24 V DC | UPS |
| Операционная система | – | Windows 10 IoT Enterprise |
| Информация для заказа / CP6201-0021CP6201-0000-0070 | 12-inch display 800 x 600, without keys |
| CP6201-0001-0070 | 12-inch display 800 x 600, without keys, touch screen |
| CP6201-0020-0070 | 12-inch display 800 x 600, without keys, USB A socket in the front |
| CP6201-0021-0070 | 12-inch display 800 x 600, without keys, USB A socket in the front, touch screen |
| CP6211-0000-0070 | 12-inch display 800 x 600, function keys |
| CP6211-0001-0070 | 12-inch display 800 x 600, function keys, touch screen |
| CP6221-0000-0070 | 12-inch display 800 x 600, numeric keyboard |
| CP6221-0001-0070 | 12-inch display 800 x 600, numeric keyboard, touch screen |
| CP6221-0002-0070 | 12-inch display 800 x 600, numeric keyboard, touch pad |
| CP6231-0000-0070 | 12-inch display 800 x 600, alphanumeric keyboard |
| CP6231-0001-0070 | 12-inch display 800 x 600, alphanumeric keyboard, touch screen |
| CP6231-0002-0070 | 12-inch display 800 x 600, alphanumeric keyboard, touch pad |
| CP6202-0000-0070 | 15-inch display 1024 x 768, without keys |
| CP6202-0001-0070 | 15-inch display 1024 x 768, without keys, touch screen |
| CP6202-0020-0070 | 15-inch display 1024 x 768, without keys, USB A socket in the front |
| CP6202-0021-0070 | 15-inch display 1024 x 768, without keys, USB A socket in the front, touch screen |
| CP6212-0000-0070 | 15-inch display 1024 x 768, function keys |
| CP6212-0001-0070 | 15-inch display 1024 x 768, function keys, touch screen |
| CP6222-0000-0070 | 15-inch display 1024 x 768, numeric keyboard |
| CP6222-0001-0070 | 15-inch display 1024 x 768, numeric keyboard, touch screen |
| CP6222-0002-0070 | 15-inch display 1024 x 768, numeric keyboard, touch pad |
| CP6232-0000-0070 | 15-inch display 1024 x 768, alphanumeric keyboard |
| CP6232-0001-0070 | 15-inch display 1024 x 768, alphanumeric keyboard, touch screen |
| CP6232-0002-0070 | 15-inch display 1024 x 768, alphanumeric keyboard, touch pad |
| CP6242-0000-0070 | 15-inch display 1024 x 768, alphanumeric keyboard, PLC keys on the sides |
| CP6242-0001-0070 | 15-inch display 1024 x 768, alphanumeric keyboard, PLC keys on the sides, touch screen |
| CP6203-0000-0070 | 19-inch display 1280 x 1024, without keys |
| CP6203-0001-0070 | 19-inch display 1280 x 1024, without keys, touch screen |
| CP6203-0020-0070 | 19-inch display 1280 x 1024, without keys, USB A socket in the front |
| CP6203-0021-0070 | 19-inch display 1280 x 1024, without keys, USB A socket in the front, touch screen |
| CP6213-0000-0070 | 19-inch display 1280 x 1024, function keys |
| CP6213-0001-0070 | 19-inch display 1280 x 1024, function keys, touch screen |
| CP6223-0000-0070 | 19-inch display 1280 x 1024, numeric keyboard |
| CP6223-0001-0070 | 19-inch display 1280 x 1024, numeric keyboard, touch screen |
| CP6223-0002-0070 | 19-inch display 1280 x 1024, numeric keyboard, touch pad |
| CP6233-0000-0070 | 19-inch display 1280 x 1024, alphanumeric keyboard |
| CP6233-0001-0070 | 19-inch display 1280 x 1024, alphanumeric keyboard, touch screen |
| CP6233-0002-0070 | 19-inch display 1280 x 1024, alphanumeric keyboard, touch pad |
