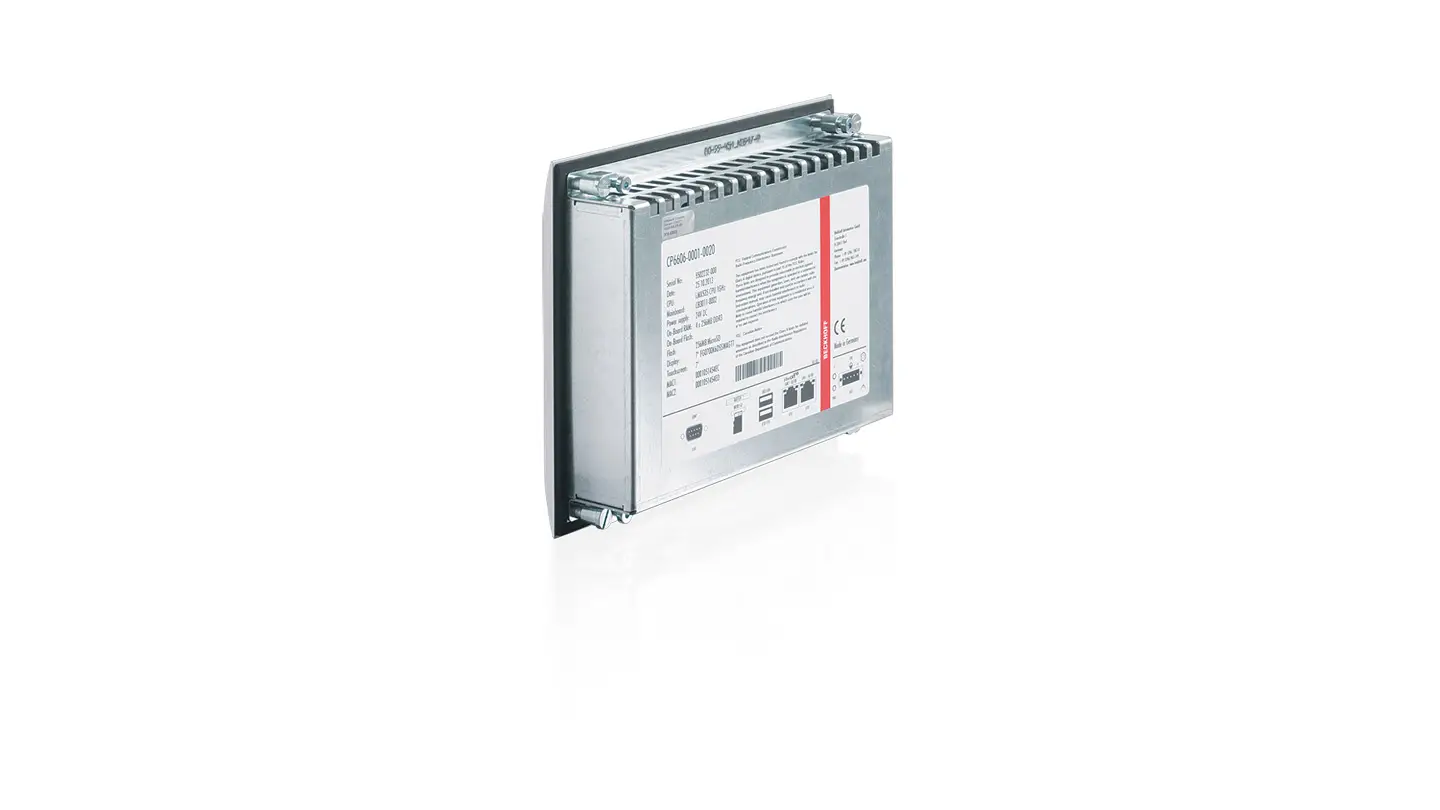

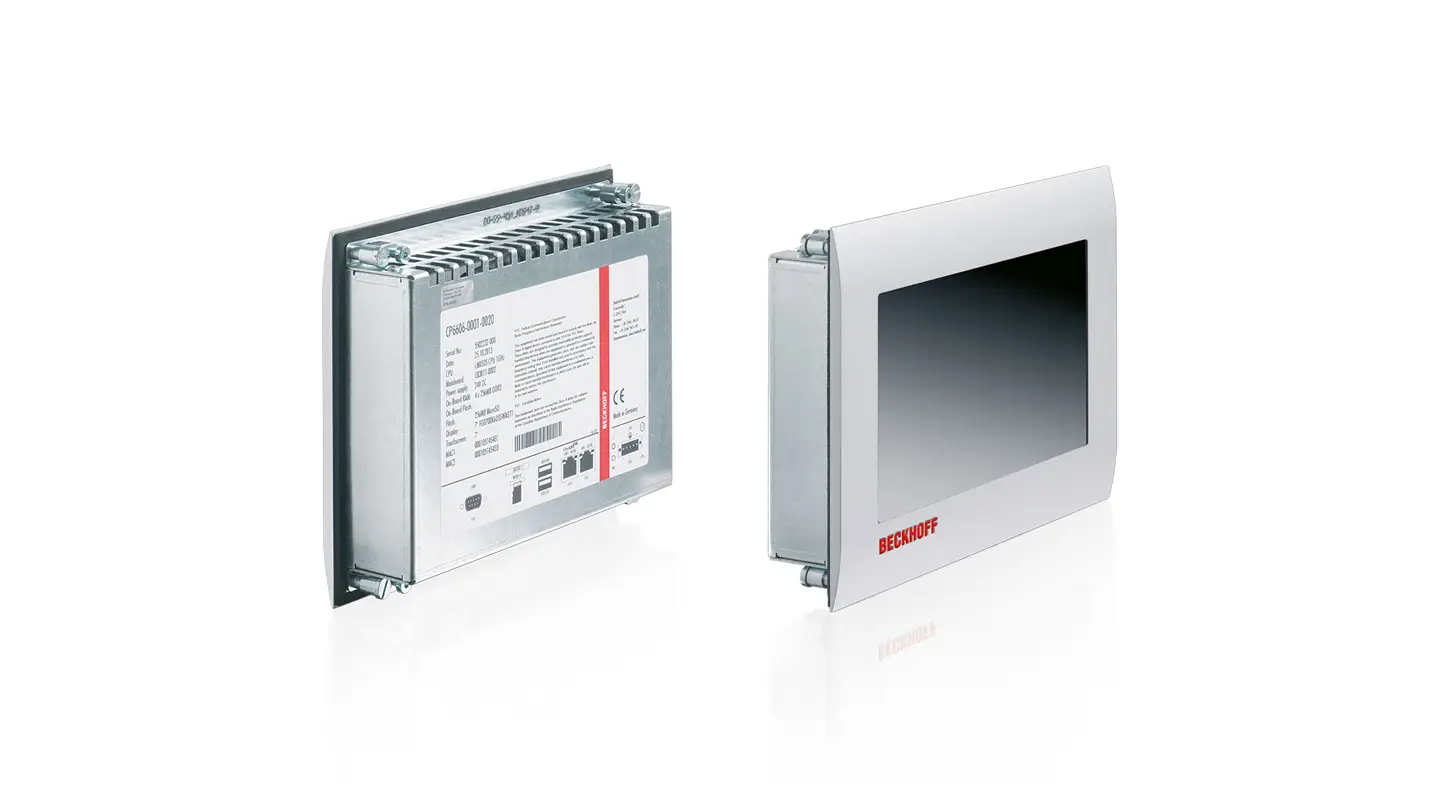

Встраиваемые панельные ПК CP6600 и CP6606 предназначены для установки на передней панели шкафа управления или корпуса управления. Они доступны с двумя различными сенсорными дисплеями с диагональю экрана 7 или 10,1 дюйма. Встраиваемые панельные ПК CP660x-0001-0020 с процессором Arm ® Cortex ® -A8 могут использоваться в...
| Корпус | aluminum front with sheet-steel rear cover |
|---|---|
| Slots for hard disk/flash | 1 slot for microSD |
| Монтаж | pull-out clamping levers for fast installation without loose parts |
| Степень защиты | front side IP54, rear side IP20 |
| Рабочая температура | 0…55°C |
| Размер/разрешение дисплея | 7" 800 x 480 |
| Сенсорный экран | single-finger touch screen |
| Процессор | Arm ® Cortex ® -A8, 1 GHz (TC2, TC3: 30) |
| Motherboard | 3½-inch motherboard |
| Memory | 1 GB DDR3 RAM |
| Графика | integrated in the processor |
| Ethernet | 1 x 10/100BASE-T on-board |
| EtherCAT | 1 x on-board |
| Hard disks/flash | 512 MB microSD card | up to 16 GB microSD card |

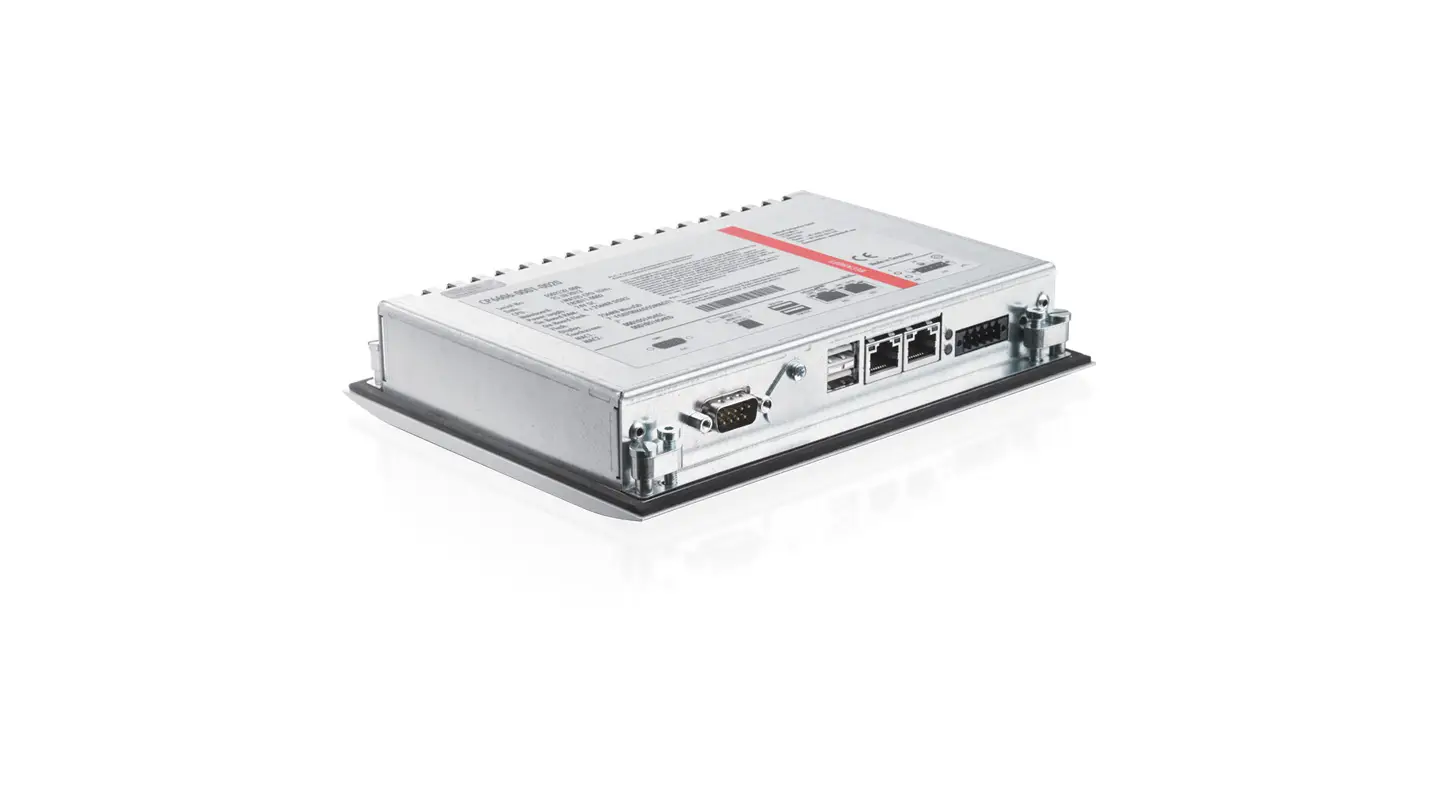

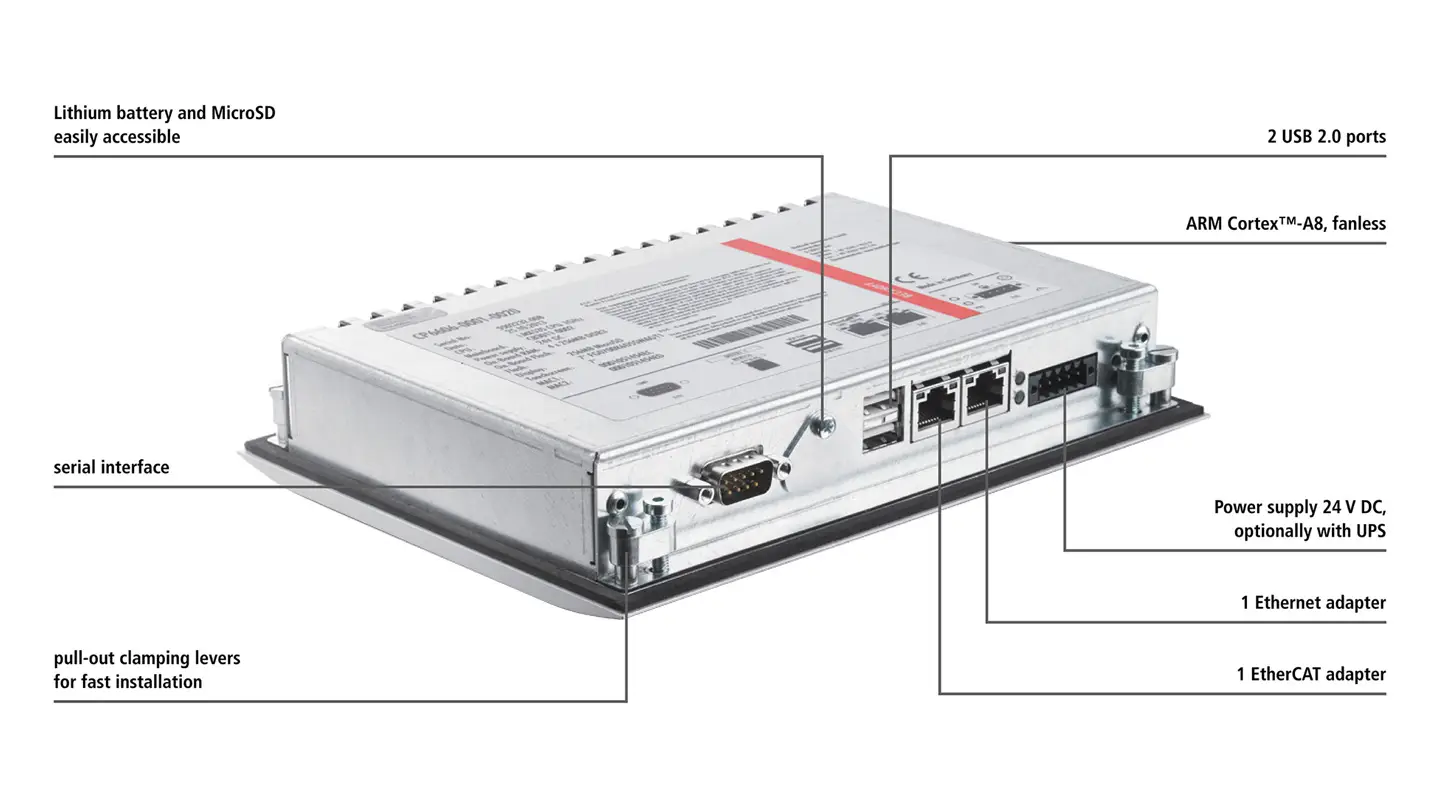

| Интерфейсы | 2 x USB 2.0, 1 x RS232 |
| Питание | 24 V DC | 1-second UPS |
| Операционная система | Windows Embedded Compact 7, English |
| Информация для заказа / CP6606-0001-0020C9900-H812 | 16 GB microSD card, instead of 512 MB microSD card |
| C9900-U213 | internal, capacitive 1-second UPS to ensure secure backup of persistent application data on the microSD flash card and 128 kbyte NOVRAM for fail-safe storage of TwinCAT process data, requires TwinCAT and Windows Embedded Compact 7 |
| C9900-M317 | wall mounting frame for building installation for 7“ economy built-in Panel PC CP6606 |
| C9900-S706 | TwinCAT 2 PLC runtime for Windows Embedded Compact 7 |
| C9900-S707 | TwinCAT 2 NC PTP runtime for Windows Embedded Compact 7 |
| C9900-G070 | Push-button extension for CP6x06 with landscape 7-inch display – push-button extension on the bottom side – 3 push-buttons with signal lamp, type RAFI RAFIX 22FS+, round, 30 mm – 1 emergency stop, type RAFI RAFIX 22FS+ – Labels for push-button caps for individual marking of each push-button can be ordered as an option. – The emergency stop is wired with two normally-closed contacts, the red push-button with one normally-closed contact and the remaining push-buttons each with one normally-open contact to a terminal row. – Additionally, all push-buttons are transmitted with a normally-open contact via USB. – The LEDs of the push-buttons are controlled via USB only. |
| C9900-G071 | Push-button extension for CP6x06 with landscape 7-inch display – push-button extension on the bottom side – 3 push-buttons with signal lamp, type RAFI RAFIX 22FS+, round, 30 mm – 1 emergency stop, type RAFI RAFIX 22FS+ – Labels for push-button caps for individual marking of each push-button can be ordered as an option. – The emergency stop and the red push-button are wired each with two normally-closed contacts to a terminal row. The remaining push-buttons are wired each with two normally-open contacts to a terminal row. – The LEDs of the push-buttons are wired to a terminal row. |
