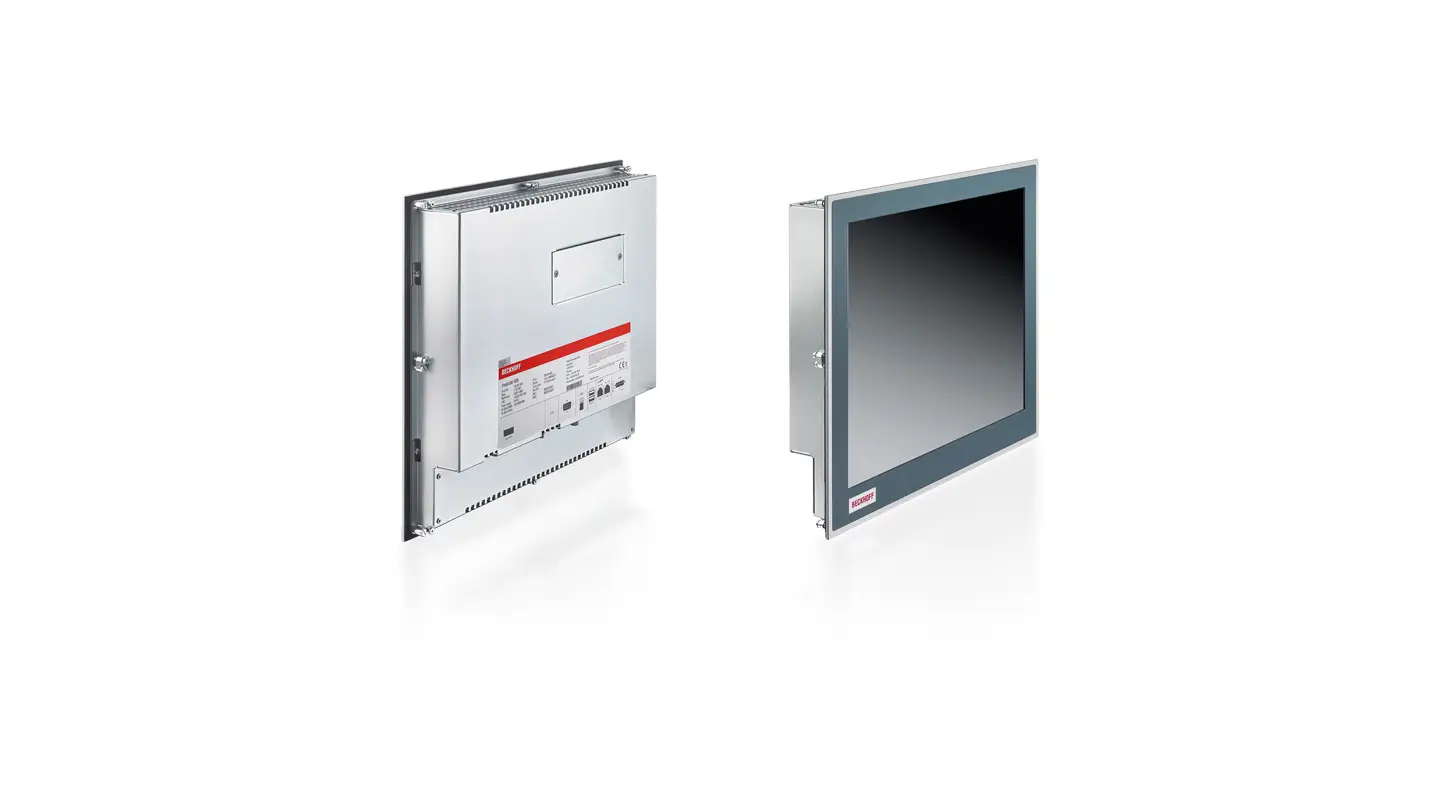

Встраиваемые панельные ПК серии CP66xx предназначены для монтажа на передней панели шкафа управления или корпуса управления. Они имеют широкий диапазон применения, включая отображение удаленного рабочего стола. Устройства доступны в пяти типоразмерах с дисплеями 5,7, 6,5, 12, 15 или 19 дюймов. Панельные ПК CP66xx...

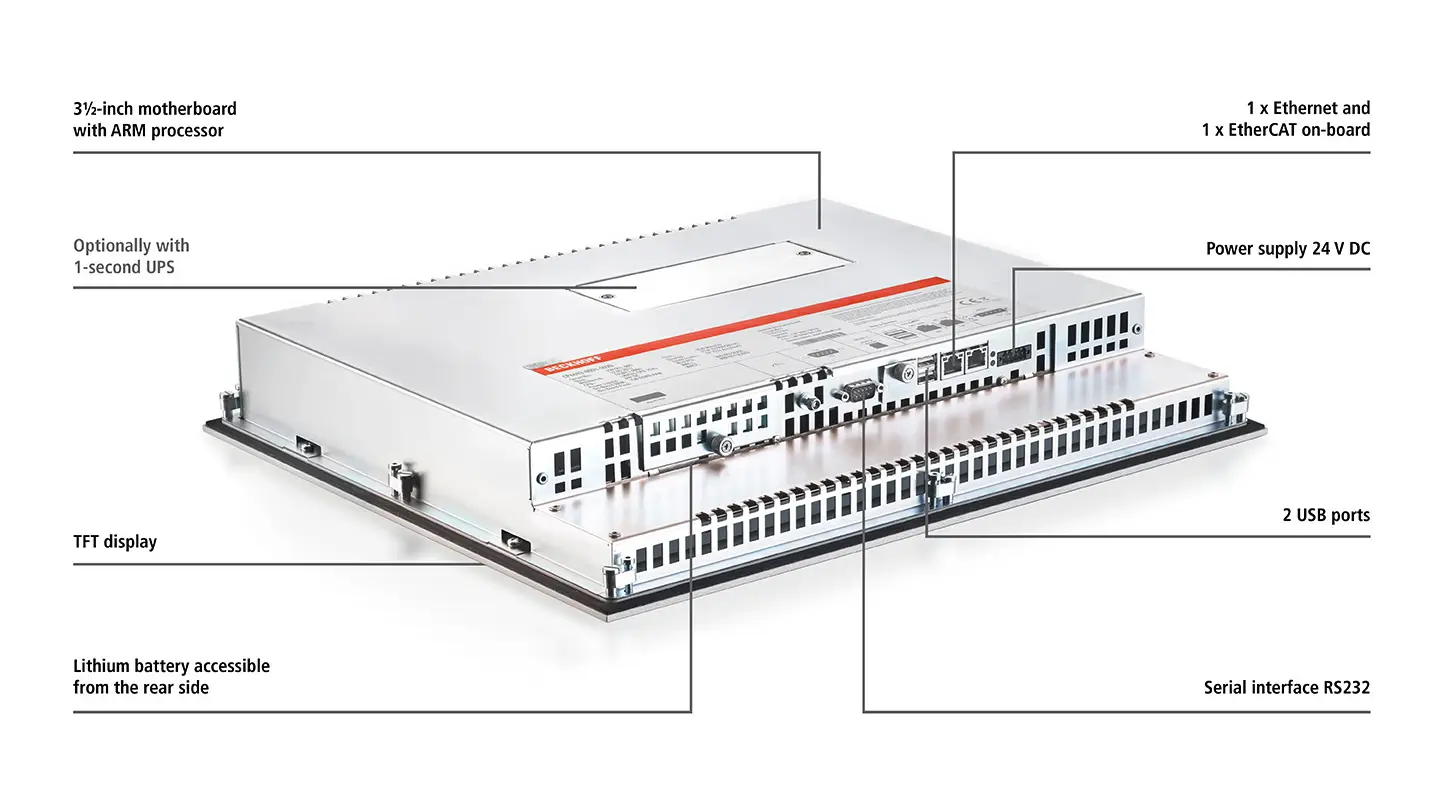

| Корпус | aluminum front with sheet-steel rear cover | stainless steel housing with flush mounted touch screen at 12", 15" and 19" display without front keyboard |
|---|---|
| Slots for hard disk/flash | 1 slot for microSD |
| Монтаж | pull-out clamping levers for fast installation without loose parts |
| Степень защиты | front side IP65, rear side IP20 |
| Рабочая температура | 0…55°C |
| Размер/разрешение дисплея | 5.7" 640 x 480, 6.5" 640 x 480, 12" 800 x 600, 15" 1024 x 768 or 19" 1280 x 1024 |
| Сенсорный экран | single-finger touch screen or touch pad |
| Фронтальная клавиатура | alphanumerical or numerical PC keyboard in US layout or only function keys, each variant with 10 PLC special keys and LEDs or front laminate without keys, only display |
| Процессор | Arm ® Cortex ® -A8, 1 GHz (TC2, TC3: 30) |
| Motherboard | 3½-inch motherboard |
| Memory | 1 GB DDR3 RAM |
| Графика | integrated in the processor |
| Ethernet | 1 x 10/100BASE-T on-board |
| EtherCAT | 1 x on-board |
| Hard disks/flash | 512 MB microSD card | up to 16 GB microSD card |
| NOVRAM | 128 kB |
| Интерфейсы | 2 x USB 2.0, 1 x RS232 |
| Питание | 24 V DC | 1-second UPS |
| Операционная система | Windows Embedded Compact 7, English |
| Информация для заказа / CP6602-0001CP6607-0000-0020 | 5.7-inch display 640 x 480, without keys |
| CP6607-0001-0020 | 5.7-inch display 640 x 480, without keys, with touch screen |
| CP6609-0000-0020 | 6.5-inch display 640 x 480, without keys |
| CP6609-0001-0020 | 6.5-inch display 640 x 480, without keys, with touch screen |
| CP6619-0000-0020 | 6.5-inch display 640 x 480, function keys |
| CP6619-0001-0020 | 6.5-inch display 640 x 480, function keys, with touch screen |
| CP6629-0000-0020 | 6.5-inch display 640 x 480, numeric keyboard |
| CP6629-0001-0020 | 6.5-inch display 640 x 480, numeric keyboard, with touch screen |
| CP6601-0000-0020 | 12-inch display 800 x 600, without keys |
| CP6601-0001-0020 | 12-inch display 800 x 600, without keys, with touch screen |
| CP6601-0020-0020 | 12-inch display 800 x 600, without keys, USB A socket in the front |
| CP6601-0021-0020 | 12-inch display 800 x 600, without keys, USB A socket in the front, with touch screen |
| CP6611-0000-0020 | 12-inch display 800 x 600, function keys |
| CP6611-0001-0020 | 12-inch display 800 x 600, function keys, with touch screen |
| CP6621-0000-0020 | 12-inch display 800 x 600, numeric keyboard |
| CP6621-0001-0020 | 12-inch display 800 x 600, numeric keyboard, with touch screen |
| CP6621-0002-0020 | 12-inch display 800 x 600, numeric keyboard, touch pad |
| CP6631-0000-0020 | 12-inch display 800 x 600, alphanumeric keyboard |
| CP6631-0001-0020 | 12-inch display 800 x 600, alphanumeric keyboard, with touch screen |
| CP6631-0002-0020 | 12-inch display 800 x 600, alphanumeric keyboard, touch pad |
| CP6602-0000-0020 | 15-inch display 1024 x 768, without keys |
| CP6602-0001-0020 | 15-inch display 1024 x 768, without keys, with touch screen |
| CP6602-0020-0020 | 15-inch display 1024 x 768, without keys, USB A socket in the front |
| CP6602-0021-0020 | 15-inch display 1024 x 768, without keys, USB A socket in the front, with touch screen |
| CP6612-0000-0020 | 15-inch display 1024 x 768, function keys |
| CP6612-0001-0020 | 15-inch display 1024 x 768, function keys, with touch screen |
| CP6622-0000-0020 | 15-inch display 1024 x 768, numeric keyboard |
| CP6622-0001-0020 | 15-inch display 1024 x 768, numeric keyboard, with touch screen |
| CP6622-0002-0020 | 15-inch display 1024 x 768, numeric keyboard, touch pad |
| CP6632-0000-0020 | 15-inch display 1024 x 768, alphanumeric keyboard |
| CP6632-0001-0020 | 15-inch display 1024 x 768, alphanumeric keyboard, with touch screen |
| CP6632-0002-0020 | 15-inch display 1024 x 768, alphanumeric keyboard, touch pad |
| CP6603-0000-0020 | 19-inch display 1280 x 1024, without keys |
| CP6603-0001-0020 | 19-inch display 1280 x 1024, without keys, with touch screen |
| CP6603-0020-0020 | 19-inch display 1280 x 1024, without keys, USB A socket in the front |
| CP6603-0021-0020 | 19-inch display 1280 x 1024, without keys, USB A socket in the front, with touch screen |
| CP6613-0000-0020 | 19-inch display 1280 x 1024, function keys |
| CP6613-0001-0020 | 19-inch display 1280 x 1024, function keys, with touch screen |
| CP6623-0000-0020 | 19-inch display 1280 x 1024, numeric keyboard |
| CP6623-0001-0020 | 19-inch display 1280 x 1024, numeric keyboard, with touch screen |
| CP6623-0002-0020 | 19-inch display 1280 x 1024, numeric keyboard, with touch pad |
| CP6633-0000-0020 | 19-inch display 1280 x 1024, alphanumeric keyboard |
| CP6633-0001-0020 | 19-inch display 1280 x 1024, alphanumeric keyboard, with touch screen |
| CP6633-0002-0020 | 19-inch display 1280 x 1024, alphanumeric keyboard, touch pad |
