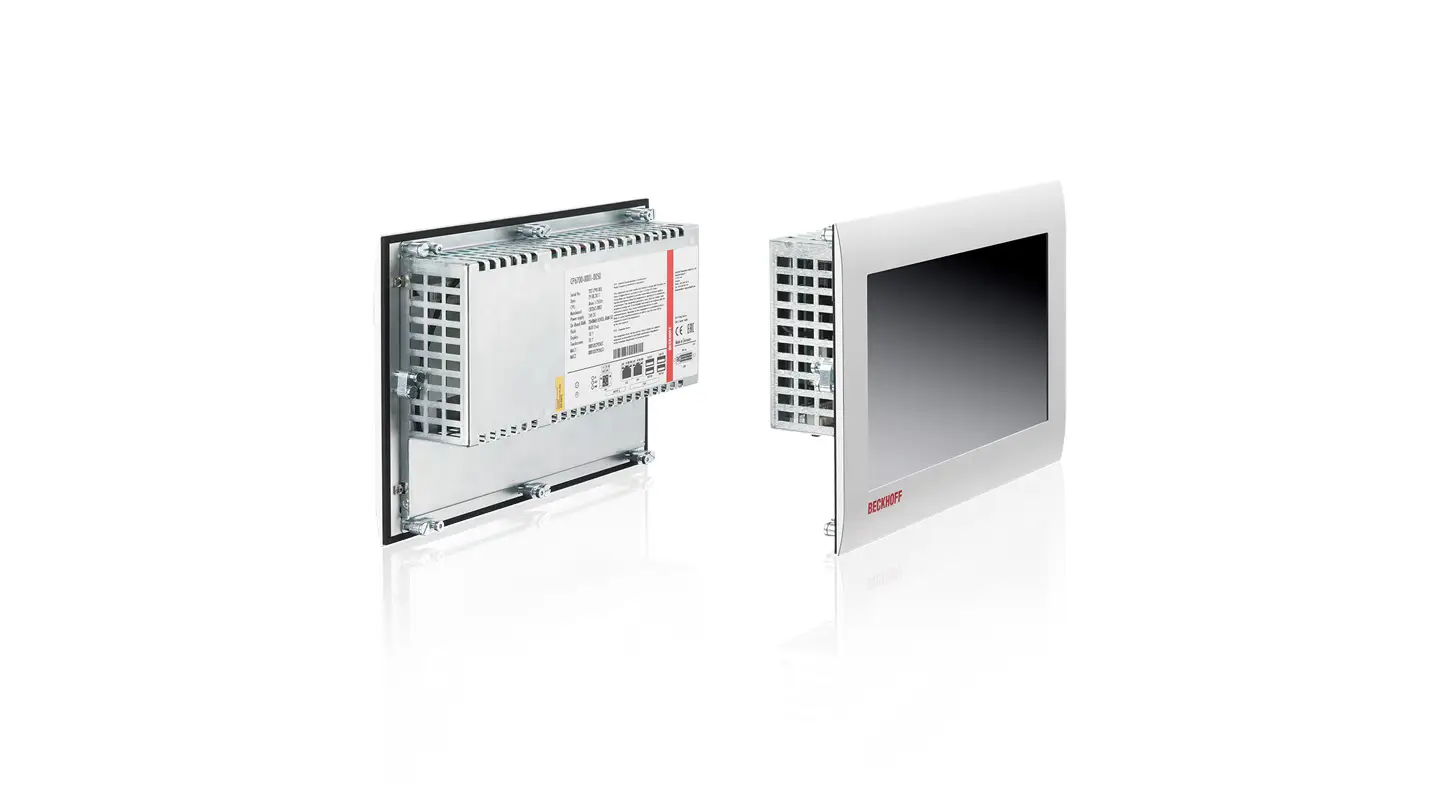

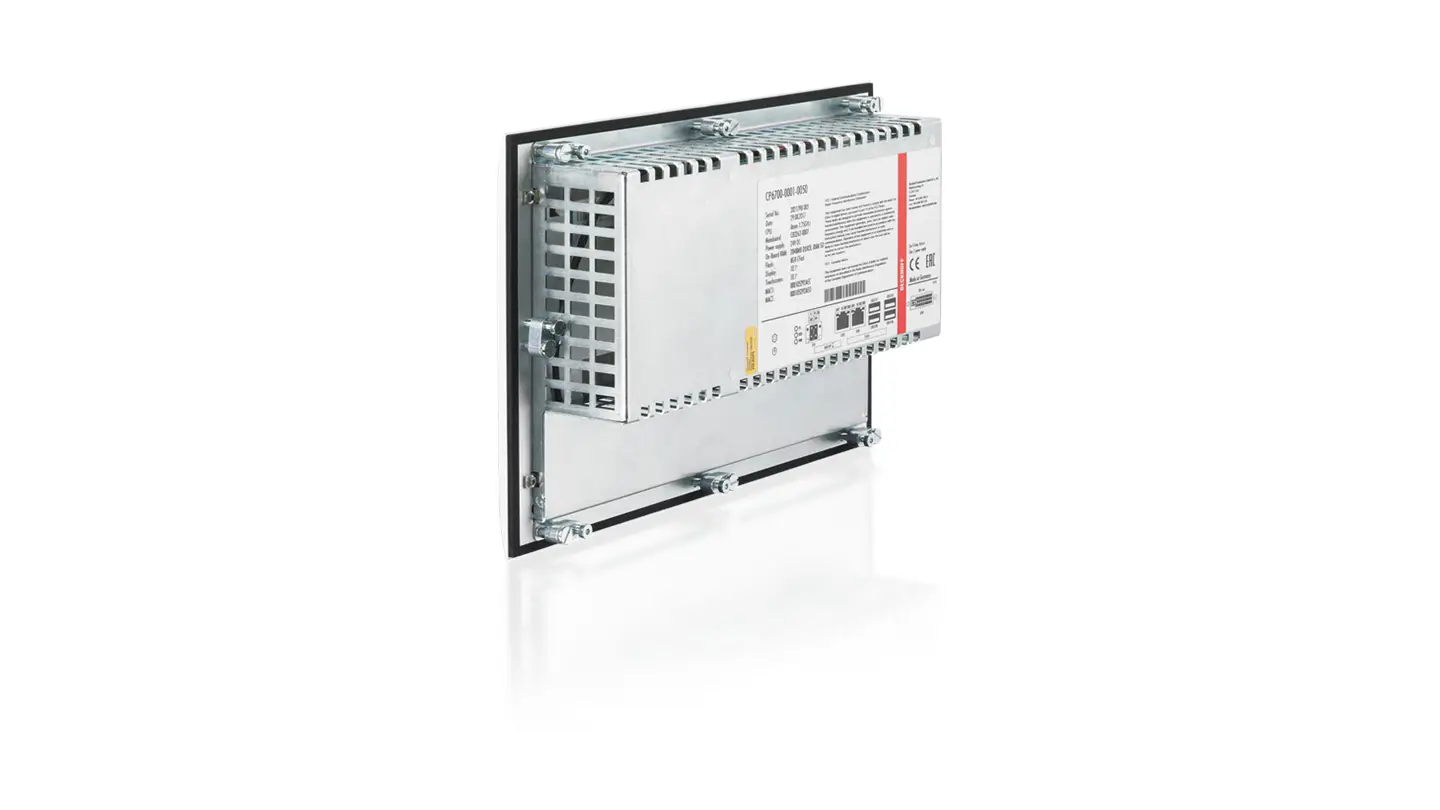

Встраиваемые панельные ПК CP6700 и CP6706 предназначены для установки на передней панели шкафа управления или корпуса управления и благодаря высокоинтегрированной 3½-inch материнской плате представляют собой мощную платформу для применения в машиностроении и проектировании промышленных установок, например с...

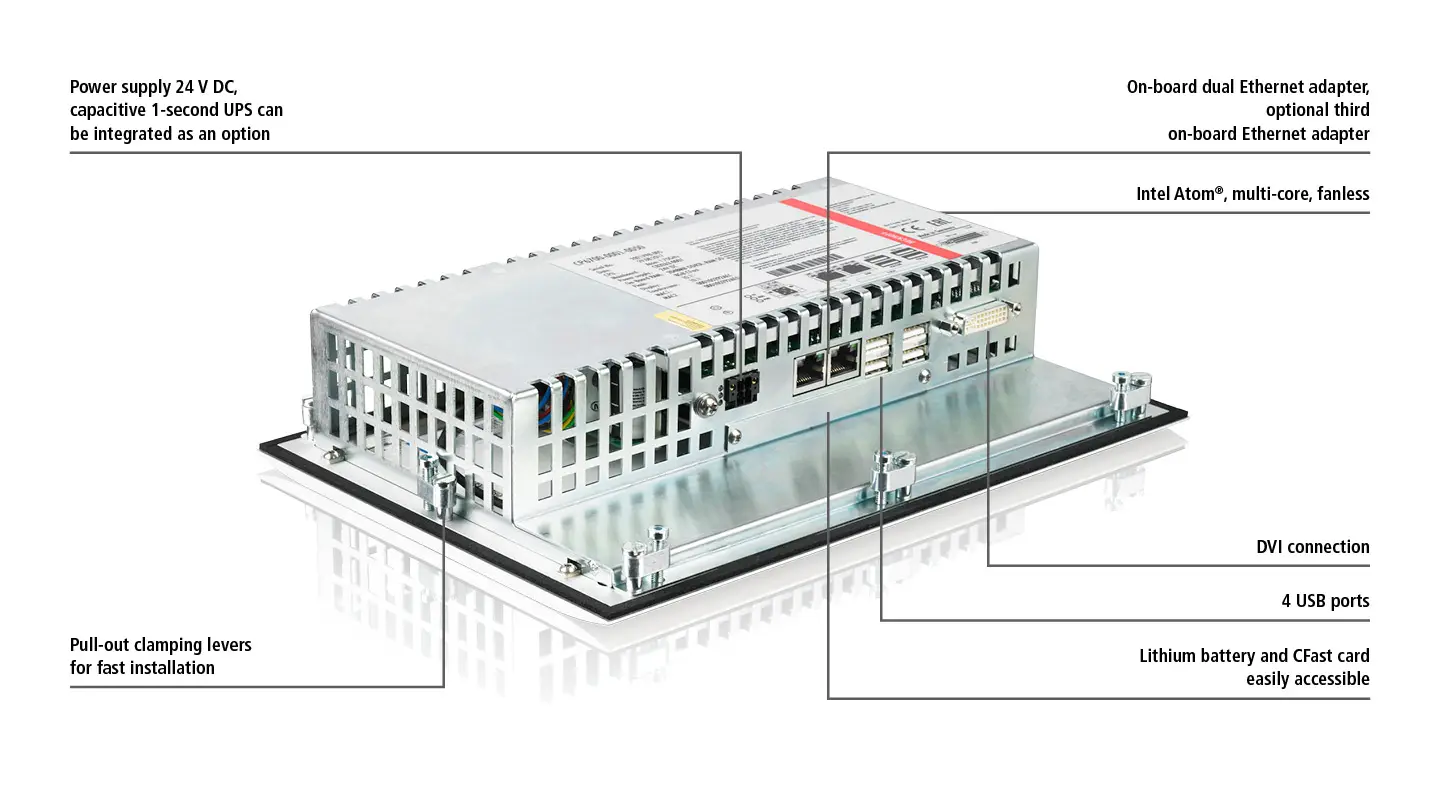

| Корпус | aluminum front with sheet-steel rear cover |
|---|---|
| Slots for hard disk/flash | 1 slot for CFast |
| Монтаж | pull-out clamping levers for fast installation without loose parts |
| Степень защиты | front side IP54, rear side IP20 |
| Рабочая температура | 0…55°C |
| Размер/разрешение дисплея | 10.1" 1024 x 600 |
| Сенсорный экран | single-finger touch screen |
| Процессор | Intel Atom ® E3815, 1.46 GHz, 1 core (TC2, TC3: 40) | up to Intel Atom ® E3845 1.91 GHz, 4 cores (TC2, TC3: 50) |
| Motherboard | 3½-inch motherboard for Intel Atom ® E38xx |
| Memory | 2 GB DDR3L RAM | up to 8 GB DDR3L RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board | 1 additional 100/1000BASE-T |
| Hard disks/flash | 40 GB CFast card | up to 320 GB CFast card |
| Интерфейсы | 4 x USB 2.0, 1 x DVI |
| Питание | 24 V DC | 1-second UPS |
| Операционная система | Windows Embedded Compact 7, English | Windows 10 IoT Enterprise |
| Информация для заказа / CP6700-0001-0050C9900-C572 | processor Intel Atom ® E3827, 1.75 GHz, 2 cores (TC2, TC3: 40), instead of Intel Atom ® E3815, 1.46 GHz (TC2, TC3: 40). With Windows Embedded Compact 7 only one core is supported. Multicore support is available with Windows 10 IoT Enterprise. |
| C9900-C573 | processor Intel Atom ® E3845, 1.91 GHz, 4 cores (TC2, TC3: 50), instead of Intel Atom ® E3815, 1.46 GHz (TC2, TC3: 40). With Windows Embedded Compact 7 only one core is supported. Multicore support is available with Windows 10 IoT Enterprise. |
| C9900-R257 | memory extension to 4 GB DDR3L RAM, instead of 2 GB, requires a 64 bit operating system or only 3 GB are addressable |
| C9900-R258 | memory extension to 8 GB DDR3L RAM, instead of 2 GB, requires a 64 bit operating system |
| C9900-B415 | third on-board Ethernet adapter on the 3½-inch motherboard for Intel Atom ® , wired out with a 100/1000BASE-T connector inside the connector bracket at the connection section |
| C9900-H620 | 80 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-H628 | 160 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-H673 | 320 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-U214 | internal, capacitive 1-second UPS to ensure secure backup of persistent application data on the flash card, requires TwinCAT |
| C9900-S706 | TwinCAT 2 PLC runtime for Windows Embedded Compact 7 |
| C9900-S707 | TwinCAT 2 NC PTP runtime for Windows Embedded Compact 7 |
| C9900-S708 | TwinCAT 2 NC I runtime for Windows Embedded Compact 7 |
| C9900-G072 | Push-button extension for CP6x00 with landscape 10.1-inch display – push-button extension on the bottom side – 3 push-buttons with signal lamp, type RAFI RAFIX 22FS+, round, 30 mm – 1 emergency stop, type RAFI RAFIX 22FS+ – Labels for push-button caps for individual marking of each push-button can be ordered as an option. – The emergency stop is wired with two normally-closed contacts, the red push-button with one normally-closed contact and the remaining push-buttons each with one normally-open contact to a terminal row. – Additionally, all push-buttons are transmitted with a normally-open contact via USB. – The LEDs of the push-buttons are controlled via USB only. |
| C9900-G073 | Push-button extension for CP6x00 with landscape 10.1-inch display – push-button extension on the bottom side – 3 push-buttons with signal lamp, type RAFI RAFIX 22FS+, round, 30 mm – 1 emergency stop, type RAFI RAFIX 22FS+ – Labels for push-button caps for individual marking of each push-button can be ordered as an option. – The emergency stop and the red push-button are wired each with two normally-closed contacts to a terminal row. The remaining push-buttons are wired each with two normally-open contacts to a terminal row. – The LEDs of the push-buttons are wired to a terminal row. |
