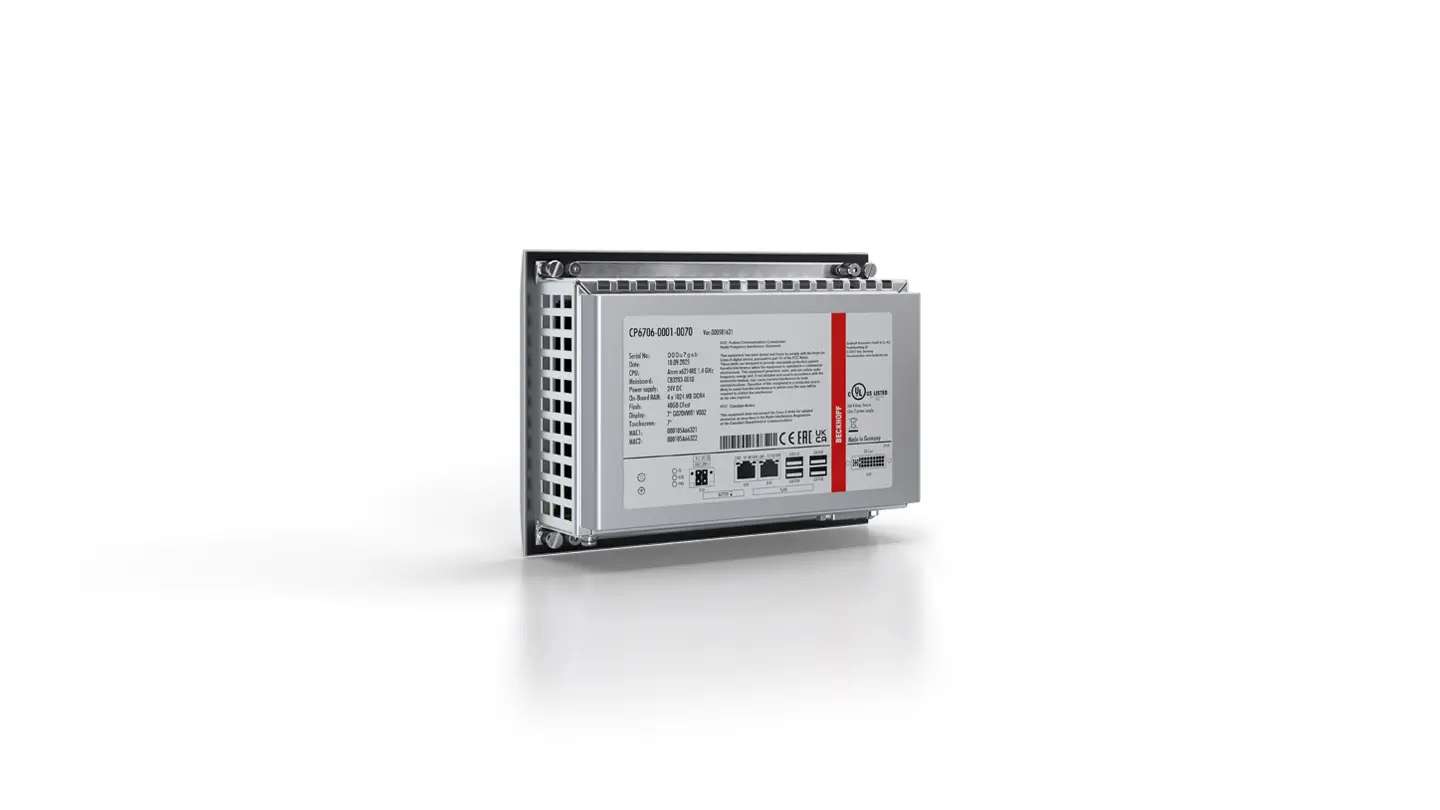

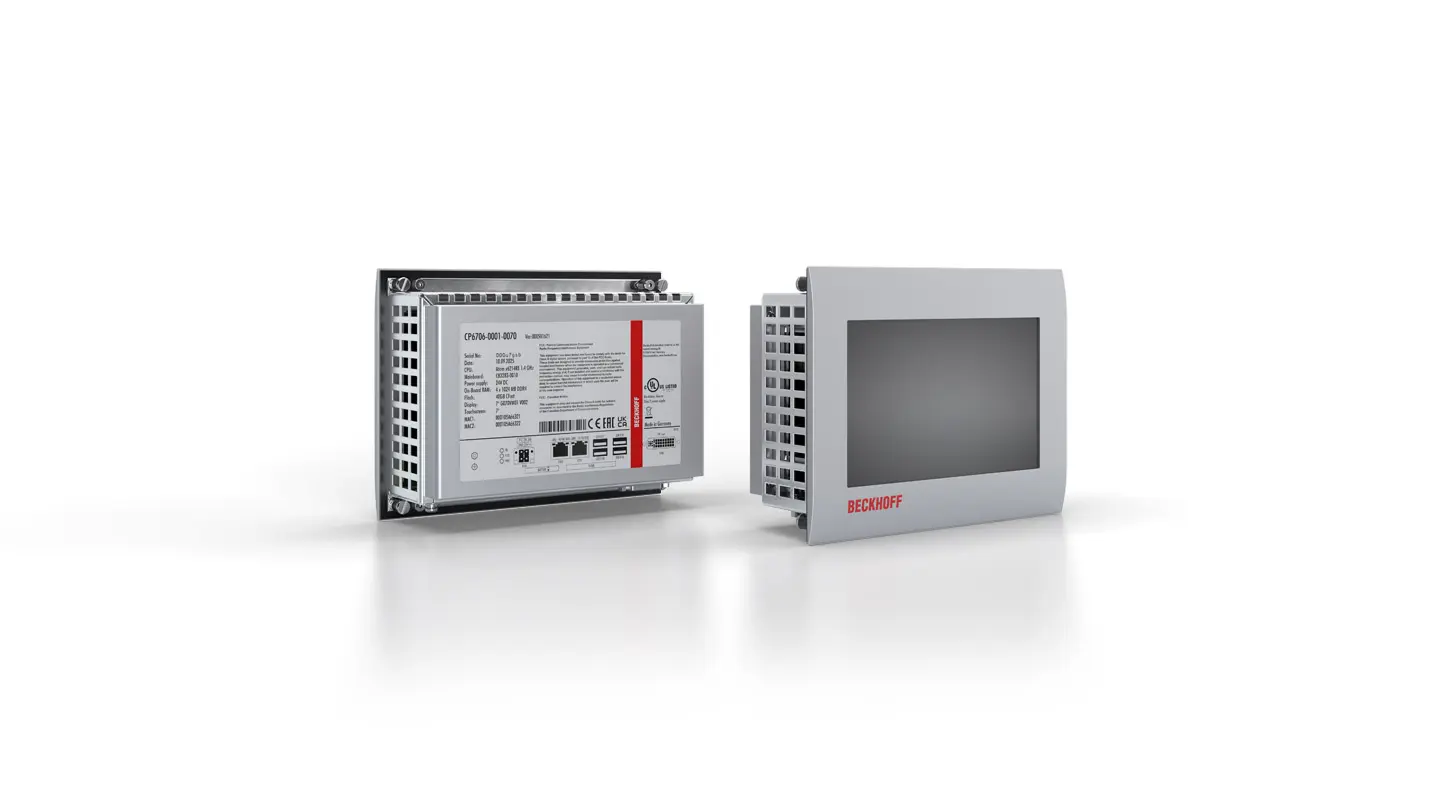

Встраиваемые панельные ПК CP6700 и CP6706 предназначены для установки во фронтальную часть шкафа управления или корпуса управления и благодаря высокоинтегрированной материнской плате формата 3½ дюйма представляют собой производительную платформу для применения в машиностроении и проектировании промышленных установок,...
| Корпус | aluminum front with sheet-steel rear cover |
|---|---|
| Slots for hard disk/flash | 1 slot for CFast |

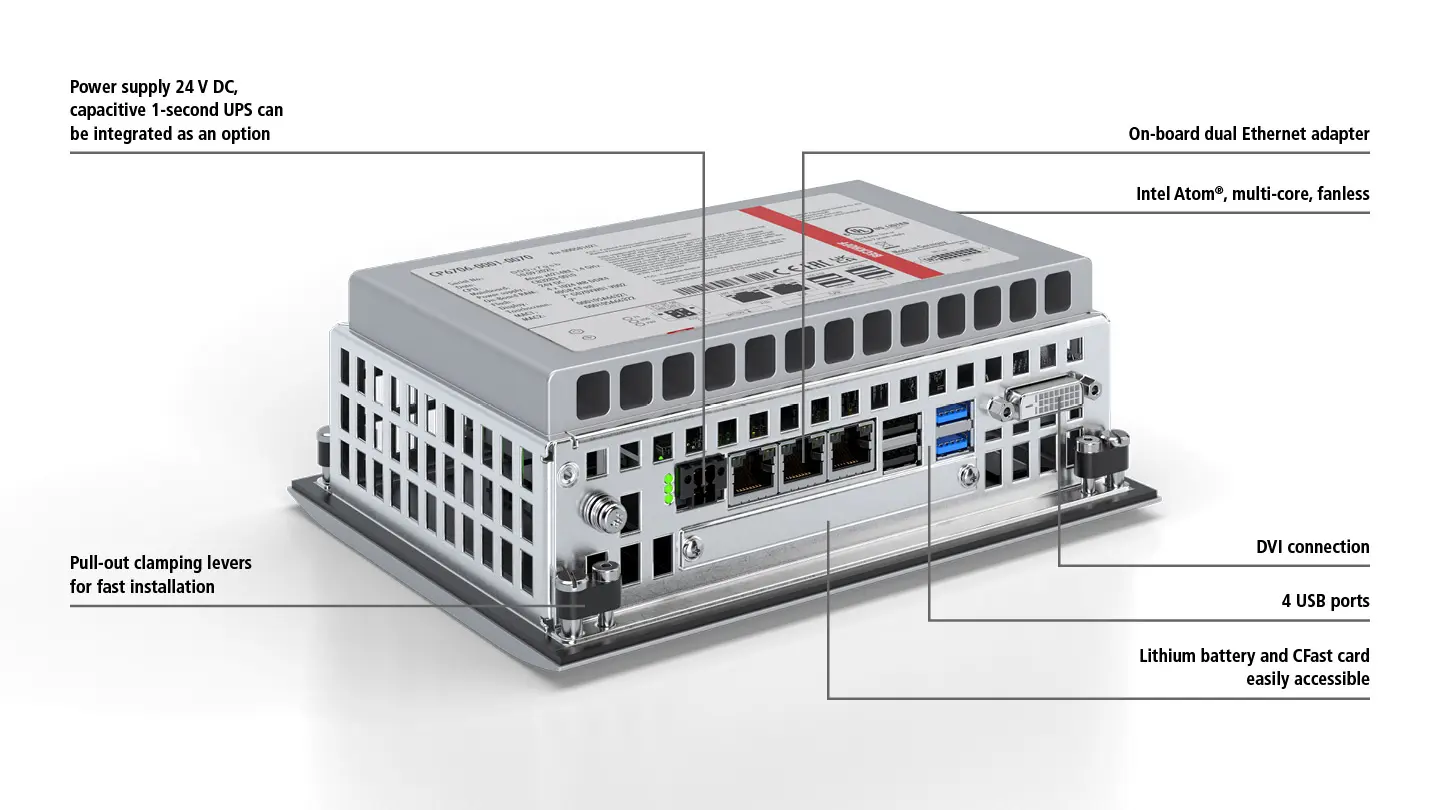

| Монтаж | pull-out clamping levers for fast installation without loose parts |
| Степень защиты | front side IP54, rear side IP20 |
| Рабочая температура | 0…50°C |
| Размер/разрешение дисплея | 7" 800 x 480 |
| Сенсорный экран | single-finger touch screen |
| Процессор | Intel Atom ® x6214RE, 1.4 GHz, 2 cores (TC3: 40) | Intel Atom ® x6416RE, 1.7 GHz, 4 cores (TC3: 50) |
| Motherboard | 3½-inch motherboard for Intel Atom ® x6 |
| Memory | 4 GB DDR4 RAM | up to 8 GB DDR4 RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000/2500BASE-T on-board | 1 additional 100/1000/2500BASE-T |
| Hard disks/flash | 40 GB CFast card | up to 320 GB CFast card |
| Интерфейсы | 2 x USB 3.1 Gen. 2, 2 x USB 2.0, 1 x DVI |
| Питание | 24 V DC | 1-second UPS |
| Операционная система | – | Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, TwinCAT/BSD |
| Информация для заказа / CP6706-0001-0070C9900-C591 | processor Intel Atom ® x6416RE, 1.7 GHz, 4 cores (TC3: 50) and memory extension to 8 GB DDR4 RAM instead of Intel Atom ® x6214RE, 1.4 GHz (TC3: 40) and 4 GB DDR4 RAM |
| C9900-B424 | third on-board Ethernet adapter on the 3½-inch motherboard for Intel Atom ® , wired out with a 100/1000/2500BASE-T connector inside the connector bracket at the connection section |
| C9900-H620 | 80 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-H628 | 160 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-H673 | 320 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-U214 | internal, capacitive 1-second UPS to ensure secure backup of persistent application data on the flash card, requires TwinCAT |
