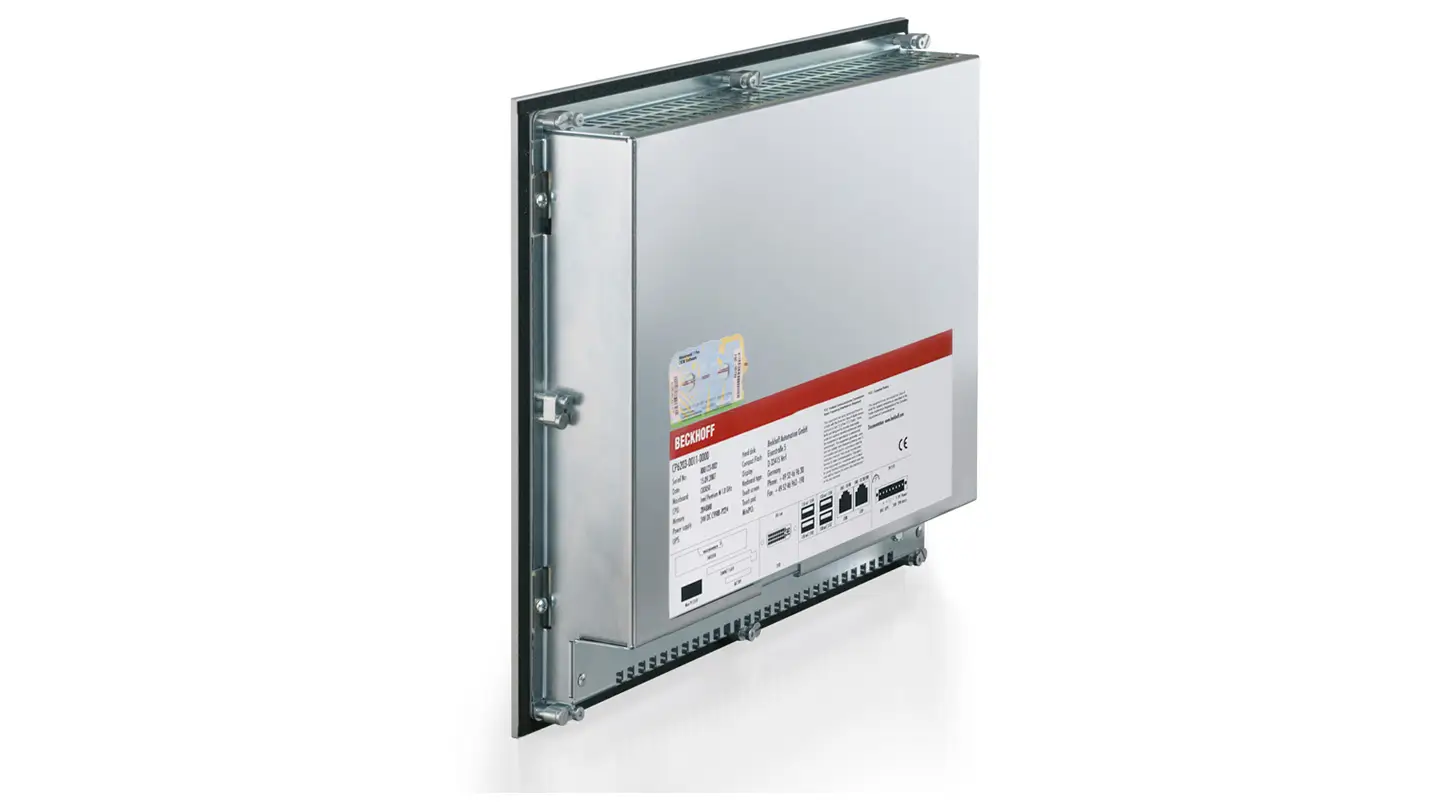

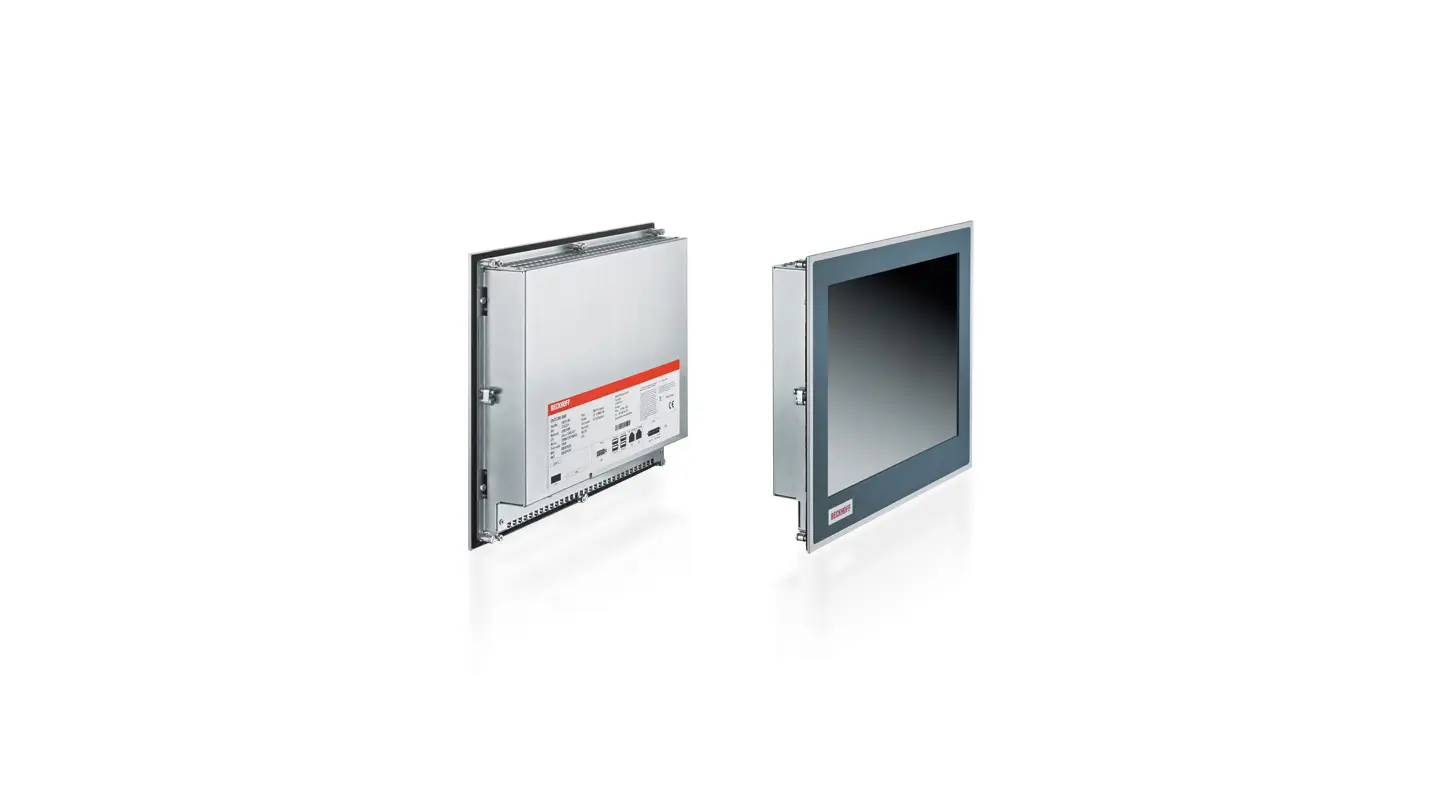

Серия встраиваемых панельных ПК CP67xx предназначена для установки на передней панели шкафа управления или корпуса управления. Серия CP67xx сочетает дизайн панелей управления Beckhoff с современной технологией промышленных ПК. Для каждого применения доступны подходящий размер дисплея и клавиатура. Благодаря...

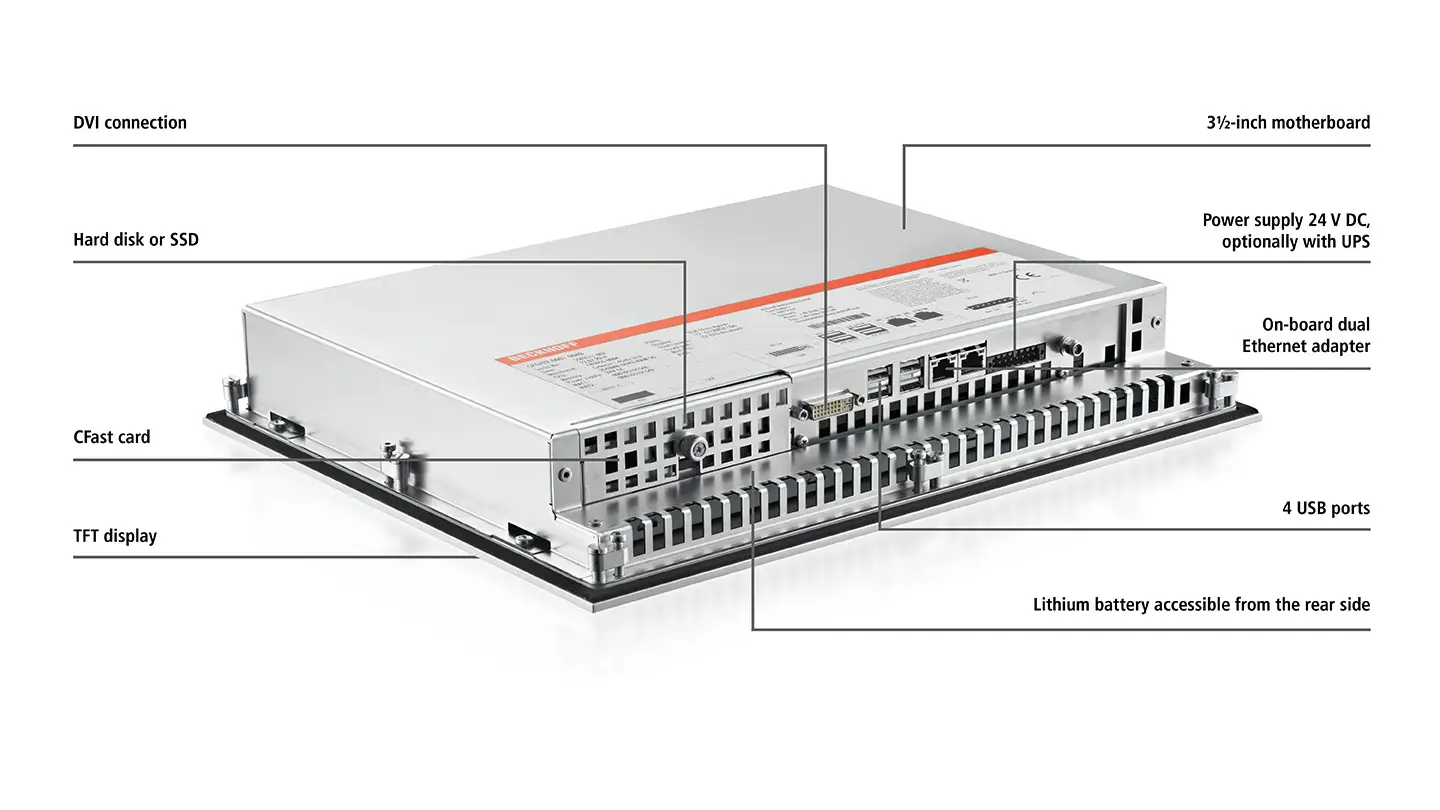

| Корпус | aluminum front with sheet-steel rear cover | stainless steel housing with flush mounted touch screen at 12", 15" and 19" display without front keyboard |
|---|---|
| Slots for hard disk/flash | 1 slot for CFast | 2 slots for CFast or 1 slot for 2½-inch hard disk/SSD |
| Монтаж | pull-out clamping levers for fast installation without loose parts |
| Степень защиты | front side IP65, rear side IP20 |
| Рабочая температура | 0…55°C |
| Размер/разрешение дисплея | 5.7" 640 x 480, 12" 800 x 600, 15" 1024 x 768 or 19" 1280 x 1024 |
| Сенсорный экран | single-finger touch screen or touch pad |
| Фронтальная клавиатура | alphanumerical or numerical PC keyboard in US layout or only function keys, each variant with 10 PLC special keys and LEDs or front laminate without keys, only display |
| Процессор | Intel Atom ® E3815, 1.46 GHz, 1 core (TC2, TC3: 40) | up to Intel Atom ® E3845 1.91 GHz, 4 cores (TC2, TC3: 50) |
| Motherboard | 3½-inch motherboard for Intel Atom ® E38xx |
| Memory | 2 GB DDR3L RAM | up to 8 GB DDR3L RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board | 1 additional 100/1000BASE-T |
| Hard disks/flash | 40 GB CFast card | up to 320 GB CFast card, hard disk, SSD |
| Интерфейсы | 4 x USB 2.0, 1 x DVI |
| Питание | 24 V DC | UPS |
| Операционная система | Windows Embedded Compact 7, English | Windows 10 IoT Enterprise |
| Информация для заказа / CP6701-0021-0040CP6707-0000-0050 | 5.7-inch display 640 x 480, without keys, without hard disk slot, max. 1 CFast slot |
| CP6707-0001-0050 | 5.7-inch display 640 x 480, without keys, without hard disk slot, max. 1 CFast slot, touch screen |
| CP6701-0000-0050 | 12-inch display 800 x 600, without keys |
| CP6701-0001-0050 | 12-inch display 800 x 600, without keys, touch screen |
| CP6701-0020-0050 | 12-inch display 800 x 600, without keys, USB A socket in the front |
| CP6701-0021-0050 | 12-inch display 800 x 600, without keys, USB A socket in the front, touch screen |
| CP6711-0000-0050 | 12-inch display 800 x 600, function keys |
| CP6711-0001-0050 | 12-inch display 800 x 600, function keys, touch screen |
| CP6721-0000-0050 | 12-inch display 800 x 600, numeric keyboard |
| CP6721-0001-0050 | 12-inch display 800 x 600, numeric keyboard, touch screen |
| CP6721-0002-0050 | 12-inch display 800 x 600, numeric keyboard, touch pad |
| CP6731-0000-0050 | 12-inch display 800 x 600, alphanumeric keyboard |
| CP6731-0001-0050 | 12-inch display 800 x 600, alphanumeric keyboard, touch screen |
| CP6731-0002-0050 | 12-inch display 800 x 600, alphanumeric keyboard, touch pad |
| CP6702-0000-0050 | 15-inch display 1024 x 768, without keys |
| CP6702-0001-0050 | 15-inch display 1024 x 768, without keys, touch screen |
| CP6702-0020-0050 | 15-inch display 1024 x 768, without keys, USB A socket in the front |
| CP6702-0021-0050 | 15-inch display 1024 x 768, without keys, USB A socket in the front, touch screen |
| CP6712-0000-0050 | 15-inch display 1024 x 768, function keys |
| CP6712-0001-0050 | 15-inch display 1024 x 768, function keys, touch screen |
| CP6722-0000-0050 | 15-inch display 1024 x 768, numeric keyboard |
| CP6722-0001-0050 | 15-inch display 1024 x 768, numeric keyboard, touch screen |
| CP6722-0002-0050 | 15-inch display 1024 x 768, numeric keyboard, touch pad |
| CP6732-0000-0050 | 15-inch display 1024 x 768, alphanumeric keyboard |
| CP6732-0001-0050 | 15-inch display 1024 x 768, alphanumeric keyboard, touch screen |
| CP6732-0002-0050 | 15-inch display 1024 x 768, alphanumeric keyboard, touch pad |
| CP6742-0000-0050 | 15-inch display 1024 x 768, alphanumeric keyboard, PLC keys on the sides |
| CP6742-0001-0050 | 15-inch display 1024 x 768, alphanumeric keyboard, PLC keys on the sides, touch screen |
| CP6703-0000-0050 | 19-inch display 1280 x 1024, without keys |
| CP6703-0001-0050 | 19-inch display 1280 x 1024, without keys, touch screen |
| CP6703-0020-0050 | 19-inch display 1280 x 1024, without keys, USB A socket in the front |
| CP6703-0021-0050 | 19-inch display 1280 x 1024, without keys, USB A socket in the front, touch screen |
| CP6713-0000-0050 | 19-inch display 1280 x 1024, function keys |
| CP6713-0001-0050 | 19-inch display 1280 x 1024, function keys, touch screen |
| CP6723-0000-0050 | 19-inch display 1280 x 1024, numeric keyboard |
| CP6723-0001-0050 | 19-inch display 1280 x 1024, numeric keyboard, touch screen |
| CP6723-0002-0050 | 19-inch display 1280 x 1024, numeric keyboard, touch pad |
| CP6733-0000-0050 | 19-inch display 1280 x 1024, alphanumeric keyboard |
| CP6733-0001-0050 | 19-inch display 1280 x 1024, alphanumeric keyboard, touch screen |
| CP6733-0002-0050 | 19-inch display 1280 x 1024, alphanumeric keyboard, touch pad |
