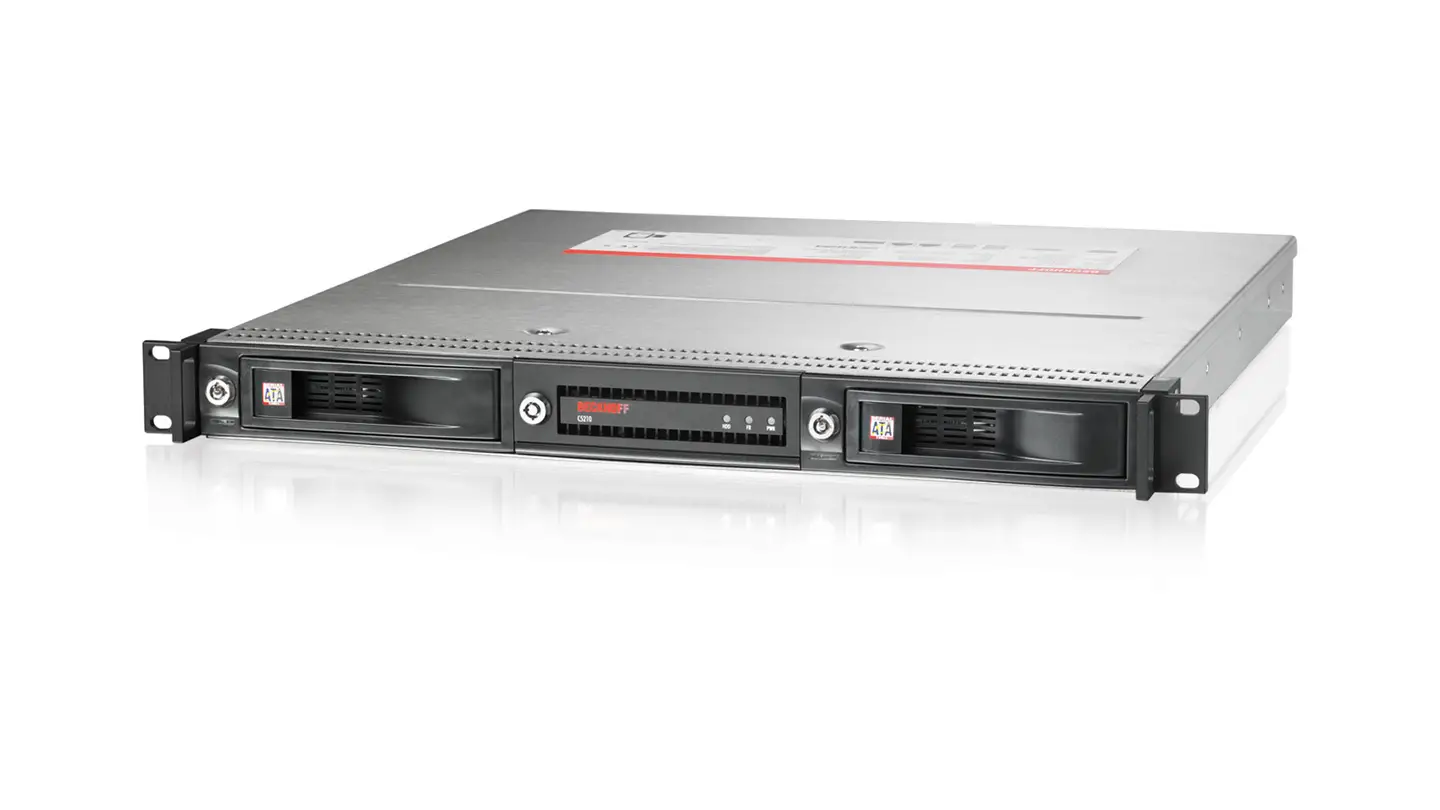

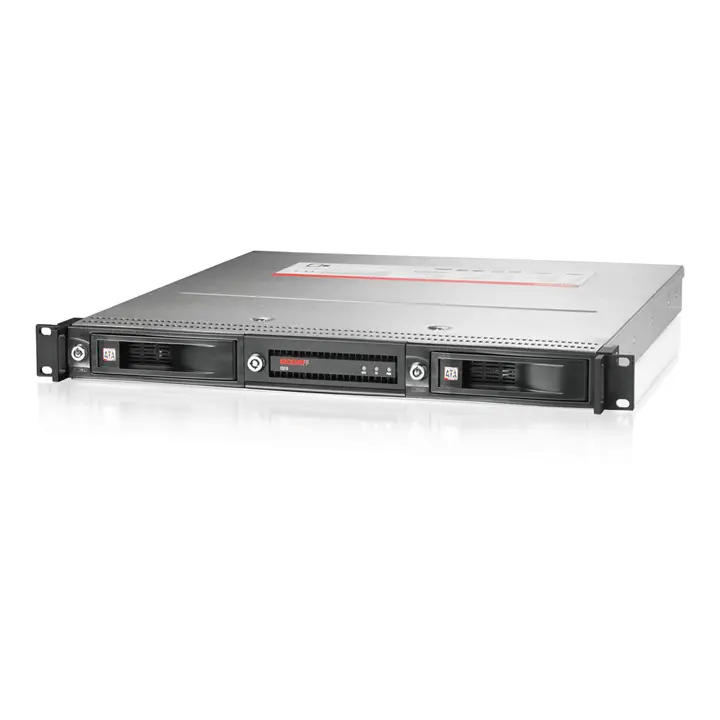

Серия промышленных ПК C5xxx предназначена для установки в 19-дюймовый вставной конструктив. Они оснащаются компонентами максимального класса производительности и оптимально подходят для применения в машиностроении и проектировании промышленных установок, например с программным обеспечением автоматизации TwinCAT....
| Корпус | stainless steel based housing, 1 high units, with lockable front flap |
|---|---|

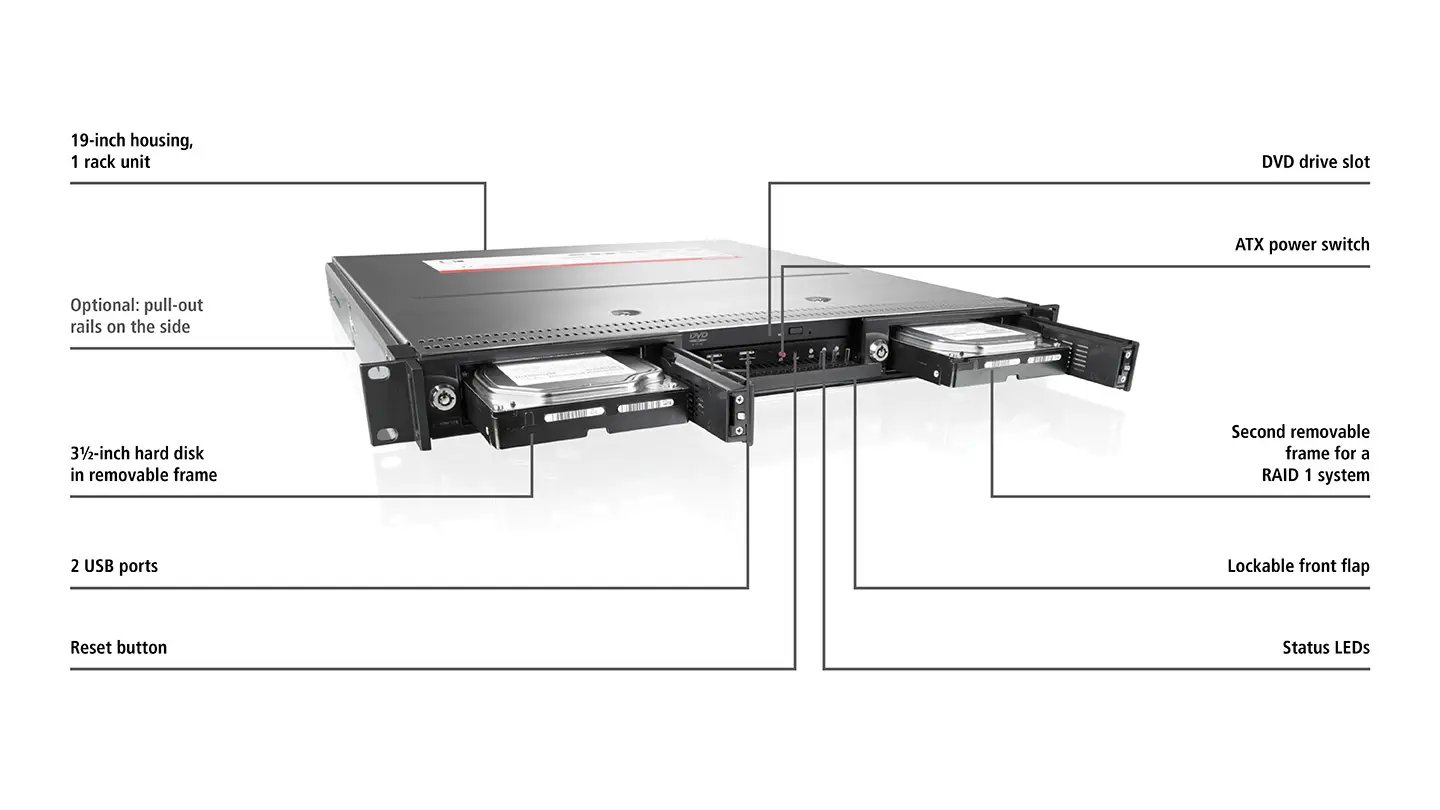

| Front flap | lockable, includes 2 x USB 2.0, reset key and ATX key | DVD drive |

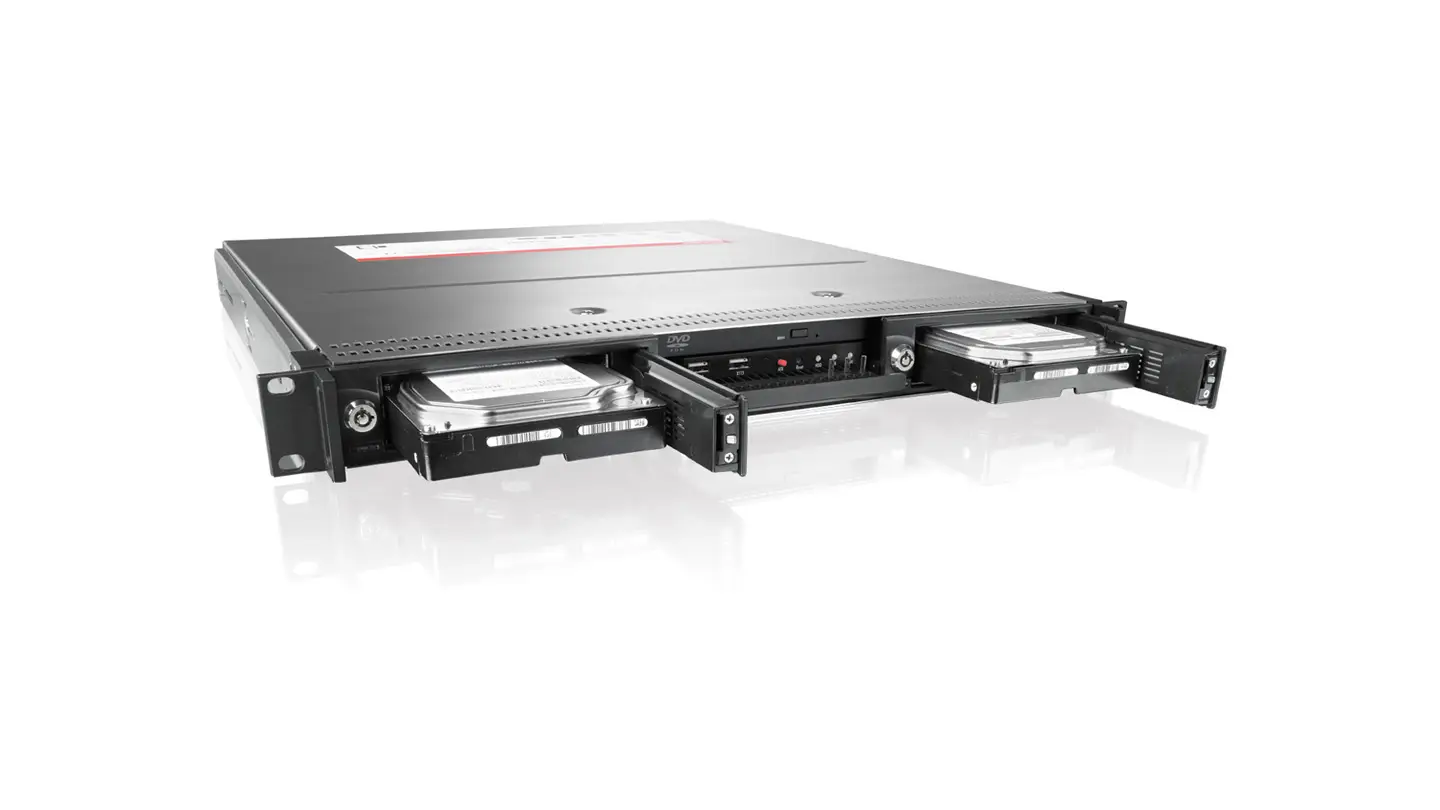

| Slots for hard disk/flash | 2 removable frames for hard disks | removable frames for SSDs |
| Степень защиты | IP20 |
| Рабочая температура | 0…55°C |
| Размеры (Ш x В x Г) | 482.7 x 44 x 493.8 mm (19" x 1.7" x 19.44"), depth behind front 475 mm (18.7") |
| Процессор | Intel ® Celeron ® G4900 3.1 GHz, 2 cores (TC3: 50) | up to Intel ® Core™ i7-9700TE 1.8 GHz, 8 cores (TC3: 80) |

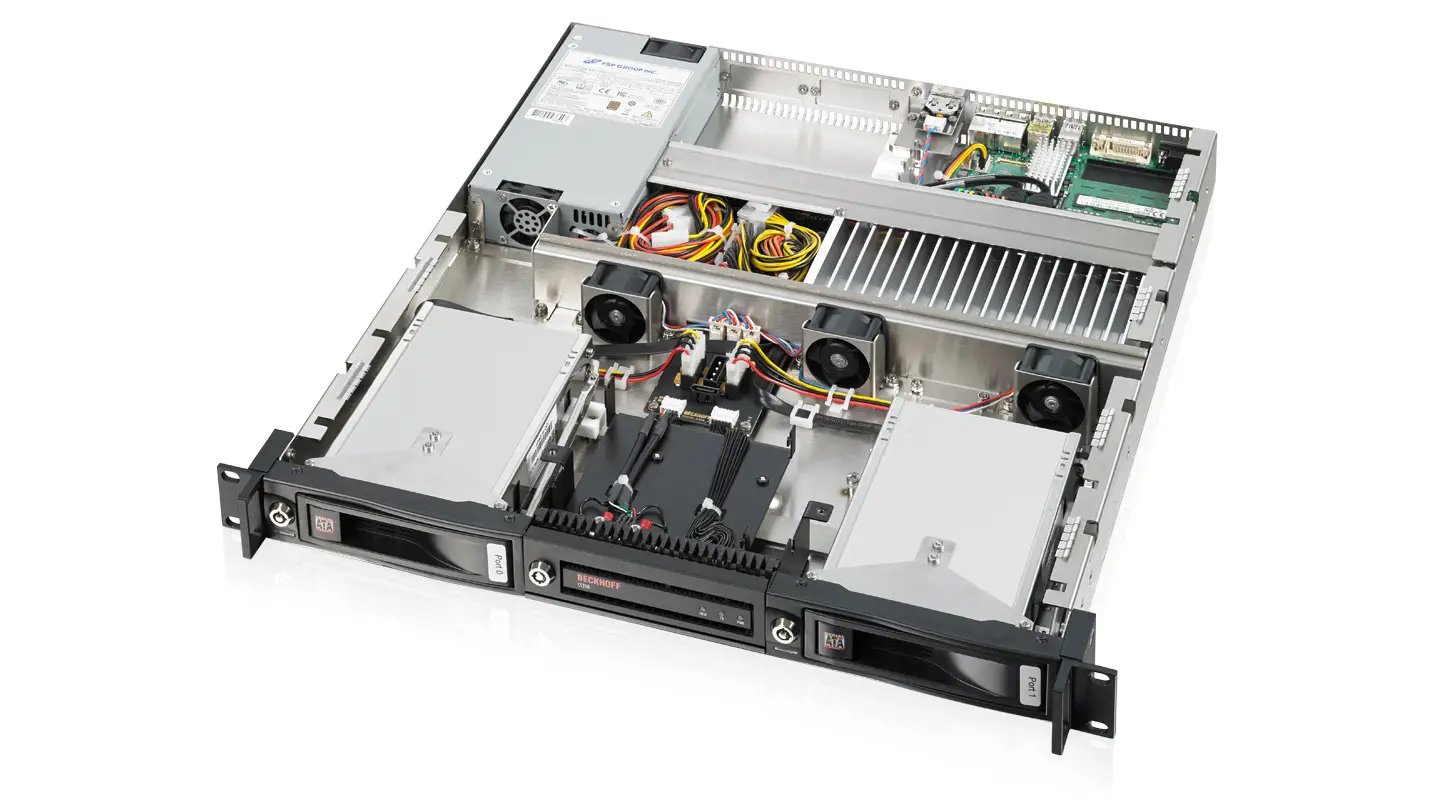

| Motherboard | 3½-inch motherboard for 8 th /9 th generation Intel ® Celeron ® , Pentium ® , Core™ i3/i5/i7 |
| PCIe ® slots | 2 PCIe ® module slots to plug-in Beckhoff PCIe ® modules or to led out interfaces of the motherboard ex factory |
| Memory | 4 GB DDR4 RAM | up to 64 GB DDR4 RAM |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | hard disk, 3½-inch, 1 TB | hard disk up to 4 TB, SSD |
| Disk drive | – | multi DVD |

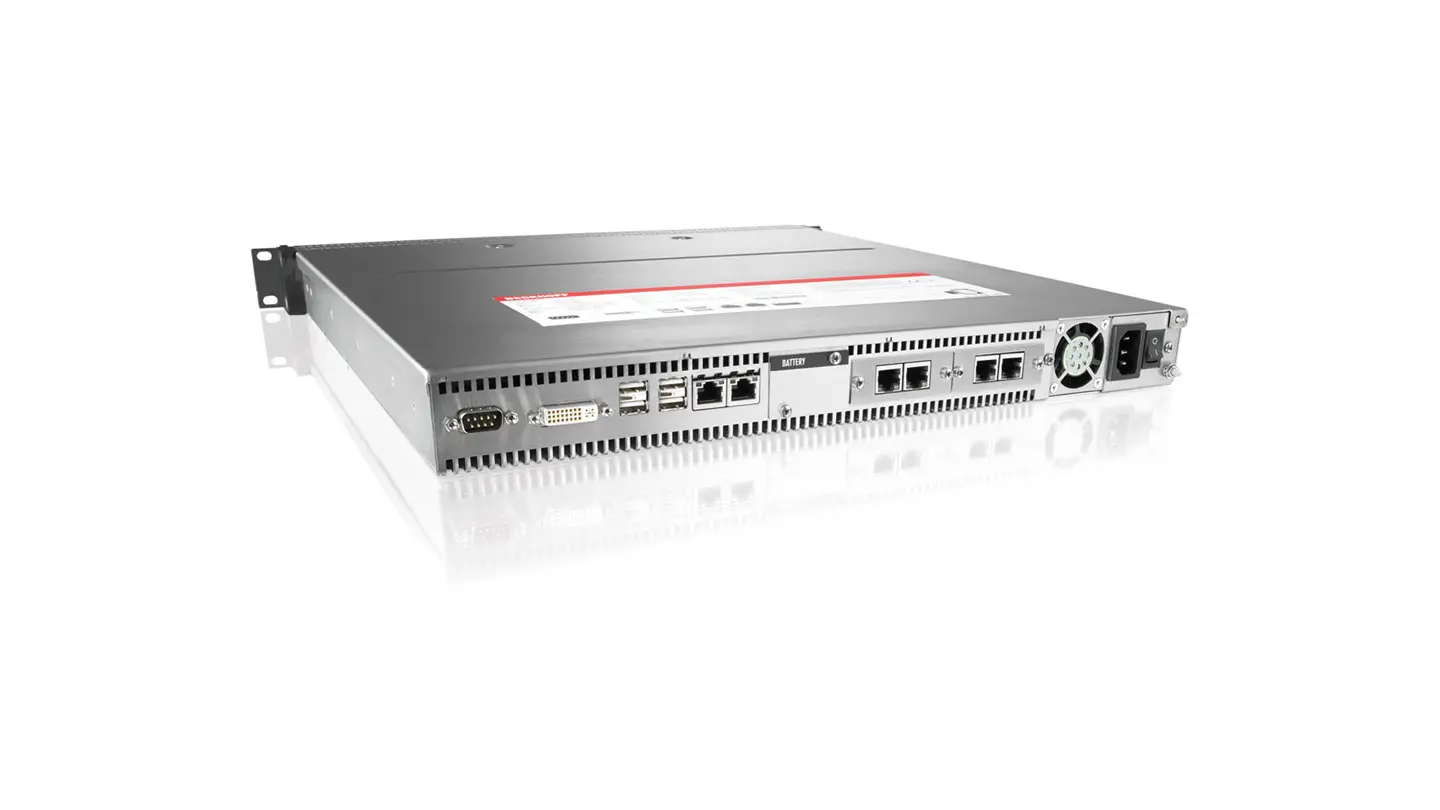

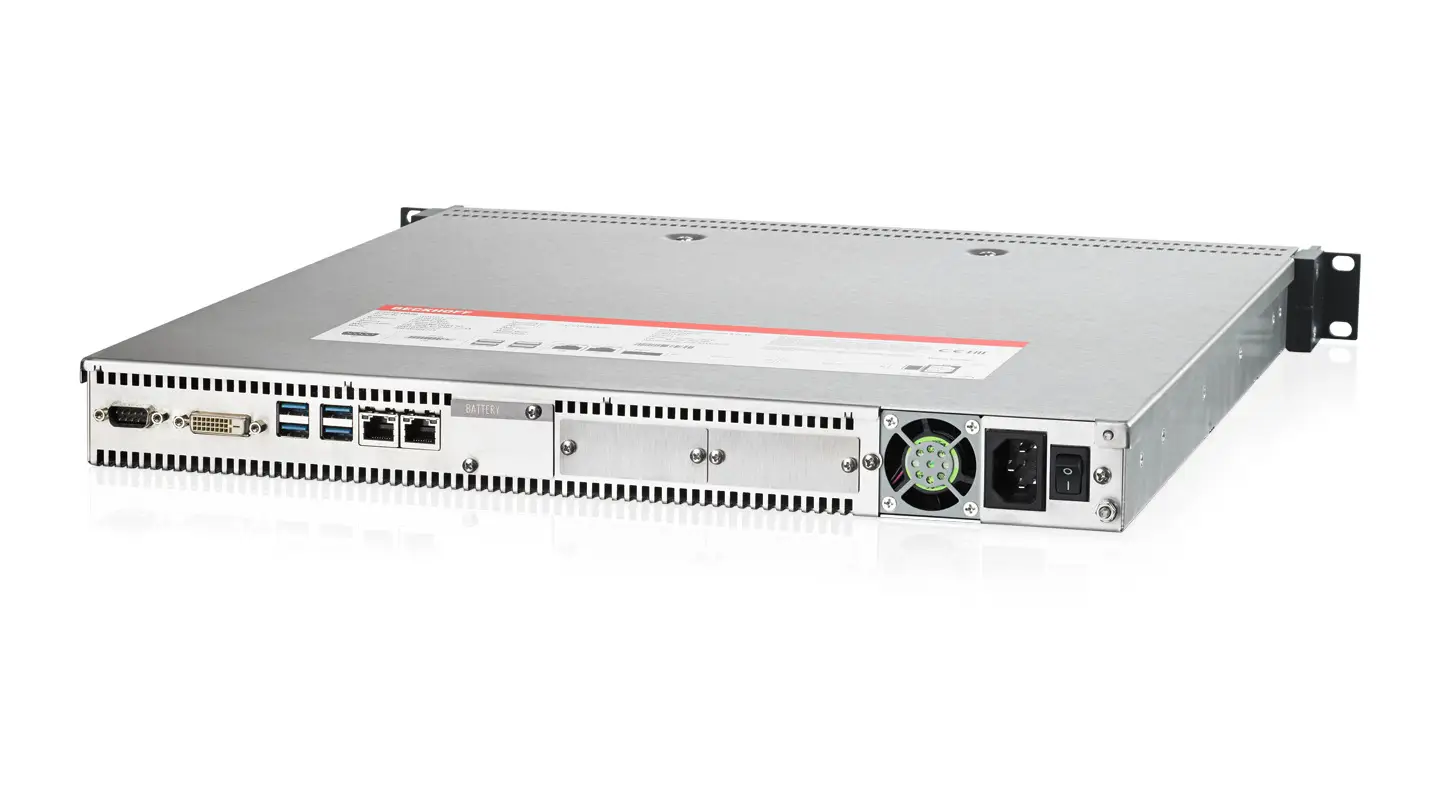

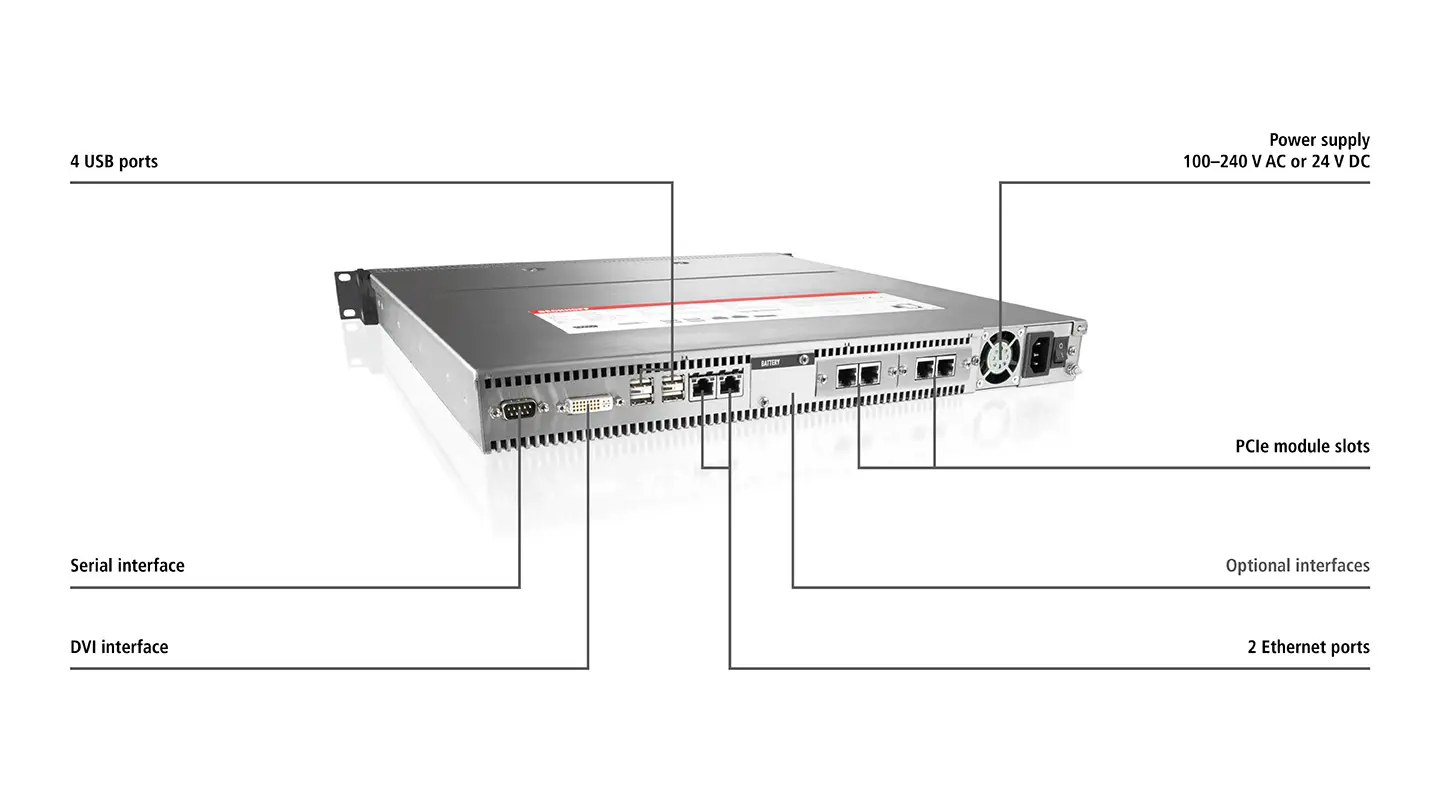

| Интерфейсы | 4 x USB 3.1 Gen. 1, 1 x RS232 at the rear, 2 x USB 2.0 behind the front flap, 1 x DVI |
| Питание | 100…240 V AC | 24 V DC, UPS |
| Операционная система | – | Windows 10 IoT Enterprise, Windows 11 IoT Enterprise 2024 LTSC, Windows Server 2019 |
| Информация для заказа / C5210-0040C9900-C624 | processor 8 th generation Intel ® Pentium ® G5400, 3.7 GHz, 2 cores (TC3: 50), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-C634 | processor 9 th generation Intel ® Core™ i3-9100TE, 2.2 GHz, 4 cores (TC3: 60), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-C635 | processor 9 th generation Intel ® Core™ i5-9500TE, 2.2 GHz, 6 cores (TC3: 70), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-C636 | processor 9 th generation Intel ® Core™ i7-9700TE, 1.8 GHz, 8 cores (TC3: 80), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-R270 | memory extension to 8 GB DDR4 RAM, instead of 4 GB |
| C9900-R271 | memory extension to 16 GB DDR4 RAM, instead of 4 GB |
| C9900-R272 | memory extension to 32 GB DDR4 RAM, instead of 4 GB |
| C9900-R273 | memory extension to 64 GB DDR4 RAM, instead of 4 GB |
| FC9062 | Gigabit Ethernet PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, PCI Express ® x1 bus |
| C9900-E301 | RS232 PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Requires 2 adapter cables C9900-K920 ix industrial ® type B to D-sub, 9-pin. |
| C9900-K920 | RS232 cable, shielded, PVC, 5 x 2 x 0.14 mm², fixed installation, gray, ix Industrial ® , type B, plug, straight, male, IP20, 10-pin – D-sub, plug, straight, male, IP20, 9-pin, 0.50 m |
| C9900-E309 | RS485 PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Configuration as an end point without echo: echo off, auto send on, always send off, auto receive on, always receive off, termination on. Requires 2 adapter cables C9900-K922 ix industrial ® type B to D-sub, 9-pin. |
| C9900-E310 | RS422 PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Configuration as a full duplex end point: echo on, auto send off, always send on, auto receive off, always receive on, termination on. Requires 2 adapter cables C9900-K922 ix industrial ® type B to D-sub, 9-pin. |
| C9900-K922 | RS422/RS485 cable, shielded, PVC, 5 x 2 x 0.14 mm², fixed installation, gray, ix Industrial ® , type B, plug, straight, male, IP20, 10-pin – D-sub, socket, straight, female, IP20, 9-pin, 0.50 m |
| C9900-D118 | multi DVD drive slimline, reads CD-ROM and DVD-ROM, reads and writes CD-R/-RW, DVD-R/+R/-RW/+RW 4.7 GB and DVD-R/+R DL 8.5 GB |
| C9900-E277 | USB 3.0 PCIe ® module – 2-port USB 3.0 interfaces – USB transfer rate up to 5 Gbit/s for USB 3.0 – compatible to all USB standards – delivers up to 1 A supply current at each USB port |
| C9900-M712 | telescope rails for C5210 and C5240, rails including bracket set for 19-inch rack assembly |
| C9900-E292 | additional DisplayPort interface, led out on a module bracket , max. resolution 1920 x 1080, can only be ordered once per PC and not together with a second DVI port |
| C9900-E294 | additional DisplayPort interface, occupies the fieldbus connection section, max. resolution 1920 x 1080, can only be ordered once per PC and not together with a second DVI port |
| C9900-E237 | additional DVI-D plug led out on a module bracket, cannot be ordered in combination with an additional DisplayPort interface |
| C9900-E233 | 1 serial port RS232 of the motherboard led out at the connection section of a C5210, C65x5, CP2xxx or CP62xx |
| C9900-E240 | Serial port COM2 RS232, optically linked, overload protection, D-sub 9-pin connector. |
| C9900-E241 | Serial port COM2 RS485, optically linked, overload protection, D-sub 9-pin connector. Configuration as an end point without echo: echo off, auto send on, always send off, auto receive on, always receive off, termination on |
| C9900-E242 | Serial port COM2 RS422, optically linked, overload protection, D-sub 9-pin connector. Configuration as a full duplex end point: echo on, auto send off, always send on, auto receive off, always receive on, termination on |
| FC9071-0000 | Gigabit Ethernet PC interface card, 10/100/1000 Mbit/s, 1-channel, PCIe ® interface, occupies the fieldbus connection area. |
| C9900-M629 | removable frame for a 2½-inch SSD, instead of removable frame for a 3½-inch hard disk |
| C9900-H862 | solid-state disk SSD, 3D flash, 2½-inch, 160 GB |
| C9900-H781 | solid-state disk SSD, 3D flash, 2½-inch, 320 GB |
| C9900-H745 | solid-state disk SSD, 3D flash, 2½-inch, 640 GB |
| C9900-H792 | solid-state disk SSD, 3D flash, 2½-inch, 1280 GB |
| C9900-H863 | solid-state disk SSD, 3D flash, 2½-inch, 160 GB, instead of 3½-inch hard disk |
| C9900-H782 | solid-state disk SSD, 3D flash, 2½-inch, 320 GB, instead of 3½-inch hard disk |
| C9900-H747 | solid-state disk SSD, 3D flash, 2½-inch, 640 GB, instead of 3½-inch hard disk |
| C9900-H794 | solid-state disk SSD, 3D flash, 2½-inch, 1280 GB, instead of 3½-inch hard disk |
| C9900-H202 | hard disk drive, 3½-inch, 4 TB, instead of hard disk 1 TB |
| C9900-H152 | additional hard disk drive, 3½-inch, 1 TB |
| C9900-H204 | additional hard disk drive, 3½-inch, 4 TB |
| C9900-P208 | 24 V DC power supply, instead of 100–240 V AC full range power supply, occupies one serial port |
| C9900-P209 | 24 V DC power supply with integrated UPS, instead of 100–240 V AC full range power supply, occupies one serial port |
| C9900-U330 | battery pack for PCs with 24 V power supply and integrated UPS C9900-P209 or C9900-U209, external, for DIN rail mounting, 3.4 Ah, operating temperature 0…50°C, contains two rechargeable, sealed lead batteries VRLA-AGM |
