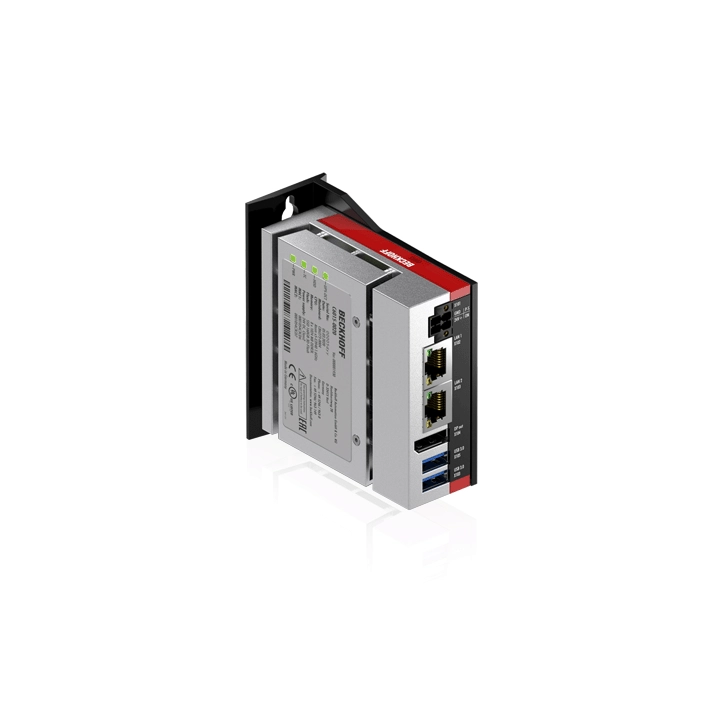

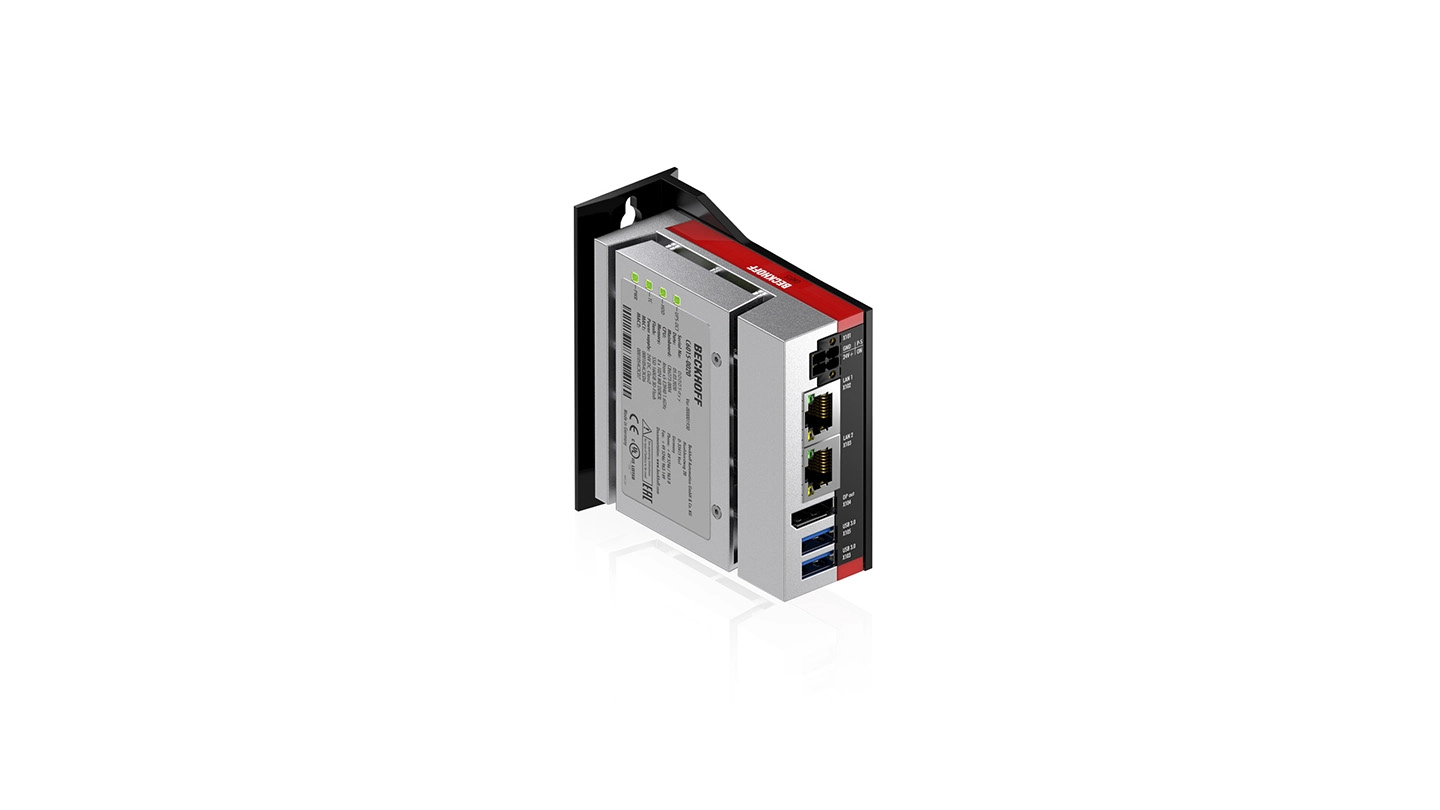

При монтажном пространстве всего 82 x 82 x 40 мм промышленный ПК C6015 представляет собой самый компактный промышленный ПК начального уровня Beckhoff; экономия стоимости 25% и более (в зависимости от конфигурации) ставит его значительно ниже ранее самых недорогих ПК x86. Благодаря чрезвычайно компактным размерам,...

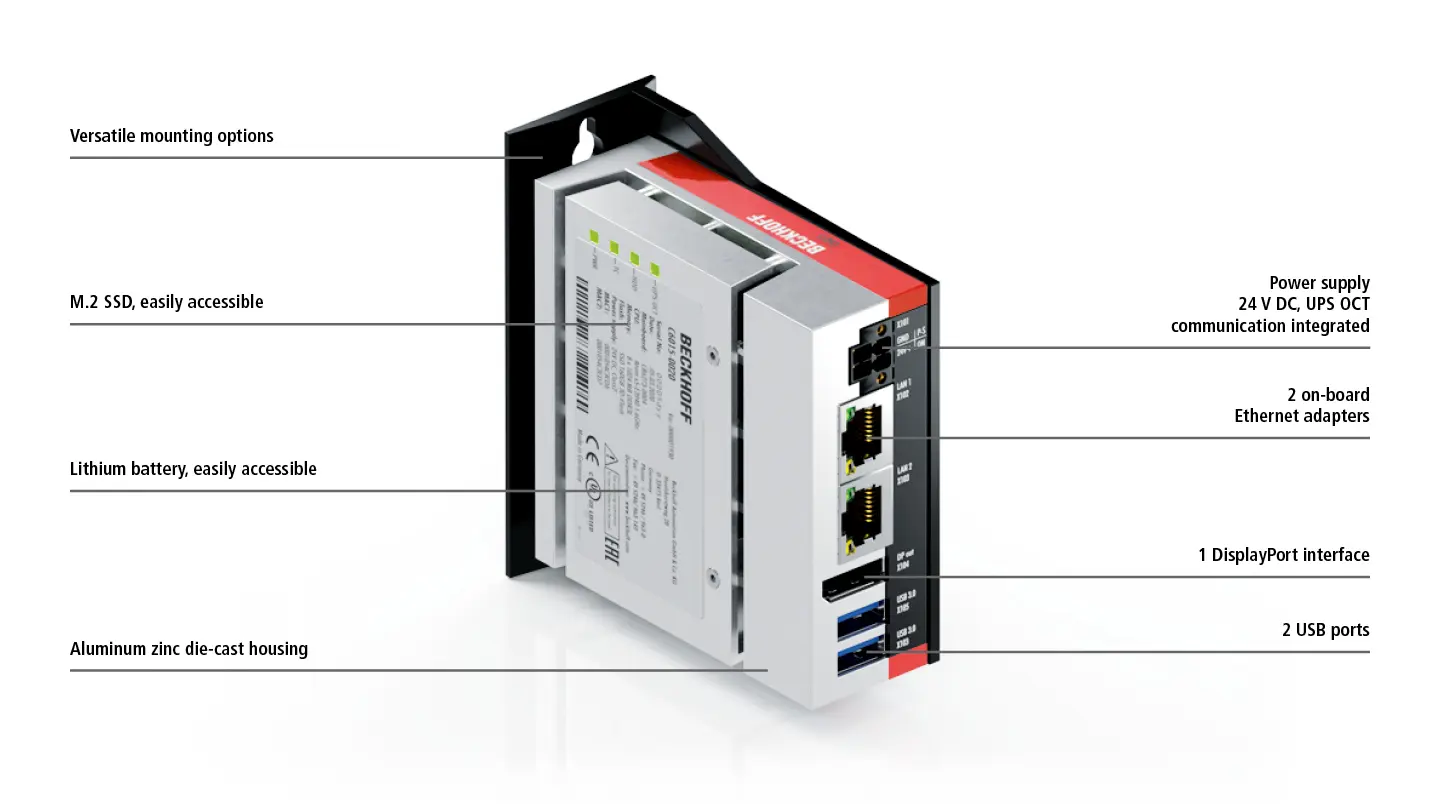

| Корпус | aluminum zinc die-cast housing |
|---|---|
| Монтаж | mounting sheet at the rear wall | mounting sheet at the side wall or for DIN rail |
| Slots for hard disk/flash | 1 slot for M.2 SSD |
| Охлаждение | passive with single side cooling plate |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Степень защиты | IP20 |
| Рабочая температура | 0…50°C |

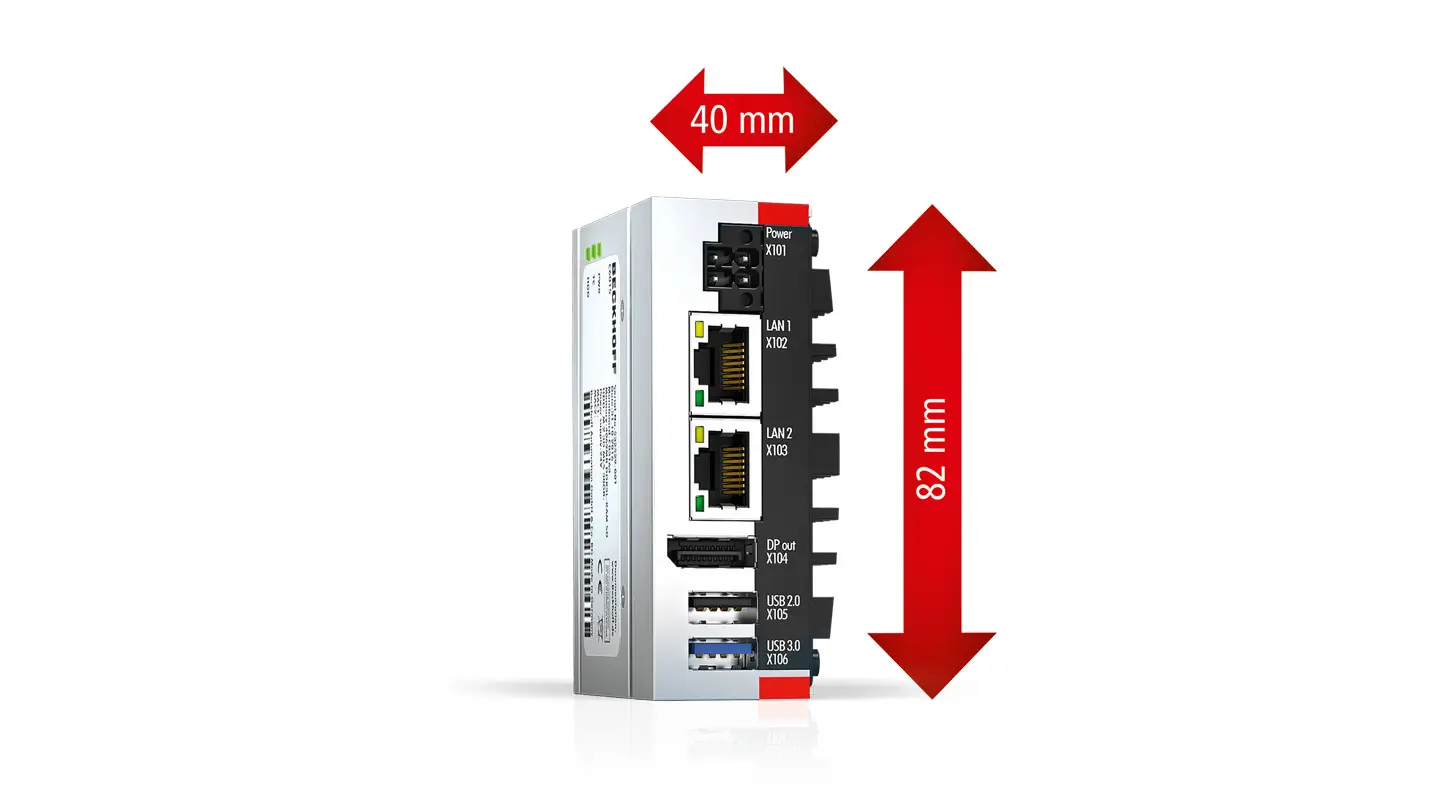

| Размеры (Ш x В x Г) | 82 x 82 x 40 mm (3.2" x 3.2" x 1.6"), without mounting plate |
| Процессор | Intel Atom ® x6214RE, 1.4 GHz, 2 cores (TC3: 40) | Intel Atom ® x6416RE, 1.7 GHz, 4 cores (TC3: 50) |
| Motherboard | compact motherboard for Intel Atom ® x6 |
| Memory | 4 GB DDR4 RAM | up to 8 GB DDR4 RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000/2500BASE-T on-board |
| Hard disks/flash | 40 GB M.2 SSD | up to 320 GB M.2 SSD |
| Интерфейсы | 2 x USB 3.1 Gen. 2, 1 x DisplayPort |
| Питание | 24 V DC | UPS CU81xx |
| Операционная система | – | Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, TwinCAT/BSD |
| Информация для заказа / C6015-0030C9900-C591 | processor Intel Atom ® x6416RE, 1.7 GHz, 4 cores (TC3: 50) and memory extension to 8 GB DDR4 RAM instead of Intel Atom ® x6214RE, 1.4 GHz (TC3: 40) and 4 GB DDR4 RAM |
| C9900-H591 | 80 GB M.2 SSD, 3D flash, extended temperature range, for C601x, instead of 40 GB M.2 SSD |
| C9900-H599 | 160 GB M.2 SSD, 3D flash, extended temperature range, for C601x, instead of 40 GB M.2 SSD |
| C9900-H675 | 320 GB M.2 SSD, 3D flash, extended temperature range, for C601x, instead of 40 GB M.2 SSD |
| C9900-Z468 | Adapter DisplayPort to DVI with active level shifter, shielded, PVC, black, DisplayPort, plug, straight, IP20, 20-pin – DVI-D, plug, straight, female, IP20, 24+1-pin, 0.40 m |
| C9900-M664 | mounting plate for C601x at the side wall, instead of plate at the rear wall |
| C9900-M665 | mounting plate for lateral installation of the C601x; single part, not mounted |
| C9900-M666 | mounting plate with DIN rail mounting adapter for C601x, instead of standard mounting plate |
| C9900-M667 | mounting plate with DIN rail mounting adapter for C601x; single part, not mounted |
