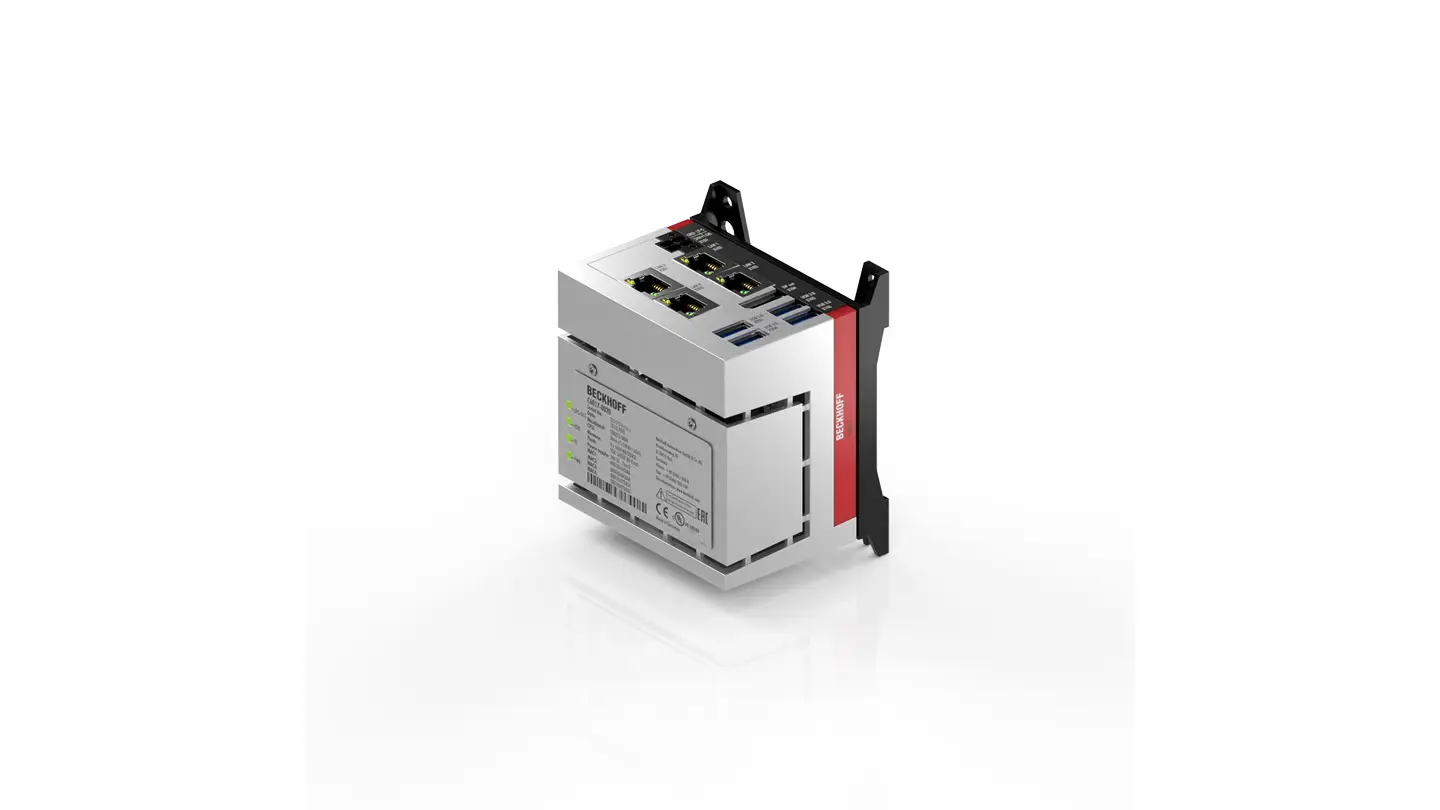

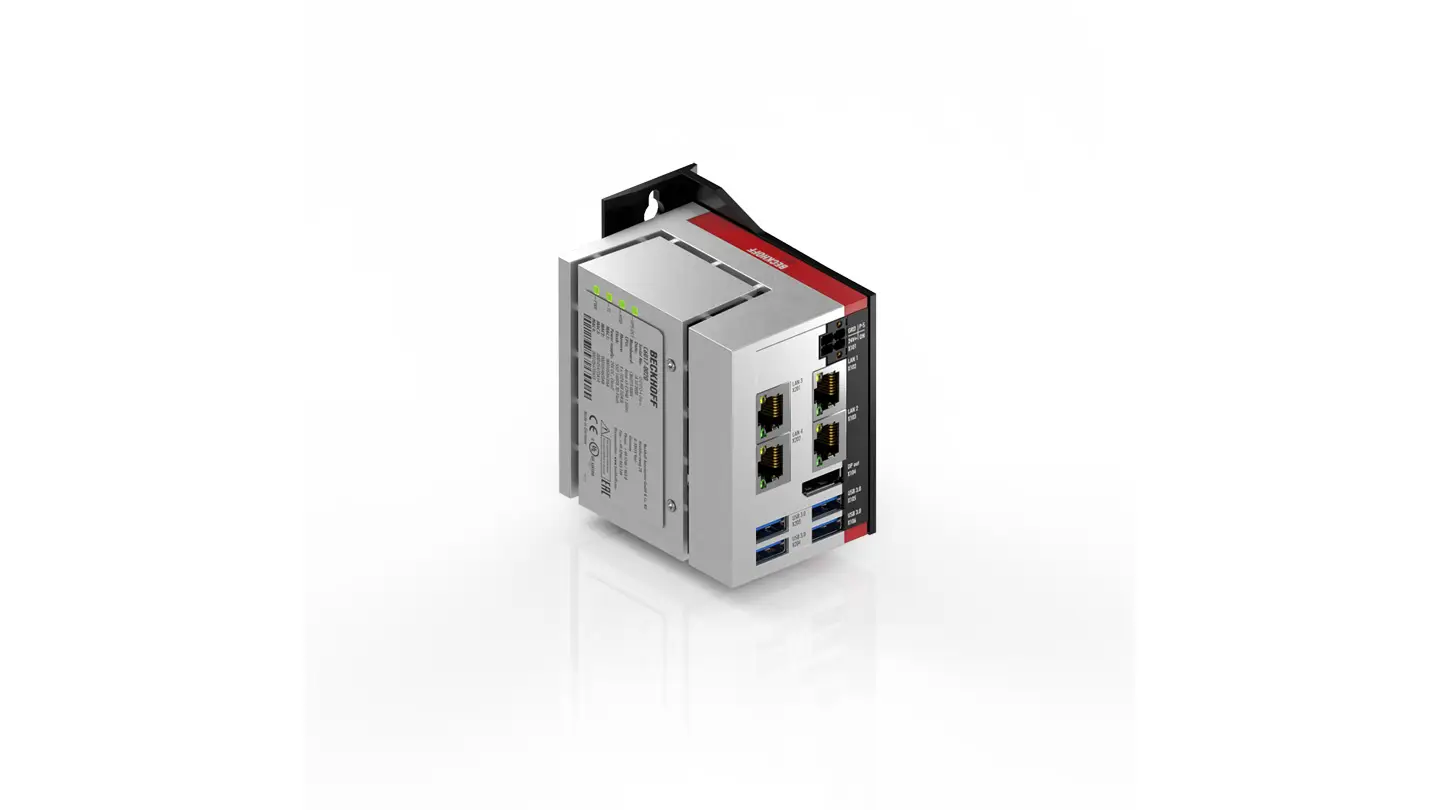

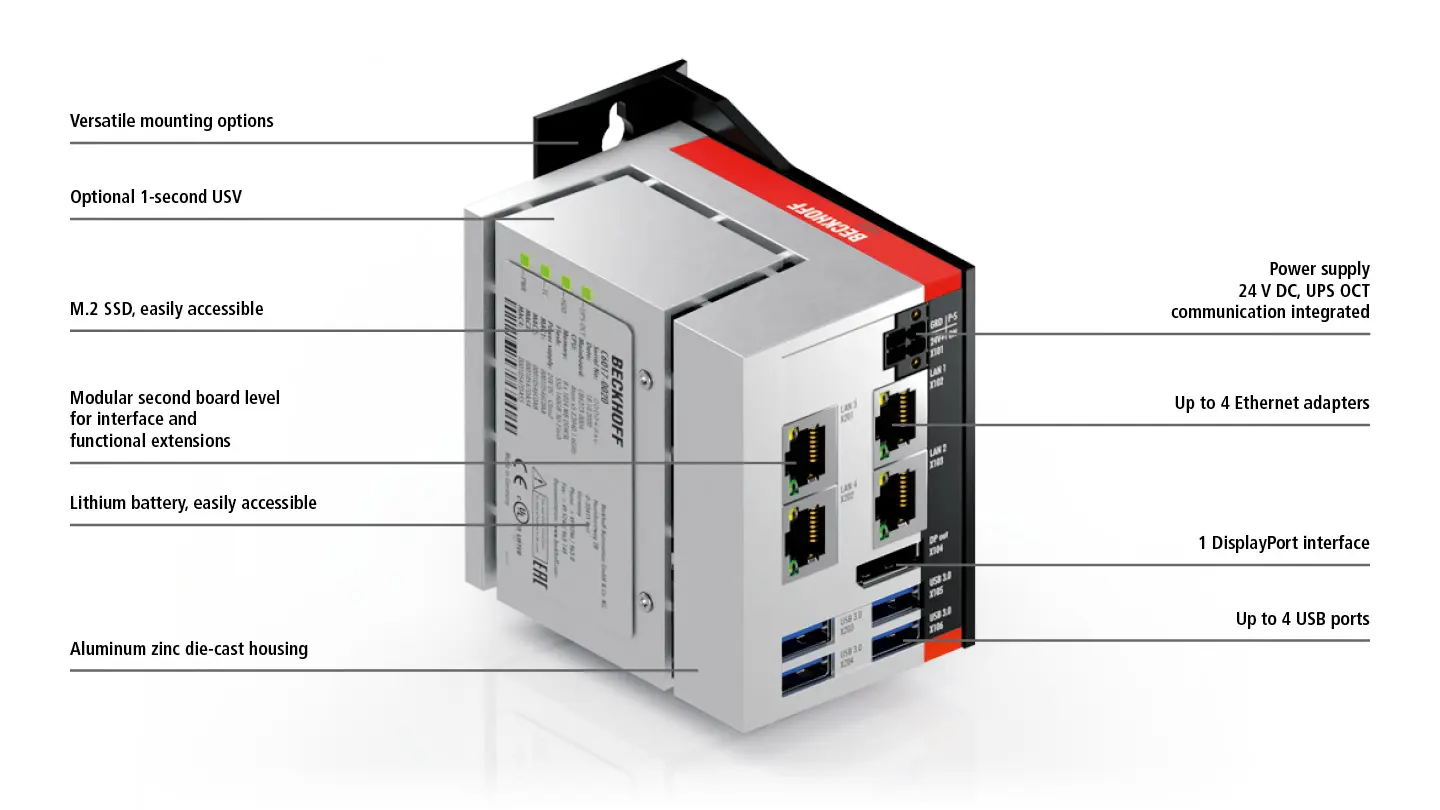

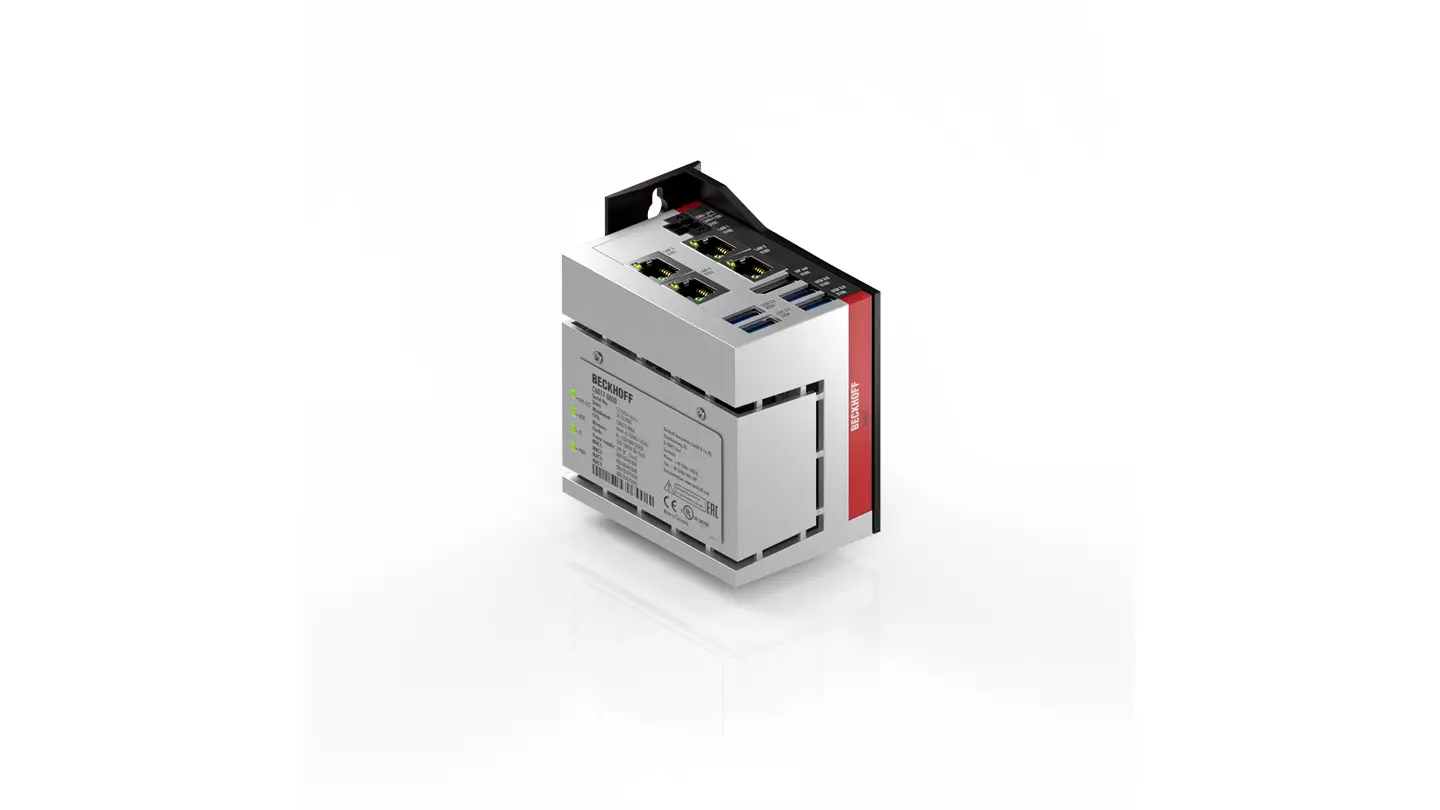

С C6017 Beckhoff расширяет свой ассортимент ультракомпактных промышленных ПК модульным вариантом с масштабируемыми интерфейсными расширениями и 1-секундным UPS для резервного сохранения персистентных данных. Благодаря чрезвычайно компактным размерам, универсальным и гибким вариантам монтажа, а также высокой...
| Корпус | aluminum zinc die-cast housing |
|---|---|
| Монтаж | mounting sheet at the rear wall | mounting sheet at the side wall or for DIN rail |
| Slots for hard disk/flash | 1 slot for M.2 SSD |
| Охлаждение | passive with single side cooling plate |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Степень защиты | IP20 |
| Рабочая температура | 0…50°C |
| Размеры (Ш x В x Г) | 82 x 82 x 66 mm (3.2" x 3.2" x 2.6"), without mounting plate |
| Процессор | Intel Atom ® x5-E3930, 1.3 GHz, 2 cores (TC3: 40) | Intel Atom ® x5-E3940, 1.6 GHz, 4 cores (TC3: 50) |
| Motherboard | compact motherboard for Intel Atom ® x5-E39xx |
| Memory | 4 GB DDR4 RAM | up to 8 GB DDR4 RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board | 2 x 100/1000BASE-T |
| Hard disks/flash | 40 GB M.2 SSD | up to 320 GB M.2 SSD |
| Интерфейсы | 2 x USB 3.0, 1 x DisplayPort | 2 x USB 3.0, 2 x RS232 |
| Питание | 24 V DC | UPS CU81xx |
| Операционная система | – | Windows 10 IoT Enterprise, TwinCAT/BSD |
| Информация для заказа / C6017-0020C9900-C585 | processor Intel Atom ® x5-E3940, 1.6 GHz, 4 cores (TC3: 50), instead of Intel Atom ® x5-E3930, 1.3 GHz (TC3: 40) |
| C9900-C584 | processor Intel Atom ® x5-E3940, 1.6 GHz, 4 cores (TC3: 50) and memory extension to 8 GB DDR4 RAM instead of Intel Atom ® x5-E3930, 1.3 GHz (TC3: 40) and 4 GB DDR4 RAM |
| C9900-E320 | additional connectors in the front of a C6017-0020, C6017-0030 or C6017-0040, dual Ethernet adapter with 2 x 100/1000BASE-T connector and 2 USB 3.0 ports |
| C9900-E311 | additional connectors in the front of a C6017, 2 x serial port RS232, galvanically isolated, D-sub 9-pin connector |
| C9900-H591 | 80 GB M.2 SSD, 3D flash, extended temperature range, for C601x, instead of 40 GB M.2 SSD |
| C9900-H599 | 160 GB M.2 SSD, 3D flash, extended temperature range, for C601x, instead of 40 GB M.2 SSD |
| C9900-H675 | 320 GB M.2 SSD, 3D flash, extended temperature range, for C601x, instead of 40 GB M.2 SSD |
| C9900-Z468 | Adapter DisplayPort to DVI with active level shifter, shielded, PVC, black, DisplayPort, plug, straight, IP20, 20-pin – DVI-D, plug, straight, female, IP20, 24+1-pin, 0.40 m |
| C9900-M664 | mounting plate for C601x at the side wall, instead of plate at the rear wall |
| C9900-M665 | mounting plate for lateral installation of the C601x; single part, not mounted |
| C9900-M666 | mounting plate with DIN rail mounting adapter for C601x, instead of standard mounting plate |
| C9900-M667 | mounting plate with DIN rail mounting adapter for C601x; single part, not mounted |
| C9900-U215 | internal, capacitive 1-second UPS to ensure secure backup of persistent application data on the M.2 SSD, requires TwinCAT |
