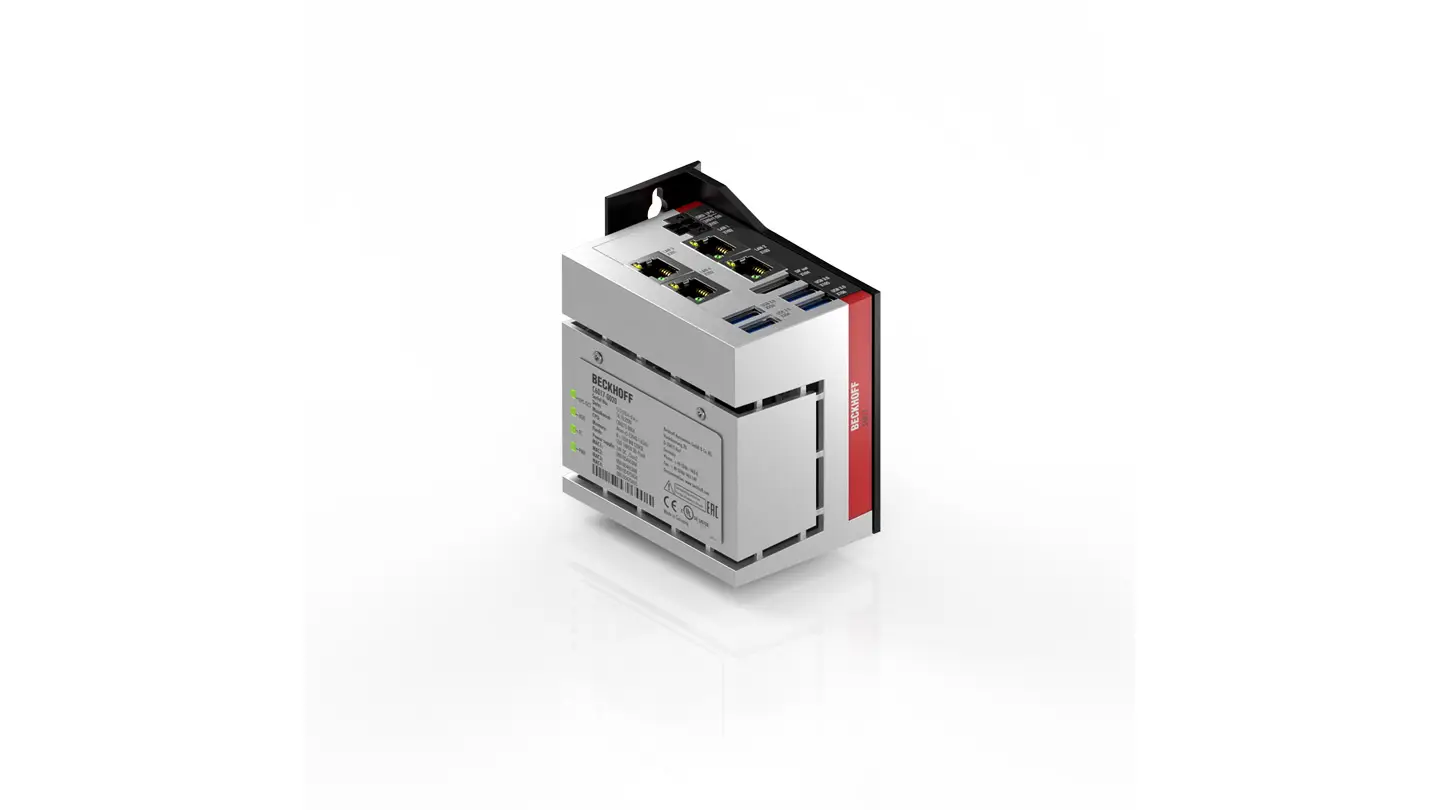

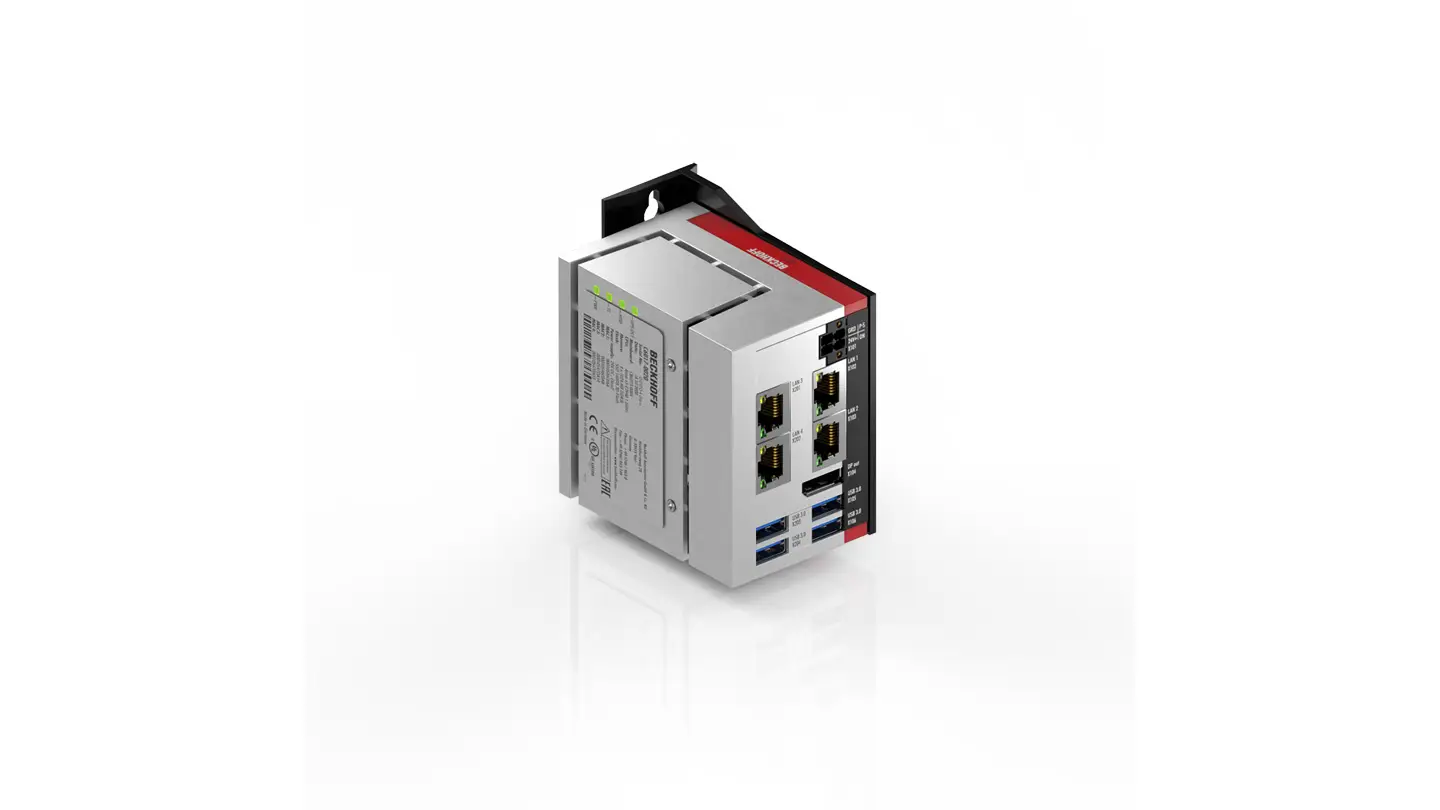

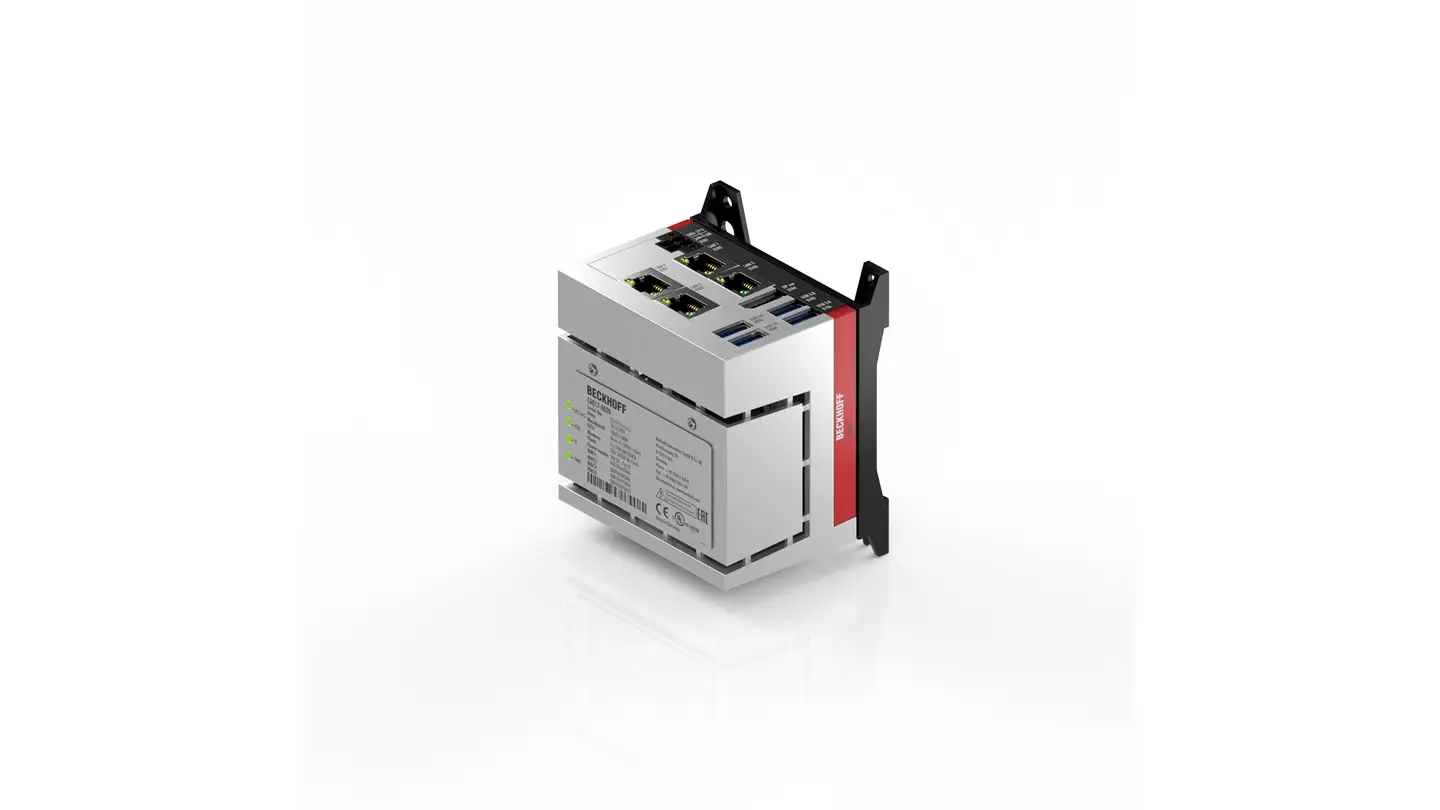

С C6017 Beckhoff расширяет свой ассортимент ультракомпактных промышленных ПК модульным вариантом с масштабируемыми интерфейсными расширениями и 1-секундным UPS для резервного сохранения персистентных данных. Благодаря чрезвычайно компактным размерам, универсальным и гибким вариантам монтажа, а также высокой...

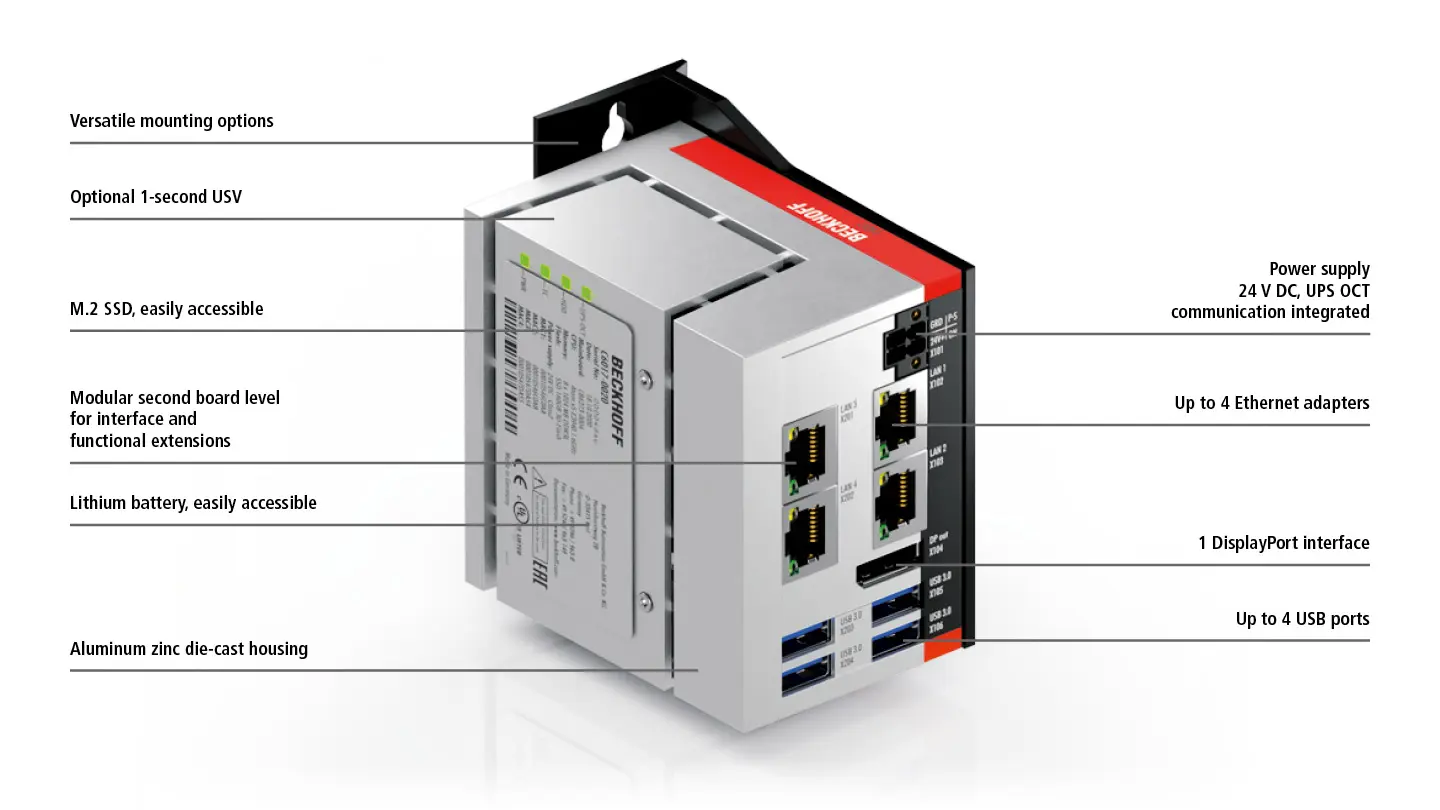

| Корпус | aluminum zinc die-cast housing |
|---|---|
| Монтаж | select from the option list | mounting sheet at the rear wall, side wall or for DIN rail |
| Slots for hard disk/flash | 1 slot for M.2 SSD |
| Охлаждение | passive with single side cooling plate |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Степень защиты | IP20 |
| Рабочая температура | -25…+50°C |
| Размеры (Ш x В x Г) | 82 x 82 x 66 mm (3.2" x 3.2" x 2.6"), without mounting plate |
| Процессор | select from the option table | up to Intel Atom ® x7433RE, 1.5 GHz base frequency, 4 cores (TC3: 50) |
| Motherboard | compact motherboard for Intel Atom ® x7 |
| Memory | select from the option table | up to 16 GB LPDDR5 RAM |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000/2500BASE-T on-board |
| Hard disks/flash | select from the option table | up to 640 GB M.2 SSD |
| Интерфейсы | 2 x USB 3.1 Gen. 2, 1 x DisplayPort |
| Питание | 24 V DC |
| Операционная система | – | Windows 11 IoT Enterprise LTSC 2024, TwinCAT/BSD, Beckhoff RT Linux ® |
| Информация для заказа / C6017-0040C9900-C657 | processor Intel Atom ® X7213RE, 2.0 GHz base frequency, 2 cores (TC3: 40) and 8 GB LPDDR5 RAM |
| C9900-C658 | processor Intel Atom ® X7433RE, 1.5 GHz base frequency, 4 cores (TC3: 50) and 8 GB LPDDR5 RAM |
| C9900-C660 | processor Intel Atom ® X7433RE, 1.5 GHz base frequency, 4 cores (TC3: 50) and 16 GB LPDDR5 RAM |
| Информация для заказа / C6017-0040C9900-H868 | 40 GB M.2 SSD, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| C9900-H855 | 80 GB M.2 SSD, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| C9900-H856 | 160 GB M.2 SSD, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| C9900-H857 | 320 GB M.2 SSD, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| Информация для заказа / C6017-0040C9900-H851 | 80 GB M.2 SSD, NVM Express™, PCIe ® x1, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| C9900-H852 | 160 GB M.2 SSD, NVM Express™, PCIe ® x1, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| C9900-H853 | 320 GB M.2 SSD, NVM Express™, PCIe ® x1, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| C9900-H854 | 640 GB M.2 SSD, NVM Express™, PCIe ® x1, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| Информация для заказа / C6017-0040C9900-M600 | mounting plate for C601x at the rear wall |
| C9900-M601 | mounting plate for C601x at the side wall |
| C9900-M602 | mounting plate with DIN rail mounting adapter for C601x |
| Информация для заказа / C6017-0040C9900-E320 | additional connectors in the front of a C6017-0020, C6017-0030 or C6017-0040, dual Ethernet adapter with 2 x 100/1000BASE-T connector and 2 USB 3.0 ports |
| C9900-E311 | additional connectors in the front of a C6017, 2 x serial port RS232, galvanically isolated, D-sub 9-pin connector |
| C9900-Z468 | Adapter DisplayPort to DVI with active level shifter, shielded, PVC, black, DisplayPort, plug, straight, IP20, 20-pin – DVI-D, plug, straight, female, IP20, 24+1-pin, 0.40 m |
| C9900-U215 | internal, capacitive 1-second UPS to ensure secure backup of persistent application data on the M.2 SSD, requires TwinCAT |
