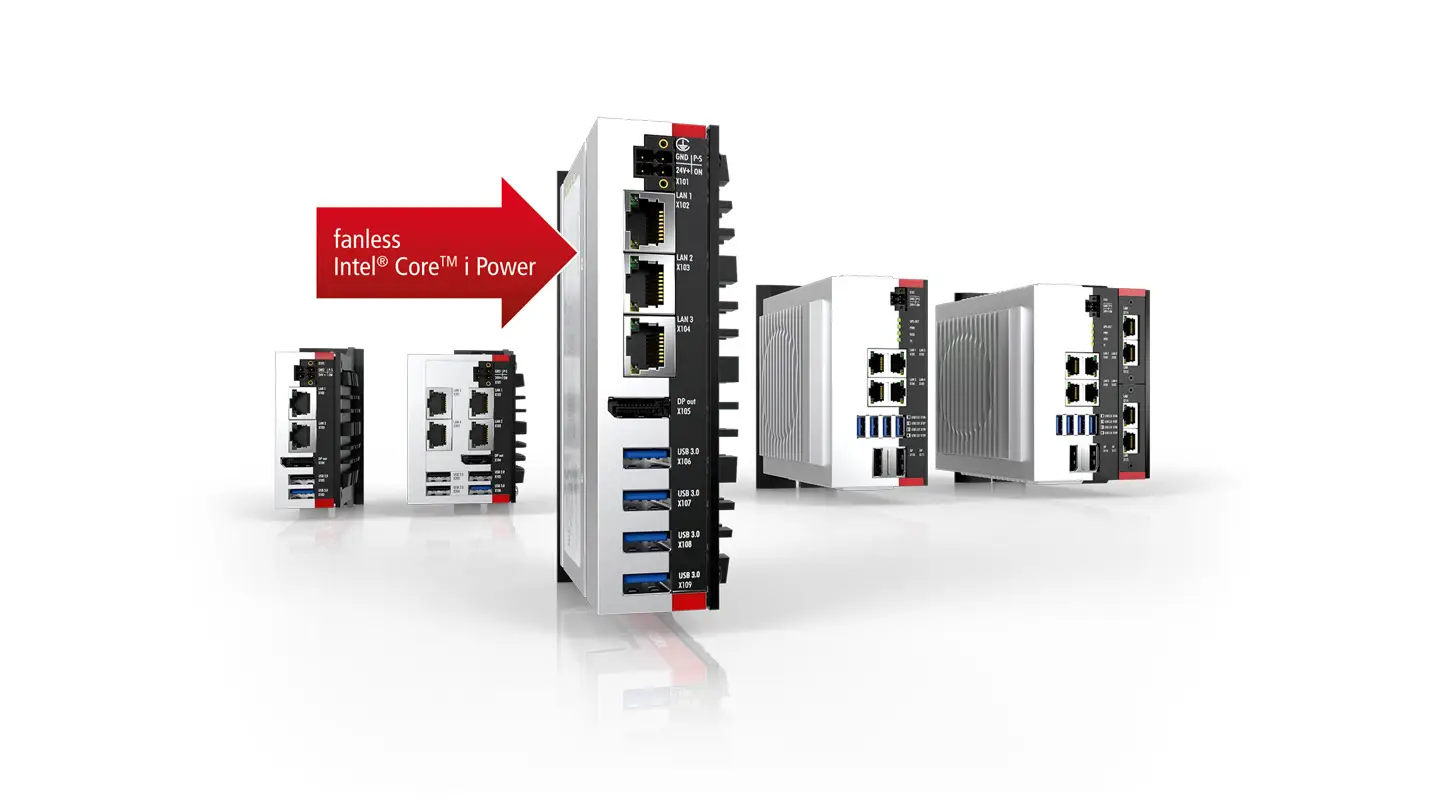

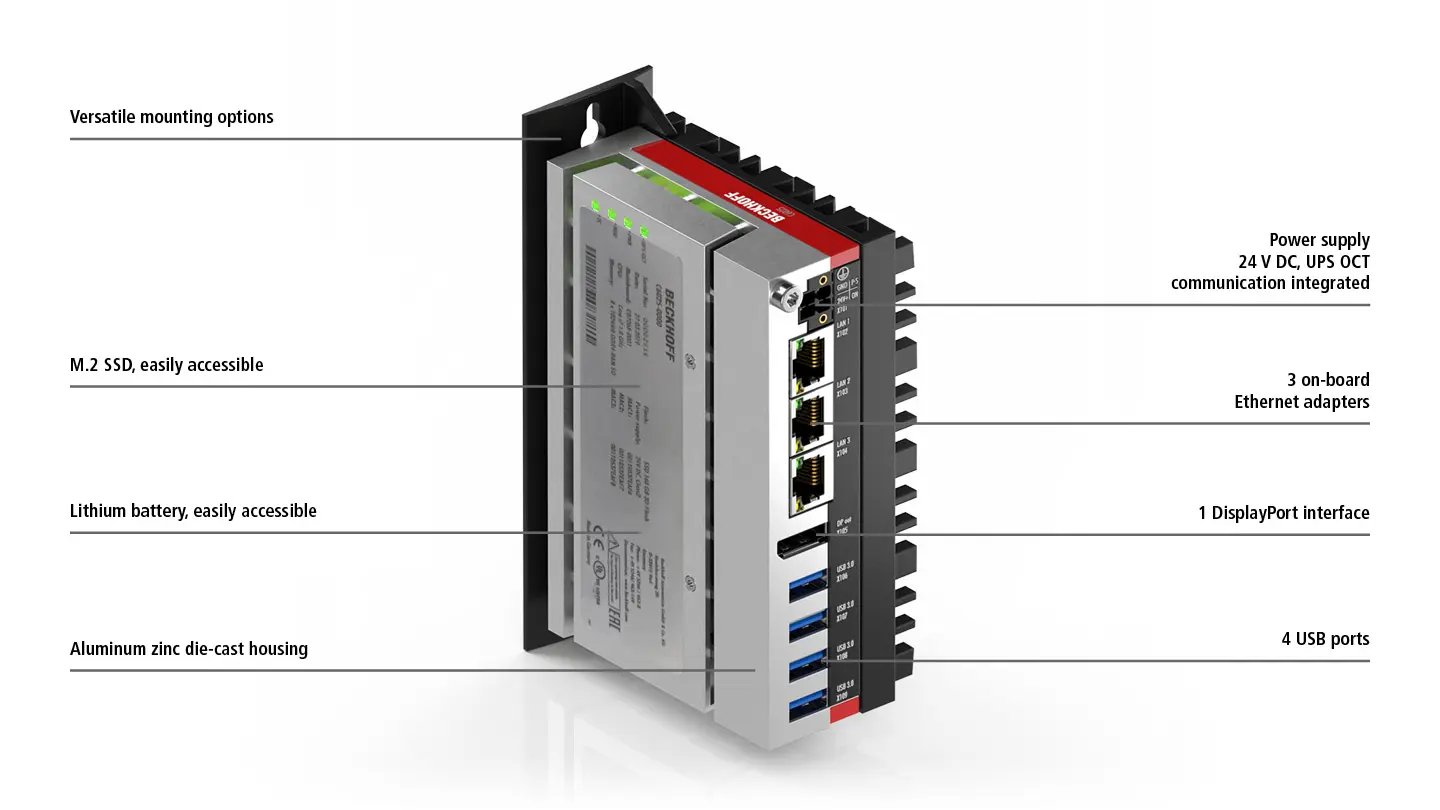

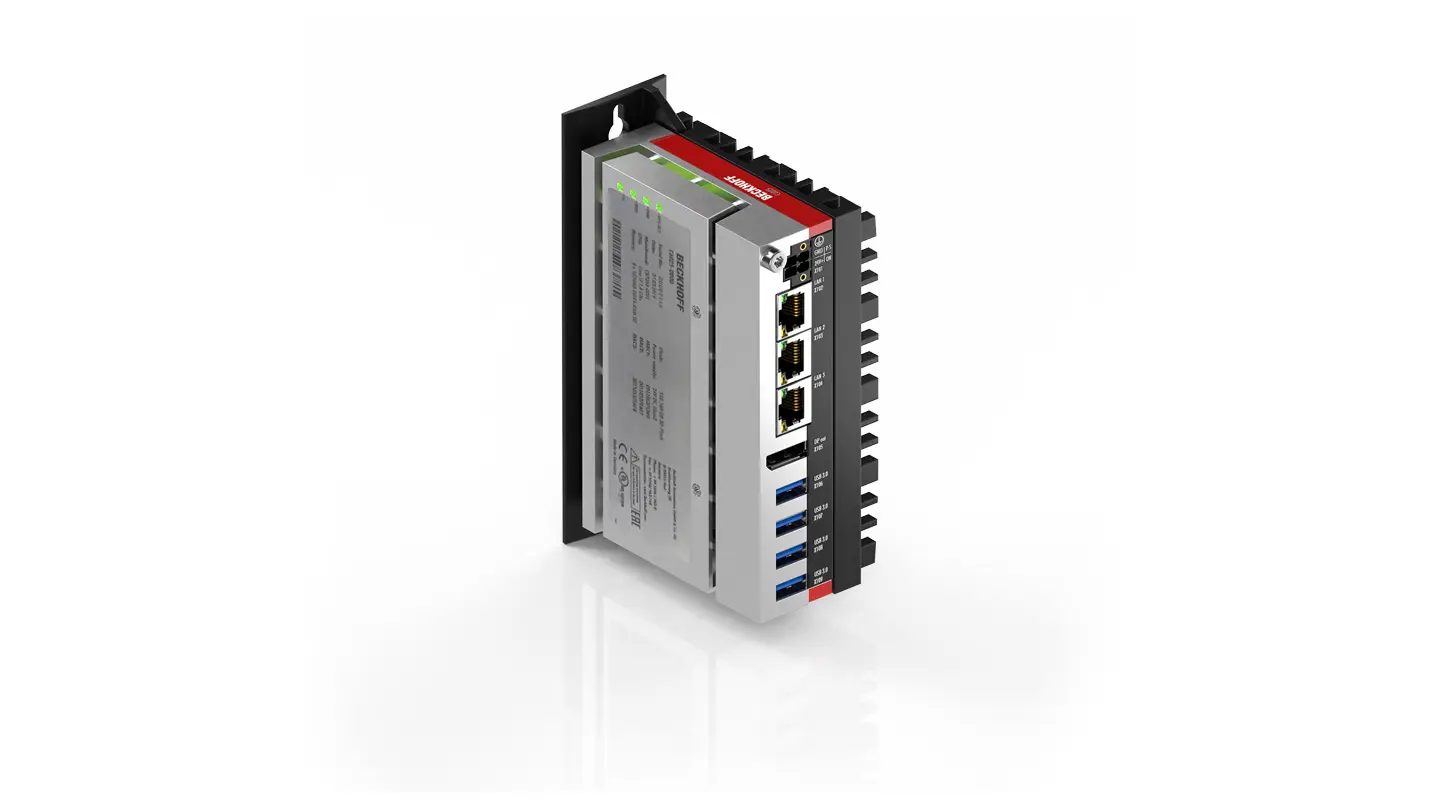

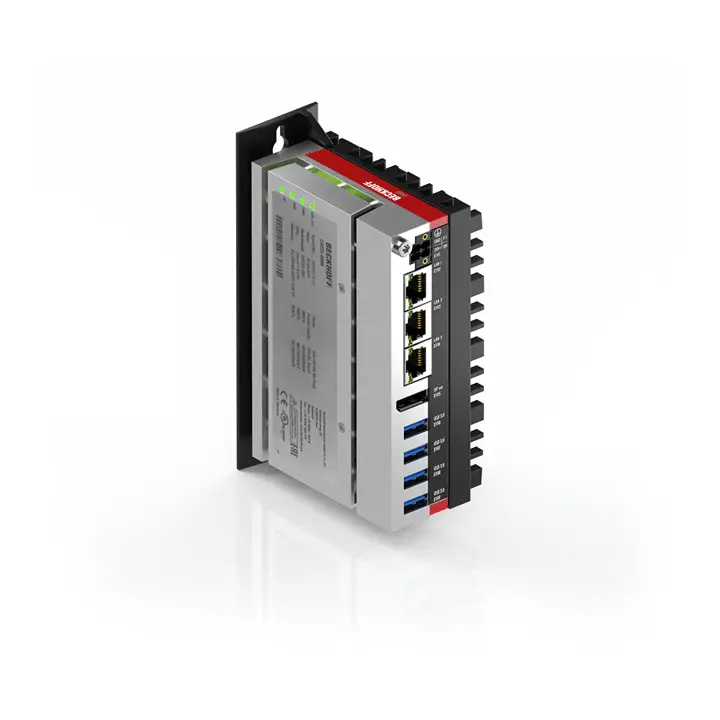

Ультракомпактный промышленный ПК C6025 выполнен в безвентиляторном исполнении и обеспечивает высокую вычислительную мощность, несмотря на малые габариты 82 x 127 x 50 мм. В зависимости от конфигурации основу для этого составляют процессоры Intel Atom или Intel® Core™ i U с числом процессорных ядер до четырех,...
| Корпус | aluminum zinc die-cast housing |
|---|---|
| Монтаж | mounting sheet at the rear wall | mounting sheet at the side wall or for DIN rail |
| Slots for hard disk/flash | 1 slot for M.2 SSD |

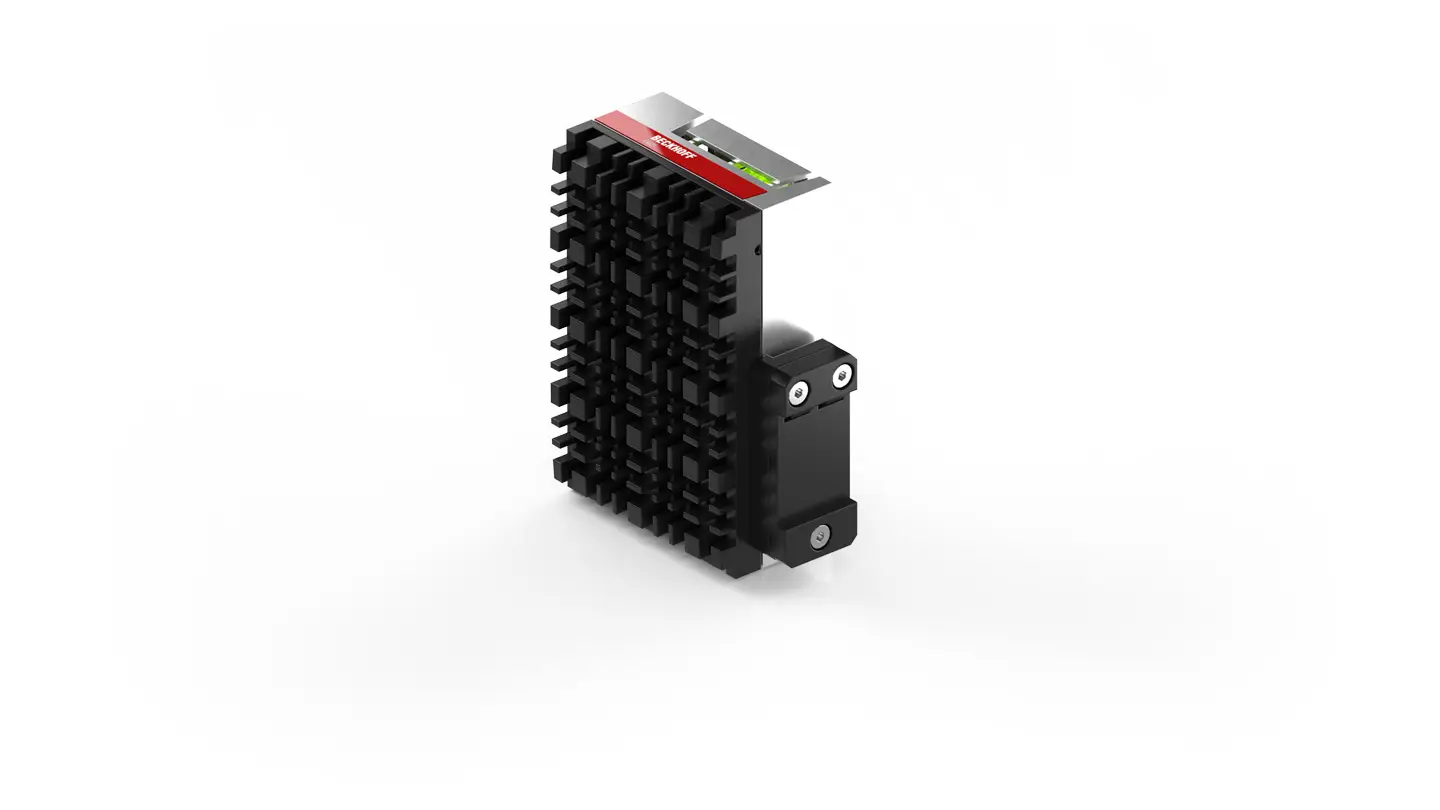

| Охлаждение | passive with single side cooling plate |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Степень защиты | IP20 |
| Рабочая температура | 0…50°C |
| Размеры (Ш x В x Г) | 82 x 127 x 47 mm (3.2” x 5” x 1.9”), without mounting plate |
| Процессор | Intel ® Celeron ® 4305UE 2.0 GHz, 2 cores (TC3: 50) | up to Intel ® Core™ i7-8665UE 1.7 GHz, 4 cores (TC3: 60) |
| Motherboard | compact motherboard for 8 th generation Intel ® Celeron ® , Core™ i3/i5/i7, U series |
| Memory | 4 GB DDR4 RAM |
| Графика | integrated in the processor |
| Ethernet | 3 x 100/1000BASE-T on-board |
| Hard disks/flash | 40 GB M.2 SSD | up to 640 GB M.2 SSD |
| Интерфейсы | 4 x USB 3.0, 1 x DisplayPort |
| Питание | 24 V DC | UPS CU81xx |
| Операционная система | – | Windows 10 IoT Enterprise, Windows 11 IoT Enterprise 2024 LTSC, TwinCAT/BSD |
| Информация для заказа / C6025-0000C9900-R286 | memory extension for C602x with Processor Intel ® Celeron™ 4305UE, 2.0 GHz to 8 GB DDR4-RAM, instead of 4 GB |
| C9900-C628 | processor 8 th generation Intel ® Core™ i3-8145UE, 2.2 GHz, 2 cores (TC3: 50), instead of Intel ® Celeron ® 4305UE, 2.0 GHz, (TC3: 50) |
| C9900-C629 | processor 8 th generation Intel ® Core™ i5-8365UE, 1.6 GHz, 4 cores (TC3: 60) and memory extension to 8 GB DDR4-RAM, instead of Intel ® Celeron ® 4305UE, 2.0 GHz, (TC3: 50) and 4 GB DDR4-RAM |
| C9900-C630 | processor 8 th generation Intel ® Core™ i7-8665UE, 1.7 GHz, 4 cores (TC3: 60) and memory extension to 8 GB DDR4-RAM, instead of Intel ® Celeron ® 4305UE, 2.0 GHz, (TC3: 50) and 4 GB DDR4-RAM |
| C9900-H597 | 80 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H598 | 160 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H616 | 320 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H677 | 640 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-Z468 | Adapter DisplayPort to DVI with active level shifter, shielded, PVC, black, DisplayPort, plug, straight, IP20, 20-pin – DVI-D, plug, straight, female, IP20, 24+1-pin, 0.40 m |
| C9900-M682 | mounting plate for C602x at the side wall, instead of plate at the rear wall |
| C9900-M683 | mounting plate for lateral installation of the C602x; single part, not mounted |
| C9900-M684 | mounting plate with DIN rail mounting adapter for C602x, instead of standard mounting plate |
| C9900-M685 | mounting plate with DIN rail mounting adapter for C602x; single part, not mounted |
