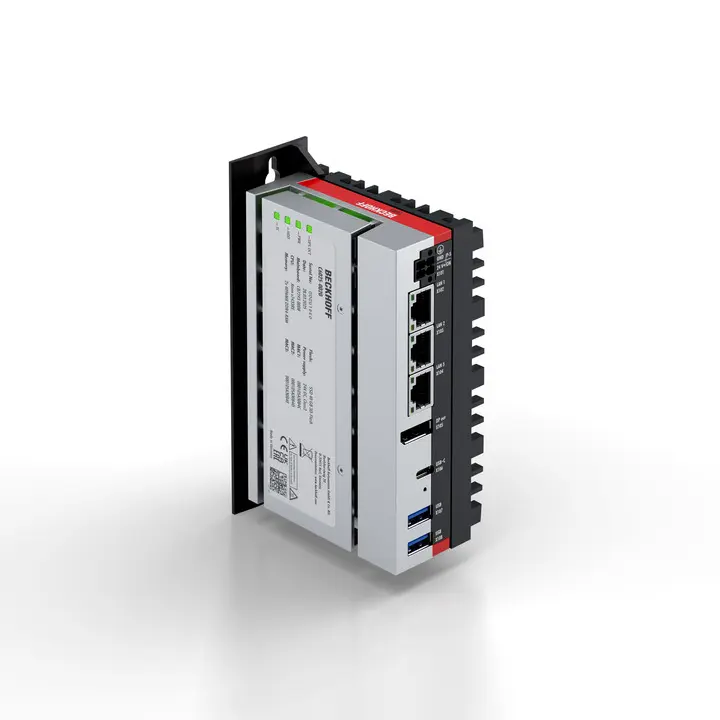

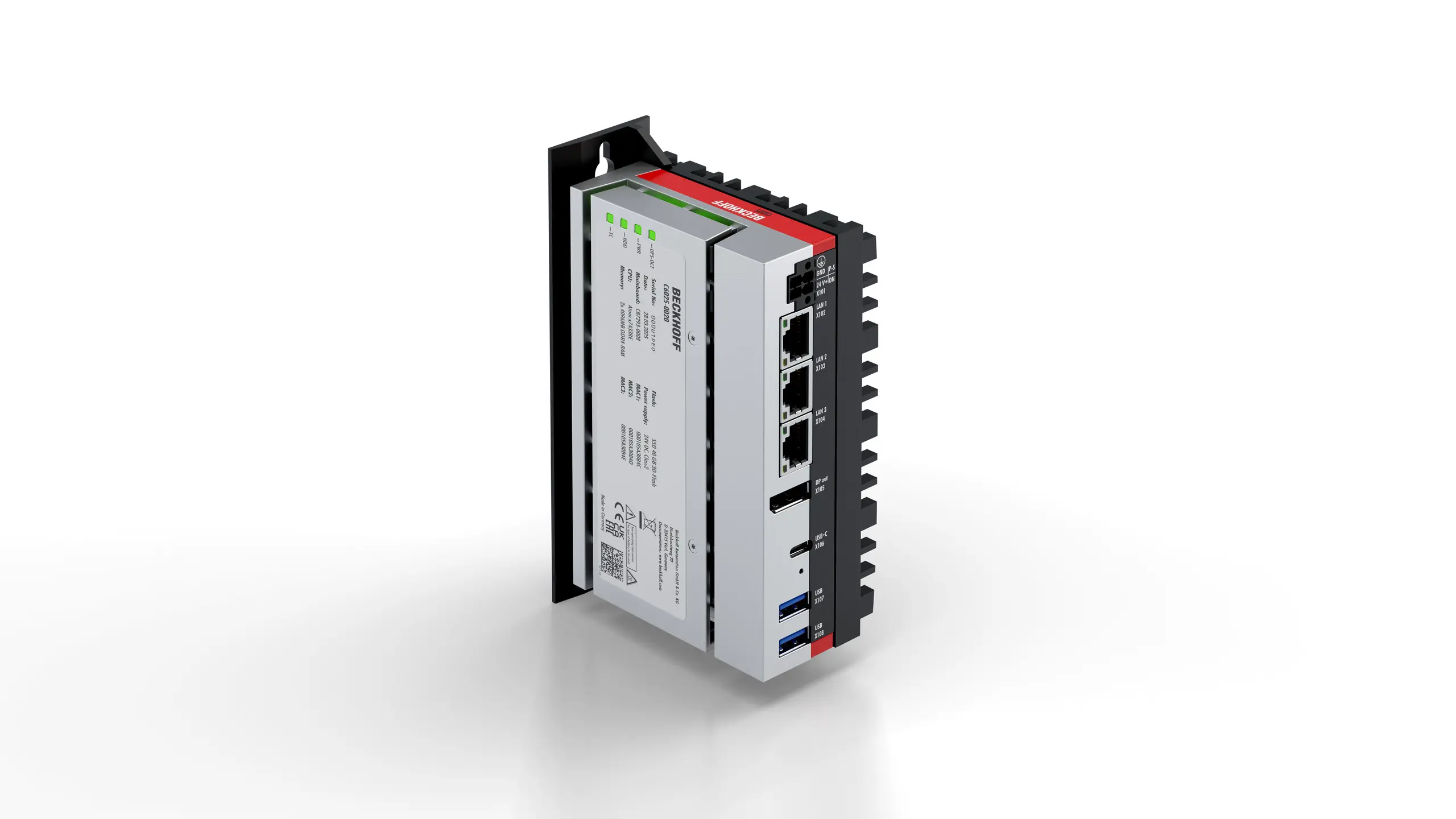

Ультракомпактный промышленный ПК C6025 выполнен в безвентиляторном исполнении и обеспечивает высокую вычислительную мощность, несмотря на малые габариты 82 x 127 x 50 мм. В зависимости от конфигурации основу для этого составляют процессоры Intel Atom или Intel® Core™ i U с числом процессорных ядер до четырех,...
| Корпус | aluminum zinc die-cast housing |
|---|---|
| Монтаж | select from the option list | mounting sheet at the rear wall, side wall or for DIN rail |
| Slots for hard disk/flash | 1 slot for M.2 SSD |
| Охлаждение | passive with single side cooling plate |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Степень защиты | IP20 |
| Рабочая температура | -25…+50°C |
| Размеры (Ш x В x Г) | 82 x 127 x 47 mm (3.2” x 5” x 1.9”), without mounting plate |
| Процессор | select from the option table | up to Intel Atom ® X7835RE, 1.3 GHz, 8 cores (TC3: 50) |
| Motherboard | compact motherboard for Intel Atom ® x7 |
| Memory | select from the option table |
| Графика | integrated in the processor |
| Ethernet | 3 x 100/1000/2500BASE-T on-board |
| Hard disks/flash | select from the option table | up to 640 GB M.2 SSD |
| Интерфейсы | 2 x USB 3.1 Gen. 2, 1 x USB-C, 1 x DisplayPort |
| Питание | 24 V DC |
| Операционная система | – | Windows 11 IoT Enterprise LTSC 2024, TwinCAT/BSD, Beckhoff RT Linux ® |
| Информация для заказа / C6025-0020C9900-C657 | processor Intel Atom ® X7213RE, 2.0 GHz base frequency, 2 cores (TC3: 40) and 8 GB LPDDR5 RAM |
| C9900-C658 | processor Intel Atom ® X7433RE, 1.5 GHz base frequency, 4 cores (TC3: 50) and 8 GB LPDDR5 RAM |
| C9900-C659 | processor Intel Atom ® X7835RE, 1.3 GHz base frequency, 8 cores (TC3: 50) and 8 GB LPDDR5 RAM |
| Информация для заказа / C6025-0020C9900-H868 | 40 GB M.2 SSD, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| C9900-H855 | 80 GB M.2 SSD, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| C9900-H856 | 160 GB M.2 SSD, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| C9900-H857 | 320 GB M.2 SSD, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| Информация для заказа / C6025-0020C9900-H851 | 80 GB M.2 SSD, NVM Express™, PCIe ® x1, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| C9900-H852 | 160 GB M.2 SSD, NVM Express™, PCIe ® x1, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| C9900-H853 | 320 GB M.2 SSD, NVM Express™, PCIe ® x1, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| C9900-H854 | 640 GB M.2 SSD, NVM Express™, PCIe ® x1, 3D flash, extended temperature range, for PCs from Intel Atom ® x7 onward |
| Информация для заказа / C6025-0020C9900-M603 | mounting plate for C602x at the rear wall |
| C9900-M604 | mounting plate for C602x at the side wall |
| C9900-M605 | mounting plate with DIN rail mounting adapter for C602x |
| Информация для заказа / C6025-0020C9900-Z468 | Adapter DisplayPort to DVI with active level shifter, shielded, PVC, black, DisplayPort, plug, straight, IP20, 20-pin – DVI-D, plug, straight, female, IP20, 24+1-pin, 0.40 m |
