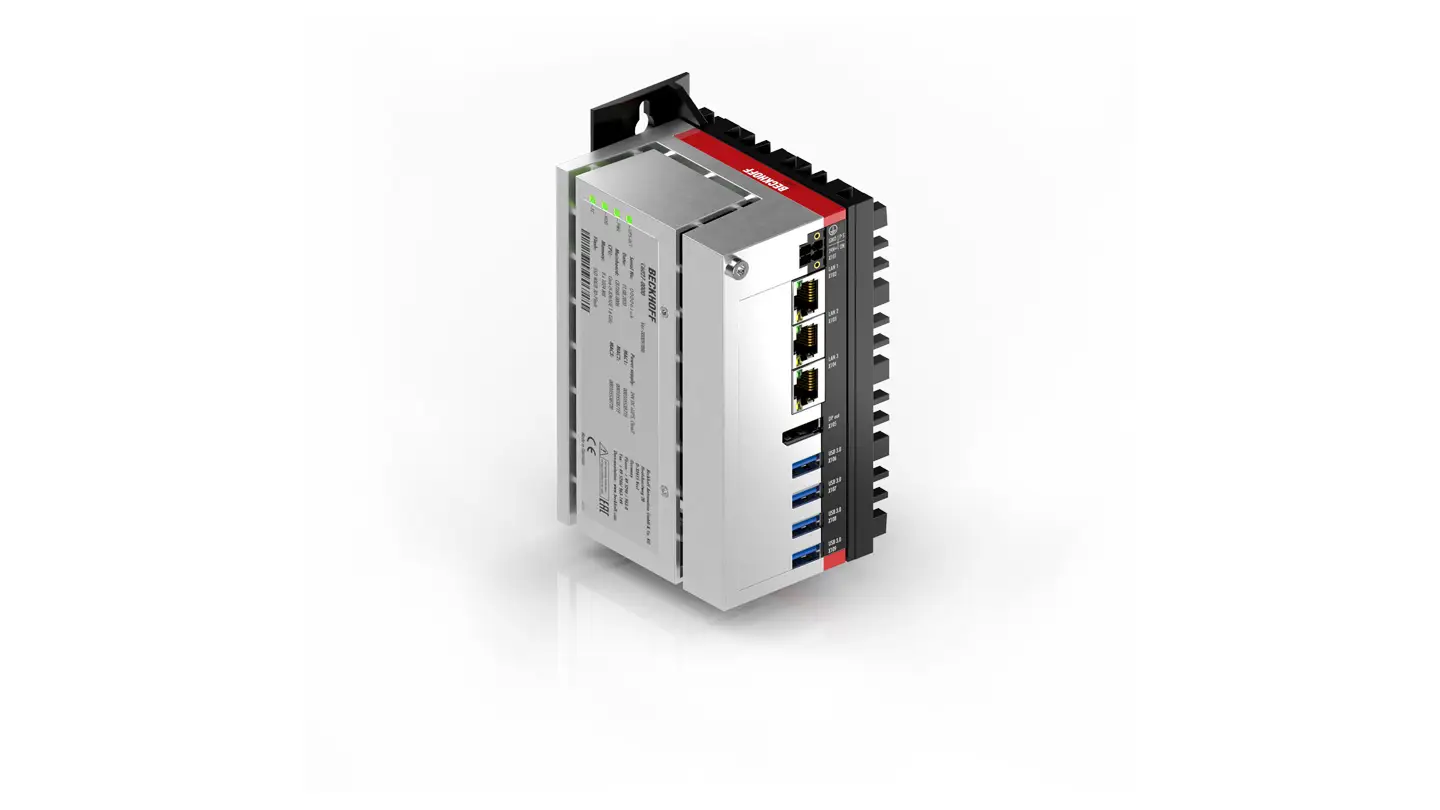

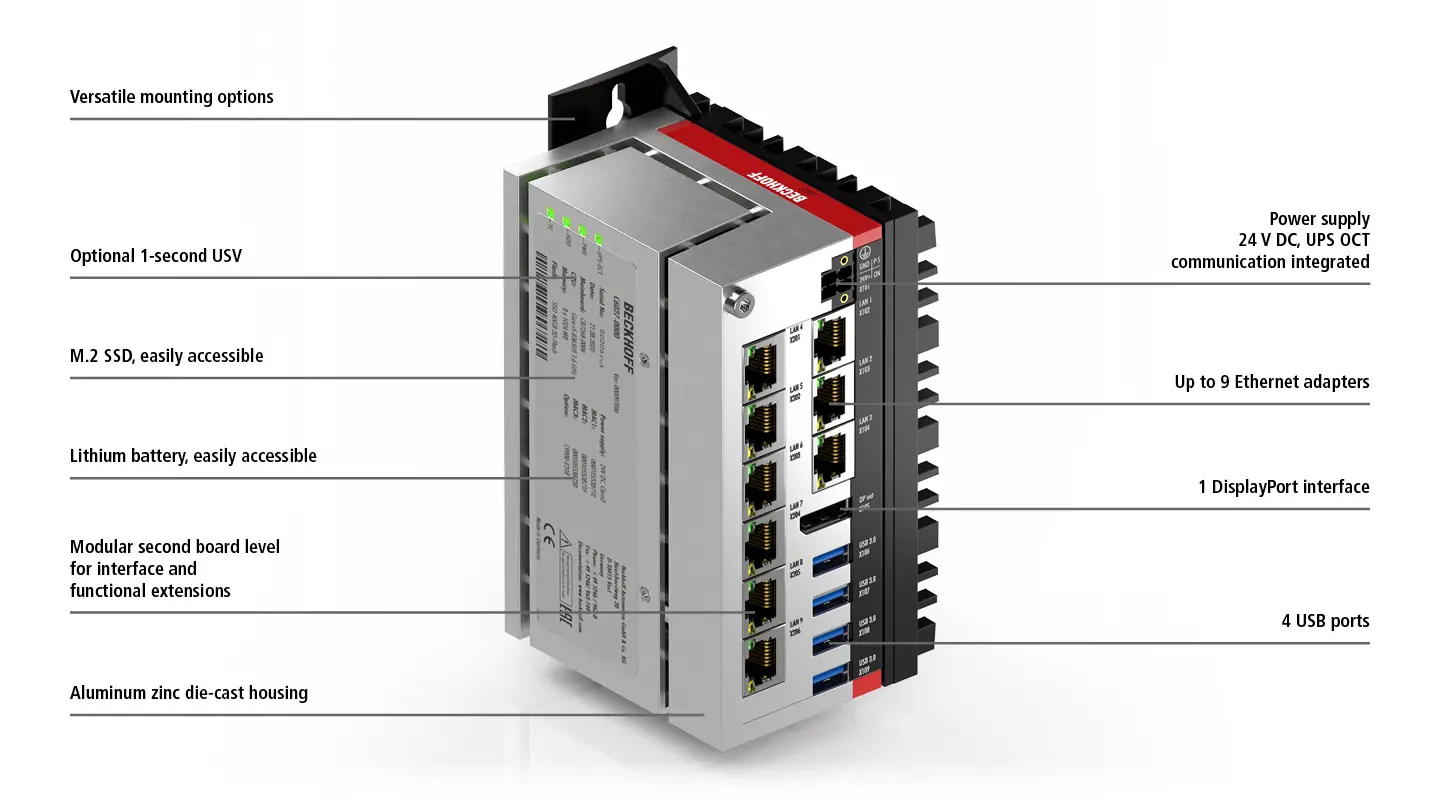

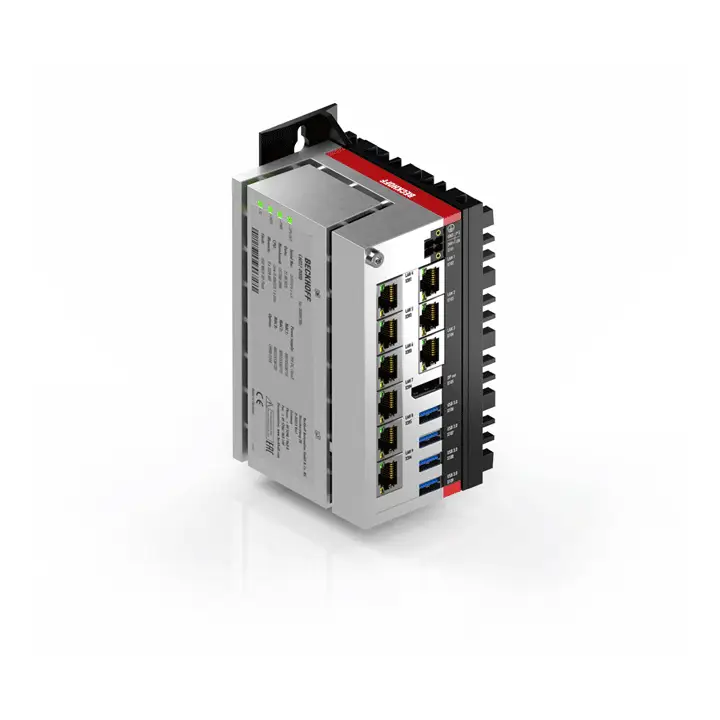

Сверхкомпактный промышленный ПК C6027 выполнен как безвентиляторное устройство и, несмотря на малые габариты 82 x 127 x 69 mm, обеспечивает высокую вычислительную мощность Intel® Core™ i. Основой для этого служат процессоры Intel® Core™ i U с числом ядер до четырех, поскольку при свойствах Core™ i их энергопотребление...
| Корпус | aluminum zinc die-cast housing |
|---|---|
| Монтаж | mounting sheet at the rear wall | mounting sheet at the side wall or for DIN rail |
| Slots for hard disk/flash | 1 slot for M.2 SSD |

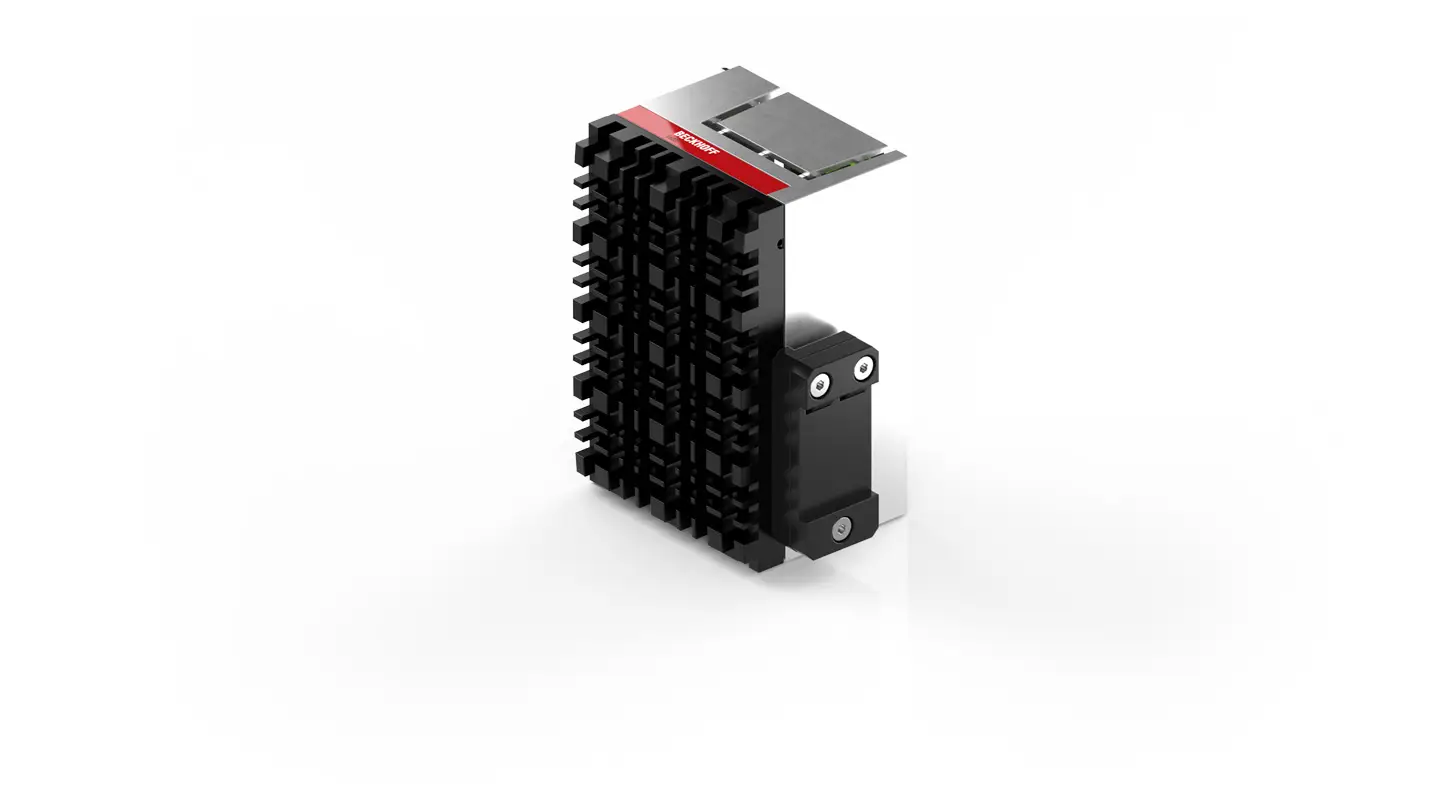

| Охлаждение | passive with single side cooling plate |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Степень защиты | IP20 |
| Рабочая температура | 0…50°C |
| Размеры (Ш x В x Г) | 82 x 127 x 69 mm (3.2” x 5” x 2.7”), without mounting plate |
| Процессор | Intel ® Celeron ® 6305E 1.8 GHz base frequency, 2 cores (TC3: 50) | up to Intel ® Core™ i7 1185G7E 1.8 GHz base frequency, 4 cores (TC3: 60) |
| Motherboard | compact motherboard for 11 th generation Intel ® Celeron ® , Core™ i3/i5/i7, U series |
| Memory | 8 GB DDR4 RAM | up to 16 GB DDR4 RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board | 6 additional 100/1000BASE-T |
| Hard disks/flash | 40 GB M.2 SSD | up to 640 GB M.2 SSD |
| Интерфейсы | 4 x USB 3.2 Gen. 2, 1 x DisplayPort |
| Питание | 24 V DC | UPS CU81xx |
| Операционная система | – | Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, TwinCAT/BSD, Beckhoff RT Linux ® |
| Информация для заказа / C6027-0010C9900-C588 | processor 11 th generation Intel ® Core™ i3-1115G4E, 2.2 GHz base frequency, 2 cores (TC3: 50), instead of Intel ® Celeron ® 6305E 1.8 GHz (TC3: 50) |
| C9900-C589 | processor 11 th generation Intel ® Core™ i5-1145G7E, 1.5 GHz base frequency, 4 cores (TC3: 60), and memory extension to 16 GB DDR4 RAM instead of Intel ® Celeron ® 6305E 1.8 GHz (TC3: 50) and 8 GB DDR4 RAM |
| C9900-C590 | processor 11 th generation Intel ® Core™ i7-1185G7E, 1.8 GHz base frequency, 4 cores (TC3: 60), and memory extension to 16 GB DDR4 RAM instead of Intel ® Celeron ® 6305E 1.8 GHz (TC3: 50) and 8 GB DDR4 RAM |

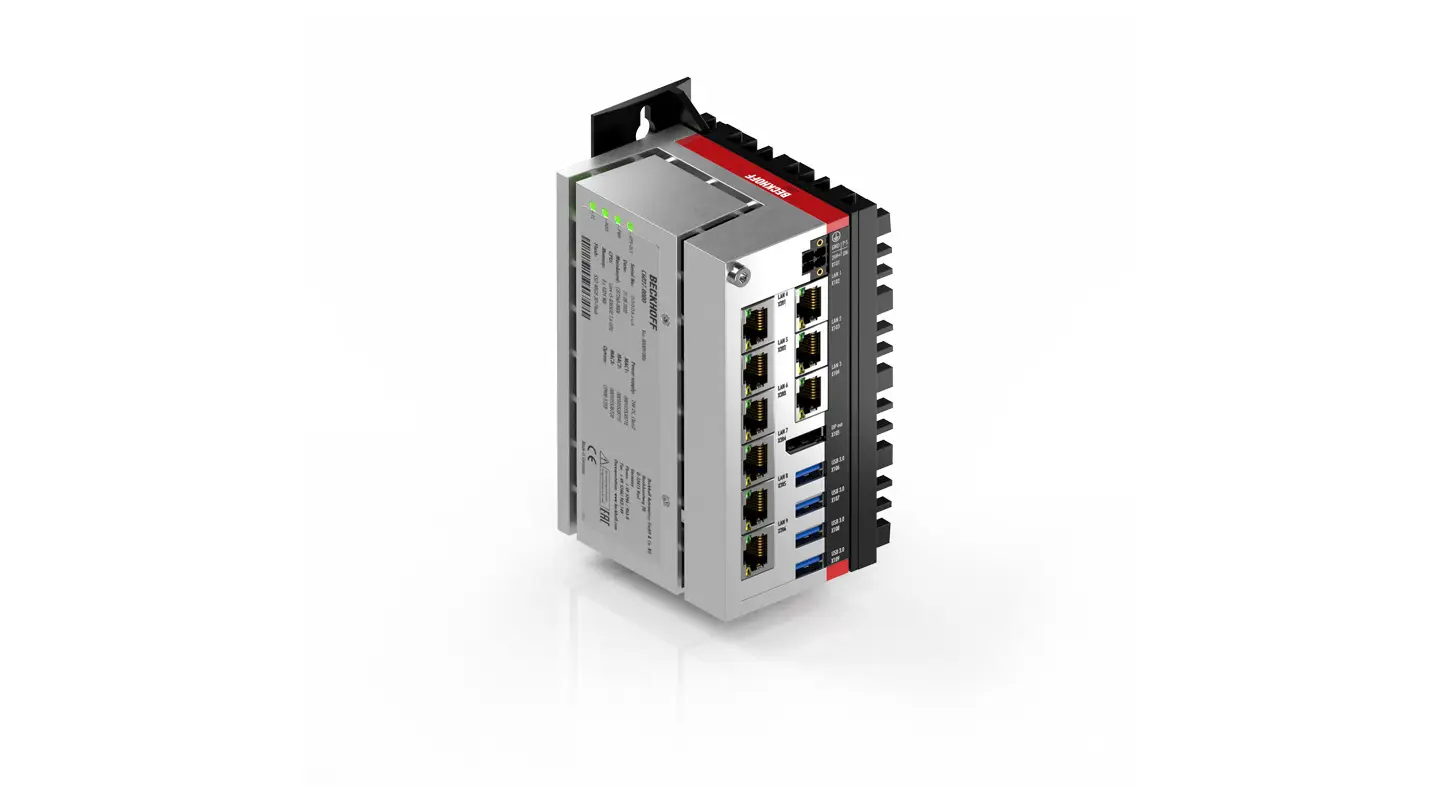

| C9900-E318 | additional connectors in the front of the C6027, 6x Ethernet adapter with 100/1000BASE-T connector |
| C9900-U334 | Internal, capacitive 1-second UPS to ensure secure backup of persistent application data on the M.2 SSD, requires TwinCAT. Not orderable together with an additional interface extension. |
| C9900-H597 | 80 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H598 | 160 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H616 | 320 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H677 | 640 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-Z468 | Adapter DisplayPort to DVI with active level shifter, shielded, PVC, black, DisplayPort, plug, straight, IP20, 20-pin – DVI-D, plug, straight, female, IP20, 24+1-pin, 0.40 m |
| C9900-M682 | mounting plate for C602x at the side wall, instead of plate at the rear wall |
| C9900-M683 | mounting plate for lateral installation of the C602x; single part, not mounted |
| C9900-M684 | mounting plate with DIN rail mounting adapter for C602x, instead of standard mounting plate |
| C9900-M685 | mounting plate with DIN rail mounting adapter for C602x; single part, not mounted |
