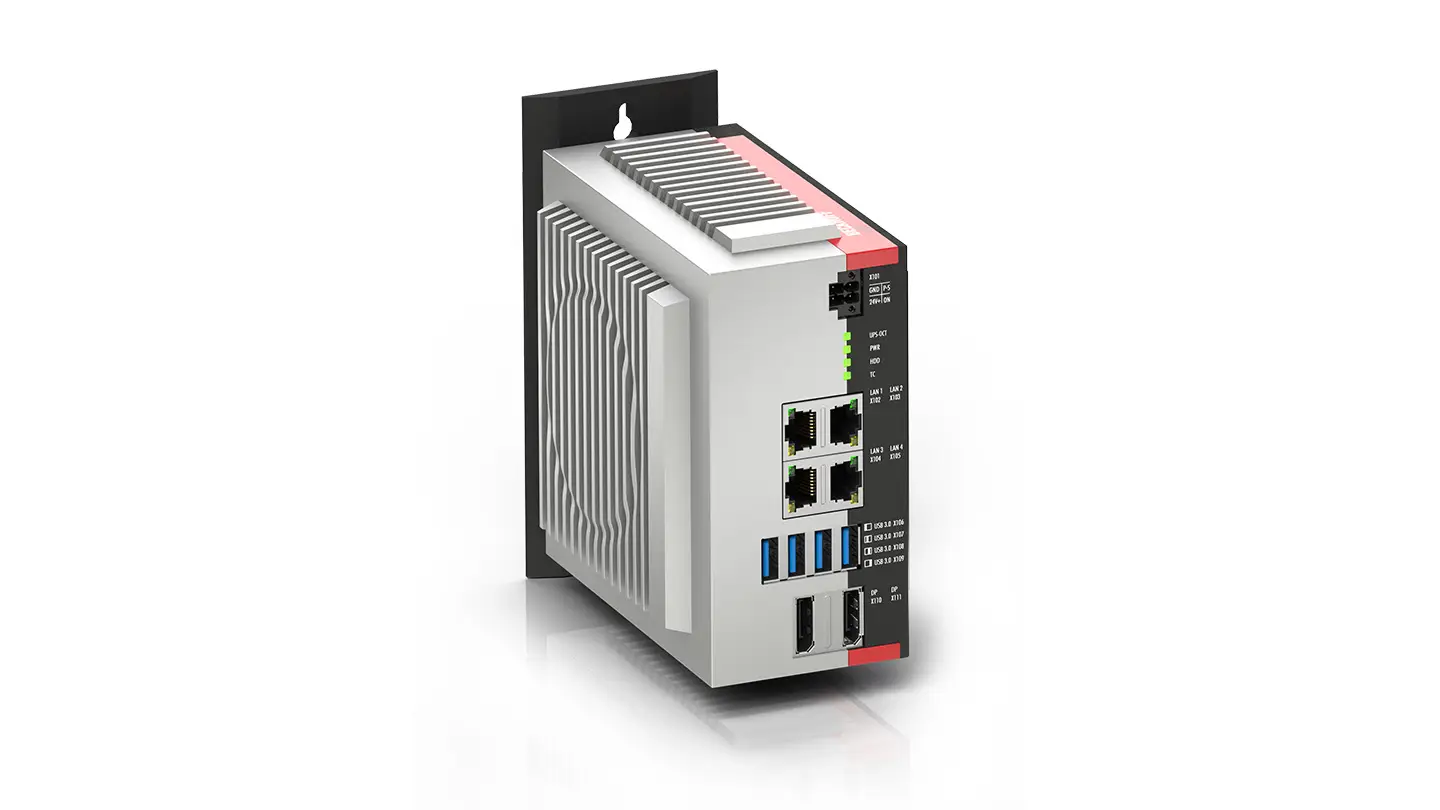

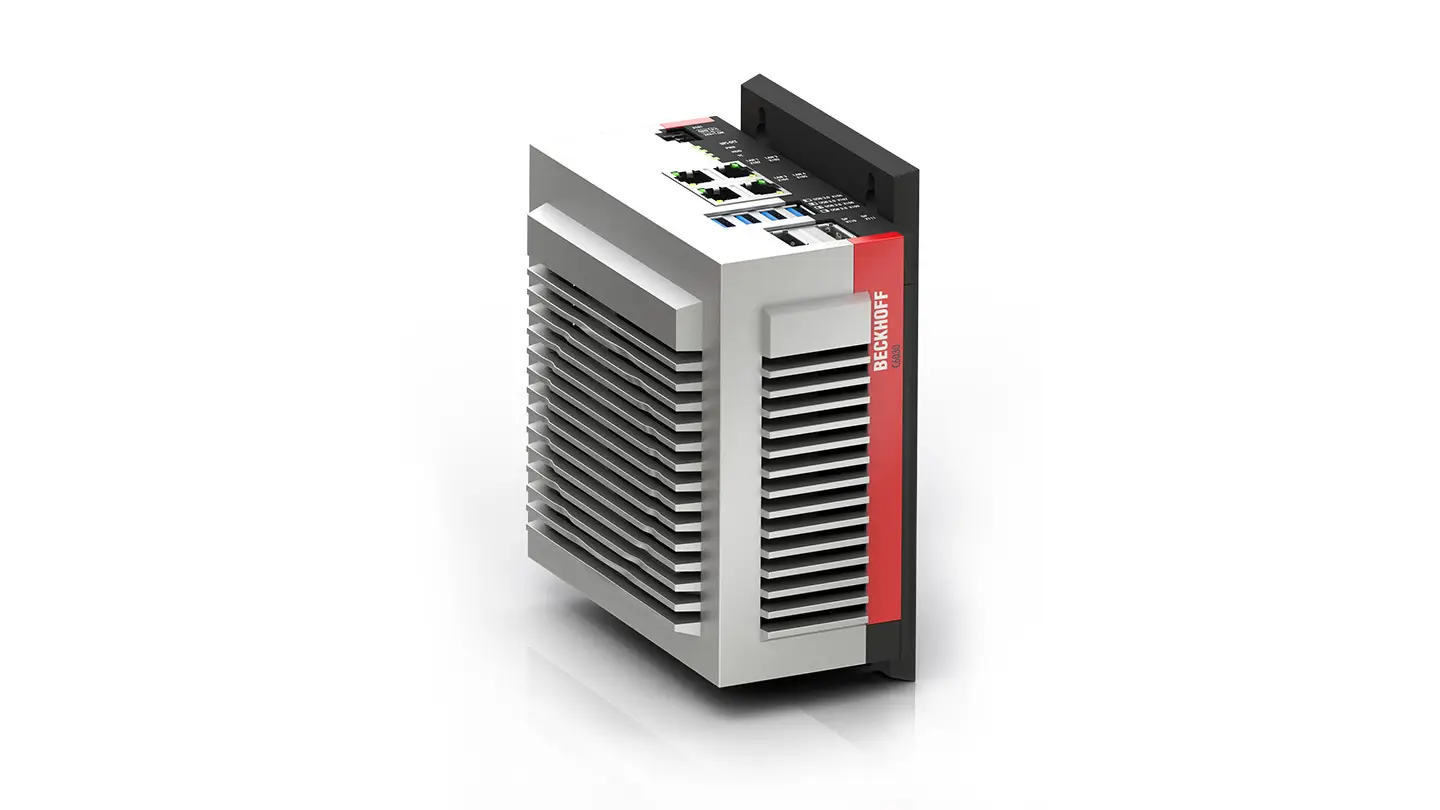

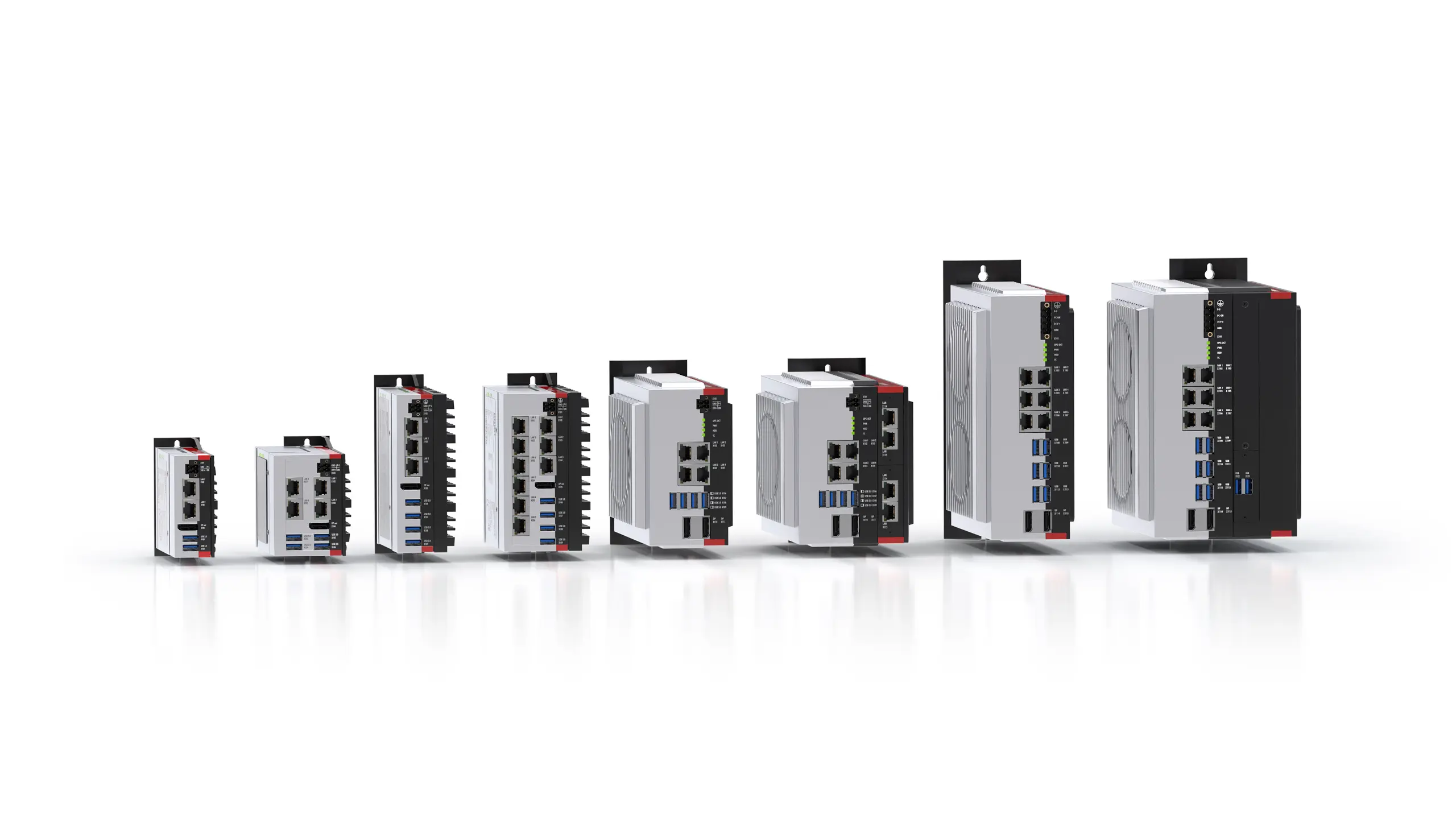

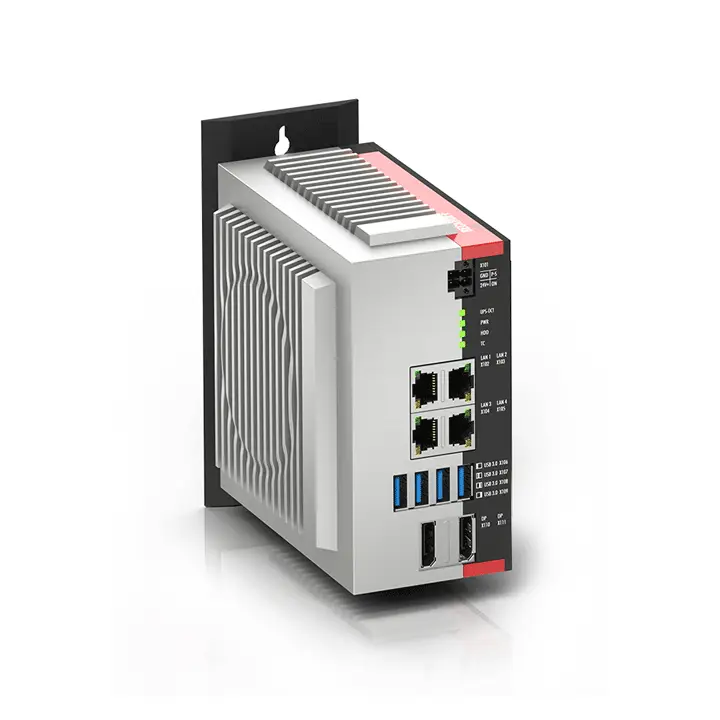

Благодаря успеху C6015, в частности в приложениях IoT и Industrie 4.0, компания Beckhoff расширила линейку сверхкомпактных промышленных ПК для шкафа управления моделью C6030. Будь то сложное управление осями, комплексные приложения HMI, предельно короткие времена цикла или обработка больших объемов данных: благодаря...

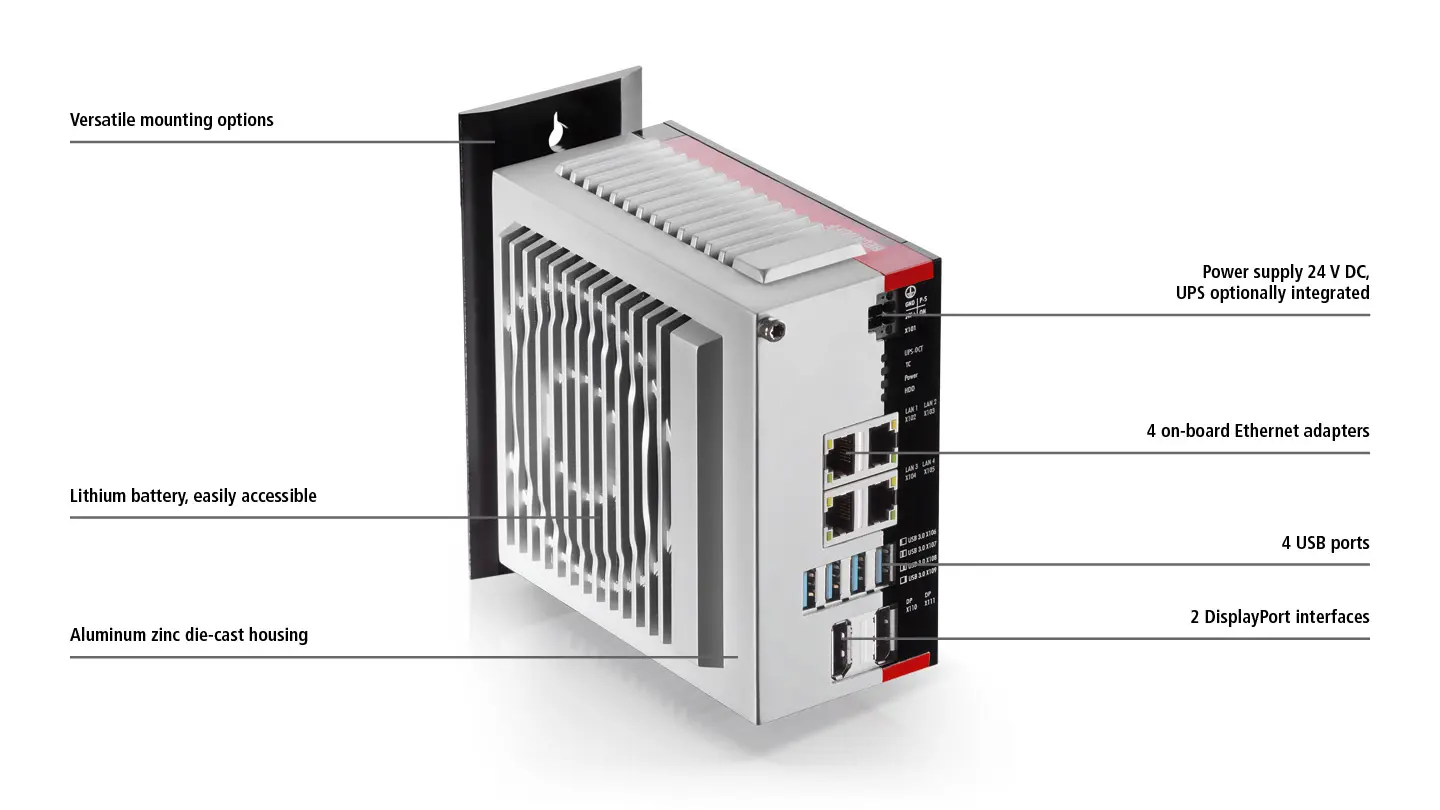

| Корпус | aluminum zinc die-cast housing |
|---|---|
| Монтаж | mounting sheet at the rear wall | mounting sheet at the side wall |
| Slots for hard disk/flash | 2 slot for M.2 SSD |
| Free space for air circulation | 5 cm (2") around the PC required |
| Степень защиты | IP20 |
| Рабочая температура | 0…55°C |
| Размеры (Ш x В x Г) | 132 x 133 x 76 mm (5.2” x 5.24” x 3.0”), without mounting plate |
| Процессор | Intel ® Celeron ® G3900 2.8 GHz, 2 cores (TC2, TC3: 50) | up to Intel ® Core™ i7 7700 3.6 GHz, 4 cores (TC3: 80) |
| Motherboard | compact motherboard for 6 th /7 th generation Intel ® Celeron ® , Pentium ® , Core™ i3/i5/i7 |
| Memory | 4 GB DDR4 RAM | up to 32 GB DDR4 RAM |
| Графика | integrated in the processor |
| Ethernet | 4 x 100/1000BASE-T on-board |
| Hard disks/flash | 40 GB M.2 SSD | up to 640 GB M.2 SSD |
| Интерфейсы | 4 x USB 3.0, 2 x DisplayPort |
| Питание | 24 V DC | UPS CU81xx |
| Операционная система | – | Windows 10 IoT Enterprise, TwinCAT/BSD |
| Информация для заказа / C6030-0060C9900-C611 | processor 6 th generation Intel ® Pentium ® G4400, 3.3 GHz, 2 cores (TC2, TC3: 50), instead of Intel ® Celeron ® G3900 2.8 GHz (TC2, TC3: 50) |
| C9900-C612 | processor 6 th generation Intel ® Core™ i3-6100, 3.7 GHz, 2 cores (TC2, TC3: 60), instead of Intel ® Celeron ® G3900 2.8 GHz (TC2, TC3: 50) |
| C9900-C615 | processor 7 th generation Intel ® Core™ i3-7101E, 3.9 GHz, 2 cores (TC3: 60), requires a 64 bit operating system, instead of Intel ® Celeron ® G3900 2.8 GHz (TC3: 50) |
| C9900-C613 | processor 6 th generation Intel ® Core™ i5-6500, 3.2 GHz, 4 cores (TC2, TC3: 70), instead of Intel ® Celeron ® G3900 2.8 GHz (TC2, TC3: 50) |
| C9900-C616 | processor 7 th generation Intel ® Core™ i5-7500, 3.4 GHz, 4 cores (TC3: 70), requires a 64 bit operating system, instead of Intel ® Celeron ® G3900 2.8 GHz (TC3: 50) |
| C9900-C614 | processor 6 th generation Intel ® Core™ i7-6700, 3.4 GHz, 4 cores (TC2, TC3: 80), instead of Intel ® Celeron ® G3900 2.8 GHz (TC2, TC3: 50) |
| C9900-C617 | processor 7 th generation Intel ® Core™ i7-7700, 3.6 GHz, 4 cores (TC3: 80), requires a 64 bit operating system, instead of Intel ® Celeron ® G3900 2.8 GHz (TC3: 50) |
| C9900-R270 | memory extension to 8 GB DDR4 RAM, instead of 4 GB |
| C9900-R271 | memory extension to 16 GB DDR4 RAM, instead of 4 GB |
| C9900-R272 | memory extension to 32 GB DDR4 RAM, instead of 4 GB |
| C9900-Z468 | Adapter DisplayPort to DVI with active level shifter, shielded, PVC, black, DisplayPort, plug, straight, IP20, 20-pin – DVI-D, plug, straight, female, IP20, 24+1-pin, 0.40 m |
| C9900-Z510 | Device modification for industrial PC C6030 according to the requirements for ATEX and IECEx certification. This device modification is mandatory for usage in hazardous areas, zone 2/22. It includes the modification of the device label as well as a mounting bracket installed ex works for mechanical locking of the connectors. Product labeling: ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Read the device documentation for use in hazardous areas carefully. |
| C9900-B406 | motherboard with on-board SATA RAID 1 controller, Intel ® Rapid Storage Technology, instead of standard motherboard |
| C9900-M668 | mounting plate at the side wall, instead of plate at the rear wall |
| C9900-M669 | mounting plate for lateral installation of the C603x; single part, not mounted |
| C9900-H597 | 80 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H598 | 160 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H616 | 320 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H677 | 640 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H594 | 40 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H595 | 80 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H596 | 160 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H615 | 320 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H676 | 640 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
