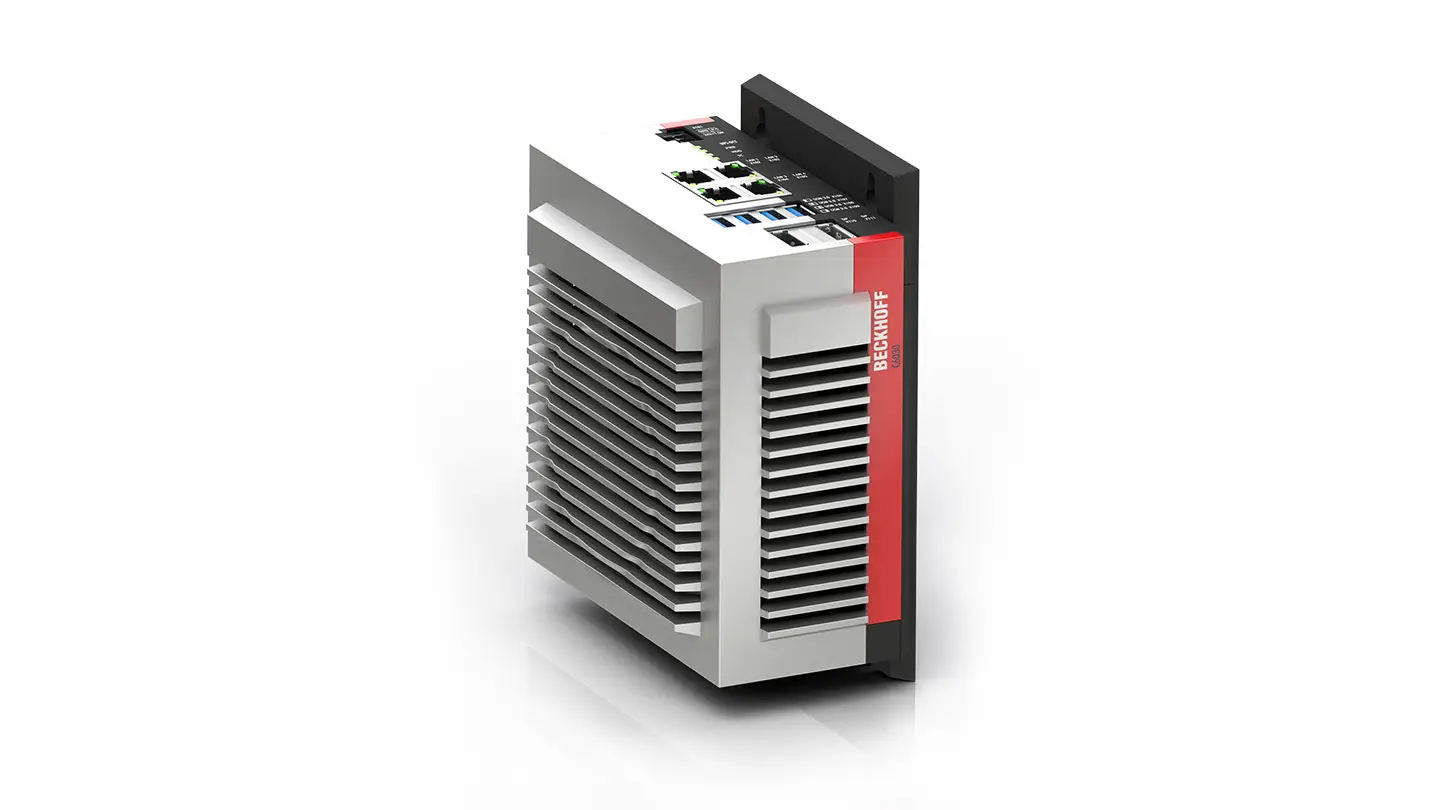

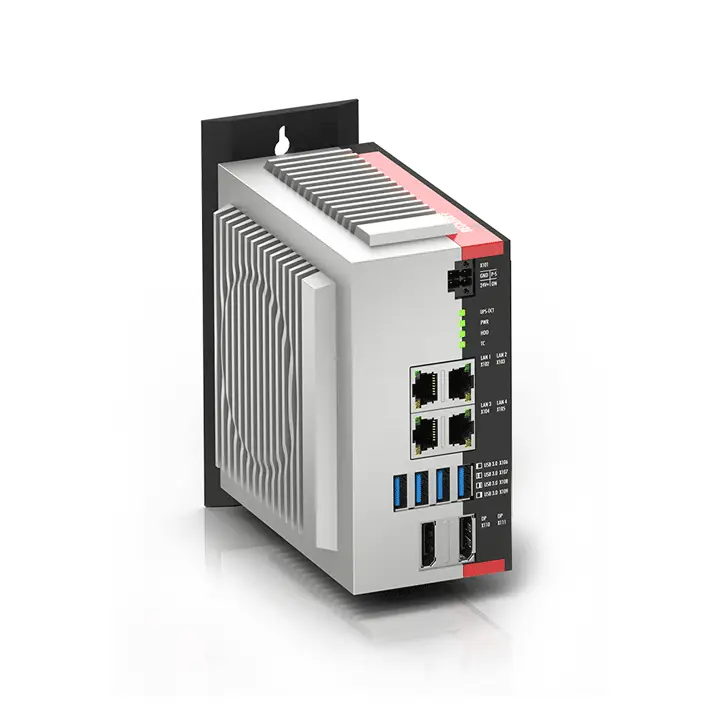

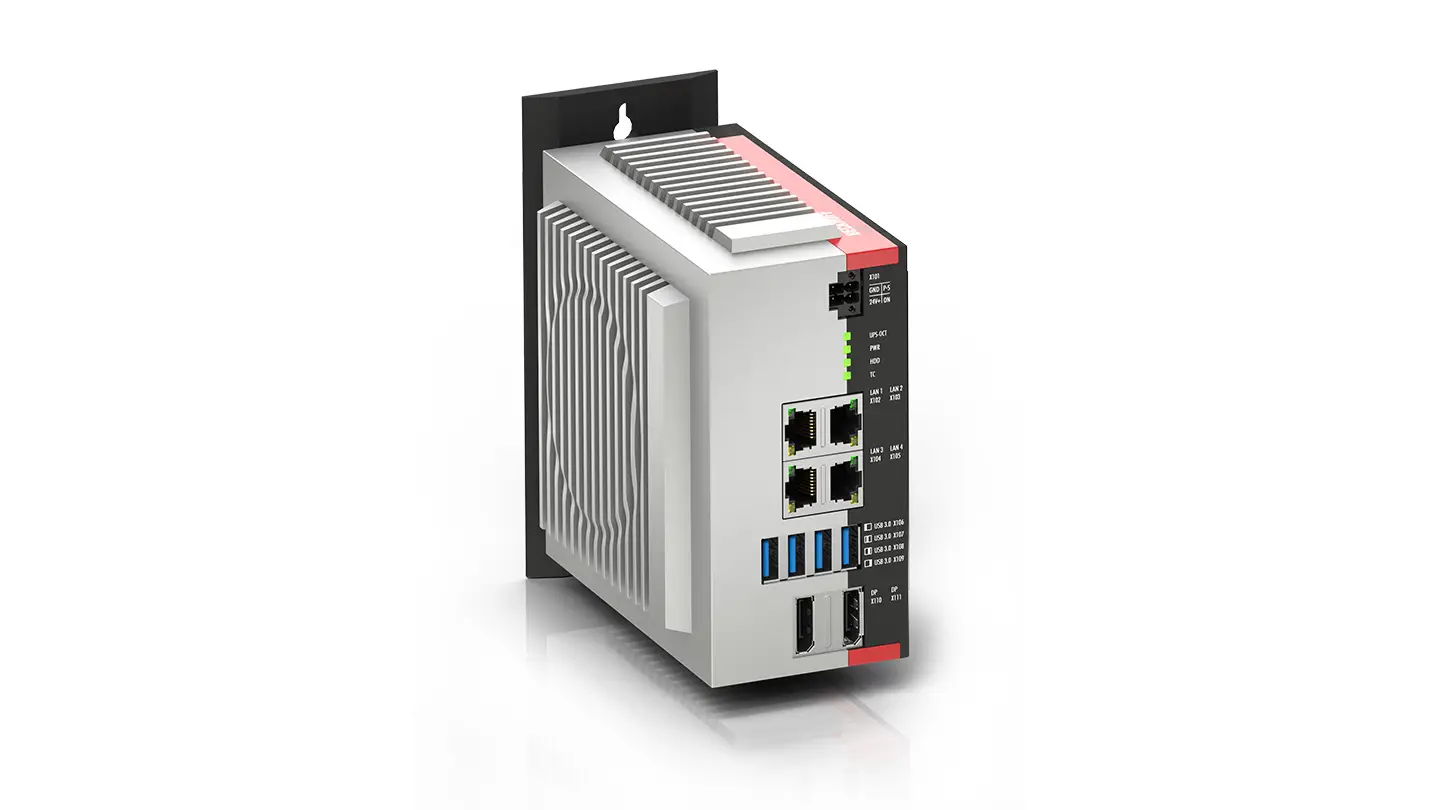

Благодаря успеху C6015, в частности в приложениях IoT и Industrie 4.0, компания Beckhoff расширила линейку сверхкомпактных промышленных ПК для шкафа управления моделью C6030. Будь то сложное управление осями, комплексные приложения HMI, предельно короткие времена цикла или обработка больших объемов данных: благодаря...

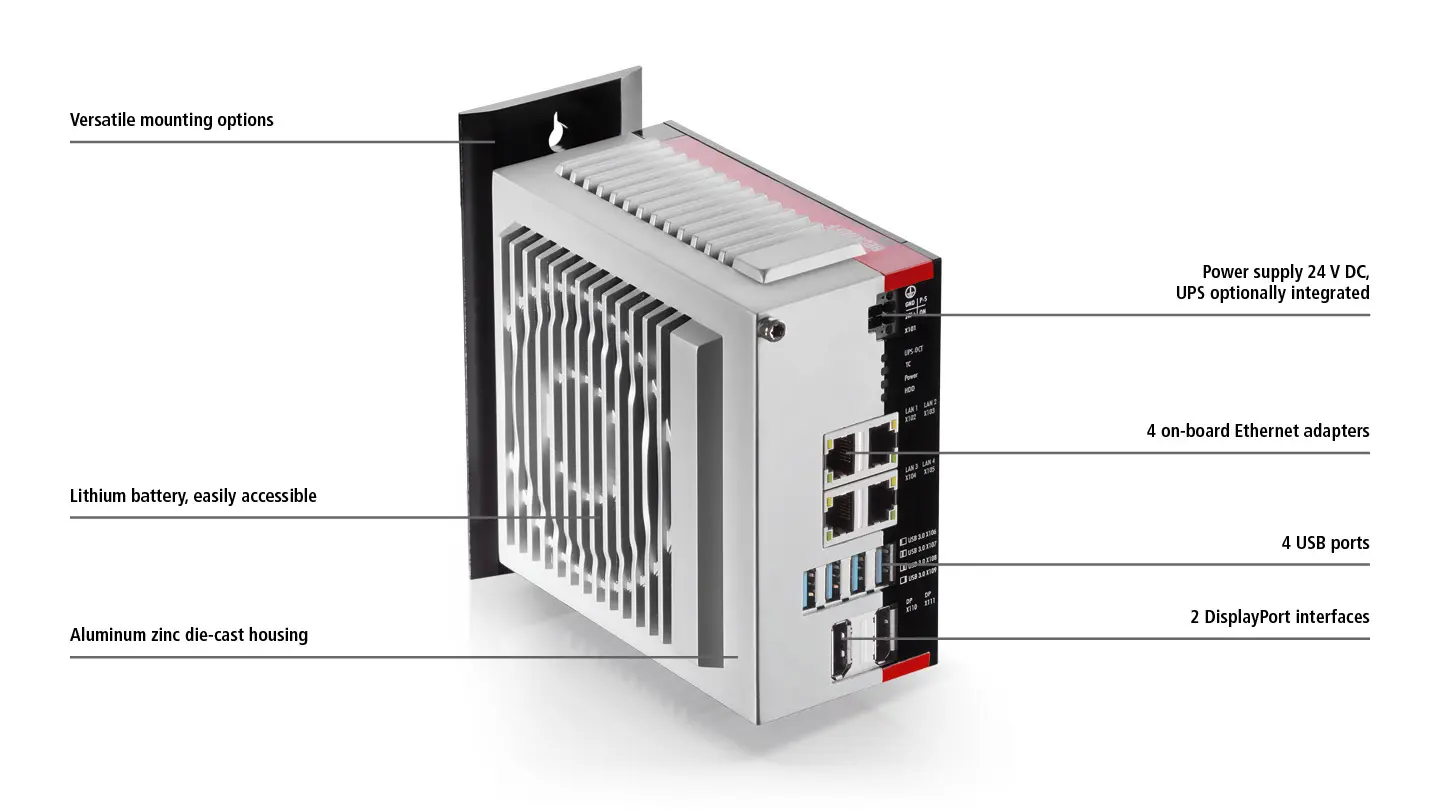

| Корпус | aluminum zinc die-cast housing |
|---|---|
| Монтаж | mounting sheet at the rear wall | mounting sheet at the side wall |
| Slots for hard disk/flash | 2 slot for M.2 SSD |
| Free space for air circulation | 5 cm (2") around the PC required |
| Степень защиты | IP20 |
| Рабочая температура | 0…55°C | 0…70°C |
| Размеры (Ш x В x Г) | 132 x 133 x 76 mm (5.2” x 5.24” x 3.0”), without mounting plate |
| Процессор | Intel ® Celeron ® 6600HE 2.6 GHz base frequency, 2 cores (TC3: 50) | up to Intel ® Core™ i7 11850HE 2.6 GHz base frequency, 8 cores (TC3: 80), Intel ® Turbo-Boost |
| Motherboard | compact motherboard for 11 th generation Intel ® Celeron ® , Core™ i3/i5/i7 |
| Memory | 4 GB DDR4 RAM | up to 64 GB DDR4 RAM |
| Графика | integrated in the processor |
| Ethernet | 3 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board |
| RAID | on-board RAID 1 controller for SATA and NVMe™/PCIe ® |
| Hard disks/flash | 40 GB M.2 SSD | up to 1280 GB M.2 SSD |
| Интерфейсы | 2 x USB 3.2 Gen. 2, 2 x USB 3.2 Gen. 1, 2 x DisplayPort |
| Питание | 24 V DC | UPS CU81xx |
| Операционная система | – | Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, Windows Server 2022, TwinCAT/BSD, Beckhoff RT Linux ® |
| Информация для заказа / C6030-0080C9900-C639 | processor 11 th generation Intel ® Core™ i3-11100HE, 2.4 GHz base frequency, 4 cores (TC3: 60), instead of Intel ® Celeron ® 6600HE 2.6 GHz (TC3: 50) |
| C9900-C640 | processor 11 th generation Intel ® Core™ i5-11500HE, 2.6 GHz base frequency, 6 cores (TC3: 70), instead of Intel ® Celeron ® 6600HE 2.6 GHz (TC3: 50) |
| C9900-C641 | processor 11 th generation Intel ® Core™ i7-11850HE, 2.6 GHz base frequency, 8 cores (TC3: 80), instead of Intel ® Celeron ® 6600HE 2.6 GHz (TC3: 50) |
| C9900-B647 | BIOS for C603x-0080, C6040-0090, C6640-0070, C6650-0070, C6675-0070, C5240-0030 with activated Intel ® Turbo Boost, Idle mode and Hyper-Threading, not optimized for TwinCAT |
| C9900-B950 | extension of the ambient temperature range in operation of the C6030-0080 to 0…70°C |
| C9900-R270 | memory extension to 8 GB DDR4 RAM, instead of 4 GB |
| C9900-R271 | memory extension to 16 GB DDR4 RAM, instead of 4 GB |
| C9900-R272 | memory extension to 32 GB DDR4 RAM, instead of 4 GB |
| C9900-R273 | memory extension to 64 GB DDR4 RAM, instead of 4 GB |
| C9900-Z468 | Adapter DisplayPort to DVI with active level shifter, shielded, PVC, black, DisplayPort, plug, straight, IP20, 20-pin – DVI-D, plug, straight, female, IP20, 24+1-pin, 0.40 m |
| C9900-M668 | mounting plate at the side wall, instead of plate at the rear wall |
| C9900-M669 | mounting plate for lateral installation of the C603x; single part, not mounted |
| C9900-H597 | 80 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H598 | 160 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H616 | 320 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H677 | 640 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H594 | 40 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H595 | 80 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H596 | 160 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H615 | 320 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H676 | 640 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H653 | 160 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C6040, instead of 40 GB M.2 SSD |
| C9900-H654 | 320 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C6040, instead of 40 GB M.2 SSD |
| C9900-H818 | 640 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C6040, instead of 40 GB M.2 SSD |
| C9900-H842 | 1280 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080, C6040, instead of 40 GB M.2 SSD |
| C9900-H661 | 160 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
| C9900-H810 | 320 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
| C9900-H817 | 640 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
| C9900-H841 | 1280 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
