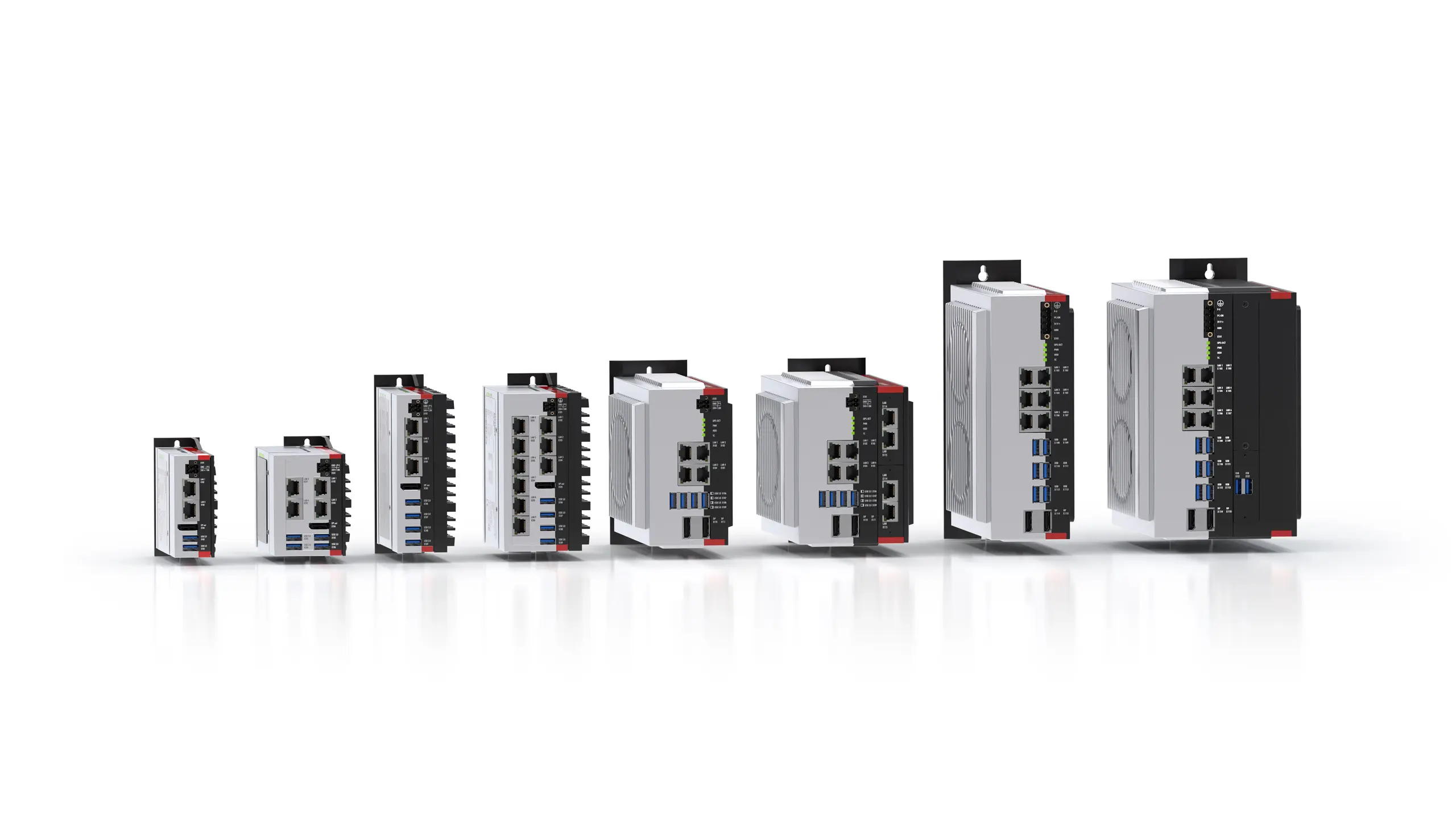

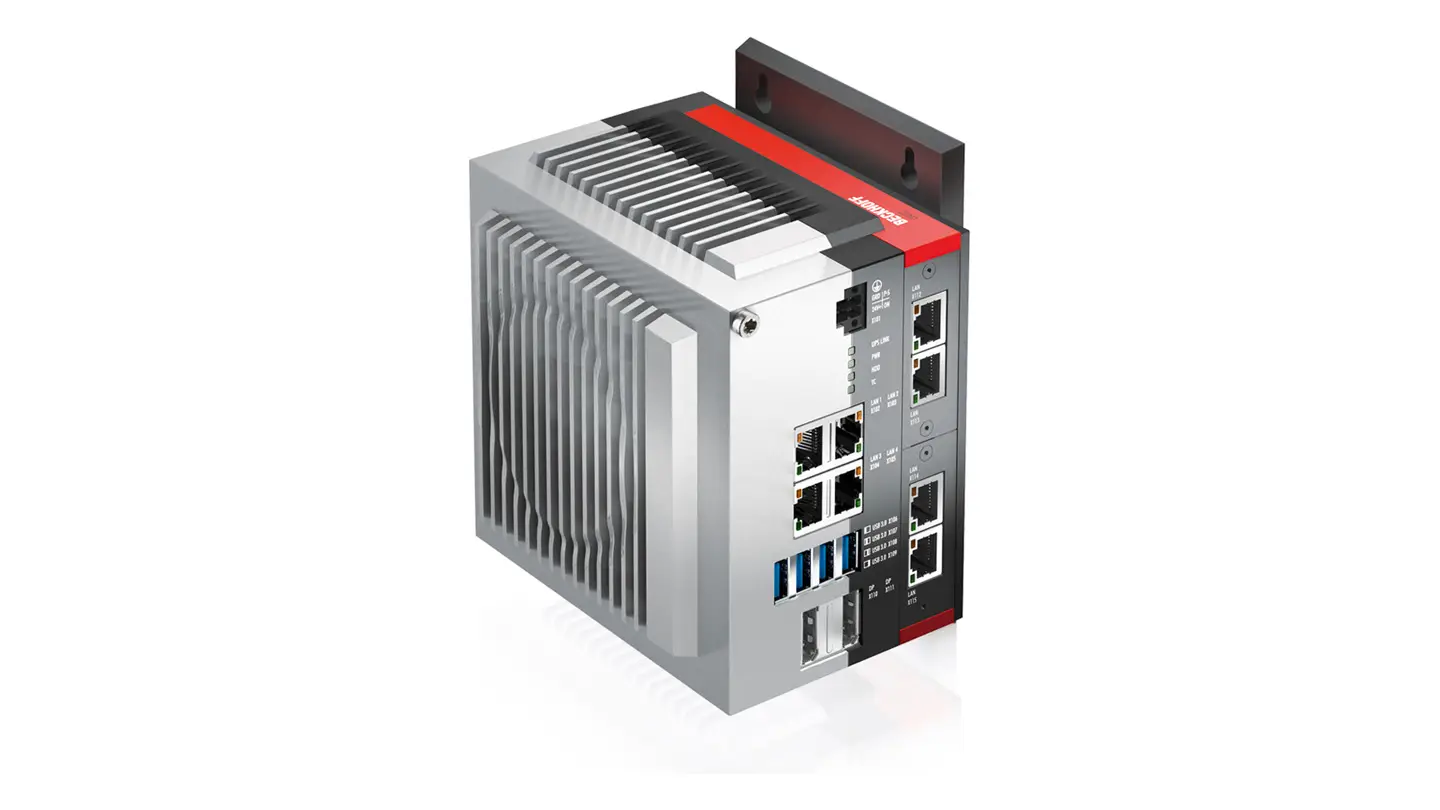

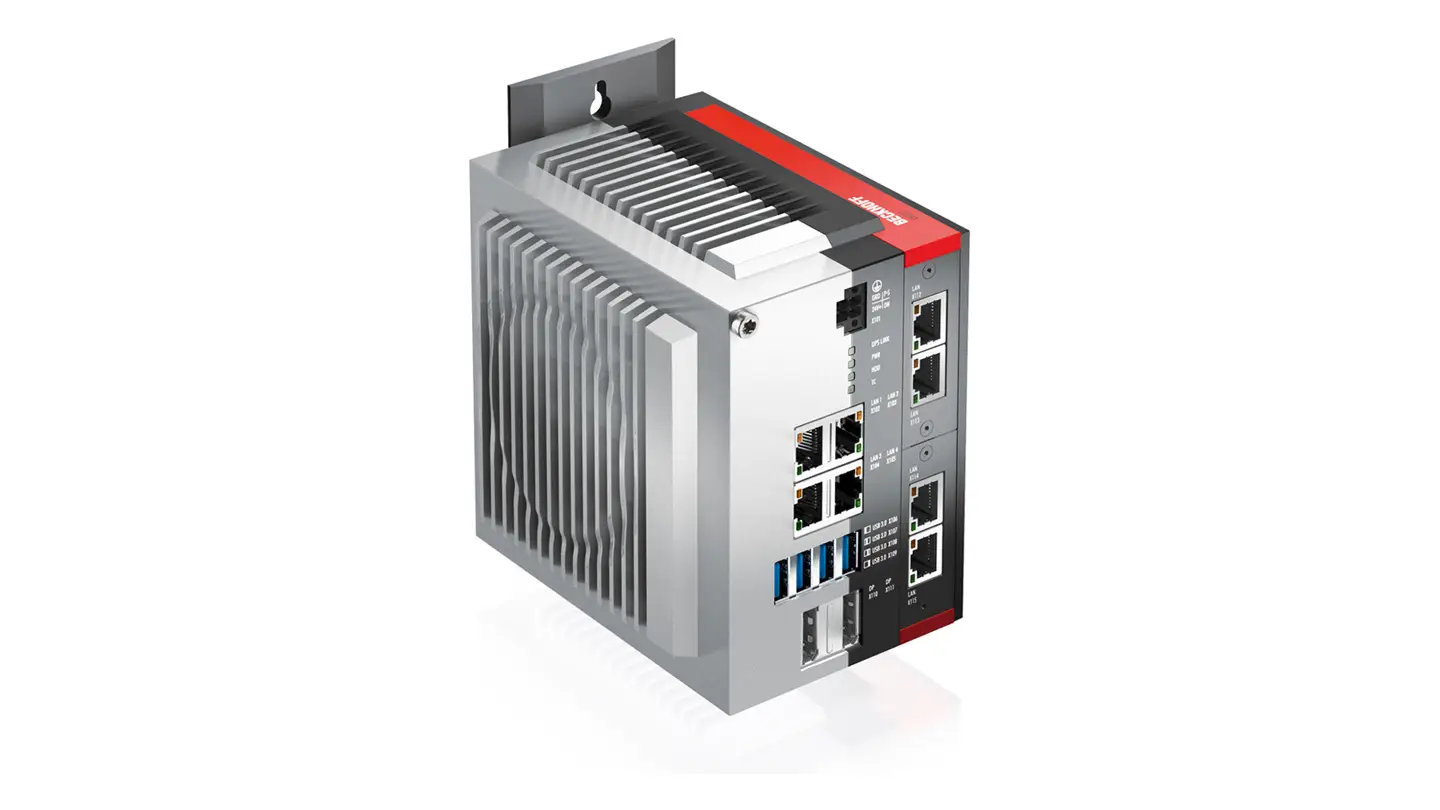

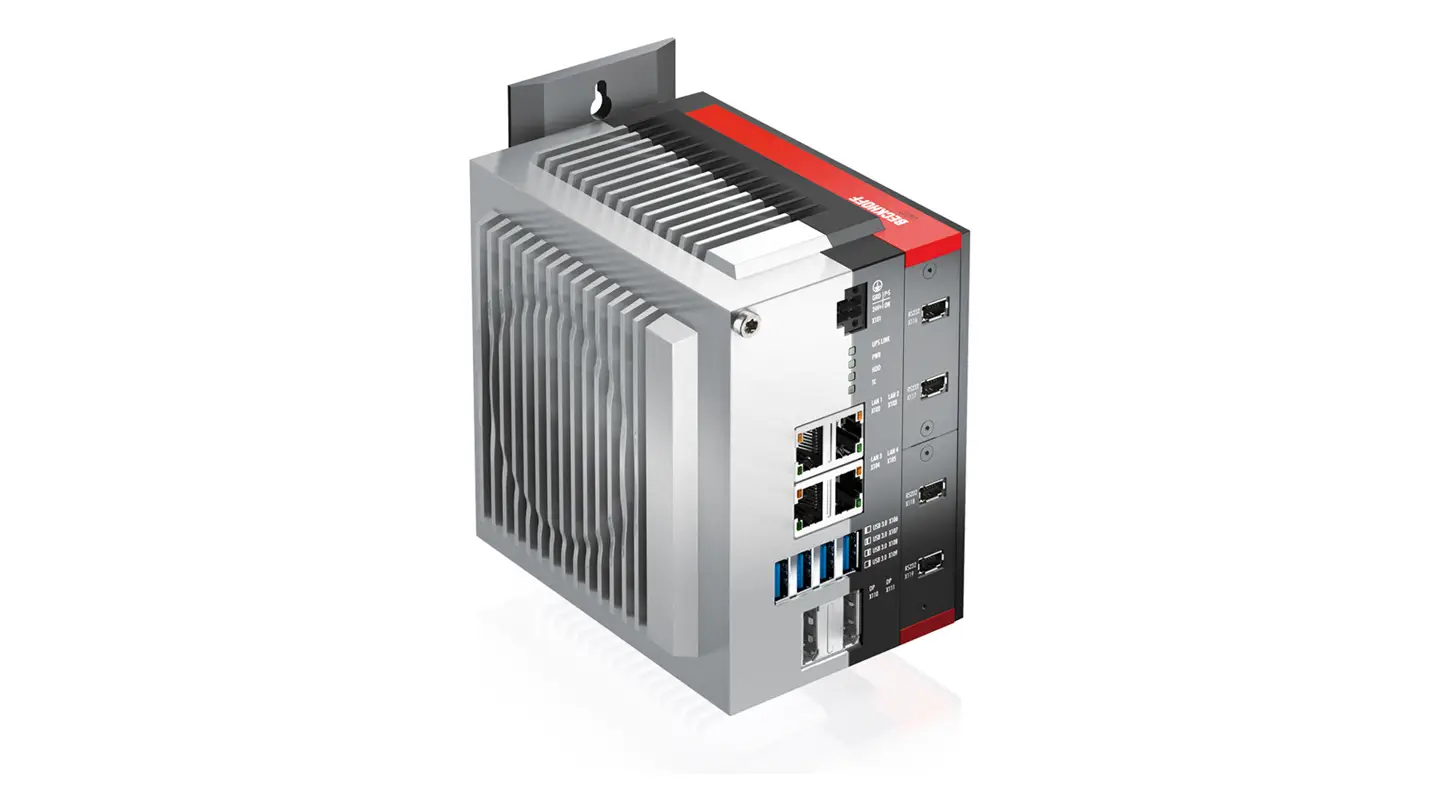

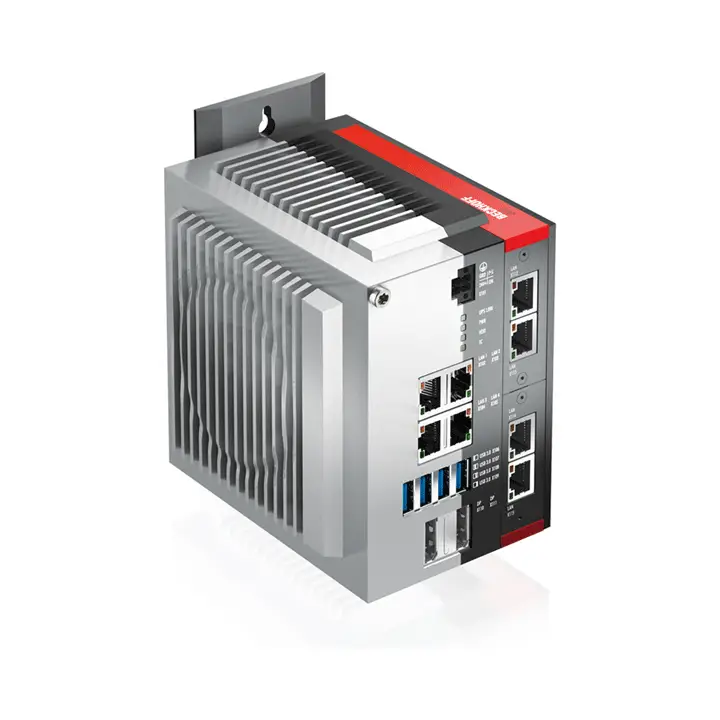

С C6032 компания Beckhoff расширяет ассортимент сверхкомпактных промышленных ПК модульным вариантом с масштабируемыми интерфейсами и функциональными расширениями. Будь то сложное управление осями, комплексные приложения HMI, предельно короткие времена цикла или обработка больших объемов данных: благодаря интеграции...

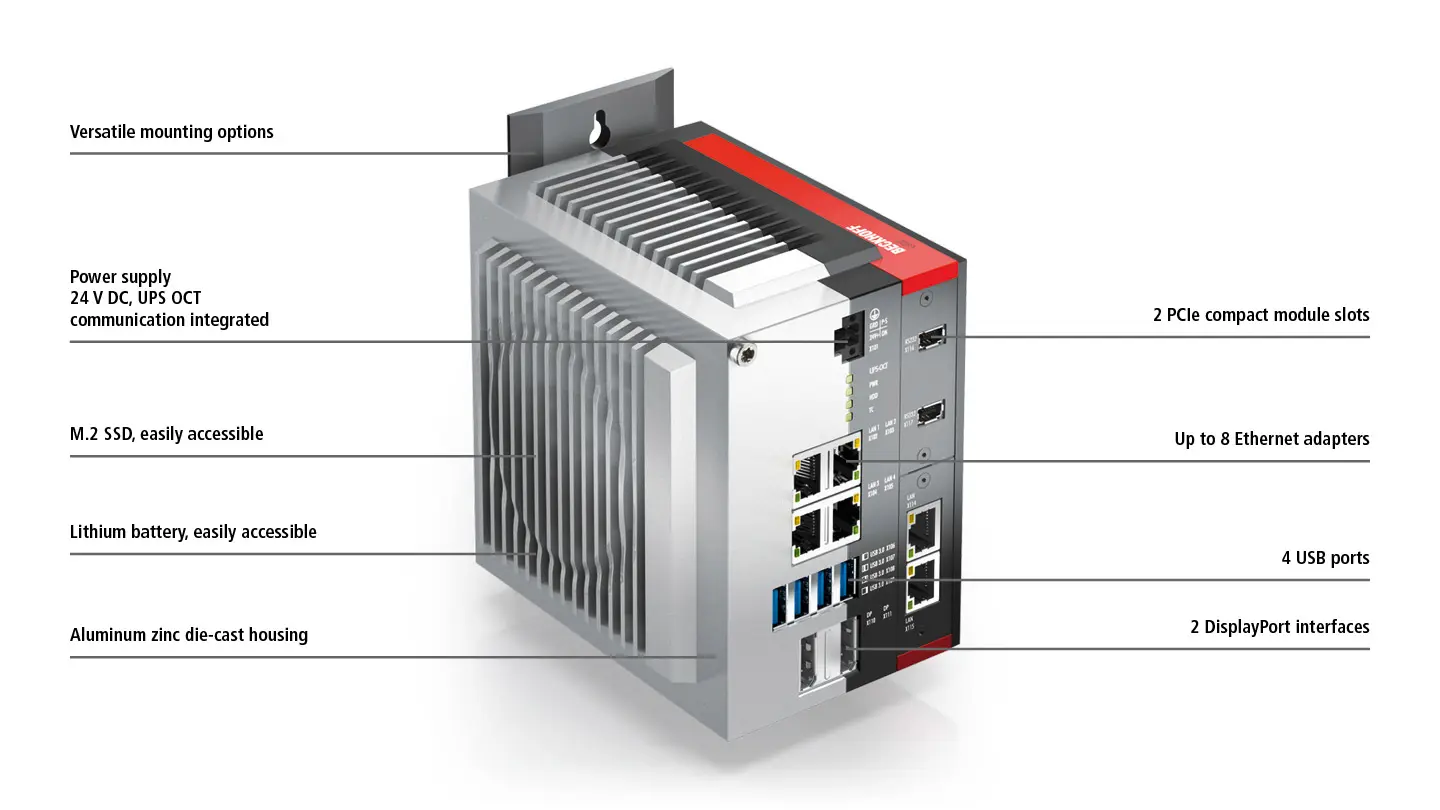

| Корпус | aluminum zinc die-cast housing |
|---|---|
| Монтаж | mounting sheet at the rear wall | mounting sheet at the side wall |
| Slots for hard disk/flash | 2 slot for M.2 SSD |
| Free space for air circulation | 5 cm (2") around the PC required |
| Степень защиты | IP20 |
| Рабочая температура | 0…55°C |
| Размеры (Ш x В x Г) | 132 x 133 x 102 mm (5.2” x 5.24” x 4.0”), without mounting plate |
| Процессор | Intel ® Celeron ® G4900 3.1 GHz, 2 cores (TC3: 50) | up to Intel ® Core™ i7-9700E 2.6 GHz, 8 cores (TC3: 80) |
| Motherboard | compact motherboard for 8 th /9 th generation Intel ® Celeron ® , Pentium ® , Core™ i3/i5/i7 |

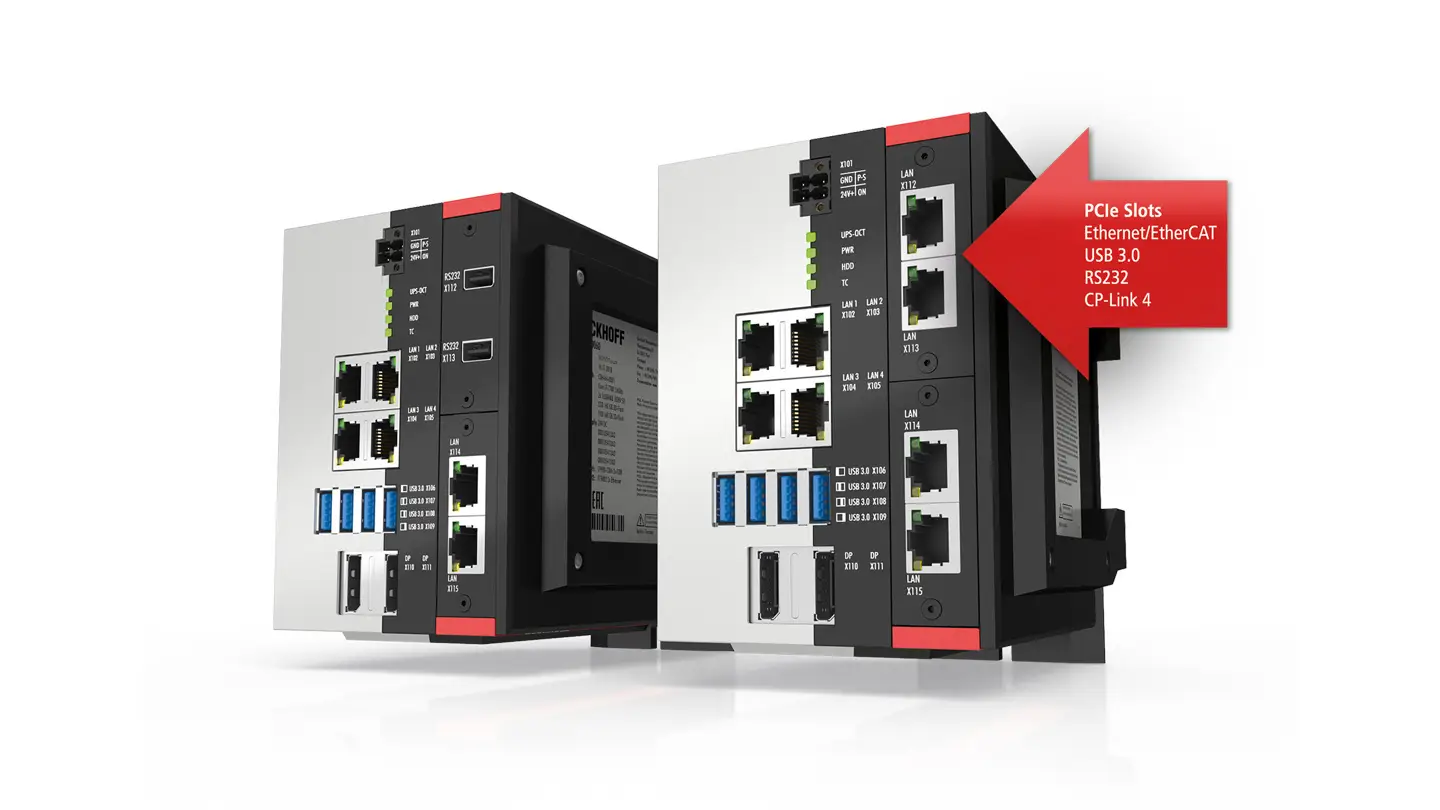

| PCIe ® slots | 2 PCIe ® compact module slots to plug-in Beckhoff PCIe ® compact modules |
| Memory | 4 GB DDR4 RAM | up to 64 GB DDR4 RAM |
| Графика | integrated in the processor |
| Ethernet | 4 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | 40 GB M.2 SSD | up to 1280 GB M.2 SSD |
| Интерфейсы | 4 x USB 3.1 Gen. 1, 2 x DisplayPort |
| Питание | 24 V DC | UPS CU81xx |
| Операционная система | – | Windows 10 IoT Enterprise, Windows 11 IoT Enterprise 2024 LTSC, Windows Server 2019, TwinCAT/BSD |
| Информация для заказа / C6032-0070C9900-C624 | processor 8 th generation Intel ® Pentium ® G5400, 3.7 GHz, 2 cores (TC3: 50), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-C625 | processor 9 th generation Intel ® Core™ i3-9100E, 3.1 GHz, 4 cores (TC3: 60), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-C626 | processor 9 th generation Intel ® Core™ i5-9500E, 3.0 GHz, 6 cores (TC3: 70), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-C627 | processor 9 th generation Intel ® Core™ i7-9700E, 2.6 GHz, 8 cores (TC3: 80), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-R270 | memory extension to 8 GB DDR4 RAM, instead of 4 GB |
| C9900-R271 | memory extension to 16 GB DDR4 RAM, instead of 4 GB |
| C9900-R272 | memory extension to 32 GB DDR4 RAM, instead of 4 GB |
| C9900-R273 | memory extension to 64 GB DDR4 RAM, instead of 4 GB |
| C9900-Z468 | Adapter DisplayPort to DVI with active level shifter, shielded, PVC, black, DisplayPort, plug, straight, IP20, 20-pin – DVI-D, plug, straight, female, IP20, 24+1-pin, 0.40 m |
| C9900-Z511 | Device modification for industrial PC C6032 according to the requirements for ATEX and IECEx certification. This device modification is mandatory for usage in hazardous areas, zone 2/22. It includes the modification of the device label as well as a mounting bracket installed ex works for mechanical locking of the connectors. Product labeling: ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Read the device documentation for use in hazardous areas carefully. |
| FC9082 | Gigabit Ethernet PCIe ® compact module for PCs with Beckhoff PCIe ® compact module slots, 2-channel, PCI Express ® x1 bus |
| FC9282 | 2.5 Gigabit Ethernet PCIe ® compact module for PCs with Beckhoff PCIe ® compact module slots, 2-channel, PCI Express ® bus |
| FC1488 | EtherCAT G master PCIe ® compact module, 8 channels, 8 ix Industrial ® type A connectors, requires 8 adapter cables ix Industrial ® 8-pin to RJ45 socket ZK1096-969A-0005, occupies both PCIe ® compact module slots |
| C9900-E305 | USB 3.0 PCIe ® compact module – 2-port USB 3.0 interfaces – USB transfer rate up to 5 Gbit/s for USB 3.0 – compatible to all USB standards – delivers up to 1 A supply current at each USB port |
| C9900-E306 | RS232 PCIe ® compact module for PCs with Beckhoff PCIe ® module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Requires 2 adapter cable C9900-K920 ix industrial ® type B to D-sub, 9-pin. |
| C9900-K920 | RS232 cable, shielded, PVC, 5 x 2 x 0.14 mm², fixed installation, gray, ix Industrial ® , type B, plug, straight, male, IP20, 10-pin – D-sub, plug, straight, male, IP20, 9-pin, 0.50 m |
| C9900-E312 | RS485 PCIe ® compact module for PCs with Beckhoff PCIe ® compact module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Configuration as an end point without echo: echo off, auto send on, always send off, auto receive on, always receive off, termination on. Requires 2 adapter cable C9900-K922 ix industrial ® type B to D-sub, 9-pin. |
| C9900-E313 | RS422 PCIe ® compact module for PCs with Beckhoff PCIe ® compact module slots, 2-channel, optically linked, overload protection, 2 sockets ix industrial ® type B. Configuration as a full duplex end point: echo on, auto send off, always send on, auto receive off, always receive on, termination on. Requires 2 adapter cable C9900-K922 ix industrial ® type B to D-sub, 9-pin. |
| C9900-K922 | RS422/RS485 cable, shielded, PVC, 5 x 2 x 0.14 mm², fixed installation, gray, ix Industrial ® , type B, plug, straight, male, IP20, 10-pin – D-sub, socket, straight, female, IP20, 9-pin, 0.50 m |
| C9900-E307 | CP-Link 4 Extender Tx PCIe ® compact module – CP-Link 4 transmitter module for ex works installation in PC with PCIe ® compact module slots C6032 – 1 CP-Link 4 output with RJ45 socket for up to 100 m Cat.6 A cable for connecting a Control Panel with CP-Link 4 interface CP29xx-0010, CP39xx-0010 or CPX39xx-0010 – CP-Link 4 transfers USB 2.0 with 100 Mbit/s and DVI. – The power supply for the control panel must be provided by connecting 24 V to the Control Panel. |
| C9900-M668 | mounting plate at the side wall, instead of plate at the rear wall |
| C9900-M669 | mounting plate for lateral installation of the C603x; single part, not mounted |
| C9900-H597 | 80 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H598 | 160 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H616 | 320 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H677 | 640 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H594 | 40 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H595 | 80 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H596 | 160 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H615 | 320 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H676 | 640 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H653 | 160 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C6040, instead of 40 GB M.2 SSD |
| C9900-H654 | 320 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C6040, instead of 40 GB M.2 SSD |
| C9900-H818 | 640 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C6040, instead of 40 GB M.2 SSD |
| C9900-H842 | 1280 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080, C6040, instead of 40 GB M.2 SSD |
| C9900-H661 | 160 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
| C9900-H810 | 320 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
| C9900-H817 | 640 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
| C9900-H841 | 1280 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
