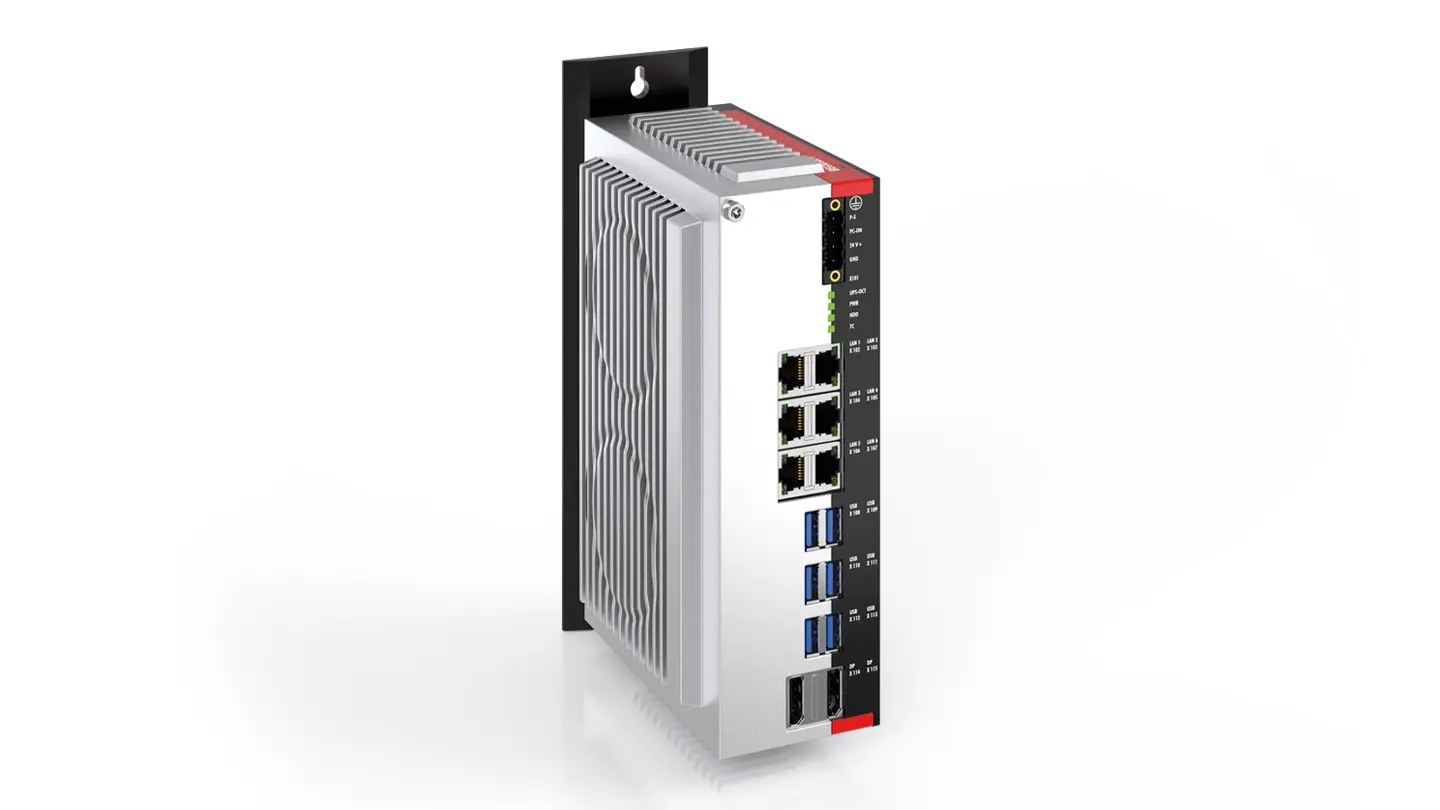

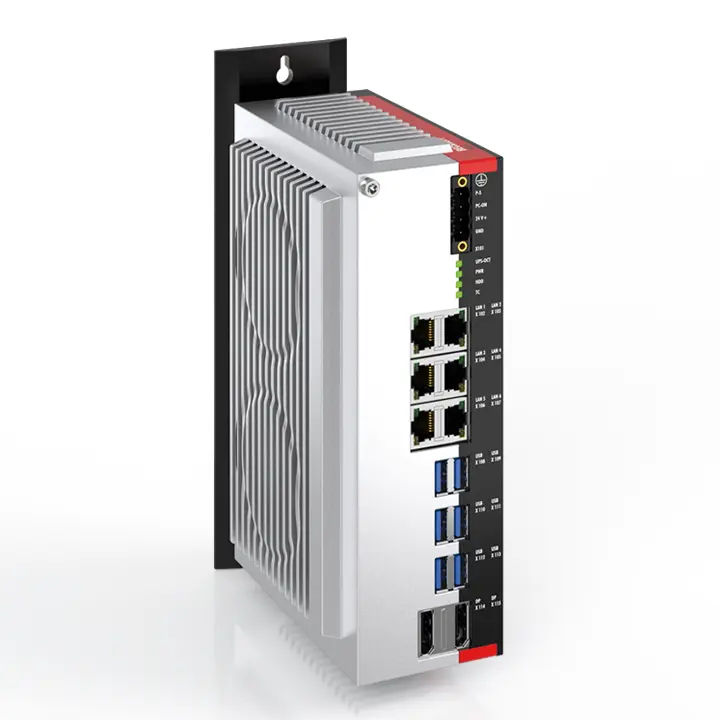

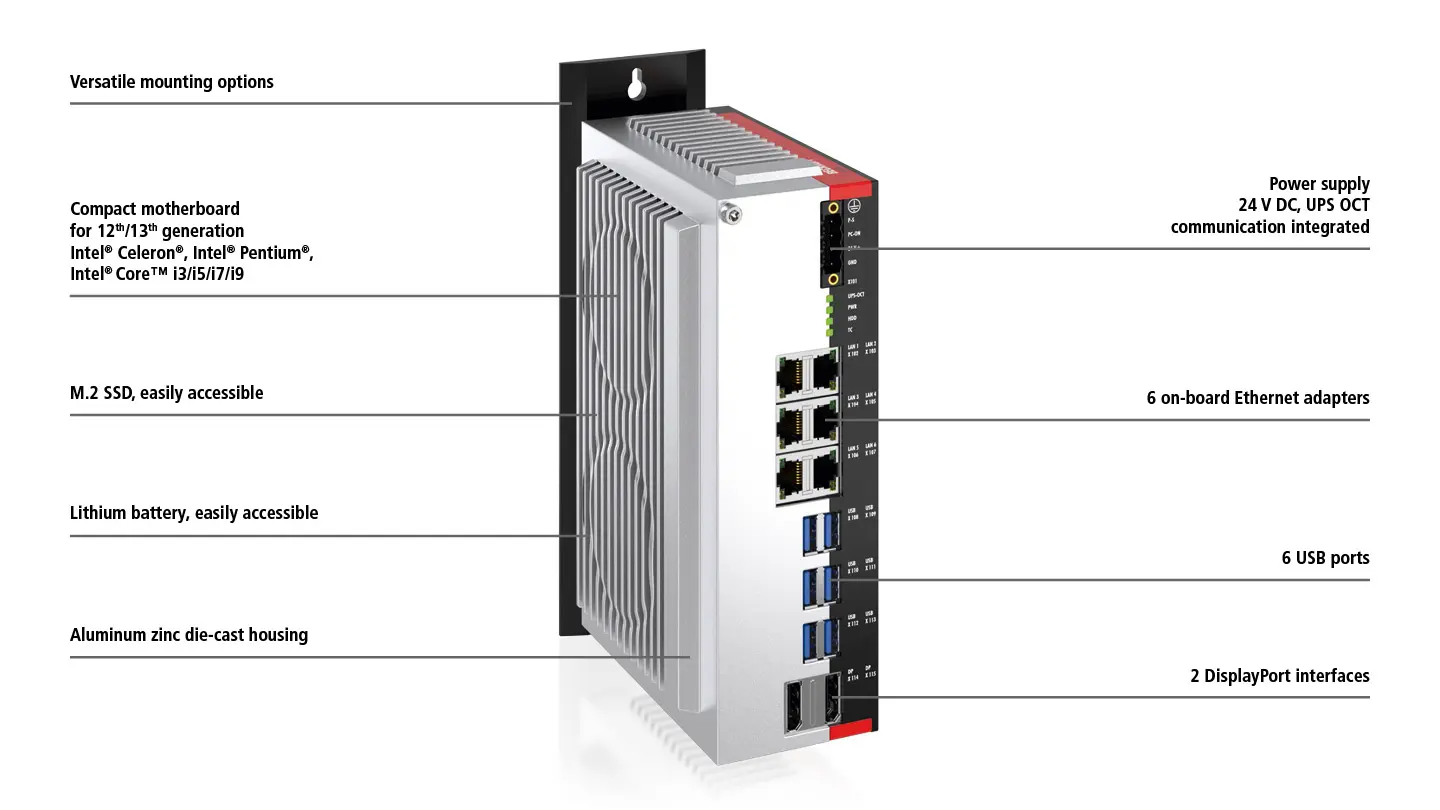

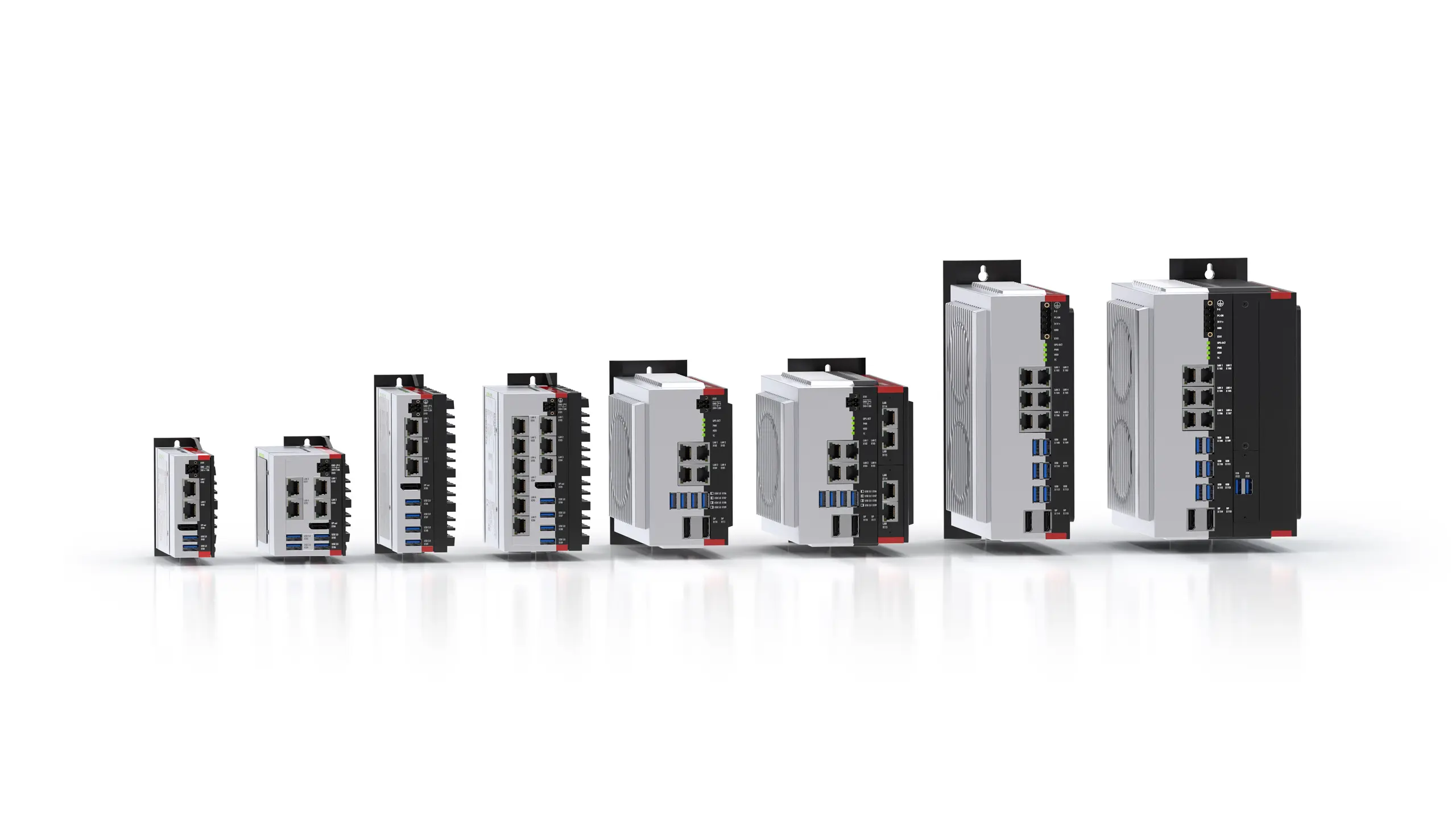

Добавление еще более производительного C6040-0090 к сверхкомпактной серии промышленных ПК C60xx от Beckhoff открывает для пользователей совершенно новые возможности. Этот скачок производительности достигается за счет применения новейших процессоров Intel®, например Intel® Processor 300 или Intel® Core™ 3/5/7/9 Series...
| Корпус | aluminum zinc die-cast housing |
|---|---|
| Монтаж | mounting sheet at the rear wall |
| Slots for hard disk/flash | 2 slots for M.2 SSD or high-performance M.2 SSD, NVM Express™ |
| Free space for air circulation | 5 cm (2") around the PC required |
| Степень защиты | IP20 |
| Рабочая температура | 0…55°C |
| Размеры (Ш x В x Г) | 132 x 202 x 76 mm (5.2” x 7.95” x 3.0”), without mounting plate |
| Процессор | Intel ® Celeron ® G6900E 3.0 GHz base frequency, 2 cores (TC3: 50) | up to Intel ® Core™ 9 Series 2 processor 273PQE, 3.4 GHz, 12 cores (TC3: 81) |
| Motherboard | compact motherboard for 12 th /13 th generation Intel ® Celeron ® , Pentium ® , Core™ i or Intel ® Core™ Series 2 processor |
| Memory | 16 GB DDR5 RAM | up to 64 GB DDR5 RAM |
| Графика | integrated in the processor |
| Ethernet | 5 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board |
| RAID | on-board RAID 1 controller for SATA and NVMe™/PCIe ® |
| Hard disks/flash | 40 GB M.2 SSD | up to 1280 GB M.2 SSD |
| Интерфейсы | 6 x USB 3.2 Gen. 2, 2 x DisplayPort |
| Питание | 24 V DC |
| Операционная система | – | Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, Windows Server 2025, TwinCAT/BSD |
| Информация для заказа / C6040-0090C9900-C661 | Processor Intel ® processor 300, 3.9 GHz, 2 cores (TC3: 50), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C662 | Processor Intel ® Core™ 3 Series 2 processor 201E, 3.6 GHz base frequency, 4 cores (TC3: 60), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C663 | Processor Intel ® Core™ 5 Series 2 processor 223PQE, 4.0 GHz base frequency, 8 cores (TC3: 70), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C664 | Processor Intel ® Core™ 7 Series 2 processor 253PQE, 3.5 GHz base frequency, 10 cores (TC3: 80), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C665 | Processor Intel ® Core™ 9 Series 2 processor 273PQE, 3.4 GHz base frequency, 12 cores (TC3: 81), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C642 | processor 12 th generation Intel ® Pentium ® G7400E, 3.6 GHz base frequency, 2 cores (TC3: 50), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C647 | processor 13 th generation Intel ® Core™ i3-13100E, 3.3 GHz base frequency, 4 cores (TC3: 60), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C648 | processor 13 th generation Intel ® Core™ i5-13400E, 6 performance cores 2.4 GHz base frequency and 4 efficient cores 1.5 GHz (TC3:70), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C649 | processor 13 th generation Intel ® Core™ i7-13700E, 8 performance cores 1.9 GHz base frequency and 8 efficient cores 1.3 GHz (TC3:80), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C650 | processor 13 th generation Intel ® Core™ i9-13900E, 8 performance cores 1.8 GHz base frequency and 16 efficient cores 1.3 GHz (TC3:81), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-B647 | BIOS for C603x-0080, C6040-0090, C6640-0070, C6650-0070, C6675-0070, C5240-0030 with activated Intel ® Turbo Boost, Idle mode and Hyper-Threading, not optimized for TwinCAT |
| C9900-R288 | memory extension to 32 GB DDR5 RAM, instead of 16 GB |
| C9900-R289 | memory extension to 64 GB DDR5 RAM, instead of 16 GB |
| C9900-Z468 | Adapter DisplayPort to DVI with active level shifter, shielded, PVC, black, DisplayPort, plug, straight, IP20, 20-pin – DVI-D, plug, straight, female, IP20, 24+1-pin, 0.40 m |
| C9900-M668 | mounting plate at the side wall, instead of plate at the rear wall |
| C9900-M693 | mounting plate for the lateral installation of the C604x, single part, not mounted |
| C9900-H597 | 80 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H598 | 160 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H616 | 320 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H677 | 640 GB M.2 SSD, 3D flash, extended temperature range, for C602x, C603x, C6040 and C701x, instead of 40 GB M.2 SSD |
| C9900-H594 | 40 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H595 | 80 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H596 | 160 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H615 | 320 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H676 | 640 GB M.2 SSD, 3D flash, extended temperature range, for C603x, C6040, MC603x |
| C9900-H653 | 160 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C6040, instead of 40 GB M.2 SSD |
| C9900-H654 | 320 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C6040, instead of 40 GB M.2 SSD |
| C9900-H818 | 640 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C6040, instead of 40 GB M.2 SSD |
| C9900-H842 | 1280 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080, C6040, instead of 40 GB M.2 SSD |
| C9900-H661 | 160 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
| C9900-H810 | 320 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
| C9900-H817 | 640 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
| C9900-H841 | 1280 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
