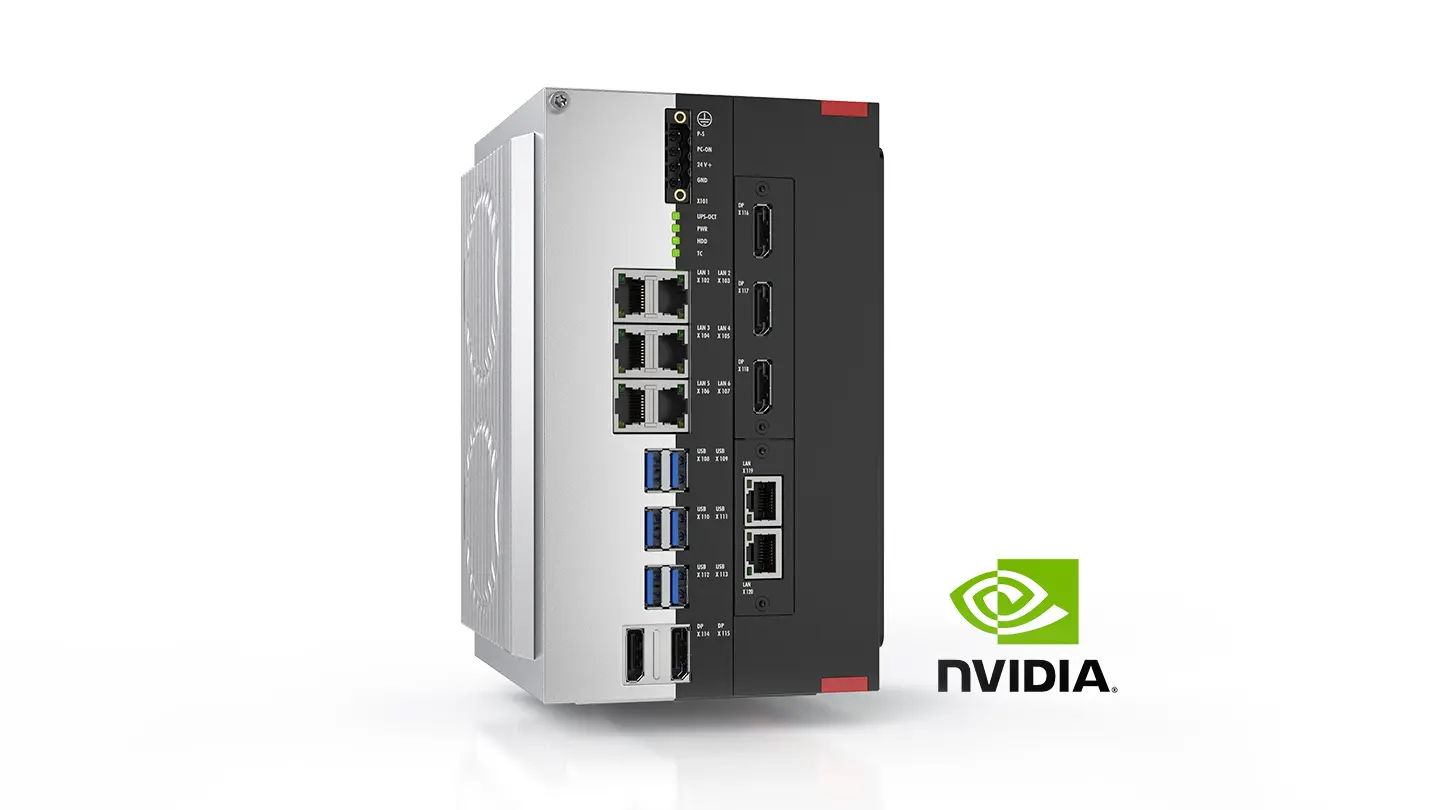

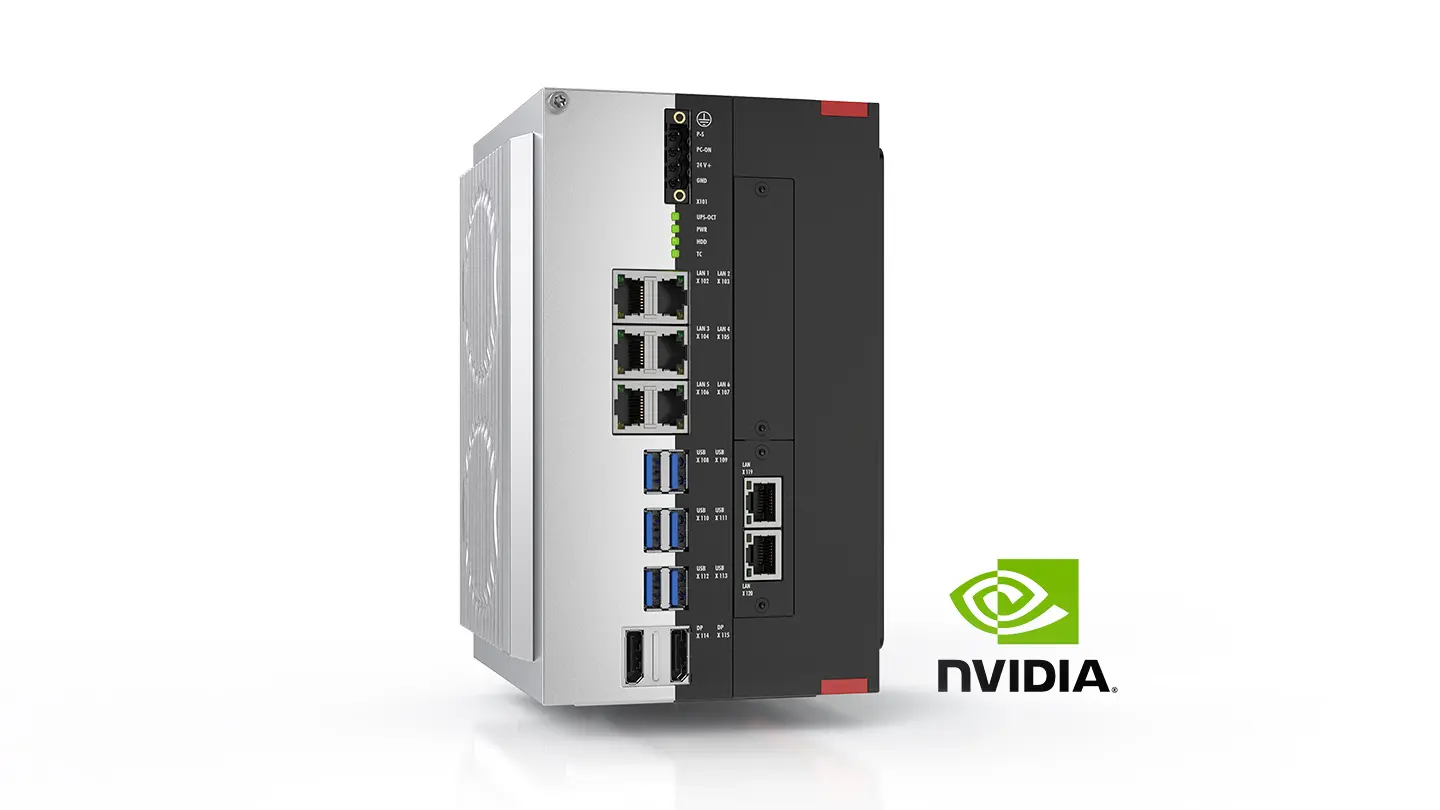

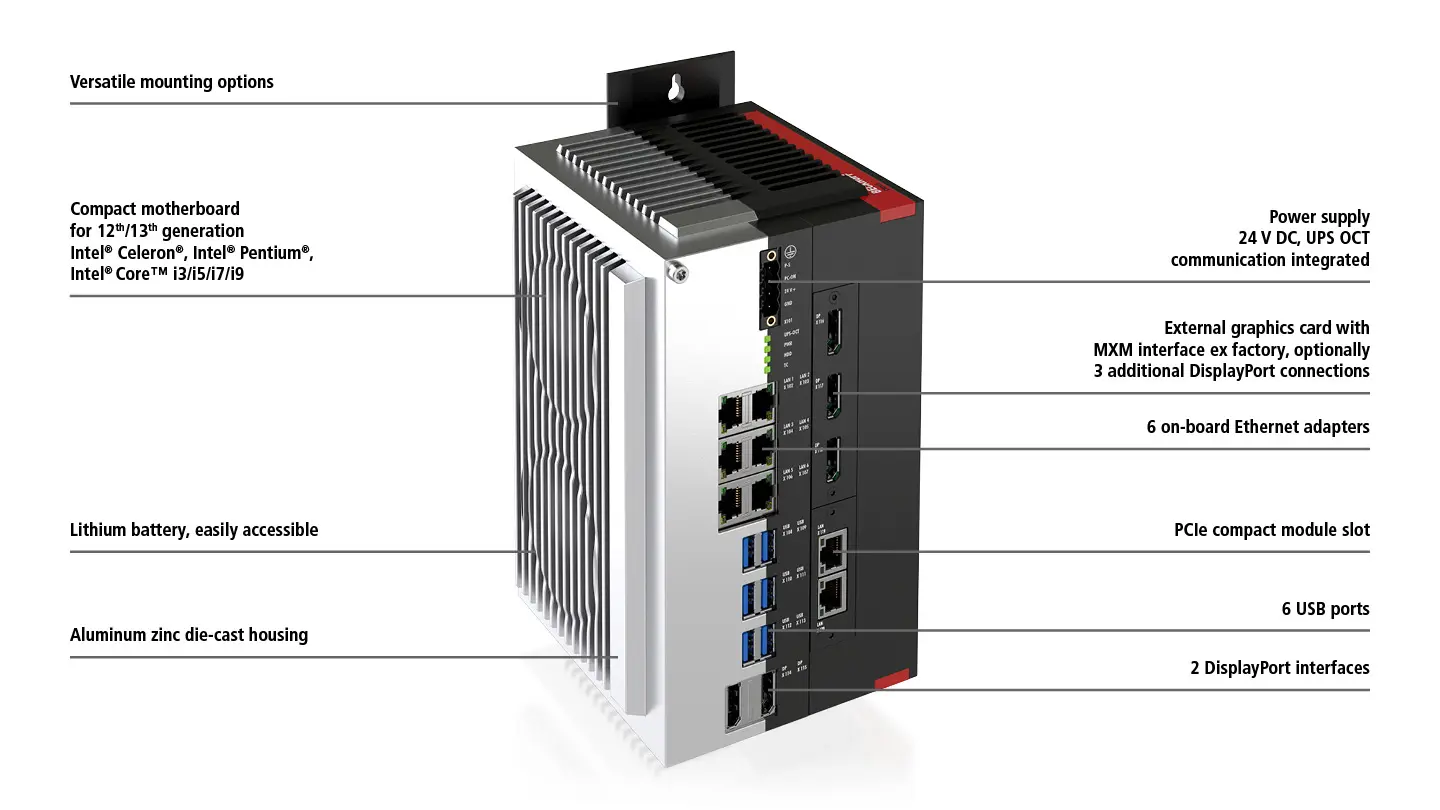

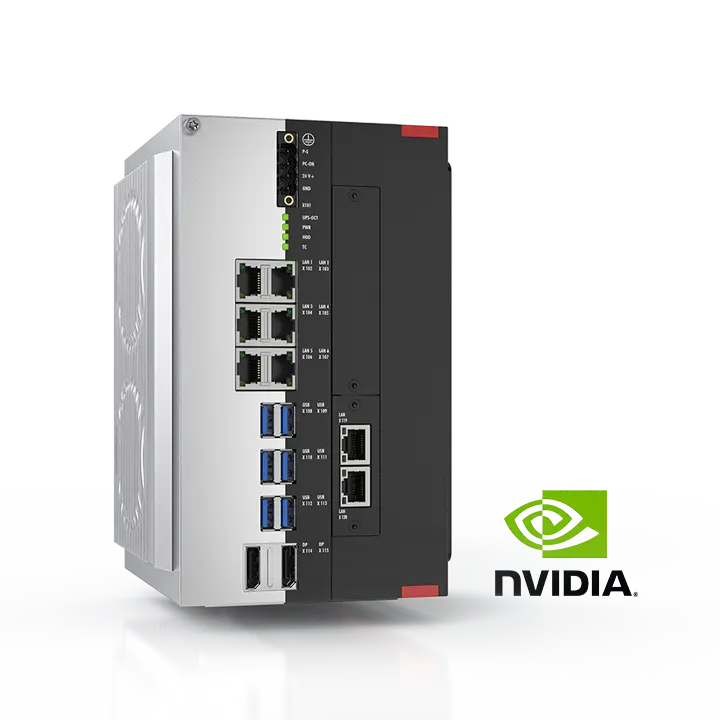

Промышленный ПК C6043 с NVIDIA® GPU обрабатывает приложения с высокими требованиями к 3D-графике или глубоко интегрированными программными блоками Vision и AI с минимальными временами цикла. Он расширяет серию сверхкомпактных промышленных ПК высокопроизводительным устройством со встроенным слотом для мощных...
| Корпус | aluminum zinc die-cast housing |
|---|---|
| Монтаж | mounting sheet at the rear wall |
| Slots for hard disk/flash | 2 slots for M.2 SSD or high-performance M.2 SSD, NVM Express™ |
| Free space for air circulation | 5 cm (2") around the PC required |
| Степень защиты | IP20 |
| Рабочая температура | 0…50°C |
| Размеры (Ш x В x Г) | 132 x 202 x 127 mm (5.2” x 7.95” x 5.0”), without mounting plate |
| Процессор | Intel ® Celeron ® G6900E 3.0 GHz base frequency, 2 cores (TC3: 50) | up to Intel ® Core™ i9 13900E, 24 cores (TC3: 81) |
| Motherboard | compact motherboard for 12 th /13 th generation Intel ® Celeron ® , Intel ® Pentium ® , Core™ i3/i5/i7/i9 |
| PCIe ® slots | 1 PCIe ® compact module slot to plug-in a Beckhoff PCIe ® compact module, 1 factory-assignable slot for graphic cards |
| Memory | 16 GB DDR5 RAM | up to 64 GB DDR5 RAM |
| Графика | integrated in the processor | external graphics card with MXM interface ex factory |
| Ethernet | 5 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board |
| RAID | on-board RAID 1 controller for SATA and NVMe™/PCIe ® |
| Hard disks/flash | 160 GB NVMe™ M.2 SSD | up to 1280 GB NVMe™ M.2 SSD |
| Интерфейсы | 6 x USB 3.2 Gen. 2, 2 x DisplayPort | up to 5 x DisplayPort |
| Питание | 24 V DC |
| Операционная система | – | Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, Windows Server 2025, TwinCAT/BSD |
| Информация для заказа / C6043-0090C9900-C642 | processor 12 th generation Intel ® Pentium ® G7400E, 3.6 GHz base frequency, 2 cores (TC3: 50), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C647 | processor 13 th generation Intel ® Core™ i3-13100E, 3.3 GHz base frequency, 4 cores (TC3: 60), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C648 | processor 13 th generation Intel ® Core™ i5-13400E, 6 performance cores 2.4 GHz base frequency and 4 efficient cores 1.5 GHz (TC3:70), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C649 | processor 13 th generation Intel ® Core™ i7-13700E, 8 performance cores 1.9 GHz base frequency and 8 efficient cores 1.3 GHz (TC3:80), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C650 | processor 13 th generation Intel ® Core™ i9-13900E, 8 performance cores 1.8 GHz base frequency and 16 efficient cores 1.3 GHz (TC3:81), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-A201 | graphic card, NVIDIA RTX™ A500 GPU, 2048 CUDA ® cores, 64 Gen3 Tensor cores, 4 GB GDDR6 RAM, PCIe ® x4 MXM interface. Not suitable for TwinCAT/BSD. |
| C9900-A205 | graphic card, NVIDIA RTX™ 2000 GPU, 3072 CUDA ® cores, 96 Gen4 Tensor cores, 8 GB GDDR6 RAM, PCIe ® x8 MXM interface. Not suitable for TwinCAT/BSD. |
| C9900-A206 | graphic card, NVIDIA RTX™ 2000 GPU, 3x DisplayPort, 3072 CUDA ® cores, 96 Gen4 Tensor cores, 8 GB GDDR6 RAM, PCIe ® x8 MXM interface. Not suitable for TwinCAT real-time applications or TwinCAT/BSD. |
| C9900-R288 | memory extension to 32 GB DDR5 RAM, instead of 16 GB |
| C9900-R289 | memory extension to 64 GB DDR5 RAM, instead of 16 GB |
| C9900-Z468 | Adapter DisplayPort to DVI with active level shifter, shielded, PVC, black, DisplayPort, plug, straight, IP20, 20-pin – DVI-D, plug, straight, female, IP20, 24+1-pin, 0.40 m |
| FC9082 | Gigabit Ethernet PCIe ® compact module for PCs with Beckhoff PCIe ® compact module slots, 2-channel, PCI Express ® x1 bus |
| FC9282 | 2.5 Gigabit Ethernet PCIe ® compact module for PCs with Beckhoff PCIe ® compact module slots, 2-channel, PCI Express ® bus |
| C9900-E305 | USB 3.0 PCIe ® compact module – 2-port USB 3.0 interfaces – USB transfer rate up to 5 Gbit/s for USB 3.0 – compatible to all USB standards – delivers up to 1 A supply current at each USB port |
| C9900-E306 | RS232 PCIe ® compact module for PCs with Beckhoff PCIe ® module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Requires 2 adapter cable C9900-K920 ix industrial ® type B to D-sub, 9-pin. |
| C9900-K920 | RS232 cable, shielded, PVC, 5 x 2 x 0.14 mm², fixed installation, gray, ix Industrial ® , type B, plug, straight, male, IP20, 10-pin – D-sub, plug, straight, male, IP20, 9-pin, 0.50 m |
| C9900-E312 | RS485 PCIe ® compact module for PCs with Beckhoff PCIe ® compact module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Configuration as an end point without echo: echo off, auto send on, always send off, auto receive on, always receive off, termination on. Requires 2 adapter cable C9900-K922 ix industrial ® type B to D-sub, 9-pin. |
| C9900-E313 | RS422 PCIe ® compact module for PCs with Beckhoff PCIe ® compact module slots, 2-channel, optically linked, overload protection, 2 sockets ix industrial ® type B. Configuration as a full duplex end point: echo on, auto send off, always send on, auto receive off, always receive on, termination on. Requires 2 adapter cable C9900-K922 ix industrial ® type B to D-sub, 9-pin. |
| C9900-K922 | RS422/RS485 cable, shielded, PVC, 5 x 2 x 0.14 mm², fixed installation, gray, ix Industrial ® , type B, plug, straight, male, IP20, 10-pin – D-sub, socket, straight, female, IP20, 9-pin, 0.50 m |
| C9900-M668 | mounting plate at the side wall, instead of plate at the rear wall |
| C9900-M693 | mounting plate for the lateral installation of the C604x, single part, not mounted |
| C9900-H678 | 320 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, for PCs with Intel ® Celeron ® , Pentium ® , Core™ i3, Core™ i5, Core™ i7 or Core™ i9 from the 12 th generation onward, instead of 160 GB high-performance SSD, NVM Express™ |
| C9900-H679 | 640 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, for PCs with Intel ® Celeron ® , Pentium ® , Core™ i3, Core™ i5, Core™ i7 or Core™ i9 from the 12 th generation onward, instead of 160 GB high-performance SSD, NVM Express™ |
| C9900-H840 | 1280 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, for PCs with Intel ® Celeron ® , Pentium ® , Core™ i3, Core™ i5, Core™ i7 or Core™ i9 from the 12 th generation onward, instead of 160 GB high-performance SSD, NVM Express™ |
| C9900-H661 | 160 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
| C9900-H810 | 320 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
| C9900-H817 | 640 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
| C9900-H841 | 1280 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, extended temperature range, for C603x-0070, C603x-0080 and C604x |
