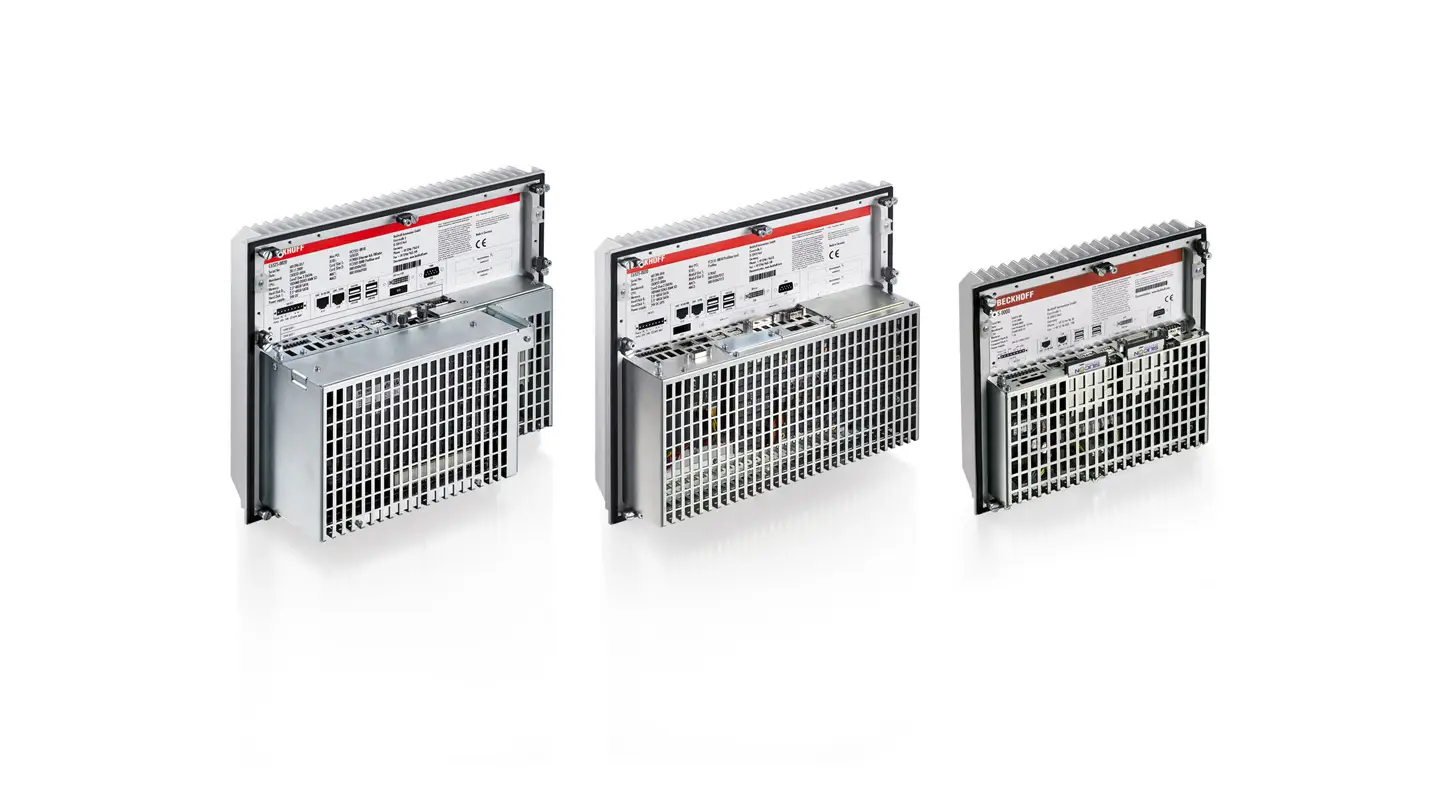

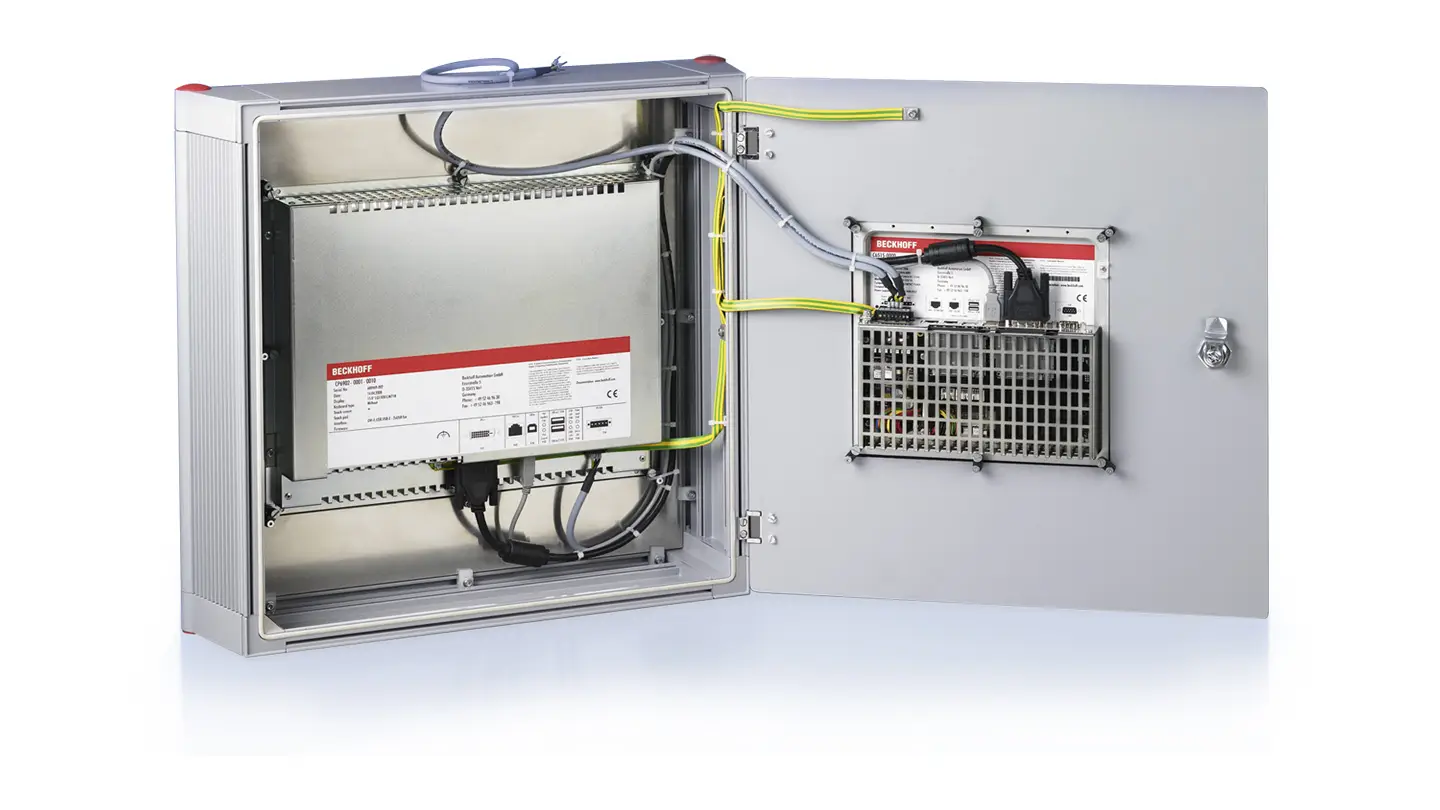

Серия промышленных ПК C65xx предназначена для установки в панели шкафа управления либо в заднюю панель корпуса управления или корпуса консоли. Радиатор промышленного ПК выводится наружу через соответствующий вырез в шкафу управления или панели корпуса. Отвод рассеиваемой мощности от процессора и чипсета осуществляется...

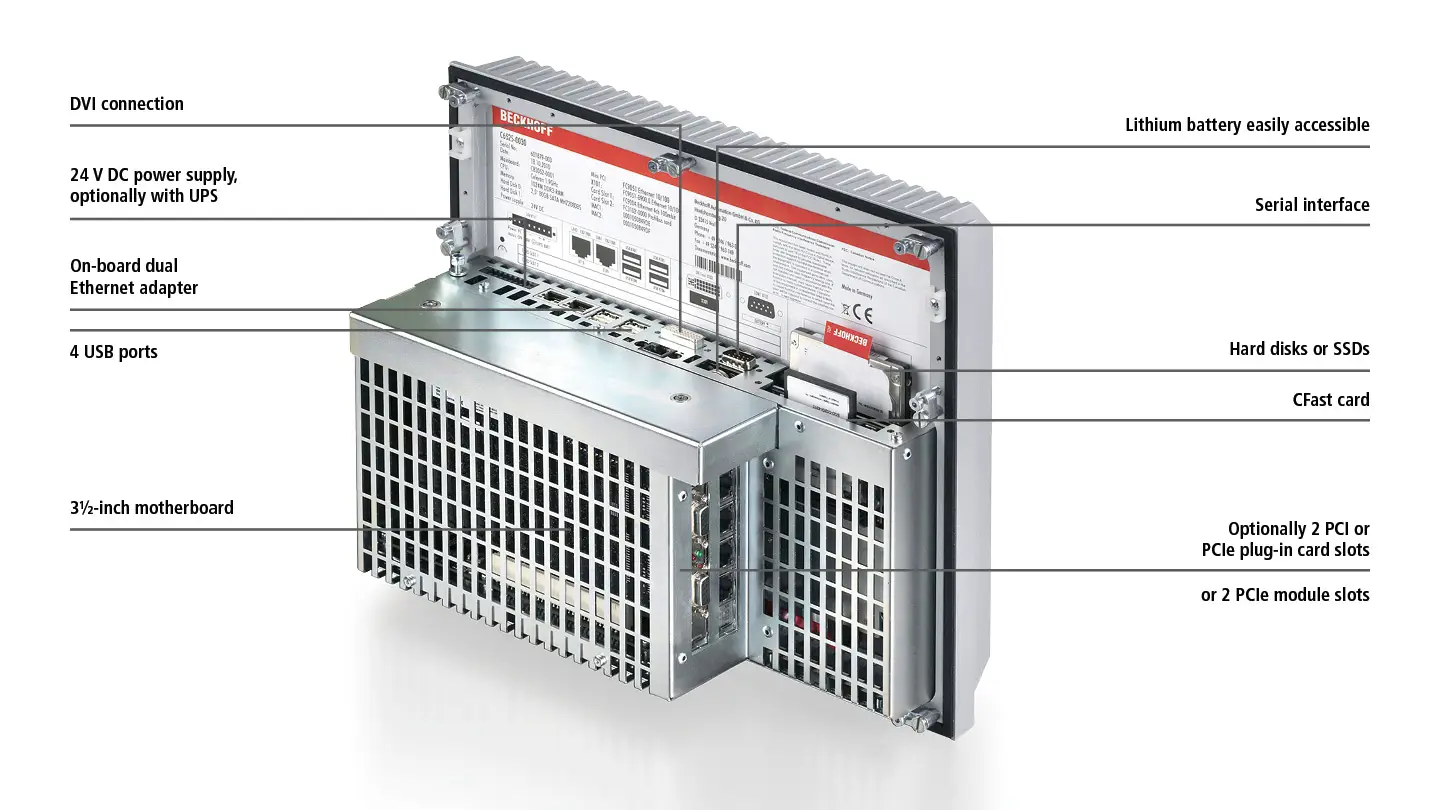

| Slots for hard disk/flash | 1 slot for 2½-inch hard disk/SSD, 1 slot for CFast | 2 slots for CFast or 2 slots for 2½-inch hard disk/SSD |
|---|---|

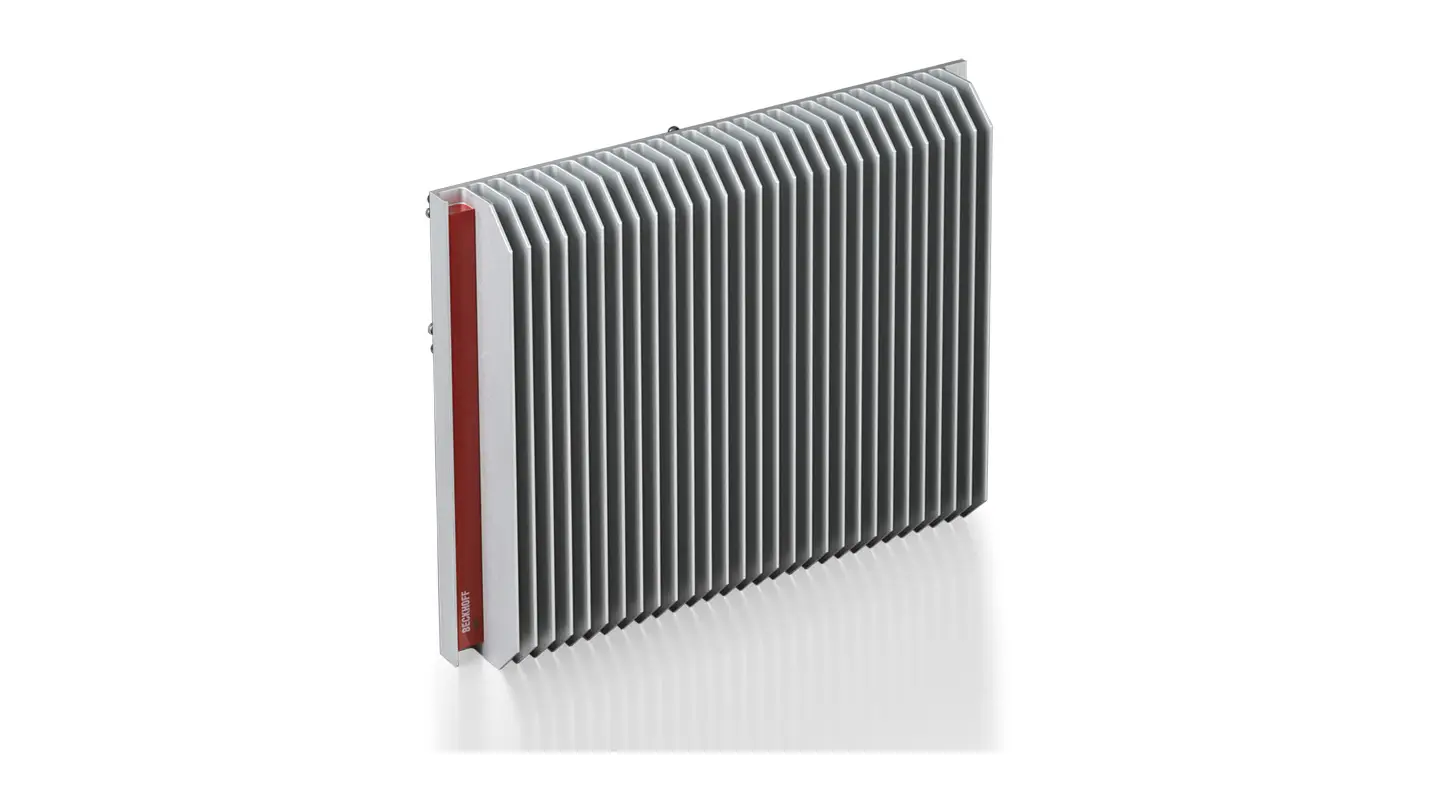

| Охлаждение | passive through heat sink structure outside |
| Free space for air circulation | 20 cm (7.9") around the heat sink required |
| Степень защиты | outside IP65, inside IP20 |
| Рабочая температура | outside 0…45°C, inside 0…55°C |
| Weight of basic configuration | 5.9 kg (13 lbs) |
| Размеры (Ш x В x Г) | 330 x 275 x 82 mm (13" x 10.8" x 3.2") | with PCIe module slots 109 mm depth (4.2"), with PCIe/PCI plug-in card slots 146 mm (5.8") depth |
| Процессор | Intel ® Celeron ® 6600HE 2.6 GHz base frequency, 2 cores (TC3: 50) | up to Intel ® Core™ i7-11850HE 2.6 GHz, 8 cores (TC3: 80) |
| Motherboard | 3½-inch motherboard for 11 th generation Intel ® Celeron ® , Core™ i3/i5/i7 |
| PCIe ® slots | – | 2 PCIe ® module slots or 2 plug-in card slots PCI™ or PCIe ® |
| Memory | 4 GB DDR4 RAM | up to 64 GB DDR4 RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 1 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | hard disk, 2½-inch, 1 TB | SSD, CFast |
| Интерфейсы | 4 x USB 3.2 Gen. 2, 1 x RS232, 1 x DVI |
| Питание | 24 V DC | UPS |
| Операционная система | – | Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, Windows Server 2022, TwinCAT/BSD |
| Информация для заказа / C6525-0080C9900-C639 | processor 11 th generation Intel ® Core™ i3-11100HE, 2.4 GHz base frequency, 4 cores (TC3: 60), instead of Intel ® Celeron ® 6600HE 2.6 GHz (TC3: 50) |
| C9900-C640 | processor 11 th generation Intel ® Core™ i5-11500HE, 2.6 GHz base frequency, 6 cores (TC3: 70), instead of Intel ® Celeron ® 6600HE 2.6 GHz (TC3: 50) |
| C9900-C641 | processor 11 th generation Intel ® Core™ i7-11850HE, 2.6 GHz base frequency, 8 cores (TC3: 80), instead of Intel ® Celeron ® 6600HE 2.6 GHz (TC3: 50) |
| C9900-R270 | memory extension to 8 GB DDR4 RAM, instead of 4 GB |
| C9900-R271 | memory extension to 16 GB DDR4 RAM, instead of 4 GB |
| C9900-R272 | memory extension to 32 GB DDR4 RAM, instead of 4 GB |
| C9900-R273 | memory extension to 64 GB DDR4 RAM, instead of 4 GB |
| C9900-B503 | 2 PCIe ® module slots integrated inside C6525, to plug-in Beckhoff PCIe ® modules or to lead out interfaces of the motherboard ex factory. The depth of the inner enclosure cover is increased by 27 mm (1.1“). |
| C9900-B505 | 2 PCIe ® plug-in card slots on the passive backplane integrated inside C6525, to plug-in PCIe ® x1 cards up to 190 mm (7.5“) length. The depth of the inner enclosure cover is increased by 58 mm (2.3“). |
| C9900-B509 | 2 PCI™ plug-in card slots on the passive backplane integrated inside C6525, to plug-in PCI™ cards up to 190 mm (7.5“) length, the depth of the inner enclosure cover is increased by 58 mm (2.3“). |
| C9900-B513 | 1 PCI™ and 1 PCIe ® plug-in card slot on a passive backplane integrated inside C6525, to plug-in one PCI™ and one PCIe ® x1 card up to 190 mm (6.3“) length. The depth of the back cover is increased by 58 mm (2.3“). |
| C9900-E237 | additional DVI-D plug led out on a module bracket, cannot be ordered in combination with an additional DisplayPort interface |
| C9900-E238 | additional DVI-D plug led out on a slot bracket, only for PCs with plug-in card slots |
| C9900-E294 | additional DisplayPort interface, occupies the fieldbus connection section, max. resolution 1920 x 1080, can only be ordered once per PC and not together with a second DVI port |
| C9900-E159 | Serial port RS232, optically linked, overload protection, D-sub 9-pin connector. An additional fieldbus card is possible with a PCIe ® module slot as a connector bracket. |
| C9900-E188 | Serial port RS485, optically linked, overload protection, D-sub 9-pin connector. An additional fieldbus card is possible with a PCIe ® module slot as a connector bracket. Configuration as an end point without echo: echo off, auto send on, always send off, auto receive on, always receive off, termination on |
| C9900-E189 | Serial port RS422, optically linked, overload protection, D-sub 9-pin connector. An additional fieldbus card is possible with a PCIe ® module slot as a connector bracket. Configuration as a full duplex end point: echo on, auto send off, always send on, auto receive off, always receive on, termination on |
| FC9071-0000 | Gigabit Ethernet PC interface card, 10/100/1000 Mbit/s, 1-channel, PCIe ® interface, occupies the fieldbus connection area. |
| C9900-D191 | PC with 2 slots for 2½-inch hard disks or SSDs, instead of 1 slot for a hard disk or SSD and 1 slot for CFast |
| C9900-H145 | additional hard disk, 2½-inch, 1 TB |
| C9900-H862 | solid-state disk SSD, 3D flash, 2½-inch, 160 GB |
| C9900-H781 | solid-state disk SSD, 3D flash, 2½-inch, 320 GB |
| C9900-H745 | solid-state disk SSD, 3D flash, 2½-inch, 640 GB |
| C9900-H792 | solid-state disk SSD, 3D flash, 2½-inch, 1280 GB |
| C9900-H865 | solid-state disk SSD, 3D flash, 2½-inch, 160 GB, instead of 2½-inch hard disk |
| C9900-H847 | solid-state disk SSD, 3D flash, 2½-inch, 320 GB, instead of 2½-inch hard disk |
| C9900-H746 | solid-state disk SSD, 3D flash, 2½-inch, 640 GB, instead of 2½-inch hard disk |
| C9900-H793 | solid-state disk SSD, 3D flash, 2½-inch, 1280 GB, instead of 2½-inch hard disk |
| C9900-D190 | 2 slots for CFast cards, instead of 1 slot for a 2½-inch hard disk or SSD and 1 slot for CFast |
| C9900-H583 | 40 GB CFast card, 3D flash, extended temperature range |
| C9900-H587 | 80 GB CFast card, 3D flash, extended temperature range |
| C9900-H624 | 160 GB CFast card, 3D flash, extended temperature range |
| C9900-H669 | 320 GB CFast card, 3D flash, extended temperature range |
| C9900-H584 | 40 GB CFast card, 3D flash, extended temperature range, instead of 2½-inch hard disk |
| C9900-H588 | 80 GB CFast card, 3D flash, extended temperature range, instead of 2½-inch hard disk |
| C9900-H625 | 160 GB CFast card, 3D flash, extended temperature range, instead of 2½-inch hard disk |
| C9900-H670 | 320 GB CFast card, 3D flash, extended temperature range, instead of 2½-inch hard disk |
| C9900-U209 | uninterruptible power supply UPS, integrated into the 24 V power supply, without battery |
| C9900-U330 | battery pack for PCs with 24 V power supply and integrated UPS C9900-P209 or C9900-U209, external, for DIN rail mounting, 3.4 Ah, operating temperature 0…50°C, contains two rechargeable, sealed lead batteries VRLA-AGM |
| Информация для заказа / C6525-0080FC9062 | Gigabit Ethernet PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, PCI Express ® x1 bus |
| C9900-E301 | RS232 PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Requires 2 adapter cables C9900-K920 ix industrial ® type B to D-sub, 9-pin. |
| C9900-K920 | RS232 cable, shielded, PVC, 5 x 2 x 0.14 mm², fixed installation, gray, ix Industrial ® , type B, plug, straight, male, IP20, 10-pin – D-sub, plug, straight, male, IP20, 9-pin, 0.50 m |
| C9900-E309 | RS485 PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Configuration as an end point without echo: echo off, auto send on, always send off, auto receive on, always receive off, termination on. Requires 2 adapter cables C9900-K922 ix industrial ® type B to D-sub, 9-pin. |
| C9900-E310 | RS422 PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Configuration as a full duplex end point: echo on, auto send off, always send on, auto receive off, always receive on, termination on. Requires 2 adapter cables C9900-K922 ix industrial ® type B to D-sub, 9-pin. |
| C9900-K922 | RS422/RS485 cable, shielded, PVC, 5 x 2 x 0.14 mm², fixed installation, gray, ix Industrial ® , type B, plug, straight, male, IP20, 10-pin – D-sub, socket, straight, female, IP20, 9-pin, 0.50 m |
| C9900-E277 | USB 3.0 PCIe ® module – 2-port USB 3.0 interfaces – USB transfer rate up to 5 Gbit/s for USB 3.0 – compatible to all USB standards – delivers up to 1 A supply current at each USB port |
| C9900-E234 | 2 USB ports of the motherboard led out at the connection section of a C5210, C65x5, CP2xxx or CP62xx |
| C9900-E292 | additional DisplayPort interface, led out on a module bracket , max. resolution 1920 x 1080, can only be ordered once per PC and not together with a second DVI port |
| C9900-E294 | additional DisplayPort interface, occupies the fieldbus connection section, max. resolution 1920 x 1080, can only be ordered once per PC and not together with a second DVI port |
