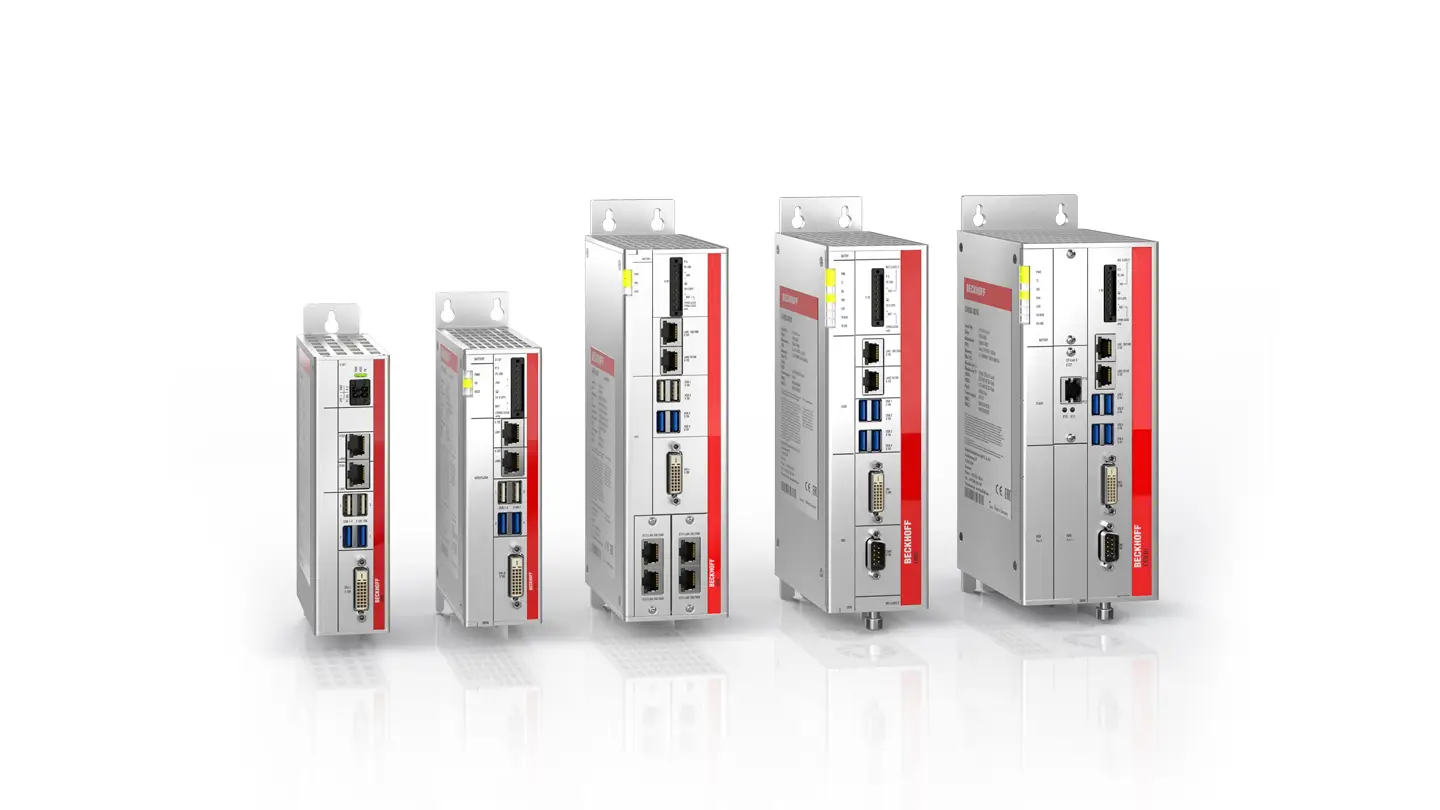

Серия промышленных ПК C69xx отличается компактной конструкцией, прочными алюминиевыми корпусами и особенно широким выбором компонентов и интерфейсов. Оснащенные 3,5-дюймовыми материнскими платами Beckhoff, промышленные ПК C69xx охватывают диапазон от очень компактного C6905 для приложений со средними требованиями к...

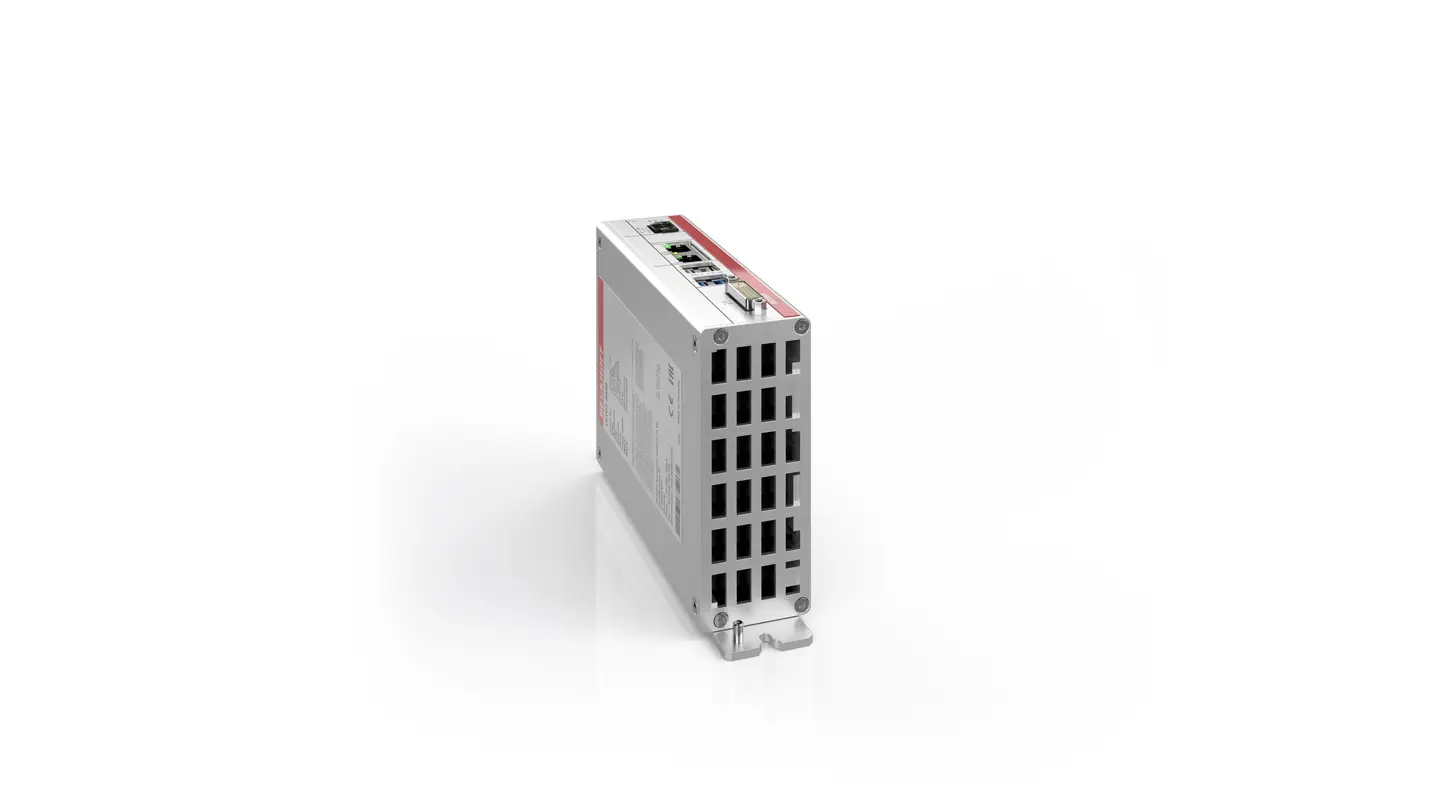

| Корпус | aluminum housing |
|---|---|
| Монтаж | mounting sheet at the rear wall |
| Охлаждение | passive |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Степень защиты | IP20 |
| Рабочая температура | 0…55°C |
| Weight of basic configuration | 0.9 kg (2 lbs) |
| Размеры (Ш x В x Г) | 45 x 163 x 115 mm (1.8" x 6.4" x 4.5"), without mounting plate |
| Процессор | Intel Atom ® E3815, 1.46 GHz, 1 core (TC2, TC3: 40) | up to Intel Atom ® E3845 1.91 GHz, 4 cores (TC2, TC3: 50) |
| Motherboard | 3½-inch motherboard for Intel Atom ® E38xx |
| Memory | 2 GB DDR3L RAM | up to 8 GB DDR3L RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board | 1 additional 100/1000BASE-T |
| Hard disks/flash | 40 GB CFast card | up to 320 GB CFast card |
| Интерфейсы | 4 x USB 2.0, 1 x DVI |
| Питание | 24 V DC | 1-second UPS |
| Операционная система | Windows Embedded Compact 7, English | Windows 10 IoT Enterprise |
| Информация для заказа / C6905-0010C9900-C572 | processor Intel Atom ® E3827, 1.75 GHz, 2 cores (TC2, TC3: 40), instead of Intel Atom ® E3815, 1.46 GHz (TC2, TC3: 40). With Windows Embedded Compact 7 only one core is supported. Multicore support is available with Windows 10 IoT Enterprise. |
| C9900-C573 | processor Intel Atom ® E3845, 1.91 GHz, 4 cores (TC2, TC3: 50), instead of Intel Atom ® E3815, 1.46 GHz (TC2, TC3: 40). With Windows Embedded Compact 7 only one core is supported. Multicore support is available with Windows 10 IoT Enterprise. |
| C9900-R257 | memory extension to 4 GB DDR3L RAM, instead of 2 GB, requires a 64 bit operating system or only 3 GB are addressable |
| C9900-R258 | memory extension to 8 GB DDR3L RAM, instead of 2 GB, requires a 64 bit operating system |
| C9900-B415 | third on-board Ethernet adapter on the 3½-inch motherboard for Intel Atom ® , wired out with a 100/1000BASE-T connector inside the connector bracket at the connection section |
| C9900-H620 | 80 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-H628 | 160 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-H673 | 320 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-H867 | solid-state disk SSD, 3D flash, 2½-inch, 160 GB, instead of 40 GB CFast card |
| C9900-H848 | solid-state disk SSD, 3D flash, 2½-inch, 320 GB, instead of 40 GB CFast card |
| C9900-H748 | solid-state disk SSD, 3D flash, 2½-inch, 640 GB, instead of 40 GB CFast card |
| C9900-H796 | solid-state disk SSD, 3D flash, 2½-inch, 1280 GB, instead of 40 GB CFast card |
| C9900-U214 | internal, capacitive 1-second UPS to ensure secure backup of persistent application data on the flash card, requires TwinCAT |
| C9900-S706 | TwinCAT 2 PLC runtime for Windows Embedded Compact 7 |
| C9900-S707 | TwinCAT 2 NC PTP runtime for Windows Embedded Compact 7 |
| C9900-S708 | TwinCAT 2 NC I runtime for Windows Embedded Compact 7 |
