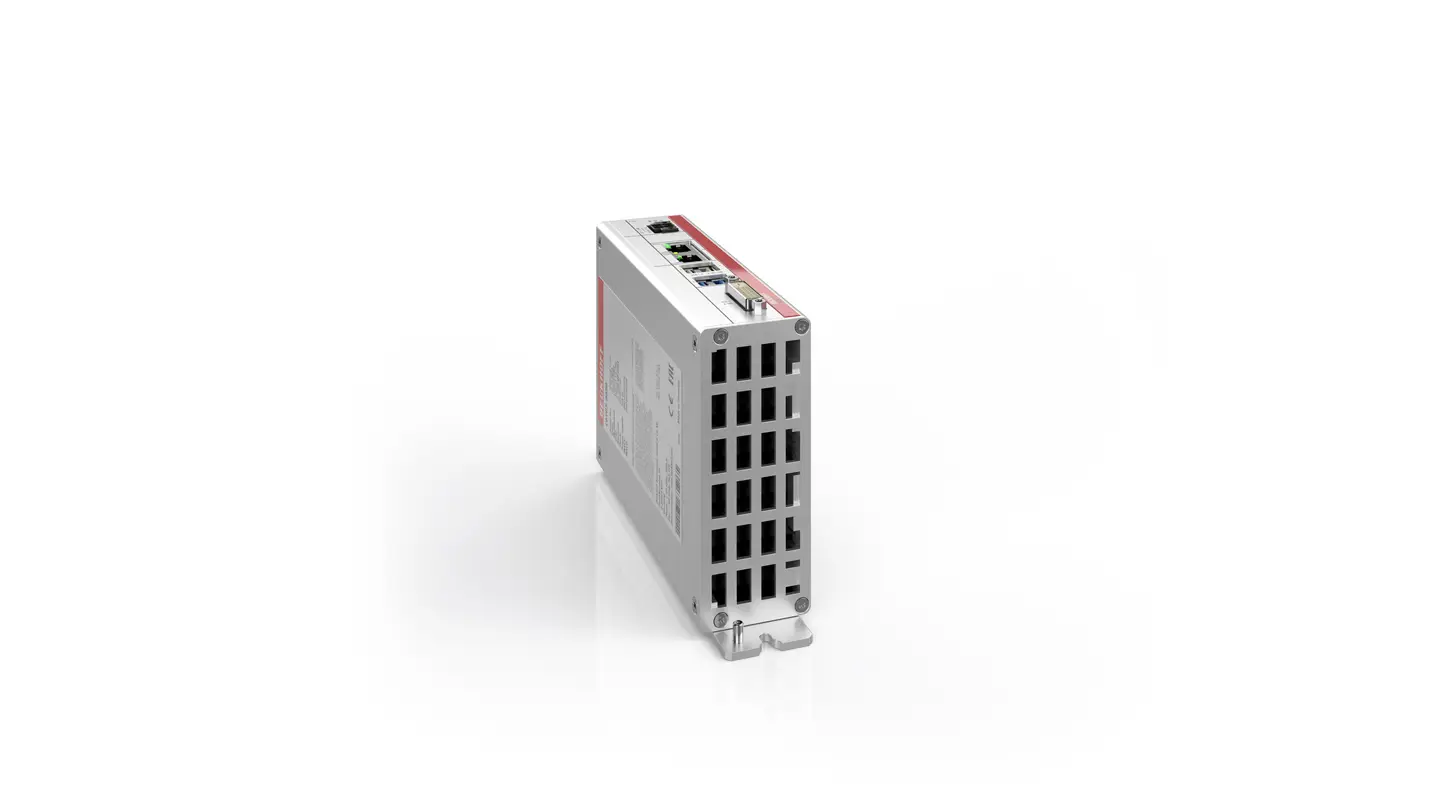

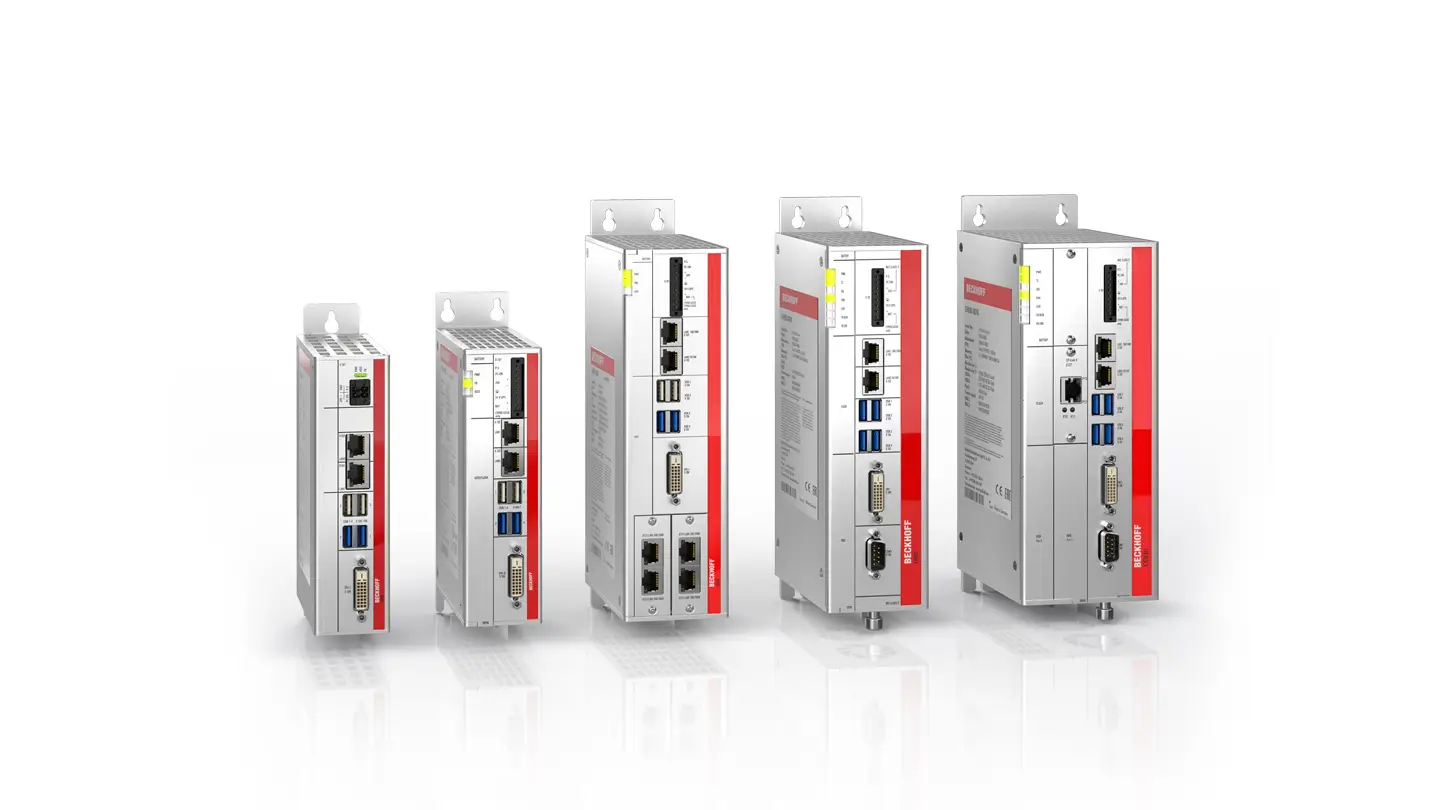

Серия промышленных ПК C69xx отличается компактной конструкцией, прочными алюминиевыми корпусами и особенно широким выбором компонентов и интерфейсов. Оснащенные 3,5-дюймовыми материнскими платами Beckhoff, промышленные ПК C69xx охватывают диапазон от очень компактного C6905 для приложений со средними требованиями к...
| Корпус | aluminum housing |
|---|---|
| Монтаж | mounting sheet at the rear wall |
| Охлаждение | passive |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Степень защиты | IP20 |
| Рабочая температура | 0…50°C |
| Weight of basic configuration | 0.9 kg (2 lbs) |
| Размеры (Ш x В x Г) | 45 x 163 x 115 mm (1.8" x 6.4" x 4.5"), without mounting plate |
| Процессор | Intel Atom ® x6214RE, 1.4 GHz, 2 cores (TC3: 40) | Intel Atom ® x6416RE, 1.7 GHz, 4 cores (TC3: 50) |
| Motherboard | 3½-inch motherboard for Intel Atom ® x6 |
| Memory | 4 GB DDR4 RAM | up to 8 GB DDR4 RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000/2500BASE-T on-board | 1 additional 100/1000/2500BASE-T |
| Hard disks/flash | 40 GB CFast card | up to 320 GB CFast card, up to 1280 GB SSD |
| Интерфейсы | 2 x USB 3.1 Gen. 2, 2 x USB 2.0, 1 x DVI |
| Питание | 24 V DC | 1-second UPS |
| Операционная система | – | Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, TwinCAT/BSD |
| Информация для заказа / C6905-0030C9900-C591 | processor Intel Atom ® x6416RE, 1.7 GHz, 4 cores (TC3: 50) and memory extension to 8 GB DDR4 RAM instead of Intel Atom ® x6214RE, 1.4 GHz (TC3: 40) and 4 GB DDR4 RAM |
| C9900-B424 | third on-board Ethernet adapter on the 3½-inch motherboard for Intel Atom ® , wired out with a 100/1000/2500BASE-T connector inside the connector bracket at the connection section |
| C9900-H620 | 80 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-H628 | 160 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-H673 | 320 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-H867 | solid-state disk SSD, 3D flash, 2½-inch, 160 GB, instead of 40 GB CFast card |
| C9900-H784 | solid-state disk SSD, 3D flash, 2½-inch, 320 GB, instead of 40 GB CFast card |
| C9900-H766 | solid-state disk SSD, 3D flash, 2½-inch, 640 GB, instead of 40 GB CFast card |
| C9900-H796 | solid-state disk SSD, 3D flash, 2½-inch, 1280 GB, instead of 40 GB CFast card |
| C9900-U214 | internal, capacitive 1-second UPS to ensure secure backup of persistent application data on the flash card, requires TwinCAT |
