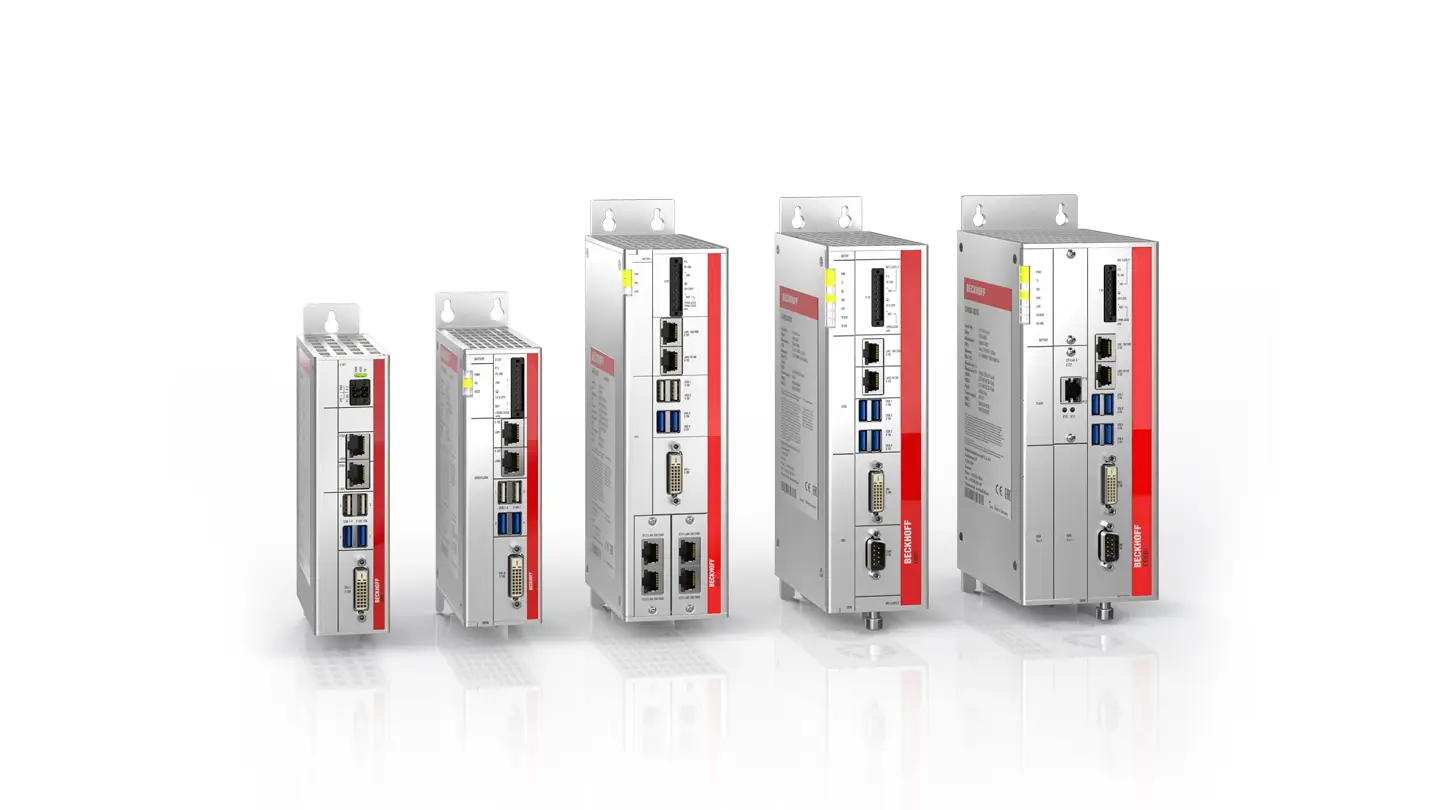

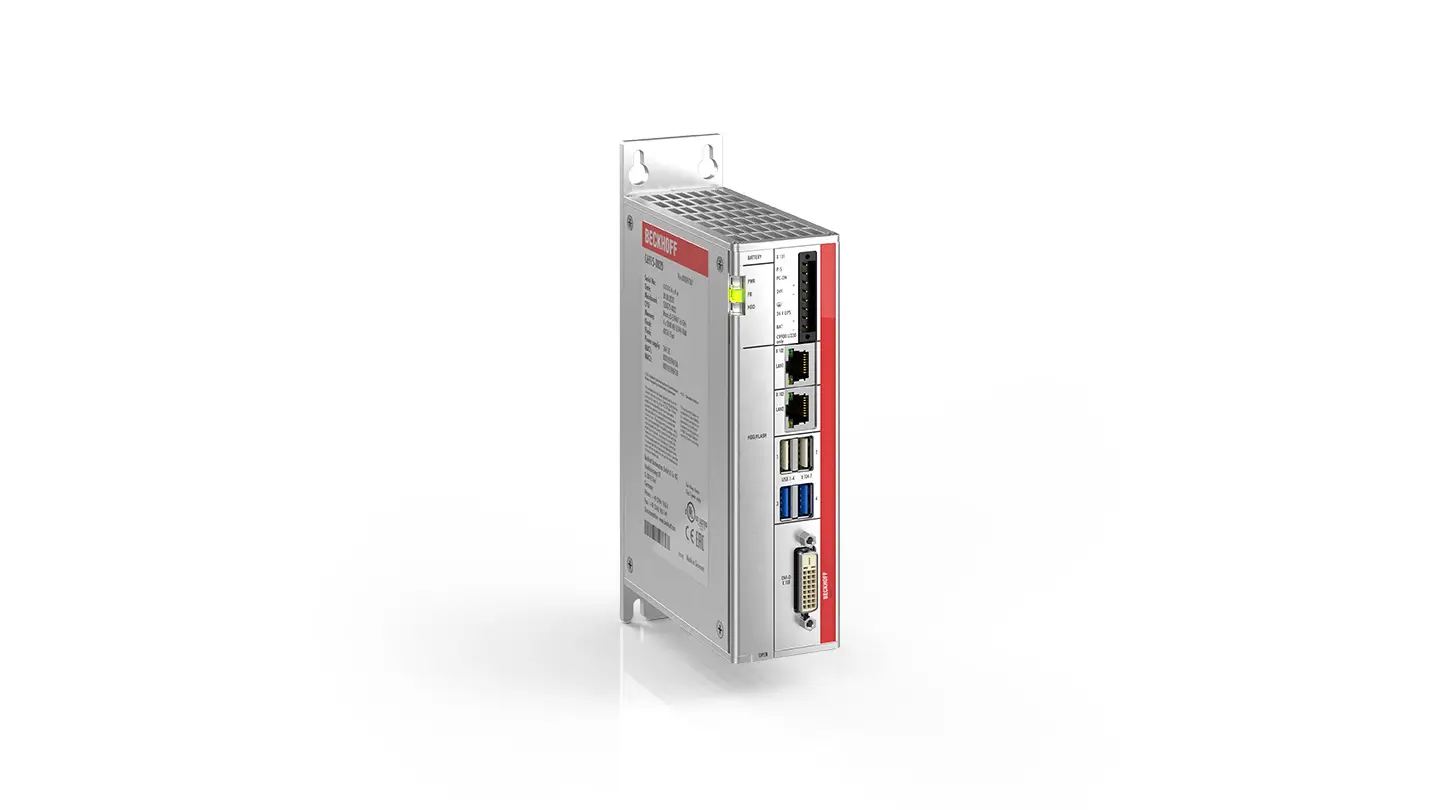

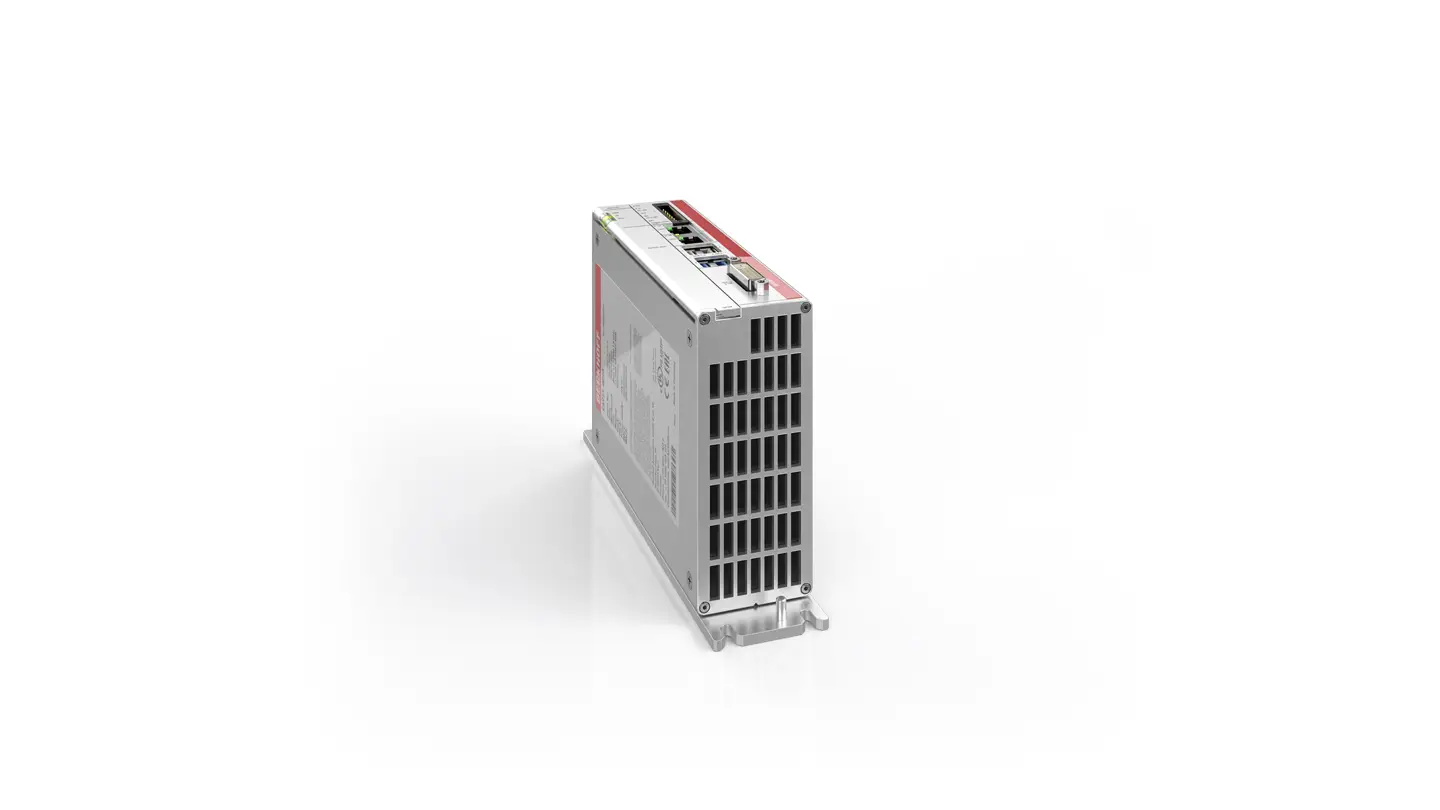

Серия промышленных ПК C69xx отличается компактной конструкцией, прочными алюминиевыми корпусами и особенно широким выбором компонентов и интерфейсов. Оснащенные 3,5-дюймовыми материнскими платами Beckhoff, промышленные ПК C69xx охватывают диапазон от очень компактного C6905 для приложений со средними требованиями к...
| Корпус | aluminum housing |
|---|---|
| Монтаж | mounting sheet at the rear wall | mounting sheet at the right side wall |
| Slots for hard disk/flash | 1 slot for CFast | 2 slots for CFast |
| Охлаждение | passive |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Степень защиты | IP20 |
| Рабочая температура | 0…55°C |
| Weight of basic configuration | 1.25 kg (2.8 lbs) |
| Размеры (Ш x В x Г) | 48 x 164 x 119 mm (1.9" x 6.5" x 4.7"), without mounting plate |
| Процессор | Intel Atom ® x5-E3930, 1.3 GHz, 2 cores (TC3: 40) | Intel Atom ® x5-E3940, 1.6 GHz, 4 cores (TC3: 50) |
| Motherboard | 3½-inch motherboard for Intel Atom ® x5-E39xx |
| Memory | 4 GB DDR4 RAM | up to 8 GB DDR4 RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board | 1 additional 100/1000BASE-T |
| Hard disks/flash | 40 GB CFast card | up to 320 GB CFast card, hard disk, SSD |
| Интерфейсы | 2 x USB 3.0, 2 x USB 2.0, 1 x DVI |
| Питание | 24 V DC | UPS |
| Операционная система | – | Windows 10 IoT Enterprise |
| Информация для заказа / C6915-0020C9900-C584 | processor Intel Atom ® x5-E3940, 1.6 GHz, 4 cores (TC3: 50) and memory extension to 8 GB DDR4 RAM instead of Intel Atom ® x5-E3930, 1.3 GHz (TC3: 40) and 4 GB DDR4 RAM |
| C9900-M653 | mounting plate at the side wall, instead of plate at the rear wall |
| C9900-B415 | third on-board Ethernet adapter on the 3½-inch motherboard for Intel Atom ® , wired out with a 100/1000BASE-T connector inside the connector bracket at the connection section |
| C9900-E252 | Serial port RS232, optically linked, overload protection,D-sub 9-pin connector. An additional fieldbus card or an additional serial interface is not possible. |
| C9900-E253 | Serial port RS485, optically linked, overload protection, D-sub 9-pin connector. An additional fieldbus card or an additional serial interface is not possible. Configuration as an end point without echo: echo off, auto send on, always send off, auto receive on, always receive off, termination on |
| C9900-E254 | Serial port RS422, optically linked, overload protection, D-sub 9-pin connector. An additional fieldbus card or an additional serial interface is not possible. Configuration as a full duplex end point: echo on, auto send off, always send on, auto receive off, always receive on, termination on |
| C9900-H620 | 80 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-H628 | 160 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-H673 | 320 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-D197 | 2 slots for CFast cards, instead of 1 slot for one CFast card, not possible in combination with a serial interface |
| C9900-H583 | 40 GB CFast card, 3D flash, extended temperature range |
| C9900-H587 | 80 GB CFast card, 3D flash, extended temperature range |
| C9900-H624 | 160 GB CFast card, 3D flash, extended temperature range |
| C9900-H669 | 320 GB CFast card, 3D flash, extended temperature range |
| C9900-D198 | 1 slot for one 2½ inch hard disk or SSD, instead of 1 slot for one CFast card |
| C9900-H867 | solid-state disk SSD, 3D flash, 2½-inch, 160 GB, instead of 40 GB CFast card |
| C9900-H784 | solid-state disk SSD, 3D flash, 2½-inch, 320 GB, instead of 40 GB CFast card |
| C9900-H766 | solid-state disk SSD, 3D flash, 2½-inch, 640 GB, instead of 40 GB CFast card |
| C9900-H796 | solid-state disk SSD, 3D flash, 2½-inch, 1280 GB, instead of 40 GB CFast card |
| C9900-U209 | uninterruptible power supply UPS, integrated into the 24 V power supply, without battery |
| C9900-U330 | battery pack for PCs with 24 V power supply and integrated UPS C9900-P209 or C9900-U209, external, for DIN rail mounting, 3.4 Ah, operating temperature 0…50°C, contains two rechargeable, sealed lead batteries VRLA-AGM |
| C9900-U332-0010 | battery pack for 24 V power supply with integrated UPS C9900-U209 at PCs with Intel Atom ® processor, external, for DIN rail mounting, 1.2 Ah, operating temperature 0…50°C, contains two rechargeable, sealed lead batteries VRLA-AGM |
