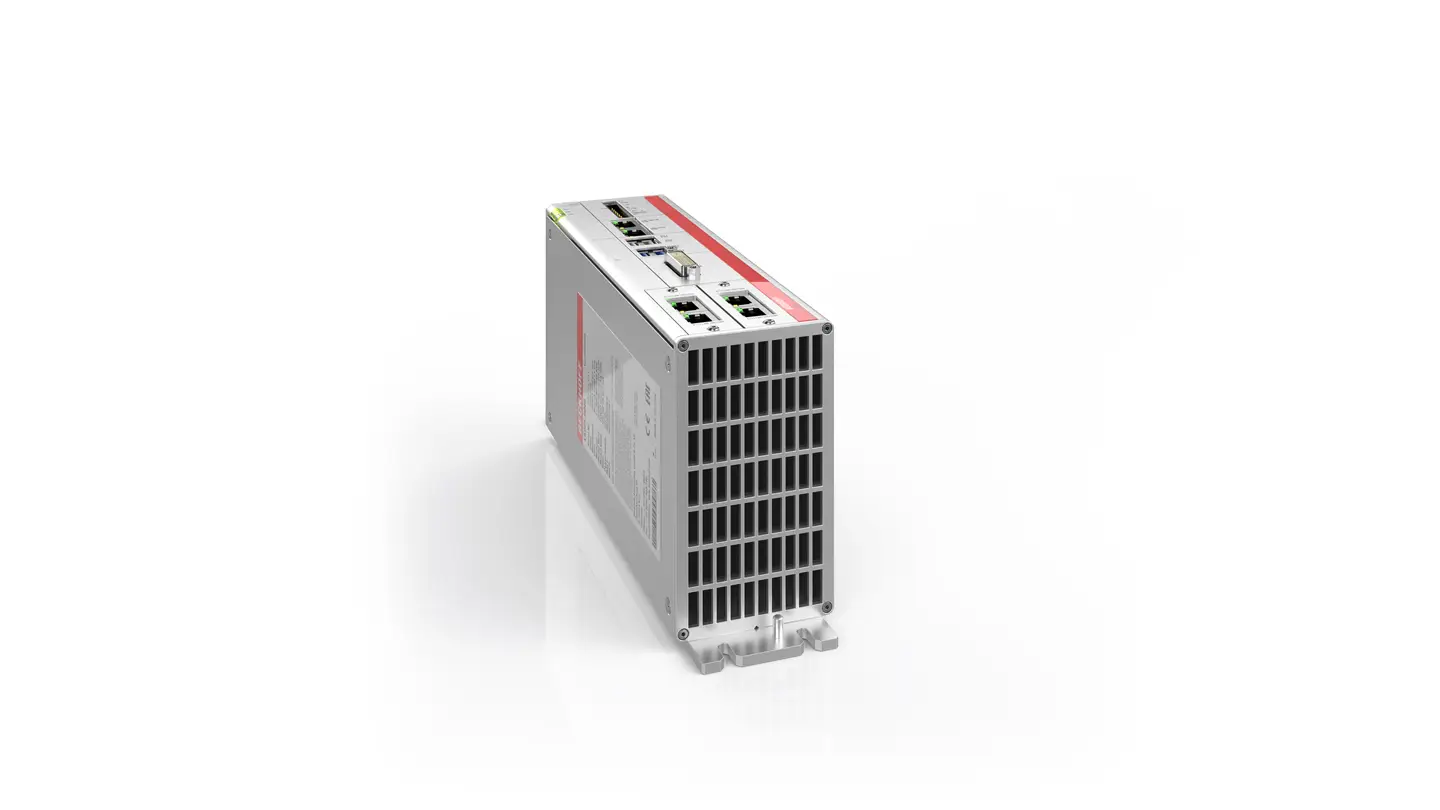

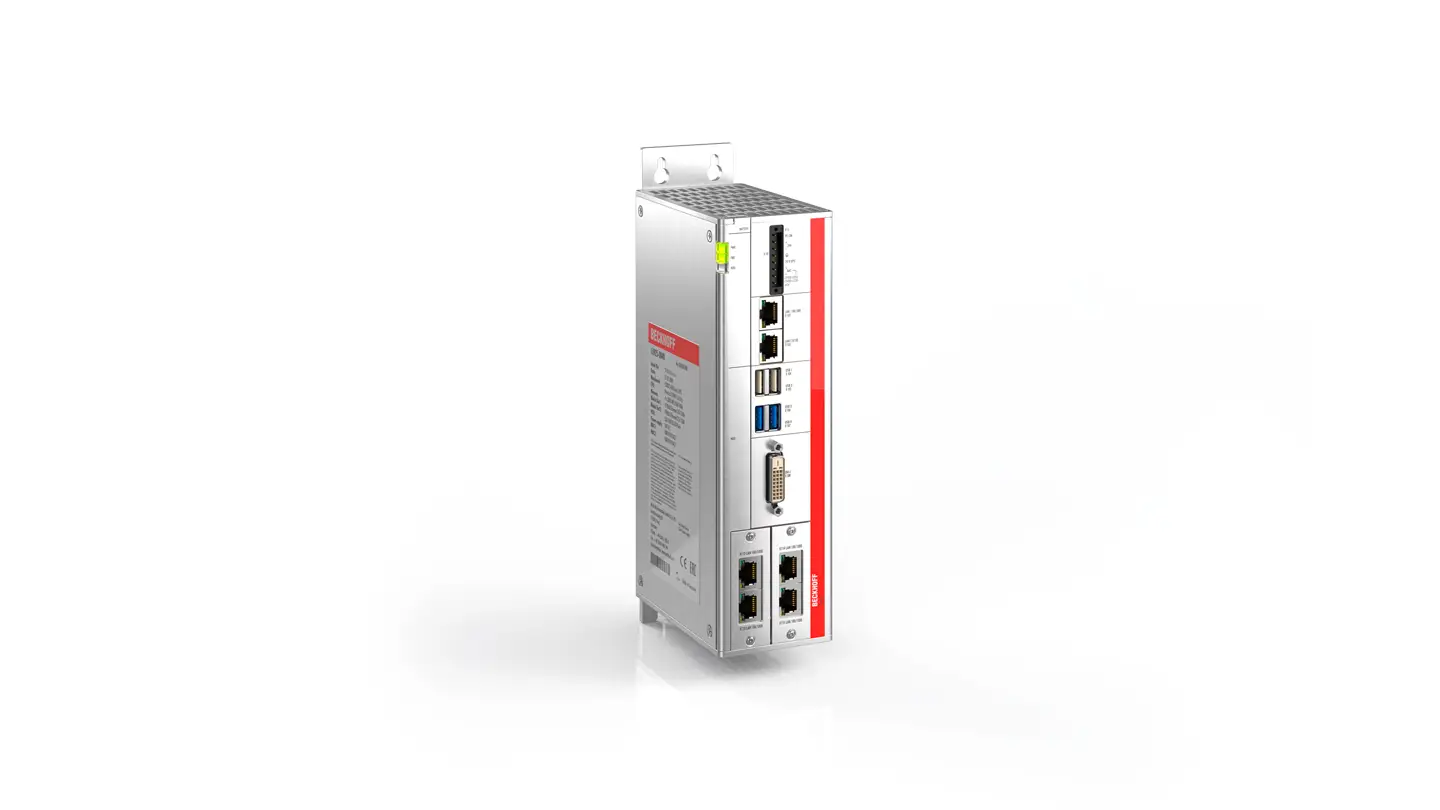

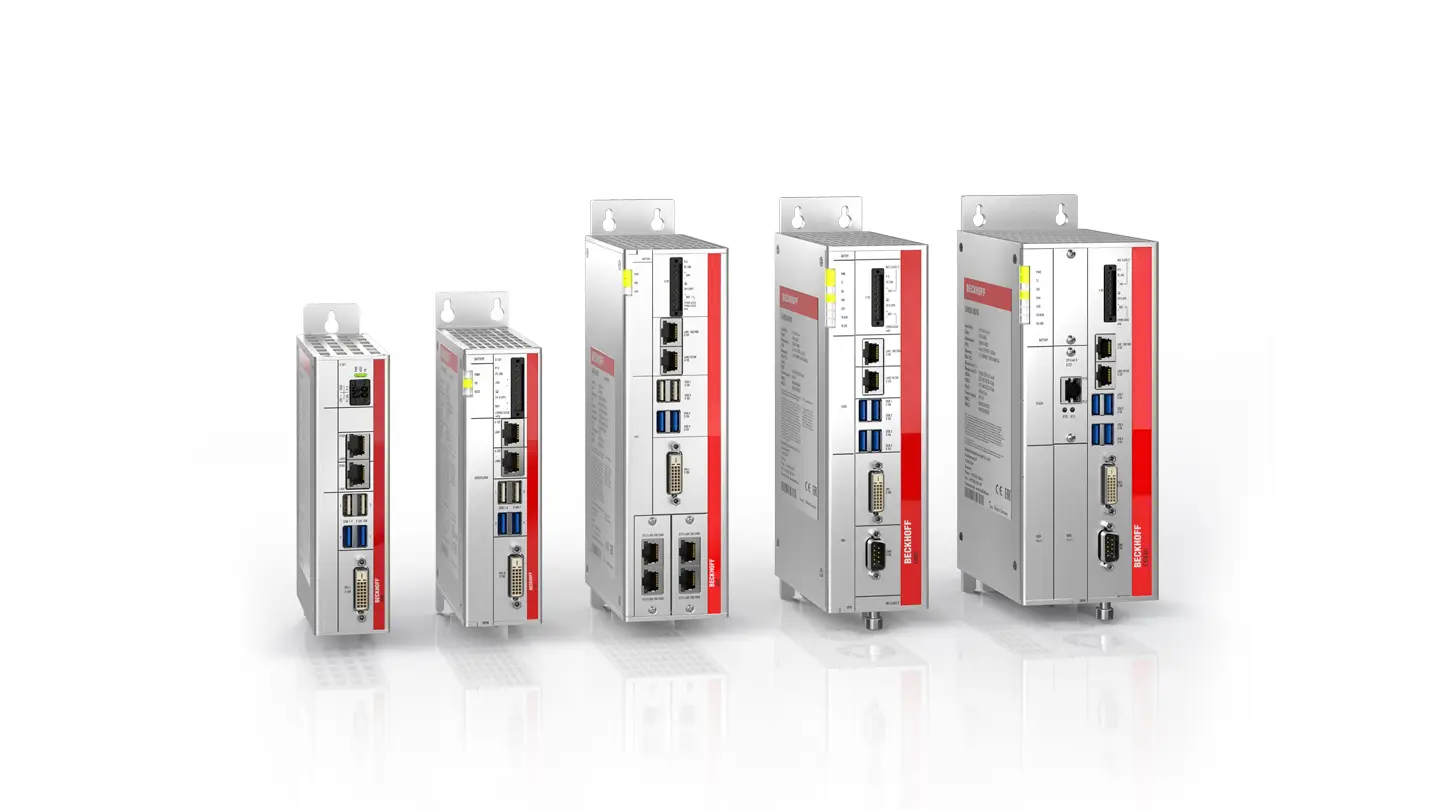

Серия промышленных ПК C69xx отличается компактной конструкцией, прочными алюминиевыми корпусами и особенно широким выбором компонентов и интерфейсов. Оснащенные 3½-дюймовыми материнскими платами Beckhoff, промышленные ПК C69xx охватывают диапазон от очень компактного C6905 для приложений со средними требованиями к...
| Корпус | aluminum housing |
|---|---|
| Монтаж | mounting sheet at the rear wall | mounting sheet at the right side wall |
| Slots for hard disk/flash | 1 slot for CFast | 1 slot for 2½-inch hard disk/SSD |
| Охлаждение | passive |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Степень защиты | IP20 |
| Рабочая температура | 0…55°C |
| Weight of basic configuration | 1.75 kg (3.9 lbs) |
| Размеры (Ш x В x Г) | 65 x 223 x 121 mm (2.6" x 8.8" x 4.8"), without mounting plate |
| Процессор | Intel Atom ® E3815, 1.46 GHz, 1 core (TC2, TC3: 40) | up to Intel Atom ® E3845 1.91 GHz, 4 cores (TC2, TC3: 50) |
| Motherboard | 3½-inch motherboard for Intel Atom ® E38xx |
| PCIe ® slots | 2 PCIe ® module slots to plug-in Beckhoff PCIe ® modules or to led out interfaces of the motherboard ex factory |
| Memory | 2 GB DDR3L RAM | up to 8 GB DDR3L RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board | 1 additional 100/1000BASE-T |
| Hard disks/flash | 40 GB CFast card | up to 320 GB CFast card, hard disk, SSD |
| Интерфейсы | 4 x USB 2.0, 1 x DVI |
| Питание | 24 V DC | UPS |
| Операционная система | Windows Embedded Compact 7, English | Windows 10 IoT Enterprise |
| Информация для заказа / C6925-0030C9900-C572 | processor Intel Atom ® E3827, 1.75 GHz, 2 cores (TC2, TC3: 40), instead of Intel Atom ® E3815, 1.46 GHz (TC2, TC3: 40). With Windows Embedded Compact 7 only one core is supported. Multicore support is available with Windows 10 IoT Enterprise. |
| C9900-C573 | processor Intel Atom ® E3845, 1.91 GHz, 4 cores (TC2, TC3: 50), instead of Intel Atom ® E3815, 1.46 GHz (TC2, TC3: 40). With Windows Embedded Compact 7 only one core is supported. Multicore support is available with Windows 10 IoT Enterprise. |
| C9900-R257 | memory extension to 4 GB DDR3L RAM, instead of 2 GB, requires a 64 bit operating system or only 3 GB are addressable |
| C9900-R258 | memory extension to 8 GB DDR3L RAM, instead of 2 GB, requires a 64 bit operating system |
| C9900-M653 | mounting plate at the side wall, instead of plate at the rear wall |
| C9900-B415 | third on-board Ethernet adapter on the 3½-inch motherboard for Intel Atom ® , wired out with a 100/1000BASE-T connector inside the connector bracket at the connection section |
| FC9062 | Gigabit Ethernet PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, PCI Express ® x1 bus |
| C9900-E301 | RS232 PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Requires 2 adapter cables C9900-K920 ix industrial ® type B to D-sub, 9-pin. |
| C9900-K920 | RS232 cable, shielded, PVC, 5 x 2 x 0.14 mm², fixed installation, gray, ix Industrial ® , type B, plug, straight, male, IP20, 10-pin – D-sub, plug, straight, male, IP20, 9-pin, 0.50 m |
| C9900-E309 | RS485 PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Configuration as an end point without echo: echo off, auto send on, always send off, auto receive on, always receive off, termination on. Requires 2 adapter cables C9900-K922 ix industrial ® type B to D-sub, 9-pin. |
| C9900-E310 | RS422 PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Configuration as a full duplex end point: echo on, auto send off, always send on, auto receive off, always receive on, termination on. Requires 2 adapter cables C9900-K922 ix industrial ® type B to D-sub, 9-pin. |
| C9900-K922 | RS422/RS485 cable, shielded, PVC, 5 x 2 x 0.14 mm², fixed installation, gray, ix Industrial ® , type B, plug, straight, male, IP20, 10-pin – D-sub, socket, straight, female, IP20, 9-pin, 0.50 m |
| C9900-E277 | USB 3.0 PCIe ® module – 2-port USB 3.0 interfaces – USB transfer rate up to 5 Gbit/s for USB 3.0 – compatible to all USB standards – delivers up to 1 A supply current at each USB port |
| C9900-E292 | additional DisplayPort interface, led out on a module bracket , max. resolution 1920 x 1080, can only be ordered once per PC and not together with a second DVI port |
| C9900-E294 | additional DisplayPort interface, occupies the fieldbus connection section, max. resolution 1920 x 1080, can only be ordered once per PC and not together with a second DVI port |
| C9900-E237 | additional DVI-D plug led out on a module bracket, cannot be ordered in combination with an additional DisplayPort interface |
| C9900-E255 | Serial port RS232, optically linked, overload protection,D-sub 9-pin connector. |
| C9900-E256 | Serial port RS485, optically linked, overload protection, D-sub 9-pin connector. Configuration as an end point without echo: echo off, auto send on, always send off, auto receive on, always receive off, termination on |
| C9900-E257 | Serial port RS422, optically linked, overload protection, D-sub 9-pin connector. Configuration as a full duplex end point: echo on, auto send off, always send on, auto receive off, always receive on, termination on |
| C9900-Z411 | adapter plug DVI-I to VGA |
| C9900-Z413 | adapter cable DVI-I to DVI and VGA, 15 cm |
| C9900-H620 | 80 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-H628 | 160 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-H673 | 320 GB CFast card, 3D flash, extended temperature range, instead of 40 GB CFast card |
| C9900-D197 | 2 slots for CFast cards, instead of 1 slot for one CFast card, not possible in combination with a serial interface |
| C9900-H583 | 40 GB CFast card, 3D flash, extended temperature range |
| C9900-H587 | 80 GB CFast card, 3D flash, extended temperature range |
| C9900-H624 | 160 GB CFast card, 3D flash, extended temperature range |
| C9900-H669 | 320 GB CFast card, 3D flash, extended temperature range |
| C9900-D198 | 1 slot for one 2½ inch hard disk or SSD, instead of 1 slot for one CFast card |
| C9900-H867 | solid-state disk SSD, 3D flash, 2½-inch, 160 GB, instead of 40 GB CFast card |
| C9900-H848 | solid-state disk SSD, 3D flash, 2½-inch, 320 GB, instead of 40 GB CFast card |
| C9900-H748 | solid-state disk SSD, 3D flash, 2½-inch, 640 GB, instead of 40 GB CFast card |
| C9900-H796 | solid-state disk SSD, 3D flash, 2½-inch, 1280 GB, instead of 40 GB CFast card |
| C9900-U209 | uninterruptible power supply UPS, integrated into the 24 V power supply, without battery |
| C9900-U330 | battery pack for PCs with 24 V power supply and integrated UPS C9900-P209 or C9900-U209, external, for DIN rail mounting, 3.4 Ah, operating temperature 0…50°C, contains two rechargeable, sealed lead batteries VRLA-AGM |
| C9900-U332-0010 | battery pack for 24 V power supply with integrated UPS C9900-U209 at PCs with Intel Atom ® processor, external, for DIN rail mounting, 1.2 Ah, operating temperature 0…50°C, contains two rechargeable, sealed lead batteries VRLA-AGM |
| C9900-S706 | TwinCAT 2 PLC runtime for Windows Embedded Compact 7 |
| C9900-S707 | TwinCAT 2 NC PTP runtime for Windows Embedded Compact 7 |
| C9900-S708 | TwinCAT 2 NC I runtime for Windows Embedded Compact 7 |
