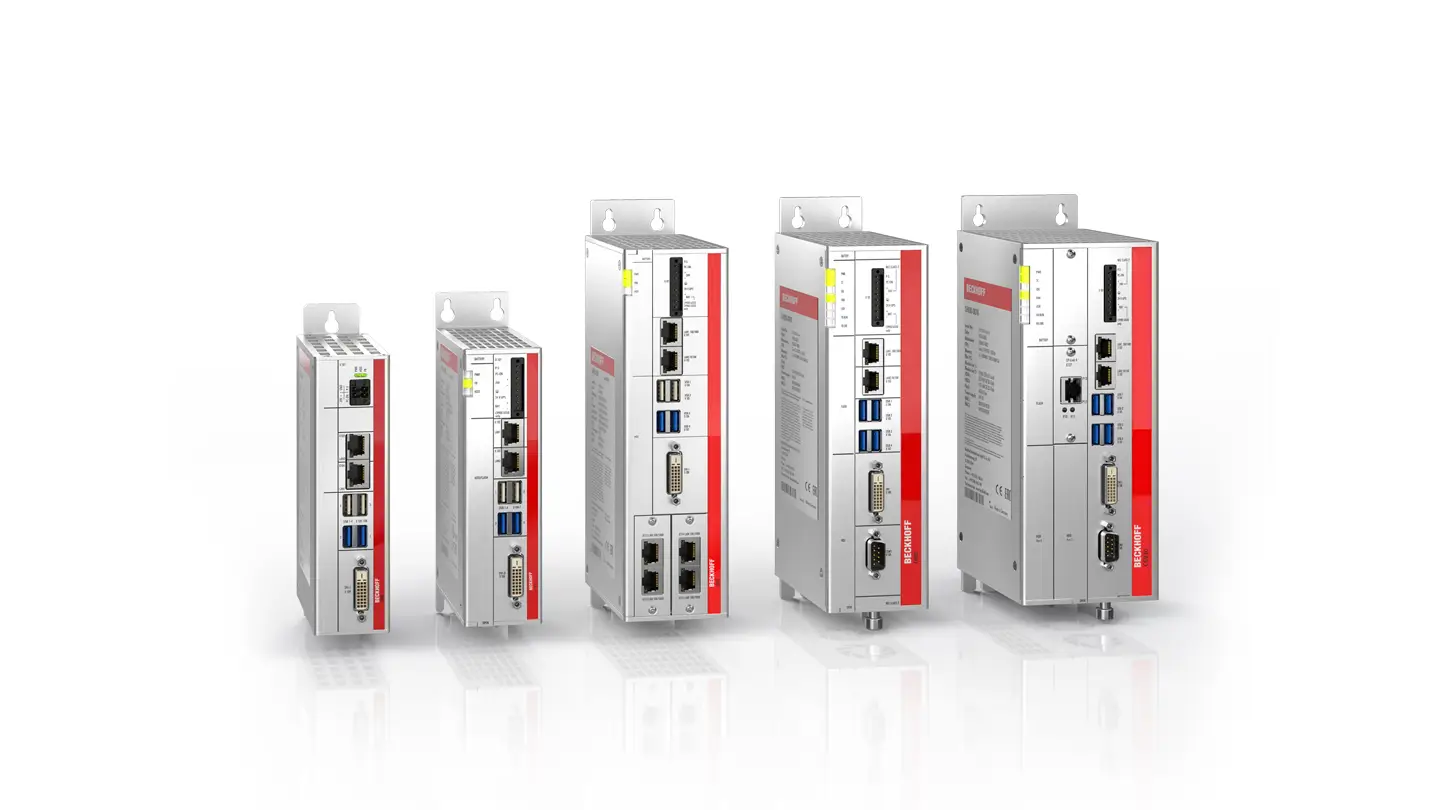

Серия промышленных ПК C69xx отличается компактной конструкцией, прочными алюминиевыми корпусами и особенно широким выбором компонентов и интерфейсов. Оснащенные 3½-inch материнскими платами Beckhoff, промышленные ПК C69xx охватывают диапазон от очень компактного C6905 для приложений со средними требованиями к...

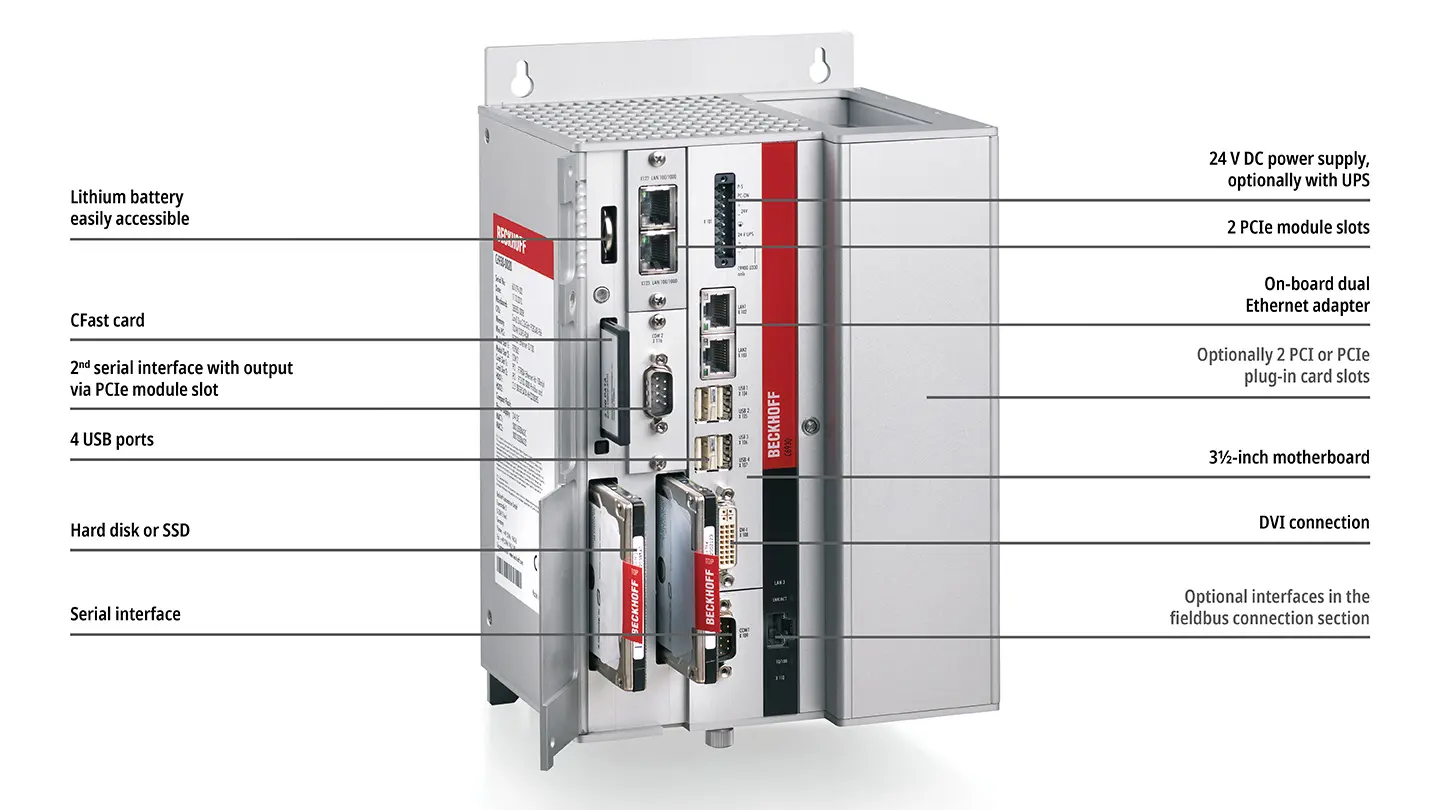

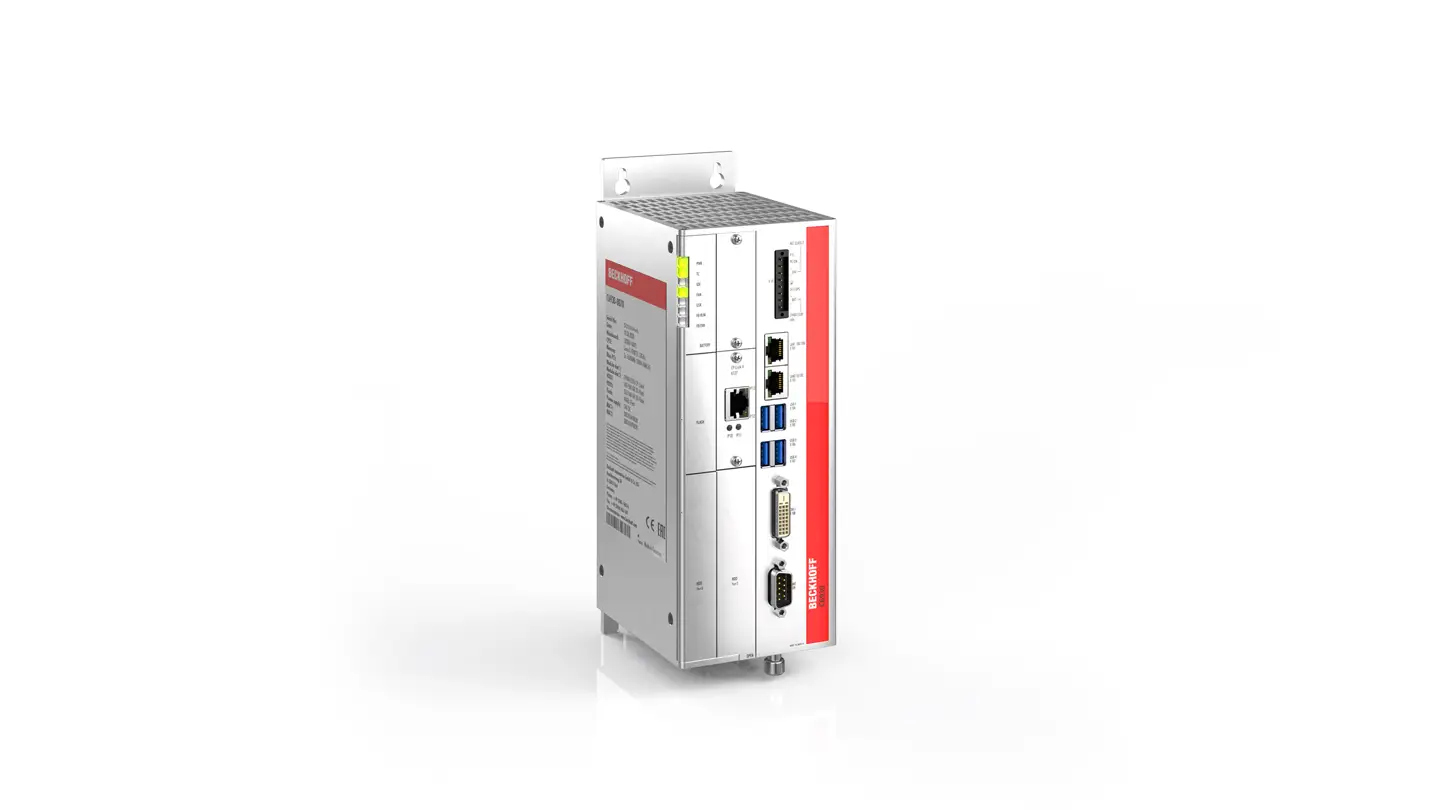

| Корпус | aluminum housing |
|---|---|
| Монтаж | mounting sheet at the rear wall | mounting sheet at the right side wall |
| Slots for hard disk/flash | 2 slots for 2½-inch hard disk/SSD, 1 slot for CFast | 2 slots for CFast |

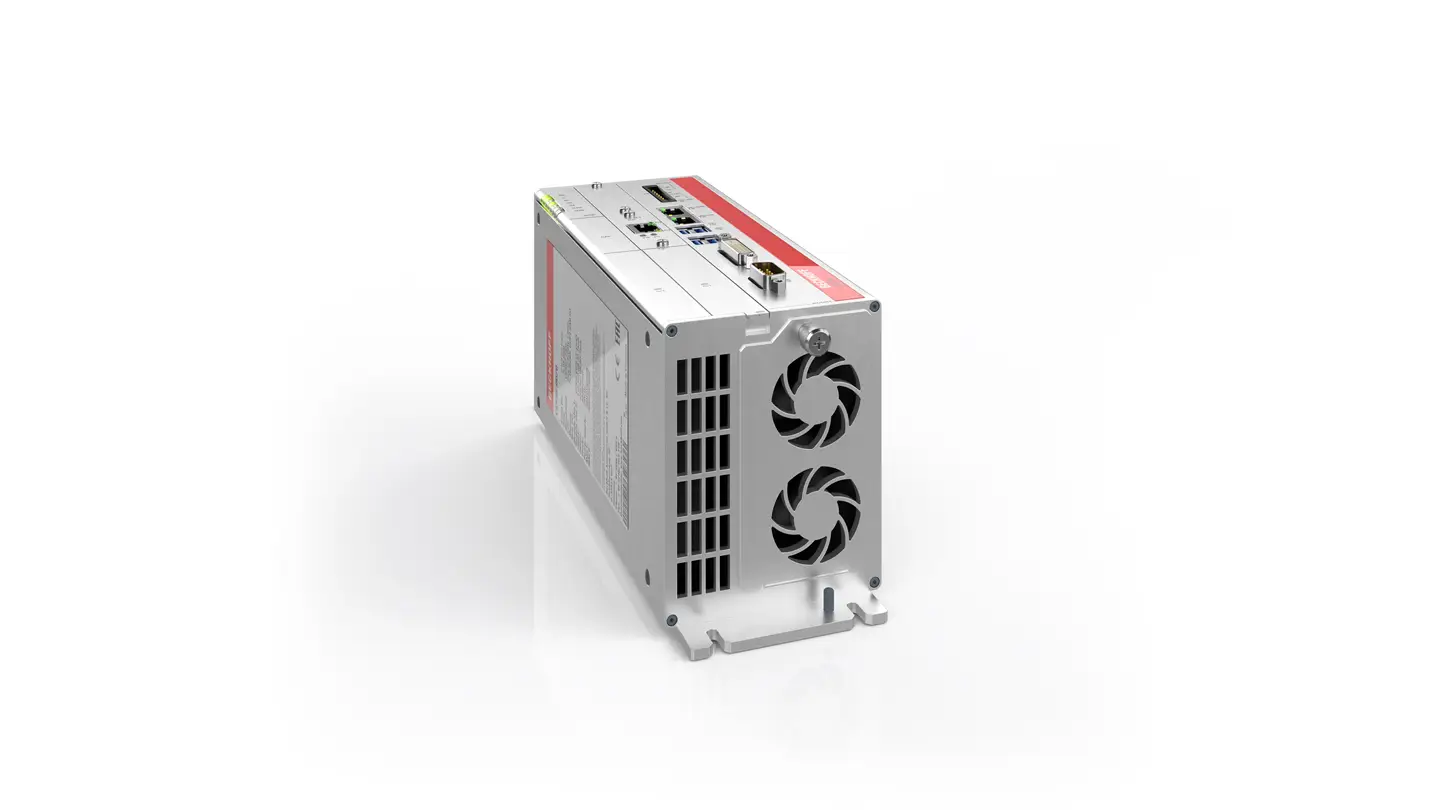

| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Степень защиты | IP20 |
| Рабочая температура | 0…55°C |
| Weight of basic configuration | 2.1 kg (4.6 lbs) |
| Размеры (Ш x В x Г) | 90 x 235 x 121 mm (3.5" x 9.3" x 4.8"), without mounting plate | with plug-in card slots 70 mm wider and 18 mm deeper |
| Процессор | Intel ® Celeron ® G4900 3.1 GHz, 2 cores (TC3: 50) | up to Intel ® Core™ i7-9700TE 1.8 GHz, 8 cores (TC3: 80) |
| Motherboard | 3½-inch motherboard for 8 th /9 th generation Intel ® Celeron ® , Pentium ® , Core™ i3/i5/i7 |
| PCIe ® slots | 2 PCIe ® module slots to plug-in Beckhoff PCIe ® modules or to led out interfaces of the motherboard ex factory | 2 plug-in card slots PCI™ or PCIe ® |
| Memory | 4 GB DDR4 RAM | up to 64 GB DDR4 RAM ex factory |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board | 1 additional 100/1000BASE-T |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | hard disk, 2½-inch, 1 TB | SSD, CFast |
| Интерфейсы | 4 x USB 3.1 Gen. 1, 1 x RS232, 1 x DVI |
| Питание | 24 V DC | UPS |
| Операционная система | – | Windows 10 IoT Enterprise, Windows 11 IoT Enterprise 2024 LTSC, Windows Server 2019 |
| Информация для заказа / C6930-0070C9900-C624 | processor 8 th generation Intel ® Pentium ® G5400, 3.7 GHz, 2 cores (TC3: 50), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-C634 | processor 9 th generation Intel ® Core™ i3-9100TE, 2.2 GHz, 4 cores (TC3: 60), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-C635 | processor 9 th generation Intel ® Core™ i5-9500TE, 2.2 GHz, 6 cores (TC3: 70), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-C636 | processor 9 th generation Intel ® Core™ i7-9700TE, 1.8 GHz, 8 cores (TC3: 80), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-R270 | memory extension to 8 GB DDR4 RAM, instead of 4 GB |
| C9900-R271 | memory extension to 16 GB DDR4 RAM, instead of 4 GB |
| C9900-R272 | memory extension to 32 GB DDR4 RAM, instead of 4 GB |
| C9900-R273 | memory extension to 64 GB DDR4 RAM, instead of 4 GB |
| FC9062 | Gigabit Ethernet PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, PCI Express ® x1 bus |
| C9900-E301 | RS232 PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Requires 2 adapter cables C9900-K920 ix industrial ® type B to D-sub, 9-pin. |
| C9900-K920 | RS232 cable, shielded, PVC, 5 x 2 x 0.14 mm², fixed installation, gray, ix Industrial ® , type B, plug, straight, male, IP20, 10-pin – D-sub, plug, straight, male, IP20, 9-pin, 0.50 m |
| C9900-E309 | RS485 PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Configuration as an end point without echo: echo off, auto send on, always send off, auto receive on, always receive off, termination on. Requires 2 adapter cables C9900-K922 ix industrial ® type B to D-sub, 9-pin. |
| C9900-E310 | RS422 PCIe ® module for PCs with Beckhoff PCIe ® module slots, 2-channel, optically linked, 2 sockets ix industrial ® type B. Configuration as a full duplex end point: echo on, auto send off, always send on, auto receive off, always receive on, termination on. Requires 2 adapter cables C9900-K922 ix industrial ® type B to D-sub, 9-pin. |
| C9900-K922 | RS422/RS485 cable, shielded, PVC, 5 x 2 x 0.14 mm², fixed installation, gray, ix Industrial ® , type B, plug, straight, male, IP20, 10-pin – D-sub, socket, straight, female, IP20, 9-pin, 0.50 m |
| C9900-E277 | USB 3.0 PCIe ® module – 2-port USB 3.0 interfaces – USB transfer rate up to 5 Gbit/s for USB 3.0 – compatible to all USB standards – delivers up to 1 A supply current at each USB port |
| C9900-B507 | 2 PCIe ® plug-in card slots on the passive backplane integrated inside C6930, to plug-in PCIe ® x1 cards up to 190 mm (7.5“) length. The connectors of the plug-in cards are located at the top side of the PC on the right. The width of the PC housing is increased by 70 mm (2.76“), the depth is increased by 18 mm (0.7“). |
| C9900-B511 | 2 PCI™ plug-in card slots on the passive backplane integrated inside C6930, to plug-in PCI™ cards up to 190 mm (7.5“) length. The connectors of the plug-in cards are located at the top side of the PC on the right. The width of the PC housing is increased by 70 mm (2.76“), the depth is increased by 18 mm (0.7“). |
| C9900-B515 | 1 PCI™ and 1 PCIe ® plug-in card slot on a passive backplane integrated inside C6930, to plug-in one PCI™ and one PCIe ® x1 card up to 190 mm (7.5“) length. The connectors of the plug-in cards are located at the top side of the PC on the right. The width of the PC housing is increased by 70 mm (2.76“), the depth is increased by 18 mm (0.7“). |
| C9900-M653 | mounting plate at the side wall, instead of plate at the rear wall |
| C9900-E255 | Serial port RS232, optically linked, overload protection,D-sub 9-pin connector. |
| C9900-E256 | Serial port RS485, optically linked, overload protection, D-sub 9-pin connector. Configuration as an end point without echo: echo off, auto send on, always send off, auto receive on, always receive off, termination on |
| C9900-E257 | Serial port RS422, optically linked, overload protection, D-sub 9-pin connector. Configuration as a full duplex end point: echo on, auto send off, always send on, auto receive off, always receive on, termination on |
| C9900-E221 | 2 USB ports of the motherboard led out in the front of a C6930 |
| C9900-E292 | additional DisplayPort interface, led out on a module bracket , max. resolution 1920 x 1080, can only be ordered once per PC and not together with a second DVI port |
| C9900-E294 | additional DisplayPort interface, occupies the fieldbus connection section, max. resolution 1920 x 1080, can only be ordered once per PC and not together with a second DVI port |
| C9900-E237 | additional DVI-D plug led out on a module bracket, cannot be ordered in combination with an additional DisplayPort interface |
| C9900-E238 | additional DVI-D plug led out on a slot bracket, only for PCs with plug-in card slots |
| FC9071-0000 | Gigabit Ethernet PC interface card, 10/100/1000 Mbit/s, 1-channel, PCIe ® interface, occupies the fieldbus connection area. |
| C9900-H145 | additional hard disk, 2½-inch, 1 TB |
| C9900-H862 | solid-state disk SSD, 3D flash, 2½-inch, 160 GB |
| C9900-H781 | solid-state disk SSD, 3D flash, 2½-inch, 320 GB |
| C9900-H745 | solid-state disk SSD, 3D flash, 2½-inch, 640 GB |
| C9900-H792 | solid-state disk SSD, 3D flash, 2½-inch, 1280 GB |
| C9900-H865 | solid-state disk SSD, 3D flash, 2½-inch, 160 GB, instead of 2½-inch hard disk |
| C9900-H847 | solid-state disk SSD, 3D flash, 2½-inch, 320 GB, instead of 2½-inch hard disk |
| C9900-H746 | solid-state disk SSD, 3D flash, 2½-inch, 640 GB, instead of 2½-inch hard disk |
| C9900-H793 | solid-state disk SSD, 3D flash, 2½-inch, 1280 GB, instead of 2½-inch hard disk |
| C9900-D194 | PC with 2 slots for CFast cards and 1 slot for 2½-inch hard disk or SSD, instead of 2 slots for 2½-inch hard disks or SSDs and 1 slot for CFast |
| C9900-H583 | 40 GB CFast card, 3D flash, extended temperature range |
| C9900-H587 | 80 GB CFast card, 3D flash, extended temperature range |
| C9900-H624 | 160 GB CFast card, 3D flash, extended temperature range |
| C9900-H669 | 320 GB CFast card, 3D flash, extended temperature range |
| C9900-H584 | 40 GB CFast card, 3D flash, extended temperature range, instead of 2½-inch hard disk |
| C9900-H588 | 80 GB CFast card, 3D flash, extended temperature range, instead of 2½-inch hard disk |
| C9900-H625 | 160 GB CFast card, 3D flash, extended temperature range, instead of 2½-inch hard disk |
| C9900-H670 | 320 GB CFast card, 3D flash, extended temperature range, instead of 2½-inch hard disk |
| C9900-U209 | uninterruptible power supply UPS, integrated into the 24 V power supply, without battery |
| C9900-U330 | battery pack for PCs with 24 V power supply and integrated UPS C9900-P209 or C9900-U209, external, for DIN rail mounting, 3.4 Ah, operating temperature 0…50°C, contains two rechargeable, sealed lead batteries VRLA-AGM |
