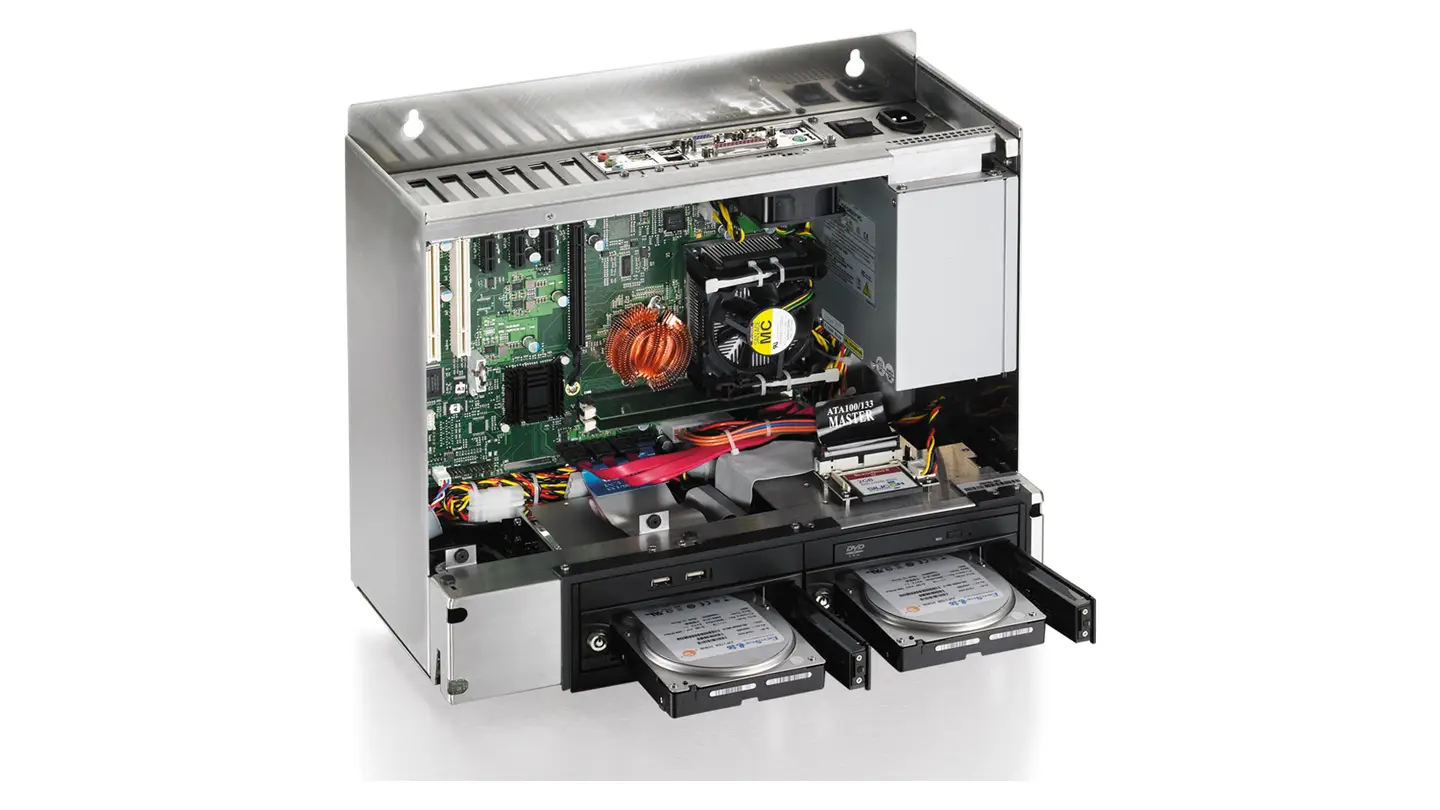

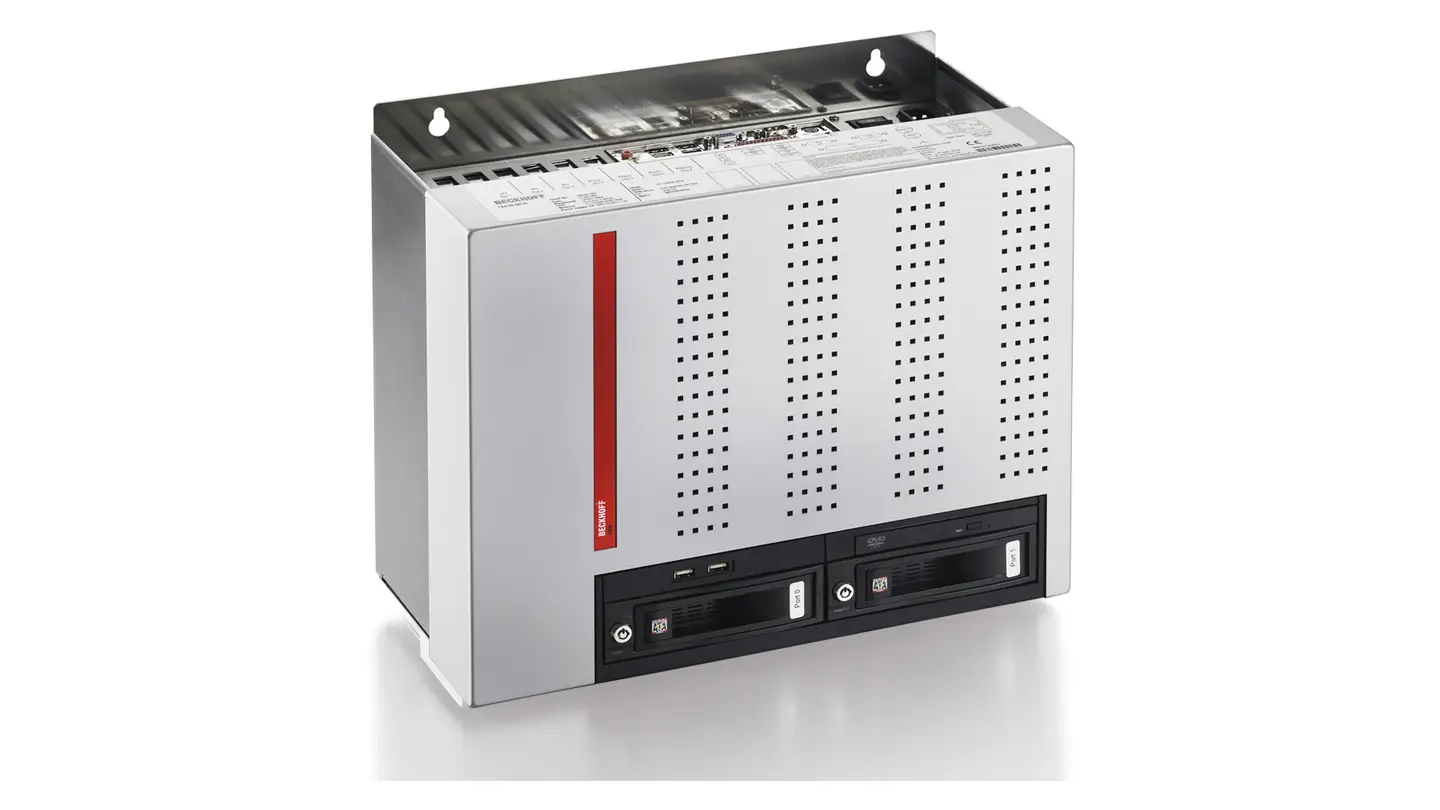

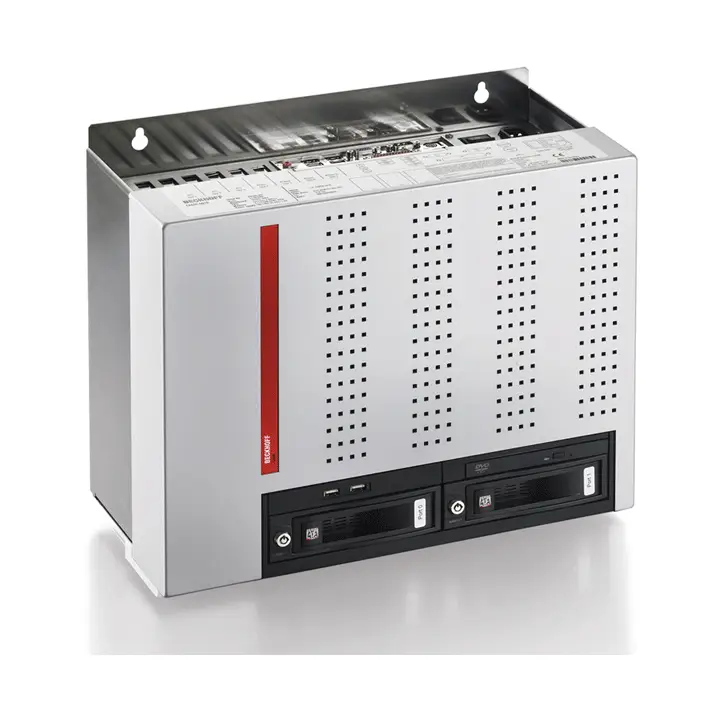

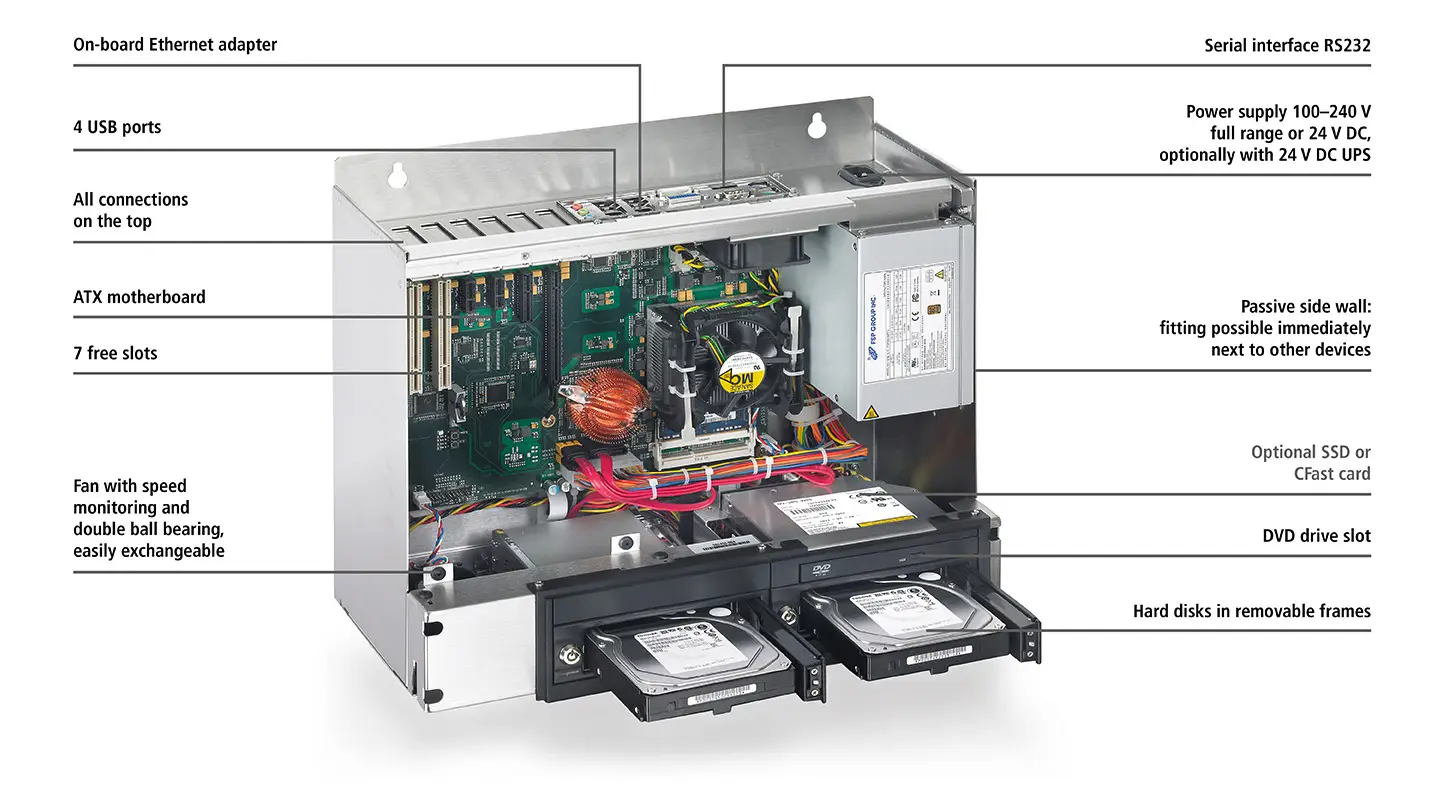

Универсальный промышленный ПК C6650 оснащен компонентами высшего класса производительности: на материнской плате ATX используются либо Intel ® Processor 300, либо процессоры Intel ® Core™ 3/5/7/9 Series 2. Все слоты доступны для вставных плат длиной до 210 mm. Графические адаптеры и адаптеры Ethernet уже доступны на...
| Корпус | stainless steel based housing |
|---|---|
| Slots for hard disk/flash | 2 removable frames for hard disks | removable frames for SSDs |
| Степень защиты | IP20 |
| Рабочая температура | 0…55°C |
| Weight of basic configuration | 12 kg (26.5 lbs) |
| Размеры (Ш x В x Г) | 410 x 360 x 201 mm (16.1" x 14.2" x 7.9") |
| Процессор | Intel ® Celeron ® G4900 3.1 GHz, 2 cores (TC3: 50) | up to Intel ® Core™ i7-9700E 2.6 GHz, 8 cores (TC3: 80) |
| Motherboard | ATX motherboard for 8 th /9 th generation Intel ® Celeron ® , Pentium ® , Core™ i3/i5/i7 |
| PCIe ® slots | 2 x PCIe ® x1, 2 x PCIe ® x4, 1 x PCIe ® x16, 2 x PCI™ for up to 210 mm long plug-in cards |
| Memory | 4 GB DDR4 RAM | up to 128 GB DDR4 RAM |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | hard disk, 3½-inch, 1 TB, in removable frame | hard disk up to 4 TB, SSD, PCIe plug-in card SSD |
| Disk drive | – | multi DVD |
| Интерфейсы | 4 x USB 3.1 Gen. 1, 2 x DVI, 1 x DisplayPort, 1 x RS232, PS/2 keyboard and mouse | 8 x USB 2.0, 3 x RS232 |
| Питание | 100…240 V AC | 24 V DC, UPS |
| Операционная система | – | Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Windows Server 2019 |
| Информация для заказа / C6650-0060C9900-C624 | processor 8 th generation Intel ® Pentium ® G5400, 3.7 GHz, 2 cores (TC3: 50), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-C625 | processor 9 th generation Intel ® Core™ i3-9100E, 3.1 GHz, 4 cores (TC3: 60), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-C626 | processor 9 th generation Intel ® Core™ i5-9500E, 3.0 GHz, 6 cores (TC3: 70), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-C627 | processor 9 th generation Intel ® Core™ i7-9700E, 2.6 GHz, 8 cores (TC3: 80), instead of Intel ® Celeron ® G4900 3.1 GHz (TC3: 50) |
| C9900-R270 | memory extension to 8 GB DDR4 RAM, instead of 4 GB |
| C9900-R271 | memory extension to 16 GB DDR4 RAM, instead of 4 GB |
| C9900-R272 | memory extension to 32 GB DDR4 RAM, instead of 4 GB |
| C9900-R273 | memory extension to 64 GB DDR4 RAM, instead of 4 GB |
| C9900-R285 | memory extension to 128 GB DDR4 RAM, instead of 4 GB, for PCs with ATX motherboard and 9 th generation Intel ® Core™ i5 or Core™ i7 |
| C9900-D118 | multi DVD drive slimline, reads CD-ROM and DVD-ROM, reads and writes CD-R/-RW, DVD-R/+R/-RW/+RW 4.7 GB and DVD-R/+R DL 8.5 GB |
| C9900-E195 | 2 USB ports of the motherboard led out in one slot bracket |
| C9900-E216 | 2 USB ports of the motherboard led out in the front of a C66xx |
| C9900-E231 | 1 serial port RS232 from the motherboard led out with a D-sub, 9-pin connector in a connector bracket on the top site of a C66xx in front of the ATX connector bracket |
| C9900-E166 | 2 serial interfaces RS232 of the motherboard led out with 2 D-sub 9-pin connectors in one slot bracket |
| C9900-E203 | 1 serial port RS232 from the motherboard led out with one D-sub, 9-pin connector in one slot bracket |
| C9900-E209 | Module to optically link one serial RS232 port of the motherboard, with overload protection, D-sub, 9-pin, to be mounted inside of slot bracket C9900-M568, C9900-M569 or inside a C5240/C6640/C6650 at the connector bracket C9900-M571. A bracket is required. |
| C9900-E210 | Module to convert one serial RS232 port of the motherboard into RS485, configured as an end point without echo, D-sub, 9-pin, optically linked, overload protection, to be mounted inside the slot brackets C9900-M568, C9900-M569 or inside a C5240/C6640/C6650 at the connector bracket C9900-M571. A bracket is required. |
| C9900-E211 | Module to convert one serial RS232 port of the motherboard into RS422, configured as a full duplex end point, D-sub, 9-pin, optically linked, overload protection, to be mounted inside the slot brackets C9900-M568, C9900-M569 or inside a C5240/C6640/C6650 at the connector bracket C9900-M571. A bracket is required. |
| C9900-M568 | Slot bracket for one serial port C9900-E209, C9900-E210 or C9900-E211. Can be ordered only together with one module. |
| C9900-M569 | Slot bracket for two serial ports C9900-E209, C9900-E210 or C9900-E211. Can be ordered only together with two modules. |
| C9900-M571 | Connector bracket for one serial port module C9900-E209, C9900-E210 or C9900-E211, to be mounted inside a C5240/C6640/C6650 in front of the ATX connector bracket. Can only be ordered in combination with a module. |
| C9900-D187 | 1 slot for a 2½-inch SSD behind the front cover |
| C9900-M629 | removable frame for a 2½-inch SSD, instead of removable frame for a 3½-inch hard disk |
| C9900-H863 | solid-state disk SSD, 3D flash, 2½-inch, 160 GB, instead of 3½-inch hard disk |
| C9900-H782 | solid-state disk SSD, 3D flash, 2½-inch, 320 GB, instead of 3½-inch hard disk |
| C9900-H747 | solid-state disk SSD, 3D flash, 2½-inch, 640 GB, instead of 3½-inch hard disk |
| C9900-H794 | solid-state disk SSD, 3D flash, 2½-inch, 1280 GB, instead of 3½-inch hard disk |
| C9900-H768 | 160 GB high-performance SSD, NVM Express™, PCIe ® x4 plug-in card, 3D flash, extended temperature range, for ATX PCs with 8 th and 9 th generation Intel ® Celeron ® , Pentium ® , Core™ i3, Core™ i5 or Core™ i7, instead of 3½-inch hard disk |
| C9900-H769 | 320 GB high-performance SSD, NVM Express™, PCIe ® x4 plug-in card, 3D flash, extended temperature range, for ATX PCs with 8 th and 9 th generation Intel ® Celeron ® , Pentium ® , Core™ i3, Core™ i5 or Core™ i7, instead of 3½-inch hard disk |
| C9900-H835 | 640 GB high-performance SSD, NVM Express™, PCIe ® x4 plug-in card, 3D flash, extended temperature range, for ATX PCs with 8 th and 9 th generation Intel ® Celeron ® , Pentium ® , Core™ i3, Core™ i5 or Core™ i7, instead of 3½-inch hard disk |
| C9900-H846 | 1280 GB high-performance SSD, NVM Express™, PCIe ® x4 plug-in card, 3D flash, extended temperature range, for ATX PCs with 8 th or 9 th generation Intel ® Celeron ® , Pentium ® , Core™ i3, Core™ i5 or Core™ i7, instead of 3½-inch hard disk |
| C9900-H862 | solid-state disk SSD, 3D flash, 2½-inch, 160 GB |
| C9900-H781 | solid-state disk SSD, 3D flash, 2½-inch, 320 GB |
| C9900-H745 | solid-state disk SSD, 3D flash, 2½-inch, 640 GB |
| C9900-H792 | solid-state disk SSD, 3D flash, 2½-inch, 1280 GB |
| C9900-D193 | 1 slot for CFast cards behind the front cover |
| C9900-H585 | 40 GB CFast card, 3D flash, extended temperature range, instead of 3½-inch hard disk, lower price |
| C9900-H589 | 80 GB CFast card, 3D flash, extended temperature range, instead of 3½-inch hard disk |
| C9900-H626 | 160 GB CFast card, 3D flash, extended temperature range, instead of 3½-inch hard disk |
| C9900-H671 | 320 GB CFast card, 3D flash, extended temperature range, instead of 3½-inch hard disk |
| C9900-H202 | hard disk drive, 3½-inch, 4 TB, instead of hard disk 1 TB |
| C9900-H152 | additional hard disk drive, 3½-inch, 1 TB |
| C9900-H204 | additional hard disk drive, 3½-inch, 4 TB |
| C9900-P208 | 24 V DC power supply, instead of 100–240 V AC full range power supply, occupies one serial port |
| C9900-P209 | 24 V DC power supply with integrated UPS, instead of 100–240 V AC full range power supply, occupies one serial port |
| C9900-U330 | battery pack for PCs with 24 V power supply and integrated UPS C9900-P209 or C9900-U209, external, for DIN rail mounting, 3.4 Ah, operating temperature 0…50°C, contains two rechargeable, sealed lead batteries VRLA-AGM |
