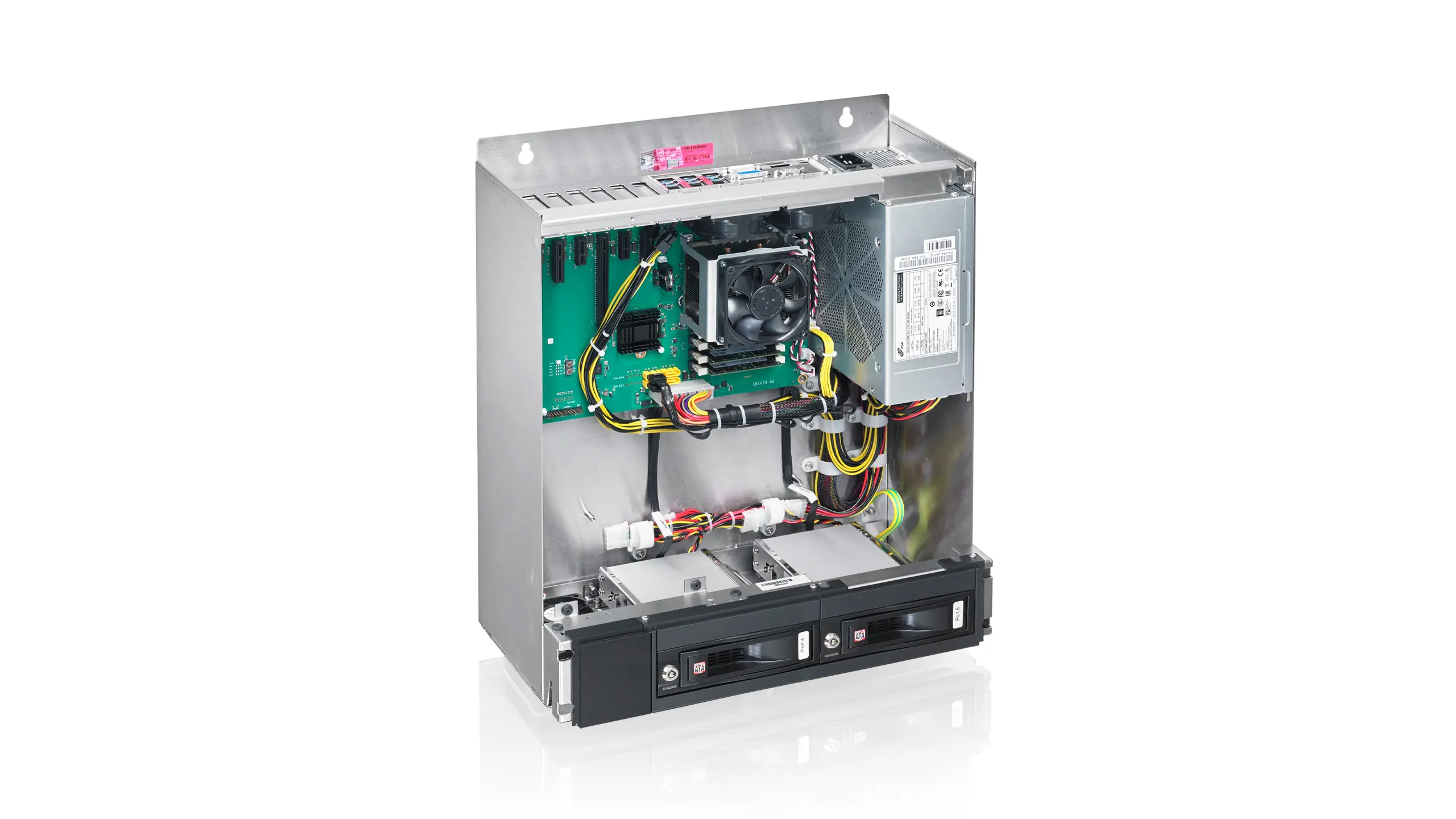

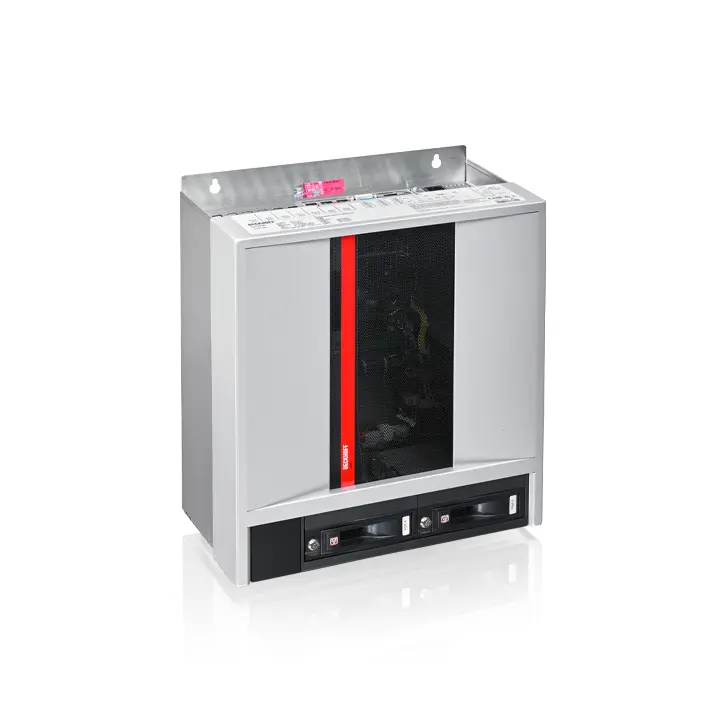

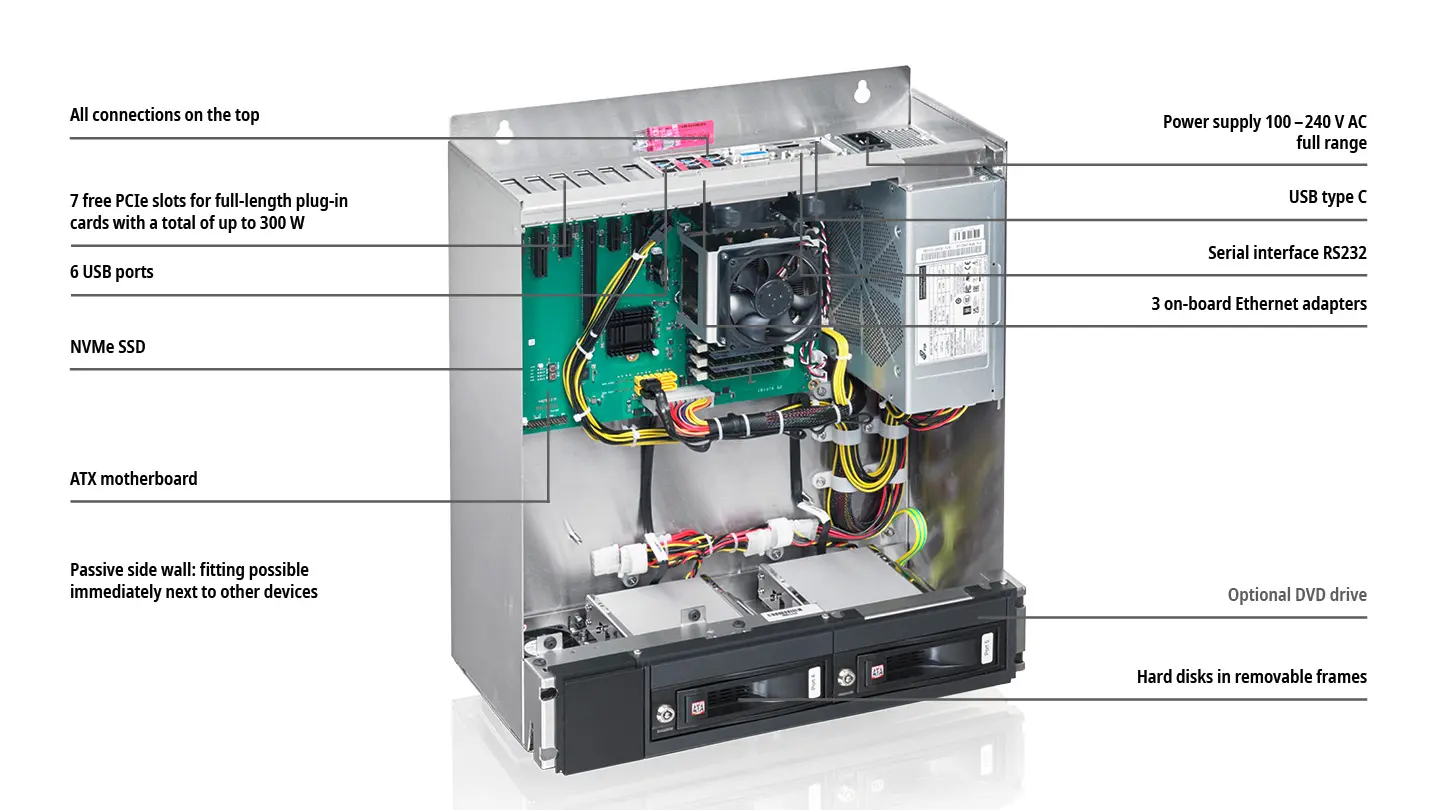

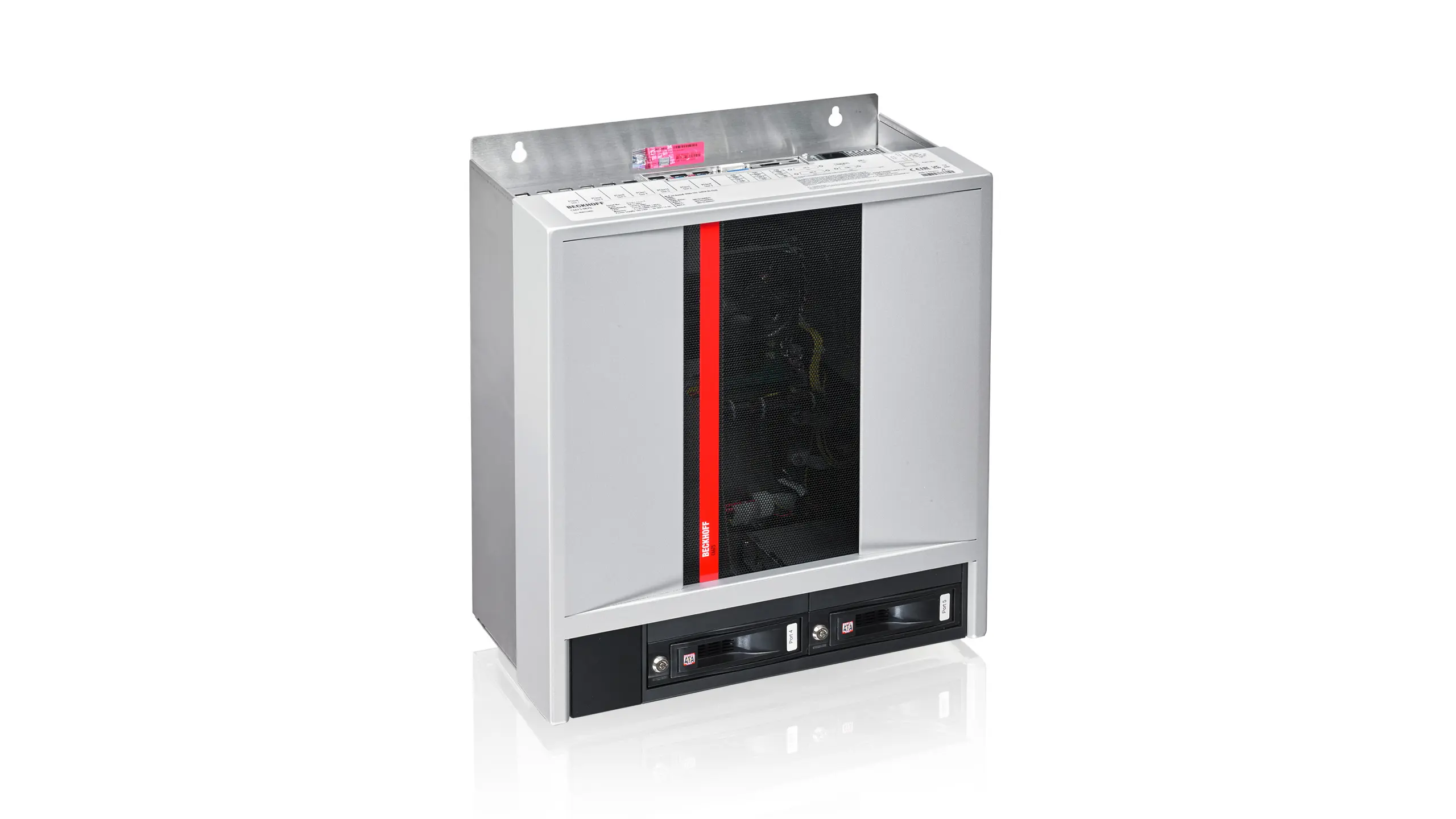

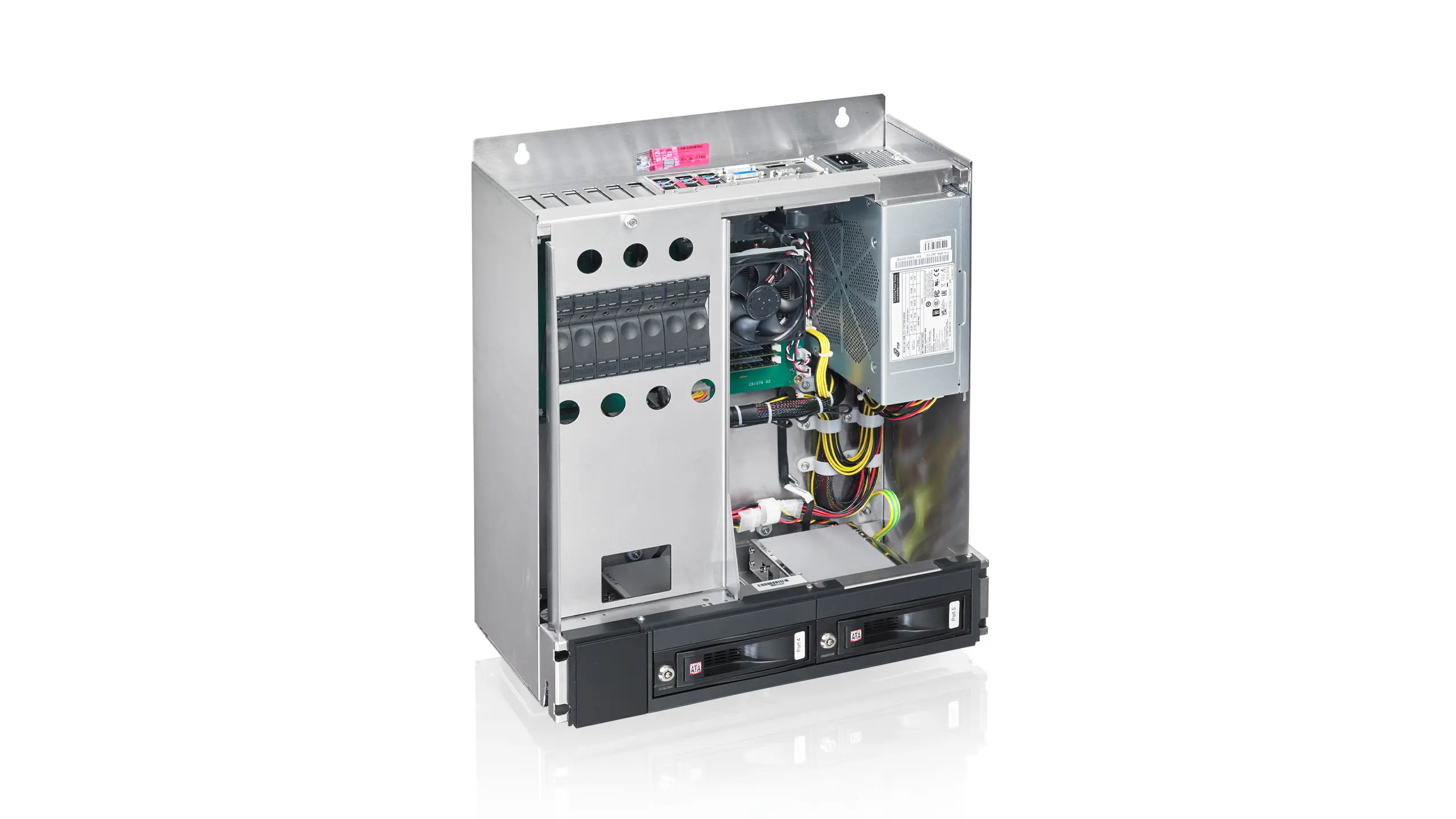

Промышленный ПК C6675 оснащен компонентами высшего класса производительности: на материнской плате ATX используются либо Intel ® Processor 300, либо процессоры Intel ® Core™ 3/5/7/9 Series 2. Концепция корпуса и охлаждения, заимствованная у C6670, в том числе позволяет использовать карту GPU-ускорителя. Для...
| Корпус | stainless steel based housing |
|---|---|
| Slots for hard disk/flash | 2 removable frames for hard disks |
| Степень защиты | IP20 |
| Рабочая температура | 0…50°C |
| Weight of basic configuration | 15 kg (33.1 lbs) |
| Размеры (Ш x В x Г) | 410 x 480 x 201 mm (16.1" x 18.9" x 7.9") |
| Процессор | Intel ® Celeron ® G6900E 3.0 GHz base frequency, 2 cores (TC3: 50) | up to Intel ® Core™ 9 Series 2 processor 273PQE, 3.4 GHz, 12 cores (TC3: 81) |
| Motherboard | ATX motherboard for 12 th /13 th generation Intel ® Celeron ® , Pentium ® , Core™ i or Intel ® Core™ Series 2 processor |
| PCIe ® slots | 2 x PCIe ® x1, 4 x PCIe ® x4, 1 x PCIe ® x16, for full-length plug-in cards with up to 300 W in total, 1 x M.2 socket PCIe ® x4 for 1 NVMe™ M.2 SSD |
| Memory | 16 GB DDR5 RAM | up to 128 GB DDR5 RAM |
| Графика | integrated in the processor |
| Ethernet | 2 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board |
| RAID | on-board RAID 1 controller for SATA and NVMe™/PCIe ® |
| Hard disks/flash | 160 GB NVMe™ M.2 SSD | up to 1280 GB NVMe™ M.2 SSD, up to 1280 GB PCIe plug-in card SSD, hard disk up to 4 TB |
| Disk drive | – | multi DVD |
| Интерфейсы | 6 x USB 3.2 Gen. 2, 1 x USB type C, 2 x DVI, 1 x DisplayPort, 1 x RS232 | 1 x RS232 |
| Питание | 100…240 V AC |
| Операционная система | – | Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, Windows Server 2025 |
| Информация для заказа / C6675-0070C9900-C661 | Processor Intel ® processor 300, 3.9 GHz, 2 cores (TC3: 50), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C662 | Processor Intel ® Core™ 3 Series 2 processor 201E, 3.6 GHz base frequency, 4 cores (TC3: 60), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C663 | Processor Intel ® Core™ 5 Series 2 processor 223PQE, 4.0 GHz base frequency, 8 cores (TC3: 70), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C664 | Processor Intel ® Core™ 7 Series 2 processor 253PQE, 3.5 GHz base frequency, 10 cores (TC3: 80), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C665 | Processor Intel ® Core™ 9 Series 2 processor 273PQE, 3.4 GHz base frequency, 12 cores (TC3: 81), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C642 | processor 12 th generation Intel ® Pentium ® G7400E, 3.6 GHz base frequency, 2 cores (TC3: 50), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C647 | processor 13 th generation Intel ® Core™ i3-13100E, 3.3 GHz base frequency, 4 cores (TC3: 60), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C648 | processor 13 th generation Intel ® Core™ i5-13400E, 6 performance cores 2.4 GHz base frequency and 4 efficient cores 1.5 GHz (TC3:70), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C649 | processor 13 th generation Intel ® Core™ i7-13700E, 8 performance cores 1.9 GHz base frequency and 8 efficient cores 1.3 GHz (TC3:80), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-C650 | processor 13 th generation Intel ® Core™ i9-13900E, 8 performance cores 1.8 GHz base frequency and 16 efficient cores 1.3 GHz (TC3:81), instead of Intel ® Celeron ® G6900E 3.0 GHz (TC3: 50) |
| C9900-B647 | BIOS for C603x-0080, C6040-0090, C6640-0070, C6650-0070, C6675-0070, C5240-0030 with activated Intel ® Turbo Boost, Idle mode and Hyper-Threading, not optimized for TwinCAT |
| C9900-R288 | memory extension to 32 GB DDR5 RAM, instead of 16 GB |
| C9900-R289 | memory extension to 64 GB DDR5 RAM, instead of 16 GB |
| C9900-R290 | memory extension to 128 GB DDR5 RAM, instead of 16 GB |
| C9900-D118 | multi DVD drive slimline, reads CD-ROM and DVD-ROM, reads and writes CD-R/-RW, DVD-R/+R/-RW/+RW 4.7 GB and DVD-R/+R DL 8.5 GB |
| C9900-E216 | 2 USB ports of the motherboard led out in the front of a C66xx |
| C9900-E203 | 1 serial port RS232 from the motherboard led out with one D-sub, 9-pin connector in one slot bracket |
| C9900-E209 | Module to optically link one serial RS232 port of the motherboard, with overload protection, D-sub, 9-pin, to be mounted inside of slot bracket C9900-M568, C9900-M569 or inside a C5240/C6640/C6650 at the connector bracket C9900-M571. A bracket is required. |
| C9900-E210 | Module to convert one serial RS232 port of the motherboard into RS485, configured as an end point without echo, D-sub, 9-pin, optically linked, overload protection, to be mounted inside the slot brackets C9900-M568, C9900-M569 or inside a C5240/C6640/C6650 at the connector bracket C9900-M571. A bracket is required. |
| C9900-E211 | Module to convert one serial RS232 port of the motherboard into RS422, configured as a full duplex end point, D-sub, 9-pin, optically linked, overload protection, to be mounted inside the slot brackets C9900-M568, C9900-M569 or inside a C5240/C6640/C6650 at the connector bracket C9900-M571. A bracket is required. |
| C9900-M568 | Slot bracket for one serial port C9900-E209, C9900-E210 or C9900-E211. Can be ordered only together with one module. |
| C9900-H678 | 320 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, for PCs with Intel ® Celeron ® , Pentium ® , Core™ i3, Core™ i5, Core™ i7 or Core™ i9 from the 12 th generation onward, instead of 160 GB high-performance SSD, NVM Express™ |
| C9900-H679 | 640 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, for PCs with Intel ® Celeron ® , Pentium ® , Core™ i3, Core™ i5, Core™ i7 or Core™ i9 from the 12 th generation onward, instead of 160 GB high-performance SSD, NVM Express™ |
| C9900-H840 | 1280 GB high-performance M.2 SSD, NVM Express™, PCIe ® x4, 3D flash, for PCs with Intel ® Celeron ® , Pentium ® , Core™ i3, Core™ i5, Core™ i7 or Core™ i9 from the 12 th generation onward, instead of 160 GB high-performance SSD, NVM Express™ |
| C9900-H814 | 160 GB high-performance SSD, NVM Express™, PCIe ® x4 plug-in card, 3D flash, for ATX PCs with Intel ® Celeron ® , Pentium ® , Core™ i3, Core™ i5, Core™ i7 or Core™ i9 from the 12 th generation onward and C6670-0020 |
| C9900-H815 | 320 GB high-performance SSD, NVM Express™, PCIe ® x4 plug-in card, 3D flash, for ATX PCs Intel ® Celeron ® , Pentium ® , Core™ i3, Core™ i5, Core™ i7 or Core™ i9 from the 12 th generation onward and C6670-0020 |
| C9900-H816 | 640 GB high-performance SSD, NVM Express™, PCIe ® x4 plug-in card, 3D flash, for ATX PCs with Intel ® Celeron ® , Pentium ® , Core™ i3, Core™ i5, Core™ i7 or Core™ i9 from the 12 th generation onward and C6670-0020 |
| C9900-H839 | 1280 GB high-performance SSD, NVM Express™, PCIe ® x4 plug-in card, 3D flash, for ATX PCs with Intel ® Celeron ® , Pentium ® , Core™ i3, Core™ i5, Core™ i7 or Core™ i9 from the 12 th generation onward and C6670-0020 |
| C9900-H152 | additional hard disk drive, 3½-inch, 1 TB |
| C9900-H204 | additional hard disk drive, 3½-inch, 4 TB |
