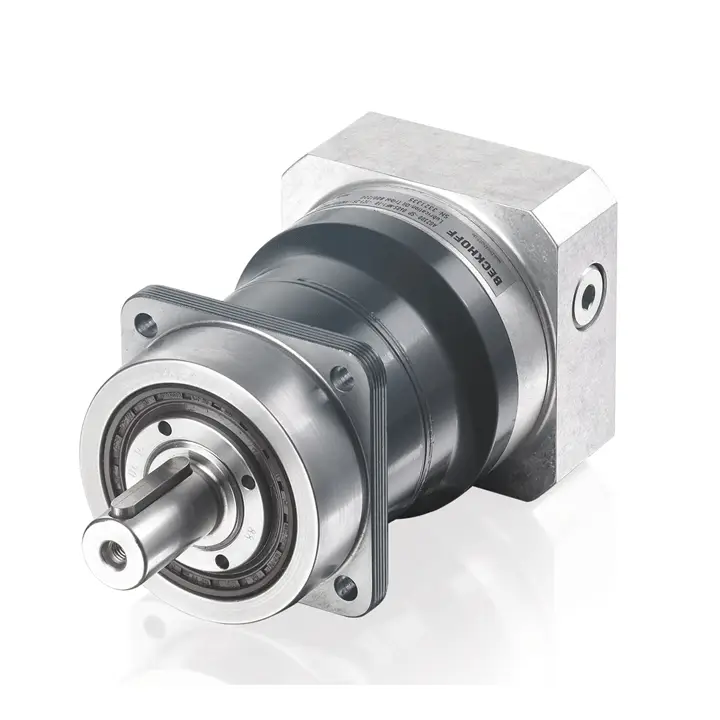

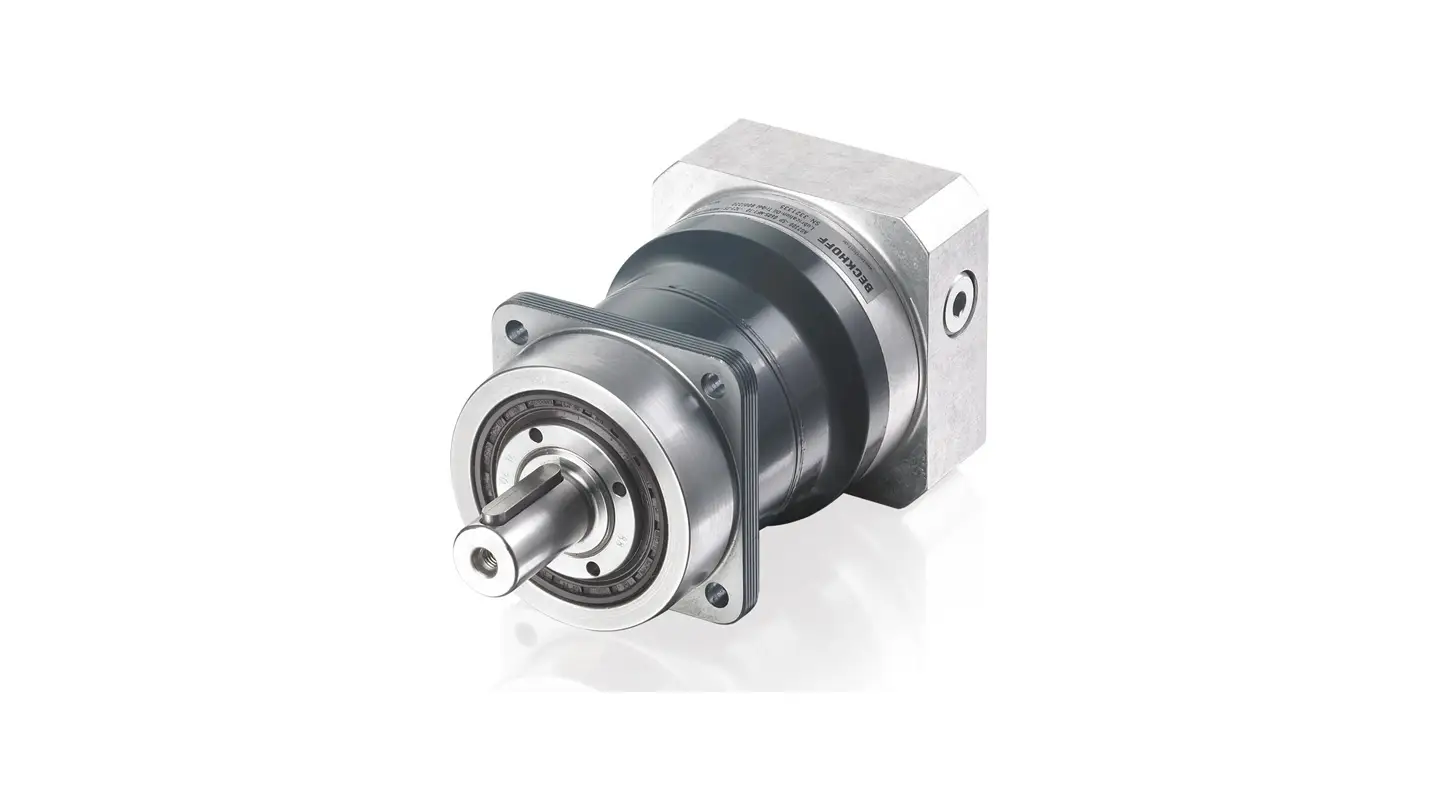

[agents/tool-policy] tool policy removed 5 tool(s) via tools.profile (coding): agents_list, gateway, message, nodes, tts [agents/tool-policy] tool policy removed 5 tool(s) via tools.profile (coding): agents_list, gateway, message, nodes, tts Малолюфтовые высокопроизводительные планетарные редукторы серии AG2300...
| Variant | high-end |
|---|---|
| Тип | high-speed MC |
| Nominal output torque | 1440 Nm |
| Max. acceleration torque | 1800 Nm |
| Gear stages | 2 |
| Gear ratio | 100 |
| Max. torsional backlash standard/reduced | ≤ 5/4 arcmin |
| Ambient temperature (operation) | -15…+40°C |
| Конструктивное исполнение | flange-mounted according to B5 |
| Coating/surface | coated |
| Информация для заказа / AG2300aaa | series/size (060, 075, 100, 140, 180, 210, 240) |
| s = 1 | 1-stage with i = 3/4/5/7/10 |
| s = 2 | 2-stage with i = 16/20/25/28/35/40/50/70/100 |
| i | gear ratio |
| w = 0 | smooth shaft |
| w = 1 | shaft with groove and feather key according to DIN 6885 |
| y = 0 | reduced torsional backlash |
| y = 1 | standard torsional backlash |
| X | identifying letter for clamping hub diameter; not available for selection, is selected automatically based on the respective motor |
| Motorsize | Specifies adapter unit between motor and gearbox. Correlates to motor flange code F or flange compatible motor type. |
| Motorsize = F1 | flange code F1: AM801x, AM811x |
| Motorsize = F2 | flange code F2: AM802x, AM812x, AMI812x |
| Motorsize = F3 | flange code F3: AM803x, AM813x, AM853x, AMI813x, AMP803x, AMP853x |
| Motorsize = F4 | flange code F4: AM804x, AM814x, AM854x, AMP804x, AMP854x |
| Motorsize = F5 | flange code F5: AM805x, AM855x, AMP805x, AMP855 |
| Motorsize = F6 | flange code F6: AM806x, AM856x |
| Motorsize = F7 | flange code F7: AM807x |
