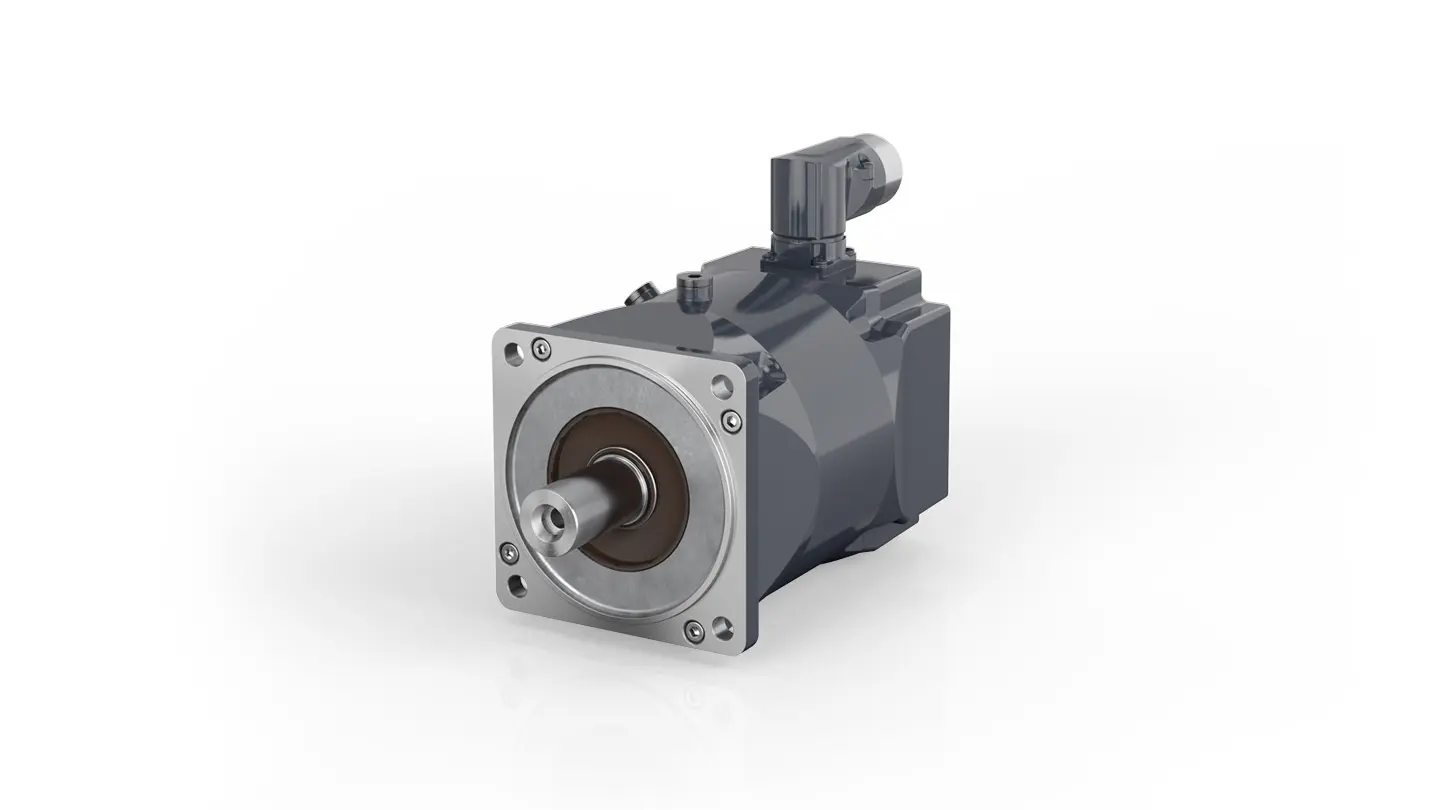

Серводвигатель AM8362 с водяным охлаждением подходит для приводных решений с самыми высокими требованиями к динамике и производительности в диапазоне напряжения 100…480 В AC. Момент при неподвижном роторе зависит от обмотки и находится в диапазоне 43.89…49.80 Нм. Доступен с системой обратной связи OCT (абсолютный...
| Номинальное напряжение | 100…480 V AC |
|---|---|
| Standstill torque | 49.8 Nm |
| Rated torque | 45.2 Nm |
| Peak torque | 74.2 Nm |
| Rated speed | 2500 min -1 |
| Rated power | 11.8 kW |
| Standstill current | 30.2 A |
| Peak current | 54 A |
| Torque constant | 1.65 Nm/A |
| Rotor moment of inertia | 20.4 kgcm² |
| Motor feedback | resolver, single-turn absolute encoder OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate, B/SSD |
| Охлаждение | water cooling |
| Технология подключения | M40 speedtec ® plug |
| Ambient temperature (operation) | 5…40°C |
| Допуски/маркировки | CE, cURus in preparation |
| Конструктивное исполнение | flange-mounted according to IM B5, IM V1, IM V3 |
| Материал | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| k (with brake) | 268 mm |
| Информация для заказа / AM8362-WRYZw = 0 | smooth shaft |
| w = 1 | shaft with groove and feather key according to DIN 6885 |
| w = 2 | shaft with IP65 sealing ring, smooth shaft |
| w = 3 | shaft with IP65 sealing ring, shaft with groove and feather key |
| w = 4 | shaft with IP65 sealing ring, smooth shaft and sealing air connection |
| w = 5 | shaft with IP65 sealing ring, shaft with groove and feather key and sealing air connection |
| y = 0 | 2-cable standard: feedback resolver |
| y = G Preferred type | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic nameplate, single-turn, absolute position within one revolution, resolution 24 bit, SIL 2-capable (mandatory for TwinSAFE Safe Motion functions at AX8xxx-x2xx) |
| y = H Preferred type | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic nameplate, multi-turn, absolute position within 4096 revolutions, resolution 24 bit, SIL 2-capable (mandatory for TwinSAFE Safe Motion functions at AX8xxx-x2xx) |
| y = L | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic nameplate, multi-turn, absolute position within 4096 revolutions, resolution 24 bit, SIL 2-capable (mandatory for TwinSAFE Safe Motion functions at AX8xxx-x2xx), Beckhoff Smart System Diagnosis (B/SSD) |
| y = N | without feedback (sensorless) |
| z = 0 | without holding brake |
| z = 1 | with backlash-free permanent magnet holding brake |
