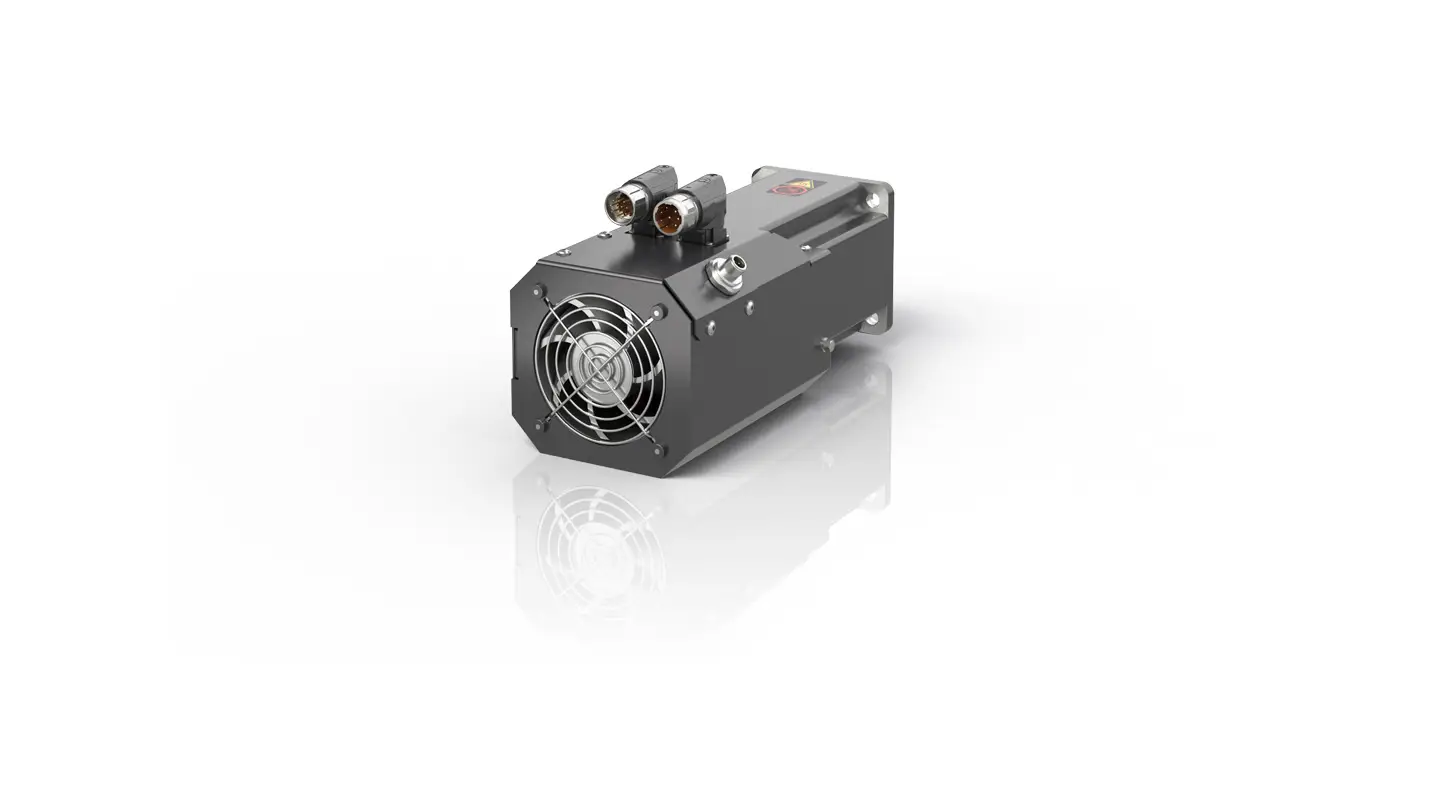

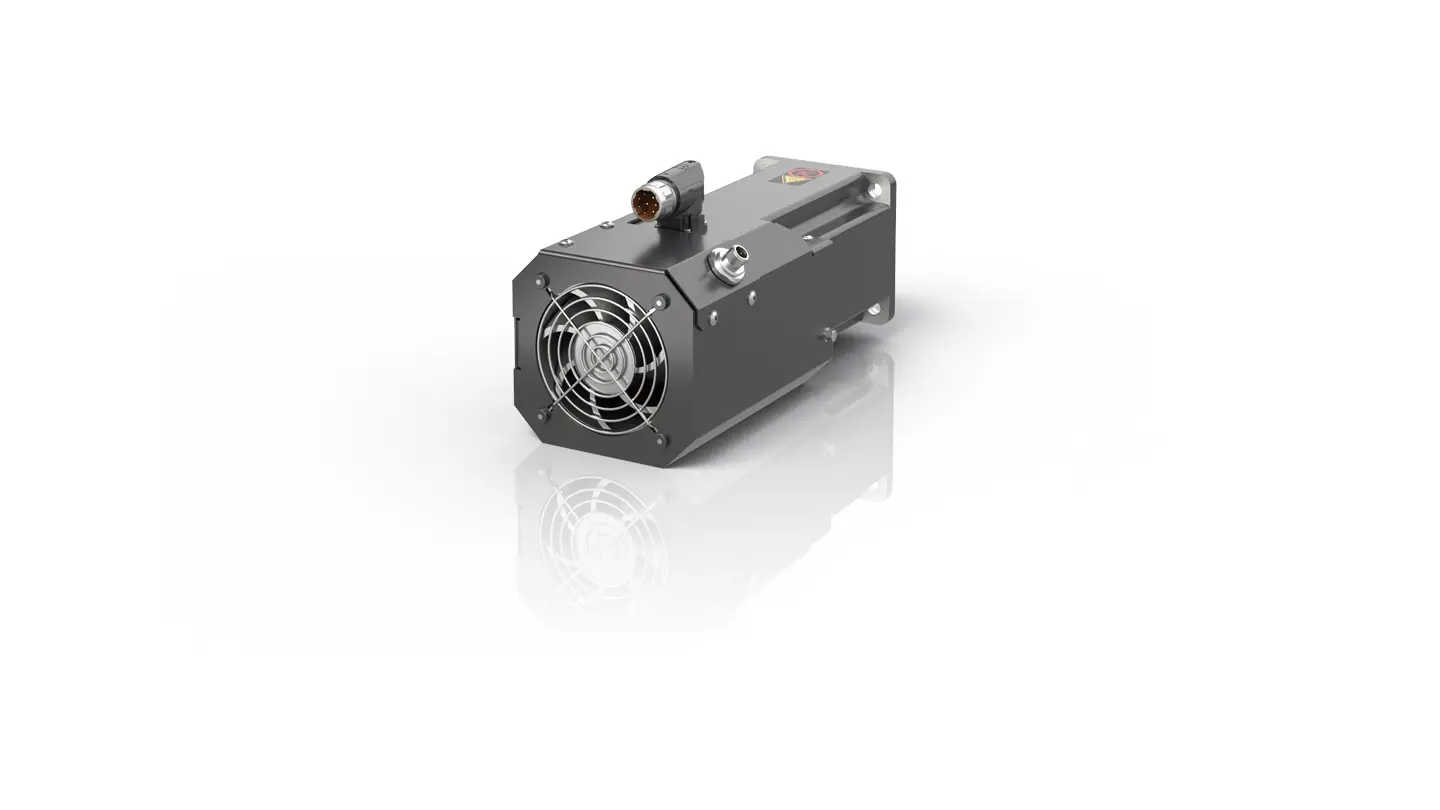

Высокоинерционный серводвигатель AM8553 подходит для приводных решений с повышенным моментом инерции, обеспечивая синхронность и оптимальное соотношение нагрузки/двигателя...
| Номинальное напряжение | 100…480 V AC |
|---|---|
| Standstill torque | 13.3 Nm |
| Rated torque | 7.10 Nm |
| Peak torque | 53.1 Nm |
| Rated speed | 5000 min -1 |
| Rated power | 3.72 kW |
| Standstill current | 18.6 A |
| Peak current | 89.7 A |
| Torque constant | 0.73 Nm/A |
| Rotor moment of inertia | 12.4 kgcm² |
| Motor feedback | resolver, single-turn absolute encoder OCT, 18 bit, single-turn or multi-turn absolute encoder, electronic nameplate OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate, B/SSD OCT, EnDat ® 3, 19 bit, SIL 3-capable, single-turn or multi-turn absolute encoder, electronic nameplate |
| Охлаждение | external axial ventilation |
| Технология подключения | M23 speedtec ® plug |
| Ambient temperature (operation) | 5…40°C |
| Допуски/маркировки | CE, cURus |
| Конструктивное исполнение | flange-mounted according to IM B5, IM V1, IM V3 |
| Материал | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| b | 24 k6 |
| d | 50 mm |
| l | 115 mm |
| r | 104 mm |
| k (without brake) | 320.5 mm |
| k (with brake) | 353.5 mm |
| Информация для заказа / AM8553-WPYZw = 0 | smooth shaft |
| w = 1 | shaft with groove and feather key according to DIN 6885 |
| w = 2 | shaft with IP65 sealing ring, smooth shaft |
| w = 3 | shaft with IP65 sealing ring, shaft with groove and feather key |
| w = 4 | shaft with IP65 sealing ring, smooth shaft and sealing air connection |
| w = 5 | shaft with IP65 sealing ring, shaft with groove and feather key and sealing air connection |
| y = 0 | 2-cable standard: feedback resolver |
| y = 1 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic nameplate, single-turn, absolute position within one revolution, 18 bit resolution |
| y = 2 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic nameplate, multi-turn, absolute position within 4096 revolutions, 18 bit resolution |
| y = G Preferred type | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic nameplate, single-turn, absolute position within one revolution, resolution 24 bit, SIL 2-capable (mandatory for TwinSAFE Safe Motion functions at AX8xxx-x2xx) |
| y = H Preferred type | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic nameplate, multi-turn, absolute position within 4096 revolutions, resolution 24 bit, SIL 2-capable (mandatory for TwinSAFE Safe Motion functions at AX8xxx-x2xx) |
| y = I | EnDat ® 3; One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic nameplate, single-turn, absolute position within one revolution, resolution 19 bit, SIL 3-capable (mandatory for TwinSAFE Safe Motion functions at AX8xxx-x2xx), only at AX8000 from firmware 1.06 |
| y = J | EnDat ® 3; One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic nameplate, multi-turn, absolute position within 4096 revolutions, resolution 19 bit, SIL 3-capable (mandatory for TwinSAFE Safe Motion functions at AX8xxx-x2xx), only at AX8000 from firmware 1.06 |
| y = L | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic nameplate, multi-turn, absolute position within 4096 revolutions, resolution 24 bit, SIL 2-capable (mandatory for TwinSAFE Safe Motion functions at AX8xxx-x2xx), Beckhoff Smart System Diagnosis (B/SSD) |
| z = A | forced cooling IP20, without holding brake, for AM855x, AM856x (1) |
| z = B | forced cooling IP20, with backlash-free permanent magnet holding brake, for AM855x, AM856x (1) |
| z = C | forced cooling IP65, without holding brake, for AM855x, AM856x (2) |
| z = D | forced cooling IP65, with backlash-free permanent magnet holding brake, for AM855x, AM856x (2) |
