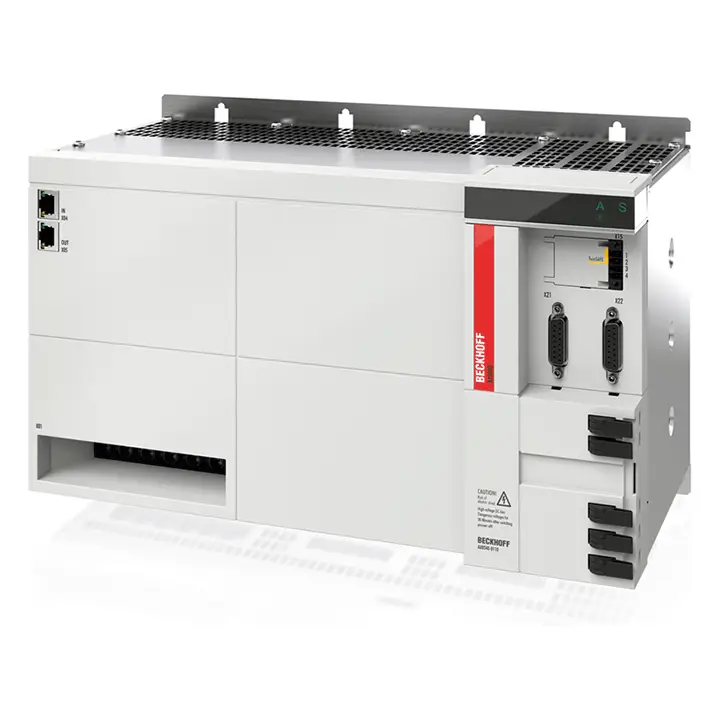

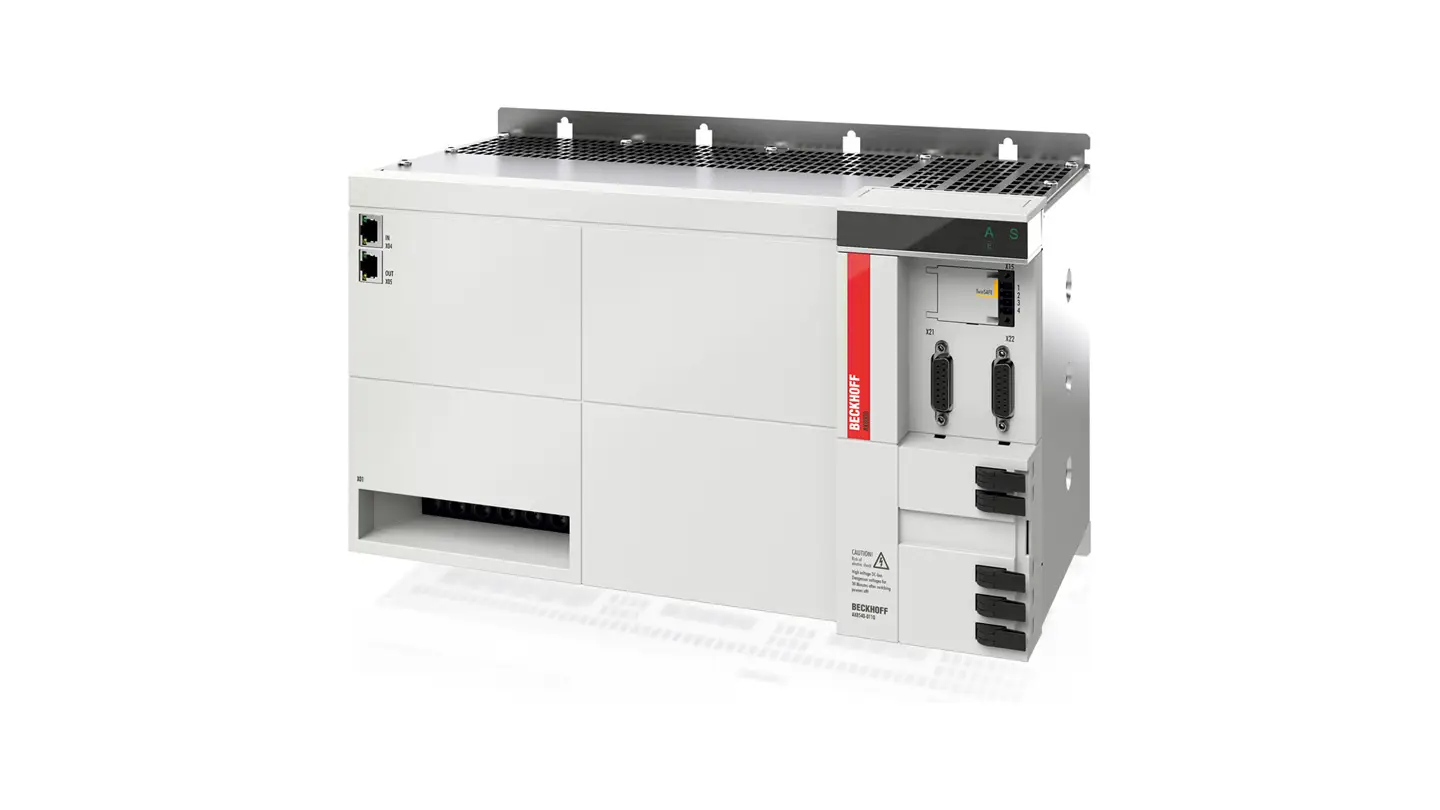

Комбинированные модули питания и оси AX8525 и AX8540 объединяют функцию модуля питания AX86xx с модулем оси AX81xx в одном устройстве. В результате AX-Bridge не нагружается током первой оси, и для дополнительных модулей осей доступно до 50 A DC. Модуль питания подает 80 A DC в звено постоянного тока и содержит...
| Channels | 1 |
|---|---|
| Rated supply voltage | 3 x 200…480 V AC |
| DC link voltage | max. 848 V DC |
| DC link output current | 80 A DC |
| Rated output current (channel) | 40 A |
| Peak output current (channel) | 80 A |
| Feedback | OCT, EnDat ® 3 |
| System bus | EtherCAT |
| Drive profile | CiA402 according to IEC 61800-7-201 (CoE) |
| Realization STO | by local TwinSAFE Logic, via FSoE or hard-wired via safe inputs |
| Safe stop functions | Safe Torque Off (STO), Safe Operating Stop (SOS), Safe Stop 1 (SS1), Safe Stop 2 (SS2) |
| Safe acceleration functions | Safe Maximum Acceleration (SMA), Safe Acceleration Range (SAR) |
| Safe braking functions | Safe Brake Control (SBC), Safe Brake Test (SBT) |
| Safe rotating direction functions | Safe Direction positive (SDIp), Safe Direction negative (SDIn) |
| Safe speed functions | Safely Limited Speed (SLS), Safe Speed Range (SSR), Safe Speed Monitor (SSM), Safe Maximum Speed (SMS) |
| Safe position functions | Safely Limited Position (SLP), Safe CAM (SCA), Safely Limited Increment (SLI) |
| Стандарт безопасности | EN ISO 13849-1:2015 (Cat 4, PL e), EN 61508:2010 (SIL 3) and EN 62061:2005 + A1:2013/A2:2015 (SIL CL3) |
| Ambient temperature (operation) | 0…40°C, up to 55°C with power reduction (see documentation) |
| Допуски/маркировки | CE, cULus |
| Width | 360 mm |
| Depth without connectors | 192 mm |
| Width | 360 mm |
