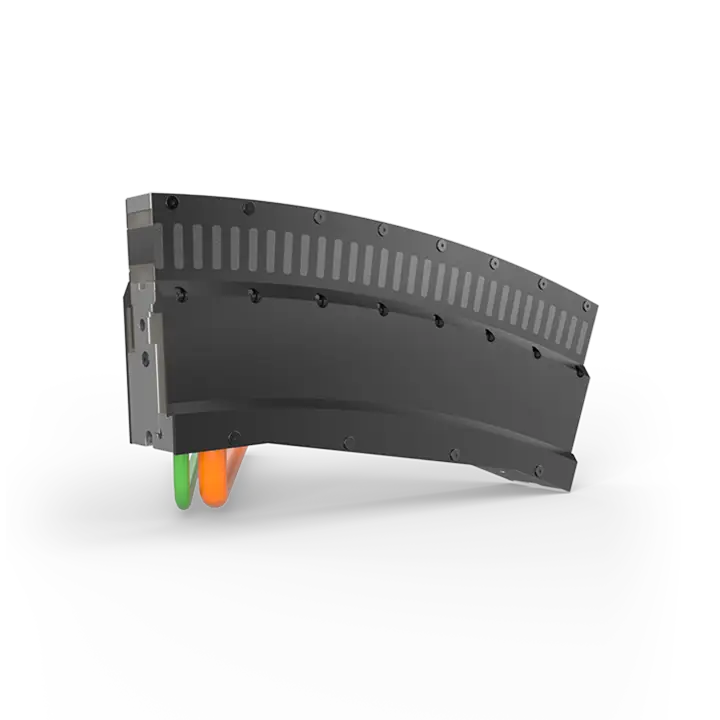

Моторные модули с обозначением продукта AT2021 в основном соответствуют моторным модулям с обозначением продукта AT2020. Кроме того, каждый из них имеет несъемный соединительный кабель для подачи питания и связи. Эти соединительные кабели длиной 5 м обеспечивают особенно компактную конструкцию по сравнению с разъемным...
| Geometries | any (e. g. rectangle, square, circle, straight, L-, U-, O-, Z- or T-shapes) |
|---|---|
| Diameter | 180° curved segment: 267 mm (clothoid), 45° curved segment: 637 mm, 22.5° curved segment: 1273 mm, -22.5° curved segment: 1273 mm (1) |
| Alignment | horizontally, vertically or at any angle from 1…179° |
| Peak force | AT9001-x550 (5-pin): 100 N, AT9001-x775 (7-pin): 130 N, AT9001-xAA0 (10-pin): 210 N (specification refer to straight sections) |
| Continuous force | AT9001-x550 (5-pin): 30 N, AT9001-x775 (7-pin): 45 N, AT9001-xAA0 (10-pin): 75 N (specification refers to straight sections) |
| Max. speed | 4 m/s |
| Max. acceleration | 10 g |
| Payload | up to 40 kg, higher loads with reduced dynamics |
| Время цикла | 250 µs |
| Absolute accuracy | < ±0.25 mm within a straight module |
| Repeatability | < ±0.01 mm (standstill unidirectional) |
| Positioning accuracy | < ±0.15 mm @ 1.5 m/s within a straight module |
| System size | > 100 m, > 200 movers |
| Степень защиты | IP65 (in assembled condition for a closed system, only waterproof for a short time, not corrosion resistant) |
| Допуски/маркировки | CE, UL |
| Устойчивость к вибрации/ударам | conforms to EN 60068-2-6/EN 60068-2-27 |
| ЭМС | помехоустойчивость/эмиссия: conforms to EN 61000-6-2/EN 61000-6-4 |
| Конструктивное исполнение | curved segment, 22.5° (positive curve, Ø 1273 mm) |
| Motor length | 250 mm |
| Технология подключения | fixed connection cables (5 m) |
| Length per feed | max. 3 m (voltage supply, EtherCAT) |
| Охлаждение | convection |
| Ambient temperature (operation) | 0…40°C |
| Рабочее напряжение | 48 V DC |
| Номинальный ток | 16 A |
| Peak current | < 48 A |
| Control voltage | 24 V DC -15/+20% |
| Power consumption control voltage | 30 W per meter travel distance |
| Width | 39.1 mm |
| Height | 106.8 mm |
| Вес | 3.3 kg |
| Информация для заказа / AT2021AT2021-0250-0003 | motor module with feed, 22.5° (positive curve, convex, radius constant), 48 V DC/24 V DC, cable length 5 m, 256.2 mm x 39.1 mm x 106.8 mm (L x W x H), 3.3 kg, UL-certified |
| AT2021-0250-0004 | motor module with feed, 22.5° (positive curve, convex, radius constant, top profile without drilling hole), 48 V DC/24 V DC, cable length 5 m, 256.2 mm x 39.1 mm x 106.8 mm (L x W x H), 3.3 kg, UL-certified |
