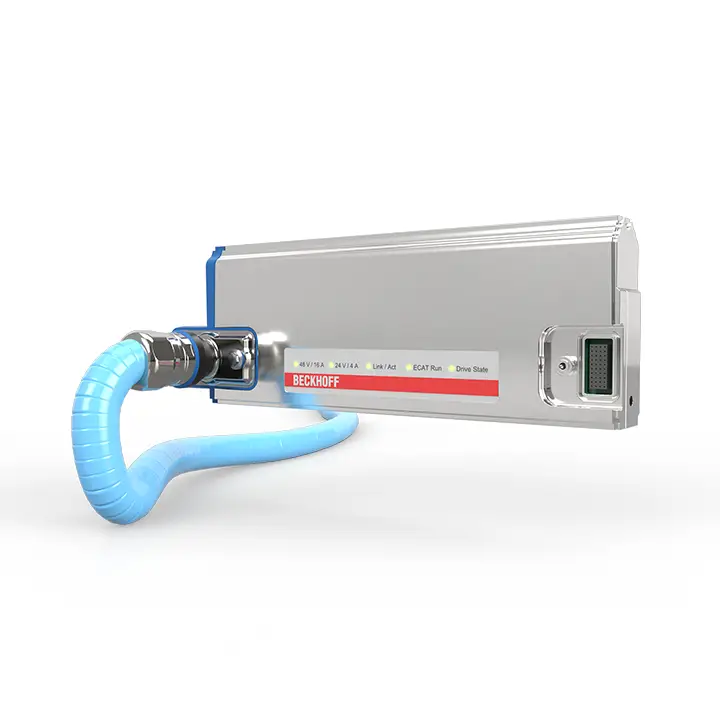

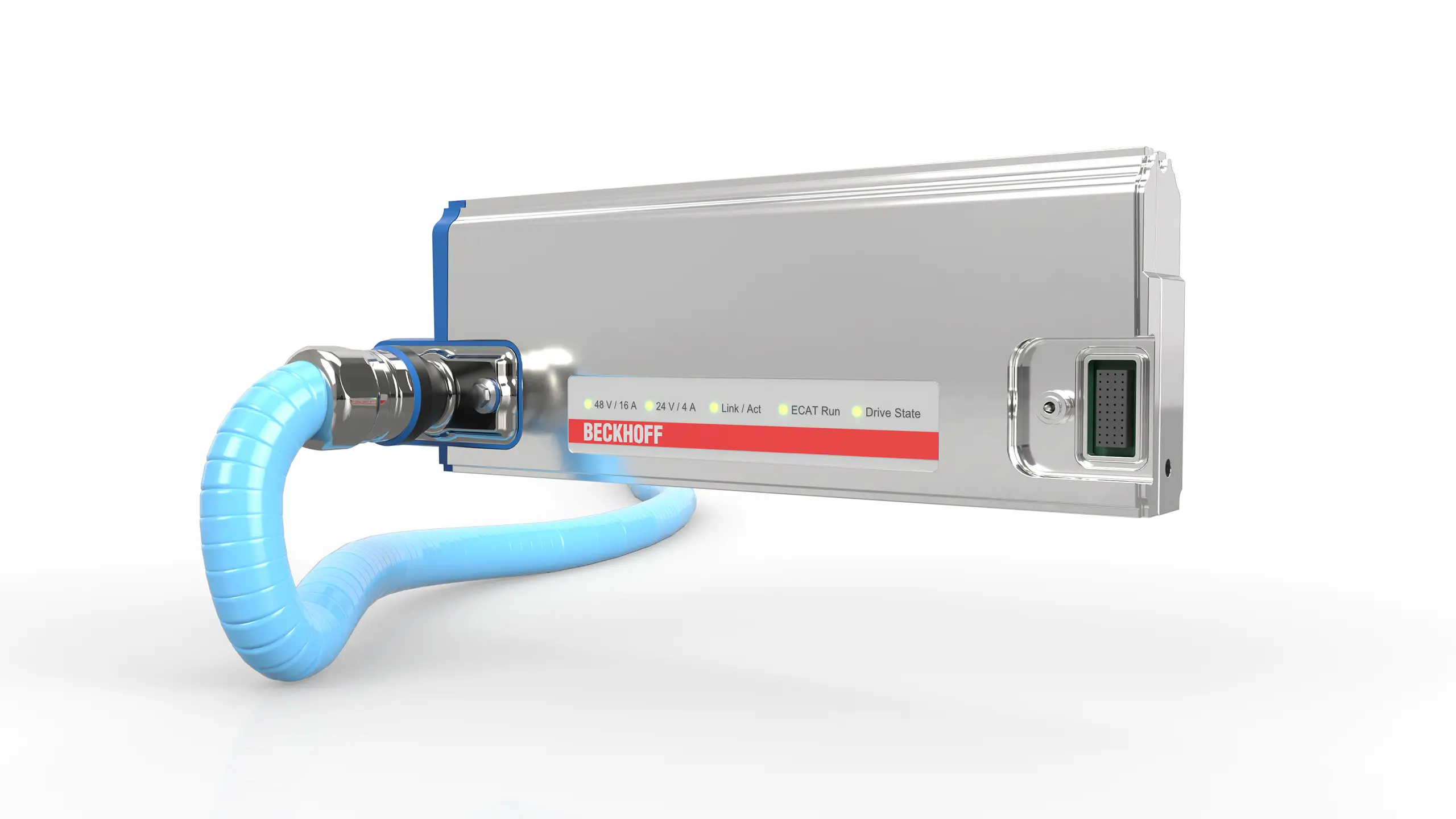

Моторные модули с обозначением изделия ATH200x являются элементами для построения прямолинейных участков трассы XTS для сложных условий эксплуатации. Через боковые штекерные контакты для передачи питания и коммуникации соединение между моторными модулями может быть очень просто установлено с помощью крышки. Крышка...
| Geometries | rectangle, square, circle or straight |
|---|---|
| Diameter | 180° curved segment: 267 mm (clothoid), 45° curved segment: 637 mm (1) |
| Alignment | horizontally, vertically or at any angle from 1…179° |
| Peak force | ATH9001-x550 (5-pin): 90 N, ATH9001-xAA0 (10-pin): 145 N (specification refer to straight sections) |
| Continuous force | ATH9001-x550 (5-pin): 30 N, ATH9001-xAA0 (10-pin): 55 N (specification refers to straight sections) |
| Max. speed | 4 m/s |
| Max. acceleration | 10 g |
| Payload | up to 4 kg, higher loads with reduced dynamics |
| Время цикла | 250 µs |
| Absolute accuracy | < ±0.25 mm within a straight module |
| Repeatability | < ±0.01 mm (standstill unidirectional) |
| Positioning accuracy | < ±0.15 mm @ 1.5 m/s within a straight module |
| System size | > 100 m, > 200 movers |
| Степень защиты | IP69K (in assembled condition for a closed system) |
| Допуски/маркировки | CE, UL |
| Устойчивость к вибрации/ударам | conforms to EN 60068-2-6/EN 60068-2-27 |
| ЭМС | помехоустойчивость/эмиссия: conforms to EN 61000-6-2/EN 61000-6-4 |
| Конструктивное исполнение | straight |
| Motor length | 250 mm |
| Технология подключения | cover with straight feed |
| Материал | housing: stainless steel 1.4404 AISI 316L; sealing: VMQ silicone |
| Length per feed | max. 3 m (voltage supply, EtherCAT) |
| Охлаждение | convection |
| Ambient temperature (operation) | 0…40°C |
| Рабочее напряжение | 48 V DC |
| Номинальный ток | 16 A |
| Peak current | < 48 A |
| Control voltage | 24 V DC -15/+20% |
| Power consumption control voltage | 30 W per meter travel distance |
| Width | 34 mm |
| Height | 96 mm |
| Вес | 4.7 kg |
| Информация для заказа / ATH2001ATH2001-0250 | stainless steel motor module with feed, straight, 48 V DC/24 V DC, cable length 8 m, protection rating IP69K, 250 mm x 34 mm x 96 mm (L x W x H), 8.0 kg, UL-certified |
| ATH2001-0250-0040 | stainless steel motor module with feed, straight, 48 V DC/24 V DC, cable length 4 m, protection rating IP69K, 250 mm x 34 mm x 96 mm (L x W x H), 6.8 kg, UL-certified |
| ATH2001-0250-0160 | stainless steel motor module with feed, straight, 48 V DC/24 V DC, cable length 16 m, protection rating IP69K, 250 mm x 34 mm x 96 mm (L x W x H), 10.4 kg, UL-certified |
| ATH2001-0250-0250 | stainless steel motor module with feed, straight, 48 V DC/24 V DC, cable length 25 m, protection rating IP69K, 250 mm x 34 mm x 96 mm (L x W x H), 13 kg, UL-certified |
| ATH2001-0250-0002 | stainless steel motor module with feed and cover for guide rail mounting surface, straight, 48 V DC/24 V DC, cable length 8 m, protection rating IP69K, 250 mm x 34 mm x 96 mm (L x W x H), 8.3 kg, UL-certified |
| ATH2001-0250-0042 | stainless steel motor module with feed and cover for guide rail mounting surface, straight, 48 V DC/24 V DC, cable length 4 m, protection rating IP69K, 250 mm x 34 mm x 96 mm (L x W x H), 7.1 kg, UL-certified |
| ATH2001-0250-0162 | stainless steel motor module with feed and cover for guide rail mounting surface, straight, 48 V DC/24 V DC, cable length 16 m, protection rating IP69K, 250 mm x 34 mm x 96 mm (L x W x H), 10.7 kg, UL-certified |
| ATH2001-0250-0252 | stainless steel motor module with feed and cover for guide rail mounting surface, straight, 48 V DC/24 V DC, cable length 25 m, protection rating IP69K, 250 mm x 34 mm x 96 mm (L x W x H), 13.3 kg, UL-certified |
