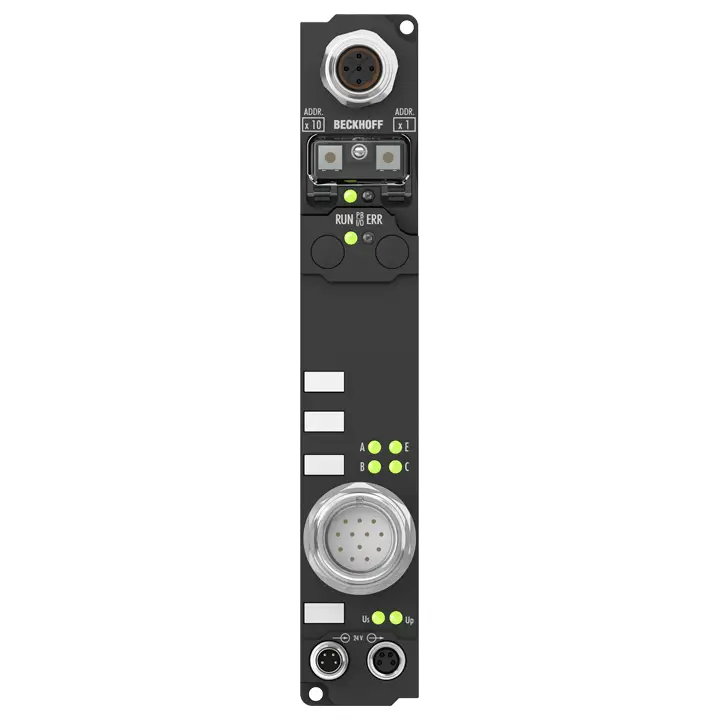

Модуль интерфейса SSI IP5009 позволяет подключать SSI-энкодер напрямую. Питание энкодера осуществляется через интерфейс SSI. Интерфейсная схема формирует импульс для считывания энкодера и предоставляет входящий поток данных контроллеру в виде слова данных в образе процесса. Модуль может опционально предоставлять...
| Количество каналов | 1 |
|---|---|
| Номинальное напряжение | 24 V DC (-15%/+20%) |
| Signal input | difference signal (RS485) |
| Encoder supply | 24 V DC, from load voltage |
| Питание датчика | from control voltage, max. 0.5 A, short-circuit proof in total |
| Скорость передачи | variable up to 1 MHz, 250 kHz default |
| Serial input | 24 bits (adjustable) |
| Data direction | read |
| Подключение питания | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Потребляемый ток от U S (без тока датчиков) | see documentation |
| Разрядность в образе процесса | input: 1 x 32 bit data (1 x 8 bit control/status optional) |
| Гальваническая развязка | depends on the bus system |
| Скорость передачи | automatic detection up to 12 Mbaud |
| Шинный интерфейс | 1 x M12 socket, 5-pin, B-coded |
| Среда передачи данных | shielded copper cable, 2 x 0.25 mm² |
| Питание | control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type |
| Подключение питания | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Box supply current | 85 mA + current consumption of sensors, max. 0.5 A |
| Ток вспомогательного питания | according to I/O type |
| Гальваническая развязка | control voltage/fieldbus: no, control voltage/inputs or outputs: according to I/O type |
| Время передачи данных | approx. 0.5 ms with 10 stations each with 32 bit input and output |
| Рабочая температура | 0…55°C |
| Температура хранения | -25…+85°C |
| Устойчивость к вибрации/ударам | conforms to EN 60068-2-6/EN 60068-2-27 |
| ЭМС | помехоустойчивость/эмиссия: conforms to EN 61000-6-2/EN 61000-6-4 |
| Степень защиты/монтажное положение | IP65/66/67 (conforms to EN 60529)/variable |
| Допуски/маркировки | CE, UL |
| Материал | PA6 (polyamide) |
| Монтаж | 2 fixing holes 3.5 mm diameter for M3 |
| Информация для заказа / IP5009-B310CAS No. | 7439-92-1, 556-67-2, 115-86-6 |
| REACH SVHC | Lead, Octamethylcyclotetrasiloxane, Triphenyl phosphate |
| REACH Annex XVII | compliant |
| REACH Annex XIV | compliant |
| SCIP No. | SCIP submission in progress |
| POP | compliant |
| RoHS | compliant with exemption |
| Исключение RoHS | 6c: Copper alloy with a mass fraction of up to 4% lead, 7c-I: Lead-containing electrical and electronic components in glass and ceramic materials, excluding dielectric ceramics in capacitors |
| China-RoHS | www.beckhoff.com/china-rohs-io |
| CA Prop65 | www.beckhoff.com/prop65 |
| Отказ от ответственности | This statement and the information contained above are, to the best of our knowledge and belief, accurate, based on the information we have received from our suppliers. This information is in line with the current standard of technology and our suppliers’ technical documentation. The absence of the substances is not verified by Beckhoff Automation by means of analytical tests. When addressed to our customers any information contained in this document is subject to the terms and conditions expressed in the governing customer agreement. Our general terms and conditions apply. |
