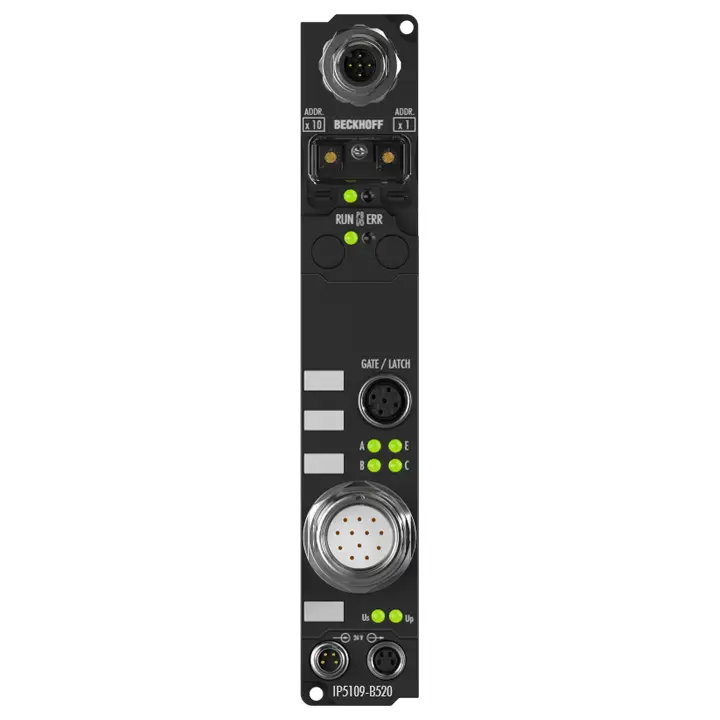

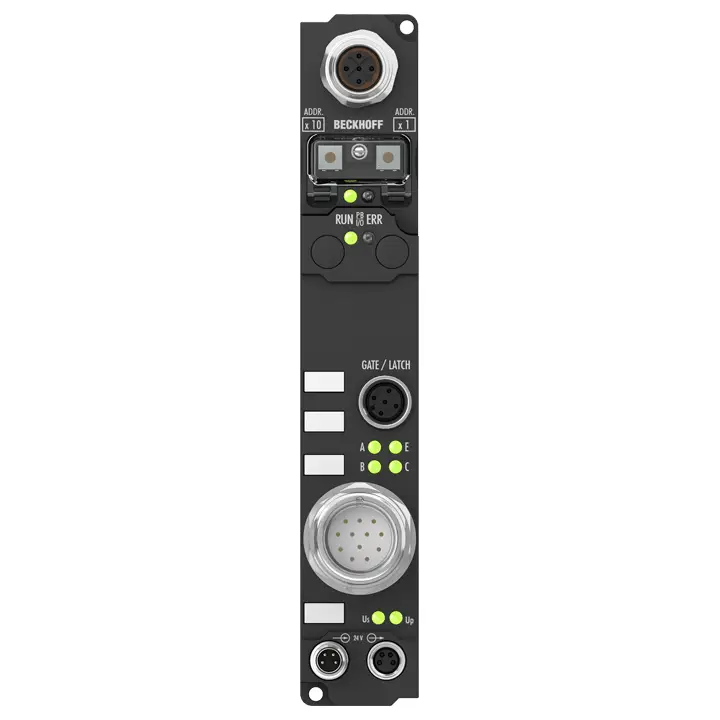

Модуль IP5109 представляет собой интерфейс для прямого подключения инкрементальных энкодеров с дифференциальными входами (RS485) или с одиночными входами. 16-разрядный счетчик с квадратурным декодером и 16-разрядная защелка для нулевого импульса могут считываться, устанавливаться или разрешаться. Входы могут...
| Количество каналов | 1 |
|---|---|
| Номинальное напряжение | 24 V DC (-15%/+20%) |
| Signal input | difference signal (RS485) |
| Encoder supply | 5 V DC |
| Питание датчика | from control voltage, max. 0.5 A, short-circuit proof in total |
| Counter | 16 bit, binary |
| Частота среза | 1 MHz (with 4-fold evaluation) |
| Квадратурный декодер | 1-, 2-, 4-fold evaluation |
| Zero-pulse latch | 16 bit |
| Разрешение | 16 bit binary value |
| Commands | read, set, enable |
| Скорость передачи | – |
| Подключение питания | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Потребляемый ток от U S (без тока датчиков) | see documentation |
| Разрядность в образе процесса | input/output: 2 x 16 bit data + 1 x 8 bit control/status |
| Гальваническая развязка | depends on the bus system |
| Цифровые периферийные сигналы | according to I/O type |
| Аналоговые периферийные сигналы | according to I/O type |
| Конфигурация | via KS2000 or the controller (explicit messaging) |
| Скорость передачи | automatic detection up to 500 kbaud |
| Шинный интерфейс | 1 x M12 plug, 5-pin |
| Среда передачи данных | shielded copper cable, with power supply, typ. 2 x 2 x 0.25 mm² |
| Питание | control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type |
| Подключение питания | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Box supply current | 45 mA + current consumption of sensors, max. 0.5 A |
| Ток вспомогательного питания | according to I/O type |
| Гальваническая развязка | control voltage/fieldbus: 500 V, control voltage/inputs or outputs: according to I/O type |
| Расстояние между станциями | 500 m 250 m 100 m |
| Operating modes | bit strobe, polling, cyclic, change of state (COS) |
| Рабочая температура | 0…55°C |
| Температура хранения | -25…+85°C |
| Устойчивость к вибрации/ударам | conforms to EN 60068-2-6/EN 60068-2-27 |
| ЭМС | помехоустойчивость/эмиссия: conforms to EN 61000-6-2/EN 61000-6-4 |
| Степень защиты/монтажное положение | IP65/66/67 (conforms to EN 60529)/variable |
| Допуски/маркировки | CE, UL |
| Материал | PA6 (polyamide) |
| Монтаж | 2 fixing holes 3.5 mm diameter for M3 |
| Информация для заказа / IP5109-B520CAS No. | 7439-92-1, 556-67-2, 115-86-6 |
| REACH SVHC | Lead, Octamethylcyclotetrasiloxane, Triphenyl phosphate |
| REACH Annex XVII | compliant |
| REACH Annex XIV | compliant |
| SCIP No. | fcbe91ae-abdd-436f-a617-b923d090b84f |
| POP | compliant |
| RoHS | compliant with exemption |
| Исключение RoHS | 6c: Copper alloy with a mass fraction of up to 4% lead, 7c-I: Lead-containing electrical and electronic components in glass and ceramic materials, excluding dielectric ceramics in capacitors |
| China-RoHS | www.beckhoff.com/china-rohs-io |
| CA Prop65 | www.beckhoff.com/prop65 |
| Отказ от ответственности | This statement and the information contained above are, to the best of our knowledge and belief, accurate, based on the information we have received from our suppliers. This information is in line with the current standard of technology and our suppliers’ technical documentation. The absence of the substances is not verified by Beckhoff Automation by means of analytical tests. When addressed to our customers any information contained in this document is subject to the terms and conditions expressed in the governing customer agreement. Our general terms and conditions apply. |
