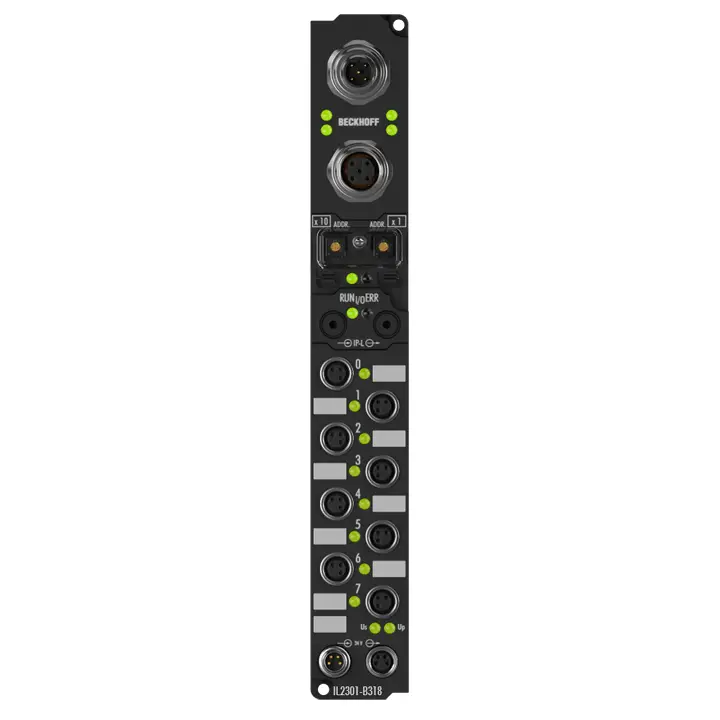

Модуль Coupler Box IL2301-Bxxx объединяет четыре цифровых входа и четыре цифровых выхода в одном устройстве. Выходы рассчитаны на токи нагрузки до 0,5 А, устойчивы к короткому замыканию и защищены от обратной полярности. Состояние каждого сигнала отображается с помощью светодиодов. Сигналы подключаются через винтовые...
| Количество каналов | 4 inputs + 4 outputs |
|---|---|
| Input/output connections | M8, screw type |
| Входной фильтр | 3 ms |
| Сигнальное напряжение «0» | -3…+5 V |
| Сигнальное напряжение «1» | 11…30 V, 6 mA input current (EN 61131-2, type 2) |
| Питание датчика | from control voltage, max. 0.5 A, short-circuit proof in total |
| Тип нагрузки | ohmic, inductive, lamp load |
| Номинальное напряжение нагрузки | 24 V DC (-15%/+20%) |
| Макс. выходной ток | 0.5 A per channel, individually short-circuit proof |
| Ток короткого замыкания | typ. 1.5 A |
| Ток вспомогательного питания | typ. 20 mA |
| Потребляемый ток от U S | see documentation |
| Подключение питания | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Разрядность в образе процесса | 4 inputs + 4 outputs |
| Гальваническая развязка | channels/control voltage: no, between the channels: no, control voltage/fieldbus: depends on the bus system |
| Особые характеристики | IP-Link coupler |
| Цифровые периферийные сигналы | max. 964 inputs and 964 outputs |
| Аналоговые периферийные сигналы | max. 127 inputs and 127 outputs |
| Протокол | TwinCAT ADS, Modbus TCP, Beckhoff real-time Ethernet (only IL230x-B90x) |
| Конфигурация | via KS2000 |
| Скорость передачи | 10/100 Mbit/s, automatic recognition of the transmission rate |
| Шинный интерфейс | 1 x M12 socket, 4-pin (D-coded) |
| Transmission medium | Industrial Ethernet cable (Cat.5), 100 MBaud |
| Питание | control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type |
| Подключение питания | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Box supply current | 30 mA + current consumption of sensors, max. 0.5 A |
| Ток вспомогательного питания | according to I/O type |
| Гальваническая развязка | control voltage/fieldbus: no, control voltage/inputs or outputs: according to I/O type |
| Topology | star over Ethernet hub or Ethernet Switch |
| Расстояние между станциями | 100 m (between hub/switch and Ethernet I/O module) |
| Вес | approx. 250 g |
| Рабочая температура | 0…55°C |
| Температура хранения | -25…+85°C |
| Устойчивость к вибрации/ударам | conforms to EN 60068-2-6/EN 60068-2-27 |
| ЭМС | помехоустойчивость/эмиссия: conforms to EN 61000-6-2/EN 61000-6-4 |
| Степень защиты/монтажное положение | IP65/66/67 (conforms to EN 60529)/variable |
| Допуски/маркировки | CE, UL |
| Материал | PA6 (polyamide) |
| Монтаж | 2 fixing holes 3.5 mm diameter for M3 |
| Информация для заказа / IL2301-B901ZK1020-0101-0xxx | pre-assembled IP-Link cable, drag-chain suitable |
| ZK2000-2100-0xxx | M8, plug, straight, male, 3-pin – open end |
| ZK2000-2122-0xxx | M8, plug, straight, male, 3-pin – M8, socket, straight, female, 3-pin |
| ZK2020-3200-0xxx | M8, socket, straight, female, 4-pin – open end |
| ZK2020-3132-0xxx | M8, plug, straight, male, 4-pin – M8, socket, straight, female, 4-pin |
| ZS1020-0010 | IP-Link plug, 1 piece, plug for IP-Link system |
| ZS2000-2210 | Plug field assembly, Sensor, IP65/67, M8, straight, male, 3-pin, A-coded, 0.14…0.5 mm², Ø 4…5.5 mm |
| ZS2000-1213 | Plug field assembly, Sensor, IP67, M8, straight, male, 3-pin, A-coded, 0.14…0.34 mm², Ø 3.5…5 mm |
| ZS2000-2310 | Plug field assembly, Sensor and Power, IP65/67, M8, straight, male, 4-pin, A-coded, 0.14…0.5 mm², Ø 4…5.5 mm |
| ZS2000-2320 | Socket field assembly, Sensor and Power, IP65/67, M8, straight, female, 4-pin, A-coded, 0.14…0.5 mm², Ø 4…5.5 mm |
| ZS5300-0011 | Mounting plate for 14 small or 7 wide EtherCAT-/ EtherCAT P box modules, stainless steel, 500 mm x 130 mm x 1.5 mm |
| ZS5000-0014 | blanking plug, plastic (IP65/67), for M8 socket, green, packaging unit = 50 pieces |
| ZS5000-0010 | blanking plug, plastic (IP67), for M8 socket, packaging unit = 50 pieces |
| ZB8801-0000 | torque wrench for hexagonal plugs, adjustable |
| ZB8801-0001 | torque cable key, M8/wrench size 9, for ZB8801-0000 |
| ZK1020-0101-1000 | IP-Link connector, for flush mounted extension modules |
