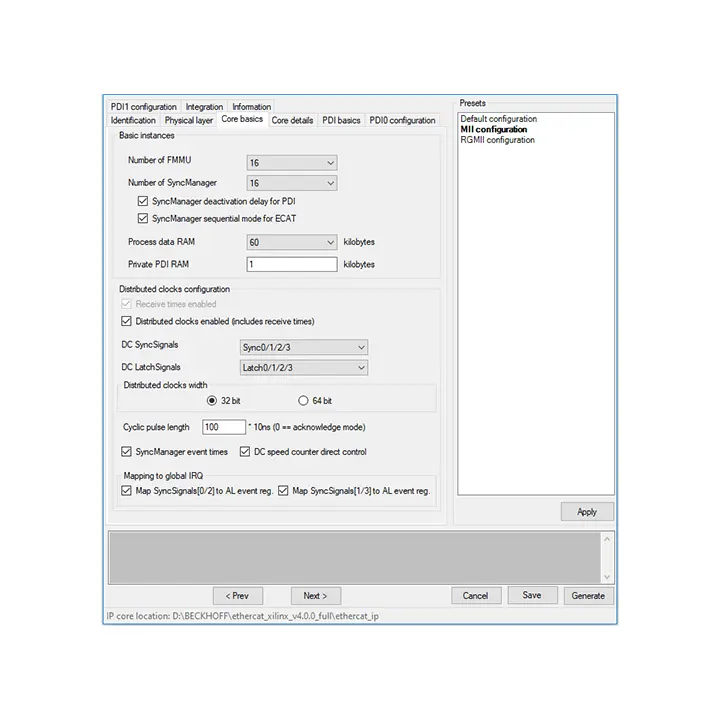

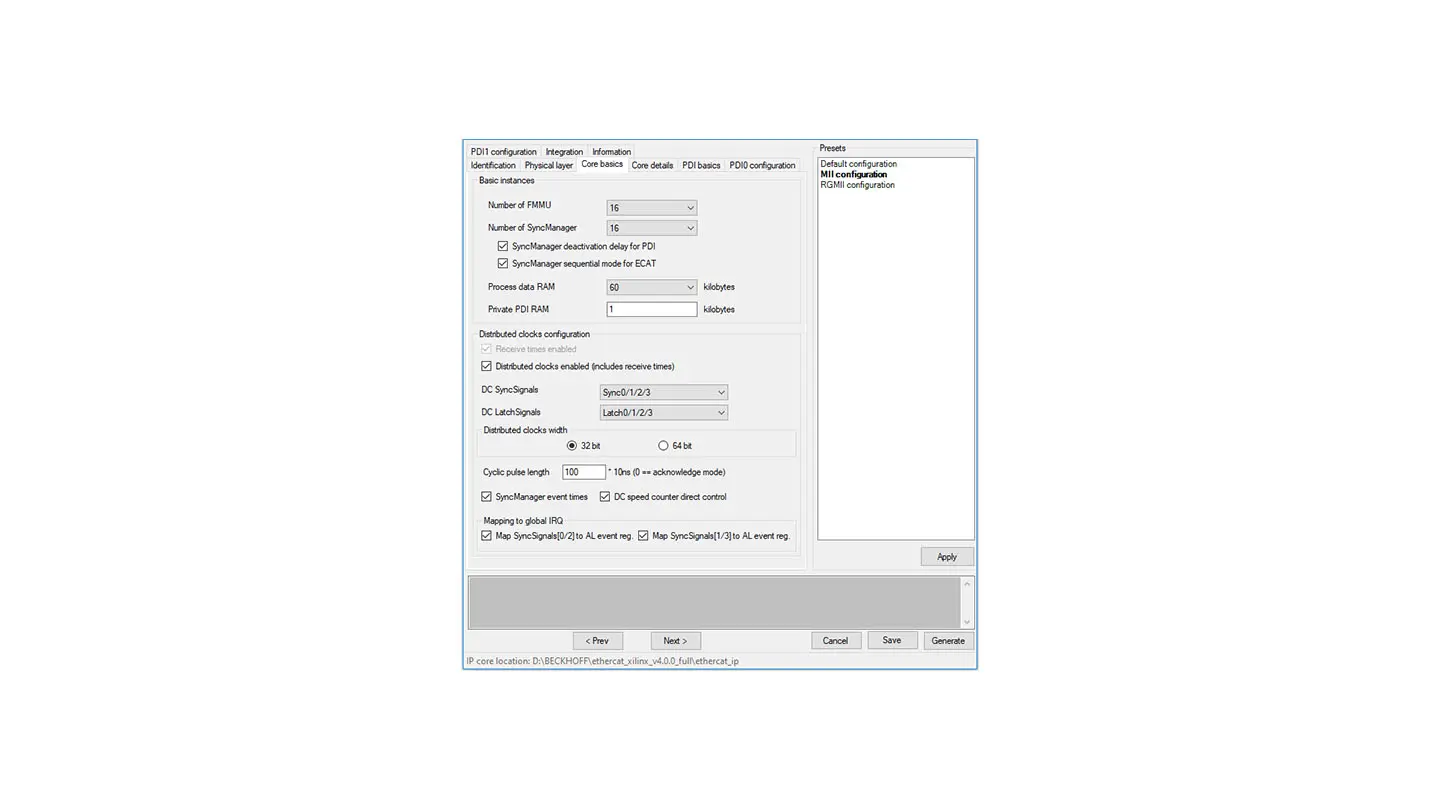

IP-ядро EtherCAT позволяет реализовать коммуникационную функцию EtherCAT и прикладные функции на FPGA (field programmable gate array, интегральная схема, содержащая программируемые логические компоненты). Функциональность EtherCAT свободно конфигурируется. IP-ядро может быть объединено с собственными проектами FPGA...
| FMMUs | 0…16 |
|---|---|
| SYNC manager | 0…16 |
| DPRAM | 0…60 KB |
| Distributed Clocks | 0…4 SYNC outputs, 0…4 latch inputs (32/64 bit) |
| Process data interfaces | PDI0: 32 bit digital I/O, SPI slave, 8/16/32 bit asynchrones µC-Interface, AMBA AXI4 interface. PDI1: 32 bit digital I/O, SPI slave, AMBA AXI4 interface. 64 bit general purpose I/O |
| Информация для заказа / ET1815ET1815 | Node-locked license without quantity limitation for using the freely configurable SubDevice EtherCAT IP core. Target hardware: selected AMD ® devices The license includes 1 year of updates and support from the date of generation of the EtherCAT IP core license. The terms of the EtherCAT IP core license agreement apply. |
| ET1815-0010 | Extension of the node-locked license (ET1815) for one additional workstation for using the freely configurable SubDevice EtherCAT IP core. Target hardware: selected AMD ® devices The maintenance runtime for the workstation extension is linked to the expiration date of the maintenance of the main license (ET1815). The terms of the EtherCAT IP core license agreement apply. |
| ET1815-0020 | One-year maintenance extension for the SubDevice EtherCAT IP core license (ET1815). The terms of the EtherCAT IP core license agreement apply. Maintenance of the IP core license must be uninterrupted in order to receive updates and support. There is no entitlement to retroactive, renewable maintenance. |
| ET1815-0021 | One-year maintenance extension for the SubDevice EtherCAT IP core license for the workstation extension (ET1815-0010). The maintenance runtime for the workstation extension is linked to the expiration date of the maintenance of the main license (ET1815). The terms of the EtherCAT IP core license agreement apply. Maintenance of the IP core license must be uninterrupted in order to receive updates and support. There is no entitlement to retroactive, renewable maintenance. |
| ET1816 | Node-locked license with quantity limitation for using the freely configurable SubDevice EtherCAT IP core. The license fee for 1,000 devices (ET1816-1000) is not included and must be ordered separately. Target hardware: selected AMD ® devices The license includes 1 year of updates and support from the date of generation of the EtherCAT IP core license. The terms of the EtherCAT quantity-based IP core license agreement apply. A quantity-based node-locked license can only be issued once per licensee. There is no workstation extension for this license. |
| ET1816-1000 | License for 1,000 devices, ET1816 required |
| ET1816-0020 | One-year maintenance extension for the SubDevice EtherCAT IP core license (ET1816). The terms of the EtherCAT quantity-based IP core license agreement apply. Maintenance of the IP core license must be uninterrupted in order to receive updates and support. There is no entitlement to retroactive, renewable maintenance. |
| ET1816-0030 | System integrator OEM license, ET1816 required |
| ET1817 | Floating license without quantity limitation for using the freely configurable SubDevice EtherCAT IP core for one workstation. Target hardware: selected AMD ® devices The license includes 1 year of updates and support from the date of generation of the EtherCAT IP core license. The terms of the EtherCAT IP core license agreement apply. |
| ET1817-0010 | Extension of the floating license (ET1817) for one additional workstation for using the freely configurable SubDevice EtherCAT IP core. Target hardware: selected AMD ® devices The maintenance runtime for the workstation extension is linked to the expiration date of the maintenance of the main license (ET1817). The terms of the EtherCAT IP core license agreement apply. |
| ET1817-0020 | One-year maintenance extension for the SubDevice EtherCAT IP core license (ET1817). The terms of the EtherCAT IP core license agreement apply. Maintenance of the IP core license must be uninterrupted in order to receive updates and support. There is no entitlement to retroactive, renewable maintenance. |
| ET1817-0021 | One-year maintenance extension for the SubDevice EtherCAT IP core license for the workstation extension (ET1817-0010). The maintenance runtime for the workstation extension is linked to the expiration date of the maintenance of the main license (ET1817). The terms of the EtherCAT IP core license agreement apply. Maintenance of the IP core license must be uninterrupted in order to receive updates and support. There is no entitlement to retroactive, renewable maintenance. |
