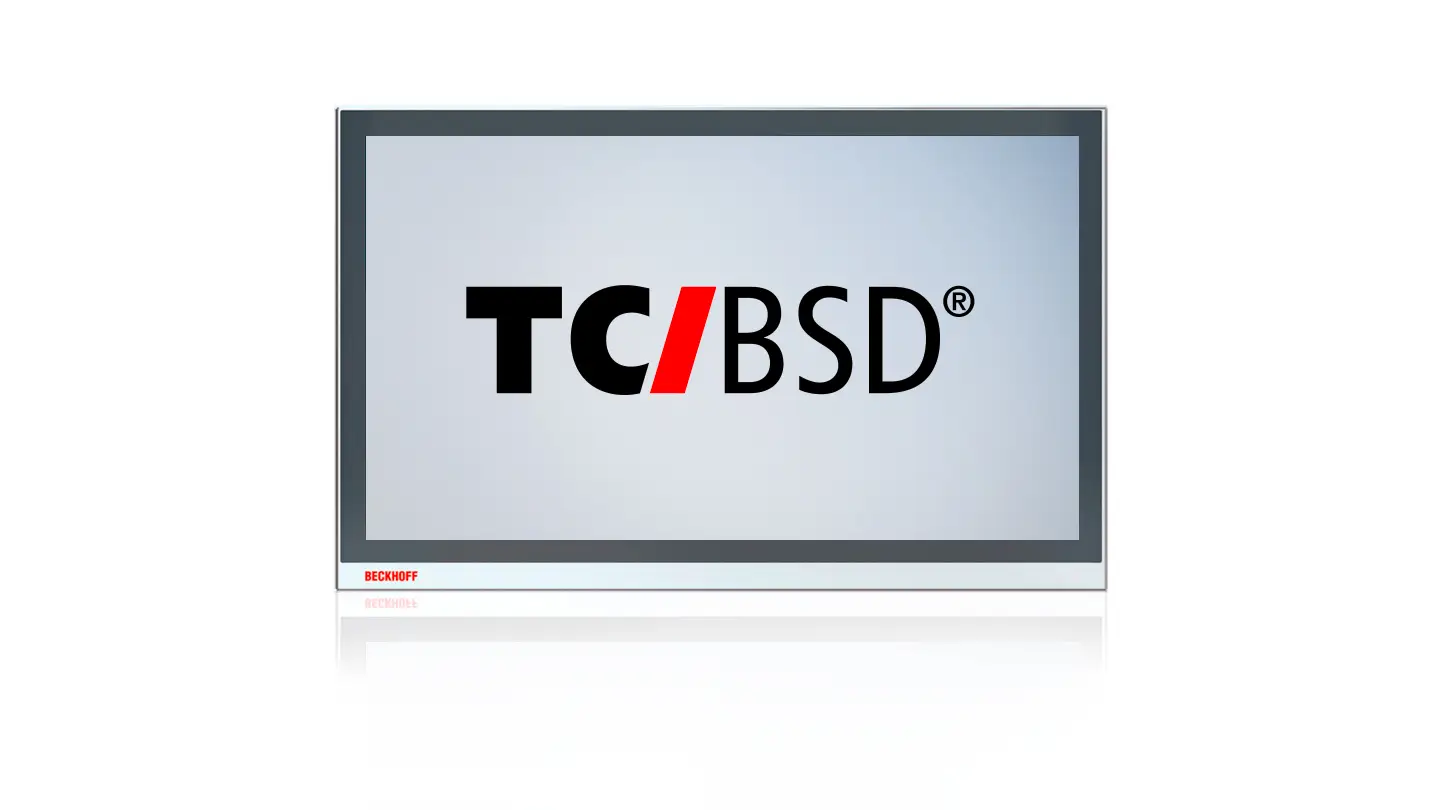

Альтернативная операционная система — TwinCAT/BSD — будет доступна для выбранных платформ промышленных ПК Beckhoff. TwinCAT/BSD объединяет среду выполнения TwinCAT с FreeBSD ®, промышленно испытанной и надежной операционной системой с открытым исходным кодом. На протяжении многих лет Windows CE была базовой...
| C9900-S603 | TwinCAT/BSD license platform level 50 for CP2xxx, CPX27xx, CP3xxx, CPX37xx, CP6706 and CP6700 panel PCs, C5210 19-inch slide-in industrial PC, C65xx, C69xx and C7015 control cabinet PCs with Intel ® Celeron ® or Intel ® Pentium ® from the 11 th generation, without RAID configuration, and from Intel Atom ® x6 with 4 cores, as well as C60xx with Intel ® Celeron ® , Intel ® Pentium ® , Intel ® Core™ i3 U and Intel Atom ® with 4 cores in all generations |
|---|---|
| C9900-S604 | TwinCAT/BSD license platform level 60 for CP22xx, CP32xx panel PCs, C5210 19-inch slide-in industrial PC, C65xx and C69x0 control cabinet PCs with Intel ® Core™ i3 from the 11 th generation, as well as C602x, C603x and C604x with Intel ® Core™ i3, Core™ i5 U or Core™ i7 U in all generations, without RAID configuration |
| C9900-S605 | TwinCAT/BSD license platform level 70 for CP22xx, CP32xx panel PCs, C5210 19-inch slide-in industrial PC, C65xx and C69x0 control cabinet PCs with Intel ® Core™ i5 from the 11 th generation, as well as C603x and C604x with Intel ® Core™ i5 in all generations, without RAID configuration |
| C9900-S606 | TwinCAT/BSD license platform level 80 for CP22xx, CP32xx panel PCs, C5210 19-inch slide-in industrial PC, C65xx and C69x0 control cabinet PCs with Intel ® Core™ i7 from the 11 th generation, as well as C603x and C604x with Intel ® Core™ i7 in all generations, without RAID configuration |
| C9900-S607 | TwinCAT/BSD license platform level 81 for C604x with Intel ® Core™ i9 from the 13 th generation, without RAID configuration |
| C9900-S620 | Guest operating system for TwinCAT/BSD Hypervisor VM preinstalled and preconfigured: Windows 10 IoT Enterprise 2021 LTSC, 64 bit, English, for C602x with Intel ® Core™ i5 or Core™ i7 of the 11 th generation, C603x with Intel ® Core™ i3, Core™ i5 or Core™ i7 of the 9 th or 11 th generation, with at least 8 GB RAM and at least 80 GB M.2 SSD. The C603x-0070 requires the special BIOS C9900-B617 or another BIOS with the BIOS setting Graphics PM Support enabled for GPU passthrough. Additionally, requires a license for the TwinCAT/BSD operating system. |
| C9900-B617 | Specific BIOS for C603x-0070 with motherboard CB6467 for running TwinCAT/BSD hypervisor based virtual machines with the BIOS setting Graphics PM Support enabled for GPU passthrough, instead of standard BIOS. Not suitable for TwinCAT under Windows. |
| C9900-S621 | Guest operating system for TwinCAT/BSD Hypervisor VM preinstalled and preconfigured: Windows 10 IoT Enterprise 2021 LTSC, 64 bit, English, for C602x with Intel ® Core™ i5 or i7 of the 8 th or 11 th generations, C603x with Intel ® Core™ i3, i5 or i7 of the 9 th or 11 th generations, C6040 with Intel ® Core™ i3, i5, i7 or i9 of the 13 th generation, CX20x2 with Intel ® Xeon ® -D and CX2043 with AMD Ryzen™. Requires at least 8 GB RAM and a storage medium of at least 80 GB. Without graphics output and without USB input of the VM via the IPC interfaces using device and GPU passthrough. Windows access via remote desktop protocol enabled. Requires additionally a license for the TwinCAT/BSD operating system. |
